Product Name:3300 XL Standard Extension Cable
Brand Name:Bently Nevada
Model Number:330130-045-01-05
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
330130-045-01-05 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Product Model |
330130-045-01-05 |
|
Product Type |
3300 XL Standard Extension Cable |
|
Cable Length |
4.5 meters (14.8 ft) |
|
Cable Type |
Armored cable |
|
Connector Type |
Gold-plated ClickLoc connector |
|
System Compatibility |
3300 XL 8 mm Proximity Transducer System |
|
Cable Material |
75Ω triaxial FEP insulated cable |
|
Armor Material |
AISI 302/304 stainless steel |
|
Operating Temperature |
-52°C to +177°C |
|
Minimum Bend Radius |
25.4 mm (1.0 in) |
|
Agency Approval |
CSA, ATEX, IECEx |
|
Signal Application |
Vibration and position monitoring |
|
Weight |
0.46kg |
|
Dimension |
27x27x3cm |

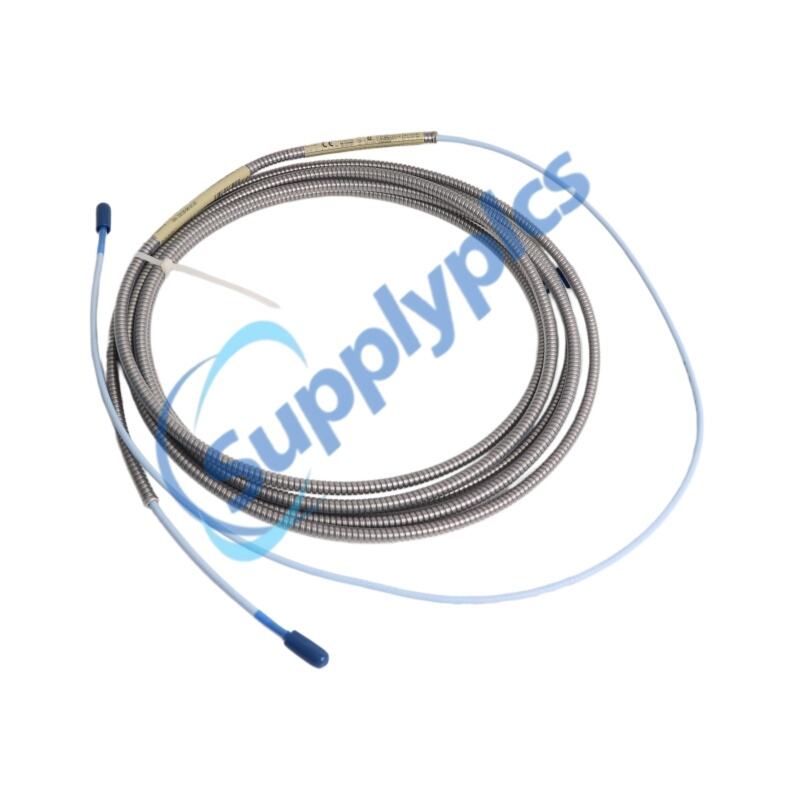

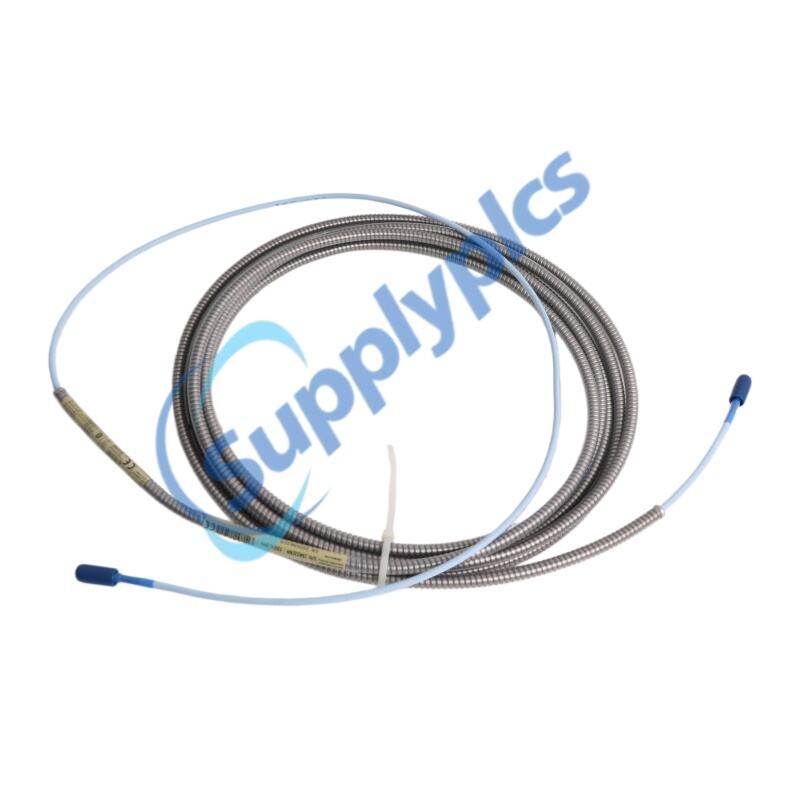

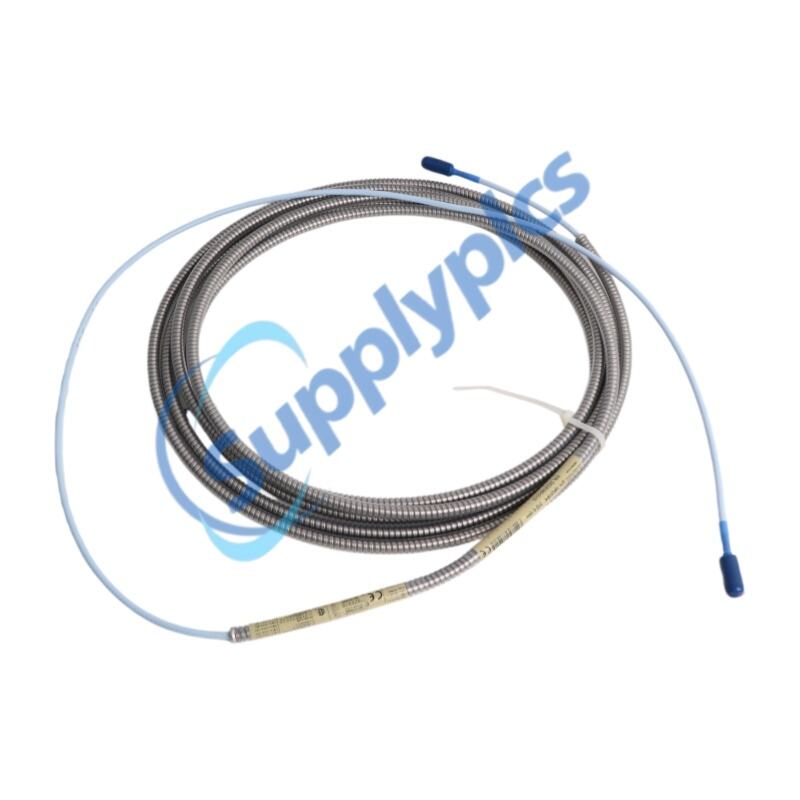

330130-045-01-05 is a high-performance extension cable designed for the Bently Nevada 3300 XL 8 mm Proximity Transducer System. Engineered for industrial vibration and shaft position monitoring, this armored extension cable ensures reliable signal transmission between the proximity probe and Proximitor sensor in demanding rotating machinery applications. Its 4.5-meter cable length and rugged stainless-steel armor provide enhanced mechanical protection and long-term operational stability.
The 330130-045-01-05 extension cable supports accurate dynamic and static measurements in turbines, compressors, motors, pumps, and other critical equipment. Featuring corrosion-resistant ClickLoc connectors, the cable enables quick installation while maintaining secure electrical connections in harsh industrial environments.
Compatible with multiple 3300 XL probes and Proximitor sensors, the 330130-045-01-05 helps maintain API 670-compliant monitoring performance. It is widely used in power generation, oil & gas, petrochemical, and heavy manufacturing industries requiring dependable condition monitoring solutions.
Q1: What is the main use of the 330130-045-01-05 cable?
A1: It is used for signal transmission in Bently Nevada 3300 XL proximity transducer systems for vibration and position monitoring.
Q2: Is the 330130-045-01-05 compatible with 3300 XL probes?
A2: Yes, it is fully compatible with 3300 XL 8 mm proximity probes and Proximitor sensors.
Q3: Does this extension cable include armored protection?
A3: Yes, the model features stainless-steel armored cable construction for enhanced durability.
Q4: What industries commonly use this extension cable?
A4: It is widely used in power generation, oil & gas, petrochemical, steel, and manufacturing industries.
Q5: What approvals does the 330130-045-01-05 support?
A5: The cable supports CSA, ATEX, and IECEx hazardous area certifications.
| Number | Describe |
|---|---|
| 148722-01 | 3300 XL test plug for checking Proximitor sensor performance through terminal strip test pin holes without disconnecting field wiring. Includes 3 color-coded 1-meter wires with banana plugs. |
| 04310310 | 3300 XL Proximitor Sensor panel-mount screw with 6-32 UNC thread forming design. Four screws required per Proximitor sensor installation. |
| 03200006 | Silicone self-fusing tape for connector insulation and environmental protection. Supplied in a 9.1-meter (10-yard) roll for easy field installation. |
| 40113-02 | Connector Protector Kit for 3300 XL 8 mm probes and extension cables, including connector protectors and installation tools. |
| 136536-01 | Connector protector adapter designed for compatibility between pre-1998 installation tools and 75Ω ClickLoc connectors. |
| 40180-02 | Connector protectors package containing 10 pairs for 3300 XL 8 mm probes and extension cables to improve environmental sealing. |
| 03839410 | 75Ω triaxial male connector protector installed on extension cables to provide environmental protection for connector assemblies. |
| 03839420 | 75Ω triaxial female connector protector for probe leads and Proximitor sensor connections, improving connector environmental resistance. |
| 04301007 | 3/8-24 probe lock nut with dual safety wire holes for secure probe fastening in vibration-intensive applications. |
| 04301008 | M10 x 1 probe lock nut with safety wire holes for reliable probe retention and mechanical stability. |
| 330153-01 | 3300 XL connector kit for 3300 XL 8 mm probes and extension cables, including male/female ClickLoc connectors, sleeves, FEP tubing, and silicone tape. |
