Product Name:Digital Input
Brand Name:Honeywell
Model Number:900G03-0102
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Honeywell |
Model Number: |
900G03-0102 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Product Model |
900G03-0102 |
|
Product Type |
AC Voltage Digital Input Module |
|
Input Channels |
16 Channels |
|
Input Voltage Range |
80 VAC to 264 VAC |
|
AC Frequency |
47 Hz to 63 Hz |
|
ON Voltage Level |
75 VAC |
|
OFF Voltage Level |
20 VAC |
|
Input Impedance |
48 KΩ Nominal |
|
Isolation |
2 Groups of 8 Inputs, 350 VAC Max |
|
Response Time |
OFF to ON: 4 ms + 1.5 line cycles |
|
Power Consumption |
5V; 130 mA Max |
|
Mounting Type |
35 mm DIN Rail |
|
Dimensions |
137 mm × 35.6 mm × 66 mm |
|
Weight |
Approx. 210 g |
|
Operating Temperature |
0°C to 60°C |
|
Certification |
CE, UL, CSA, ATEX, FM |

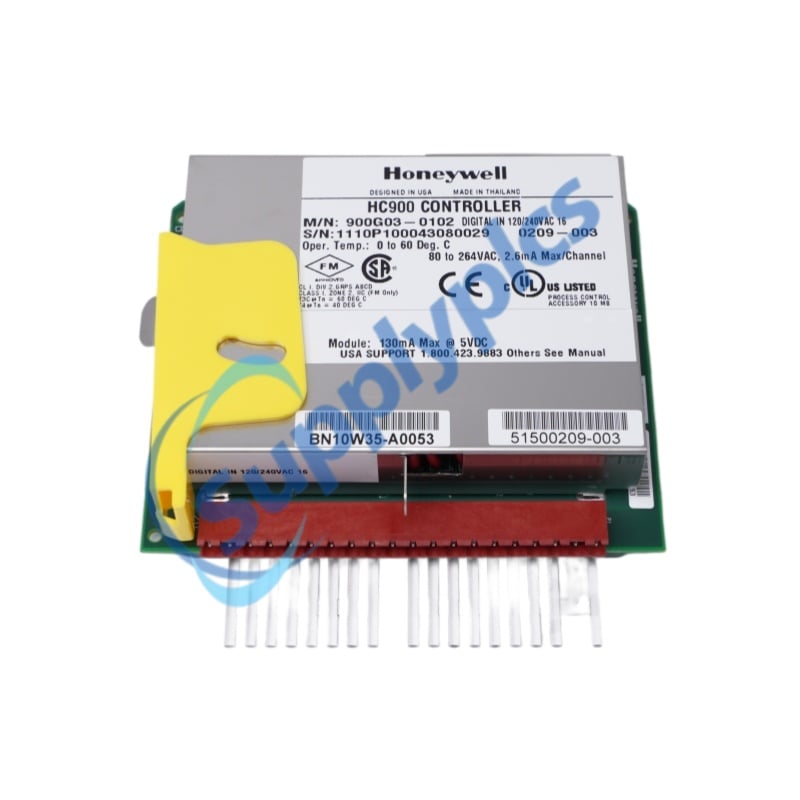

Honeywell 900G03-0102 Digital Input Module is a high-reliability 16-channel AC voltage input module designed for the ControlEdge HC900 automation platform. Engineered for industrial monitoring applications, it supports 80 to 264 VAC input signals and provides stable digital signal acquisition for demanding process control environments. The module offers fast response time, strong noise immunity, and grouped galvanic isolation for improved operational safety.
The 900G03-0102 module features dual groups of 8 isolated inputs with dedicated common terminals, allowing flexible field wiring and dependable signal transmission in distributed control systems. Integrated LED diagnostics simplify maintenance by displaying channel status, scan activity, force conditions, and fault diagnostics directly on the front panel.
Compatible with other Honeywell HC900 series modules such as 900G04-0101, 900G01-0202, and 900H03-0202, the 900G03-0102 is widely used in power generation, petrochemical automation, manufacturing systems, and industrial equipment monitoring where continuous AC signal detection and controller communication reliability are essential.
Q1: What is the main function of the 900G03-0102 module?
A1: It is a 16-channel AC digital input module used for monitoring AC voltage status signals in Honeywell HC900 control systems.
Q2: What voltage range does the 900G03-0102 support?
A2: The module supports AC input signals from 80 VAC to 264 VAC.
Q3: Is the 900G03-0102 suitable for industrial environments?
A3: Yes, it is designed for harsh industrial applications with strong EMC resistance and galvanic isolation.
Q4: Can the module be replaced while the system is powered?
A4: Yes, the ControlEdge HC900 platform supports hot insertion and removal of I/O modules under power.
Q5: Which systems are compatible with the 900G03-0102?
A5: It is compatible with the Honeywell ControlEdge HC900 automation and process control platform.
| Number | Description |
|---|---|
| 900G03-0202 | Digital Input 120/240 VAC, 16 Ch |
| 900G32-0101 | Digital Input 24VDC, 32 Ch |
| 900G01-0202 | Digital Input, Contact Type, 16 Ch |
| 900G04-0101 | Digital Input, 120/240 VAC / 125VDC, 16 Ch |
| 900H03-0202 | Digital Output, 120/240 VAC, 8 Ch |
| 900H32-0102 | Digital Output, 24VDC, 32 Ch |
| 900H01-0202 | Digital Output, Relays, 8 Ch |
| 900K01-0201 | Pulse/Frequency Module, 4 Ch |
| 900P01-0301 | Power Supply 120/240VAC, 60W |
| 900P24-0301 | Power Supply 24VDC, 60W |
| 900P01-0401 | SIL Power Supply 120/240VAC, 60W |
| 900P24-0401 | SIL Power Supply 24VDC, 60W |
| 900PSM-0200 | Power Status Module, Redundant |
| 50008930-001 | MOXA Network Switch, 8 Ports |
| 50008930-002 | MOXA Network Switch, 16 Port Multi-mode |
| 50135395-001 | MOXA IMC-101-M-SC Fiber Optic Converter |
