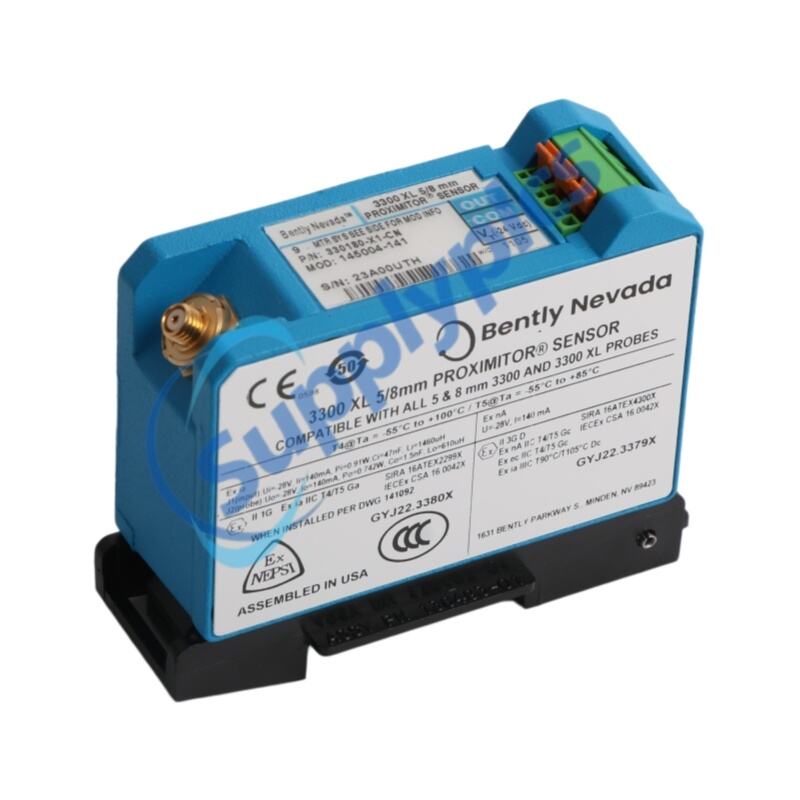

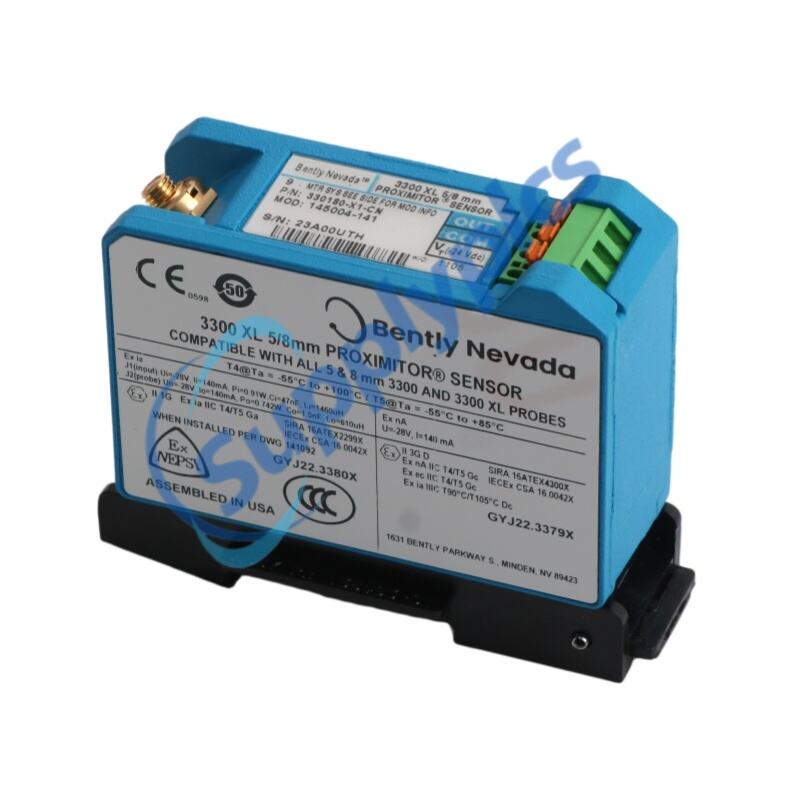

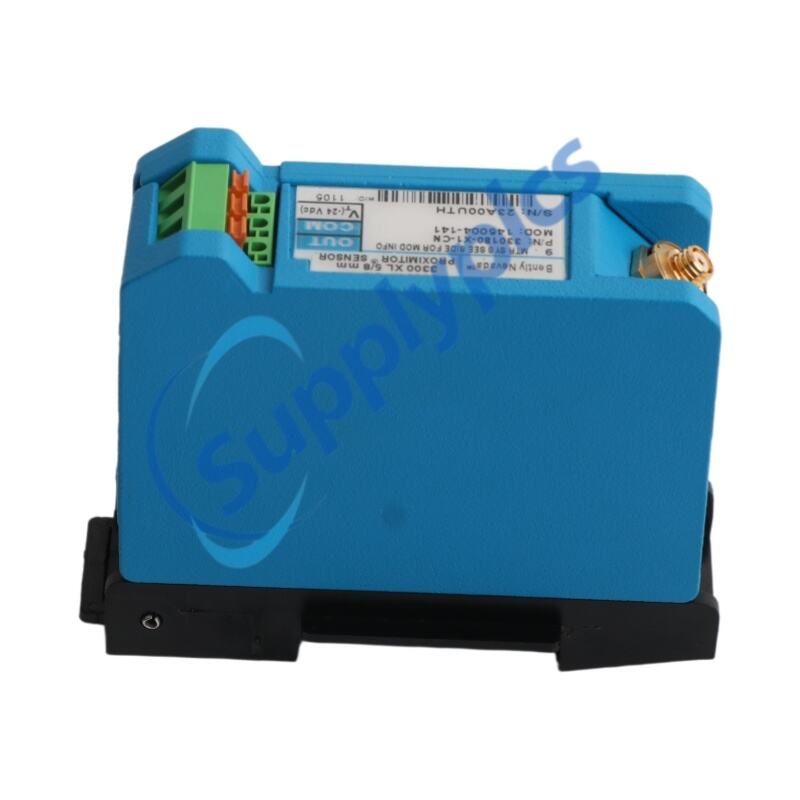

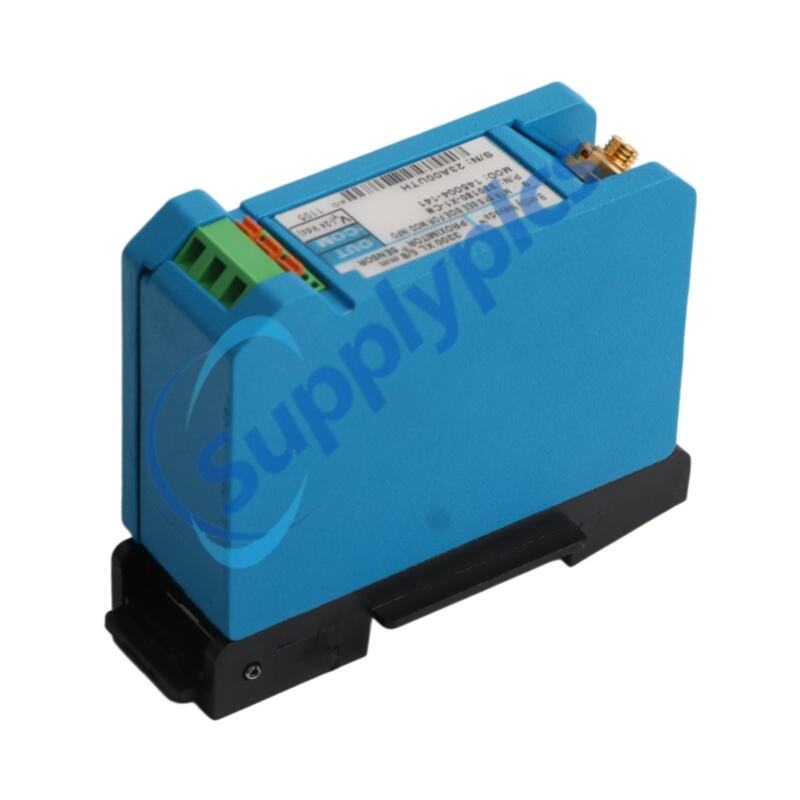

Product Name:3300 XL Proximitor Sensor
Brand Name:Bently Nevada
Model Number:330180-X1-CN MOD:145004-141
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
330180-X1-CN MOD:145004-141 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Item | Specification |
|---|---|
| Model | 330180-X1-CN MOD:145004-141 |
| Product Type | Proximitor Sensor |
| Series | 3300 XL Monitoring System |
| Operating Voltage | -17.5 Vdc to -26 Vdc |
| Power Consumption | Approx. 12 mA max |
| Dimensions (H×W×D) | N/A (depends on DIN/panel mount configuration) |
| Weight | ~246 g (sensor unit approx.) |
| Mounting Type | DIN rail / Panel mount compatible |
| Output Type | Analog voltage proportional signal |
| Protection | High EMI/RFI immunity design |
The 330180-X1-CN MOD:145004-141 is part of the advanced 3300 XL Proximitor Sensor series, designed for high-precision vibration and position monitoring in industrial machinery. It works as a key interface within the proximity transducer system, converting probe signals into stable voltage output proportional to shaft displacement.
The 3300 XL Proximitor Sensor supports flexible installation with DIN-rail or panel mounting options and features strong immunity to electromagnetic and radio frequency interference. Its improved electrical isolation design eliminates the need for additional isolator plates, reducing installation complexity and cost.
Compatible with 3300 XL 8 mm probes and extension cables, the system ensures full interchangeability without recalibration. It is widely used in turbine monitoring, compressor systems, and rotating equipment protection, delivering reliable performance in harsh industrial environments with long-term operational stability.
Q1: What is the main function of 330180-X1-CN MOD:145004-141?
A1: It processes proximity probe signals and converts them into accurate voltage outputs for vibration and position monitoring.
Q2: Is it compatible with other 3300 XL components?
A2: Yes, it is fully compatible with 3300 XL probes, extension cables, and transducer systems.
Q3: What mounting options are available?
A3: It supports both DIN rail installation and traditional panel mounting configurations.
Q4: Can it operate in high-interference environments?
A4: Yes, it features strong EMI/RFI immunity suitable for industrial applications.
Q5: Does it require calibration when replaced?
A5A: No, the system supports interchangeability without the need for recalibration.
| Number | Description |
|---|---|
| 141078 | 3300 XL 8 mm and 3300 5 mm Proximity Transducer System Manual |
| 175751 | 3300 XL Multi-Purpose Stainless Steel Housing, 12”×12”×6”, supports up to 8 DIN-mounted or 6 panel-mounted Proximitor Sensors, available with ATEX Zone 0/1 certification |
| 176467 | 3300 XL Multi-Purpose Stainless Steel Housing, 12”×8”×6”, supports up to 4 Proximitor Sensors in DIN or panel mount, ATEX Zone 0/1 certified |
| 330181 | 3300 XL Multi-Purpose Stainless Steel Housing, 13”×9.5”×7”, supports up to 8 DIN or 6 panel-mounted sensors, hazardous area approvals (ATEX Zone 0/1, North American Division 1/2) |
| 02120015 | Bulk field wire, 1.0 mm² (18 AWG), 3-conductor twisted shielded cable with drain wire, customizable length |
| 138492-01 | Replacement panel-mount mounting pad for Proximitor Sensor installation |
| 138493-01 | Replacement DIN-mount mounting pad for Proximitor Sensor installation |
| 148722-01 | 3300 XL test plug with 3-pin adapter and banana plugs for sensor performance testing without removing field wiring |
| 04310310 | Panel-mount screw for 3300 XL Proximitor Sensor, 6-32 UNC thread forming type, 4 screws required per sensor |
| 03200006 | Silicone self-fusing tape, 9.1 m roll, used for connector insulation and environmental protection |
| 40113-02 | Connector Protector Kit for 3300 XL 8 mm probes and extension cables, includes tools and protectors |
| 136536-01 | Connector protector adapter for compatibility with pre-1998 installation tools and 75Ω ClickLoc connectors |
| 40180-02 | Connector protectors package (10 pairs) for 3300 XL 8 mm probes and extension cables |
| 03839410 | 75Ω triaxial male connector protector for extension cable-side environmental protection |
| 03839420 | 75Ω triaxial female connector protector for probe-side or Proximitor sensor connection protection |
