Bently Nevada 330190-045-01-CN 3300 XL Extended Temperature Range (ETR) Extension Cable Original new

Bently Nevada 330190-045-01-CN 3300 XL Extended Temperature Range (ETR) Extension Cable Original new

Product Name:3300 XL (ETR) Extension Cable

Brand Name:Bently Nevada

Model Number:330190-045-01-CN

Country of Origin: USA

Warranty: 12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

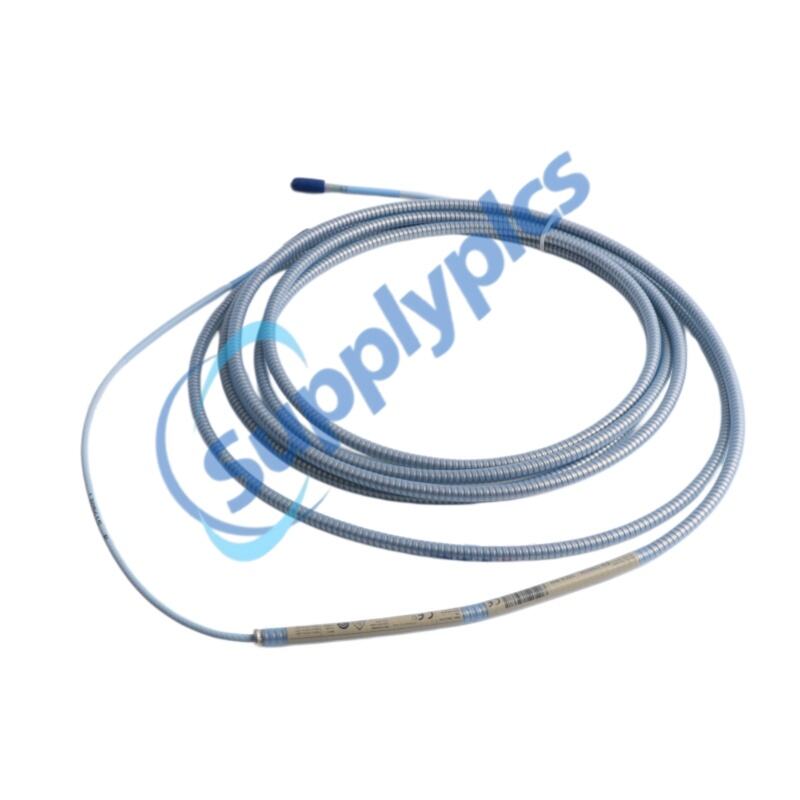

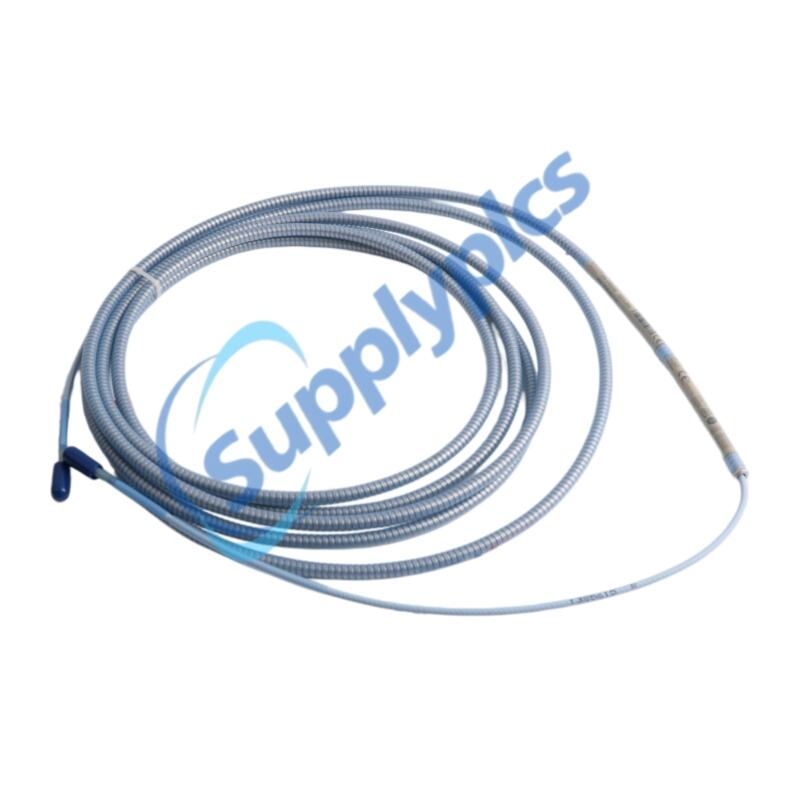

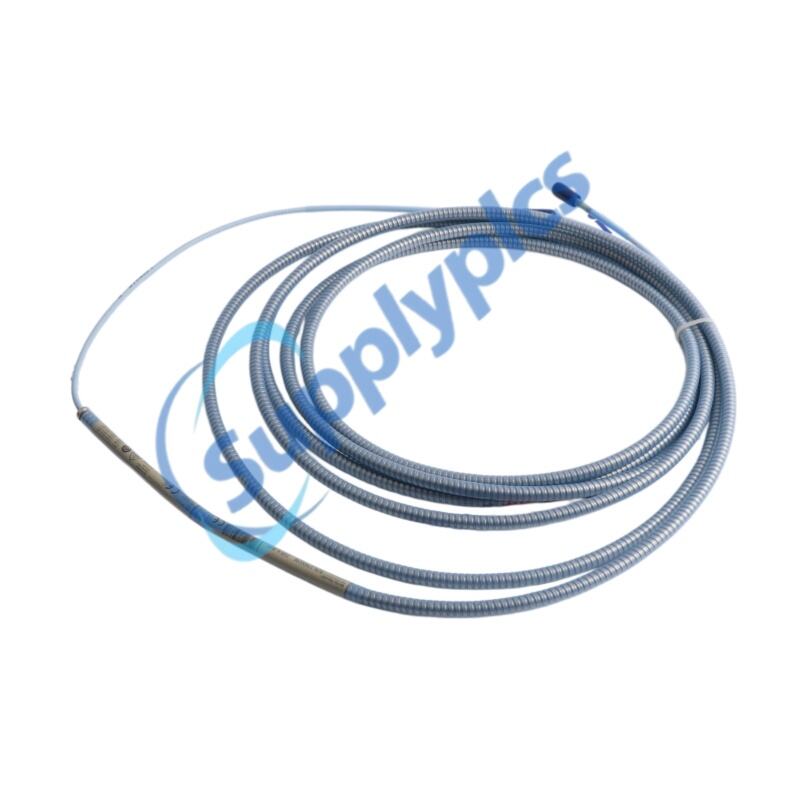

bently nevada 330190 045 01 cn 3300 xl extended temperature range etr extension cable original new-1

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Spares
Recommended Products

Overview

Brand Name:	Bently Nevada
Model Number:	330190-045-01-CN
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Item	Specification
Model	330190-045-01-CN
Product Type	ETR Extension Cable (3300 XL 8 mm system)
Cable Length	4.5 m
Cable Type	Standard or Armored option
Conductor Type	75Ω triaxial cable
Operating Temperature	-52°C to +260°C
Connector Type	Miniature ClickLoc coaxial
Insulation Material	PFA / FEP (depending on variant)
Weight	0.44kg
Minimum Bend Radius	25.4 mm
Compliance	CE, RoHS, API 670 compatible
Dimension	28x27x2cm

Description

330190-045-01-CN is an extended temperature range (ETR) extension cable designed for the Bently Nevada 3300 XL 8 mm proximity transducer system. It ensures stable signal transmission between the probe and Proximitor sensor, maintaining accurate vibration and position monitoring in demanding industrial environments.

The 3300 XL 8 mm ETR system, including 330190-045-01-CN, supports high-performance eddy current measurement for machinery such as turbines, compressors, and generators. It is engineered for harsh operating conditions where elevated temperature resistance and signal stability are critical for continuous monitoring.

Built for reliability, 330190-045-01-CN supports armored or standard cable configurations and is compatible with API 670-compliant systems. It provides robust mechanical strength, EMI resistance, and long-distance signal integrity, making it suitable for critical asset protection and predictive maintenance applications.

Applications

Power plants: Used for generator set vibration monitoring and protection systems
Substations: Enables electrical signal acquisition and line protection control
Chemical plants: Supports intrinsically safe process monitoring and automation systems
Steel mills: Performs stable signal transmission in high temperature and EMI environments
Machinery manufacturing plants: Applied in automated production lines and robotic systems

Features

High-temperature extended range design up to 260°C
Low-loss 75Ω triaxial signal transmission
Optional armored protection for harsh environments
ClickLoc connector for fast and secure installation
EMI/RFI resistant construction for industrial reliability

Functions

Transfers probe signal to Proximitor sensor
Maintains accurate vibration and displacement measurement
Supports continuous condition monitoring of rotating machinery
Ensures stable output under thermal and electrical stress
Enhances system durability in critical industrial operations

FAQ

Q1: What is 330190-045-01-CN used for?
A1: It is an ETR extension cable used in 3300 XL 8 mm systems for reliable signal transmission.

Q2: What temperature range does 330190-045-01-CN support?
A2: It supports extended operation up to +260°C in harsh industrial environments.

Q3: Is 330190-045-01-CN compatible with all 3300 XL probes?
A3: Yes, it is compatible with standard 3300 XL 8 mm probe and Proximitor sensor systems.

Q4: What cable types are available for 330190-045-01-CN?
A4: It is available in standard and armored cable configurations.

Q5: Where is 330190-045-01-CN commonly applied?
A5: It is widely used in power plants, chemical plants, steel mills, and machinery automation systems.

Spares

Number	Description
04310310	3300 XL Proximitor Sensor panel-mount screw, 6-32 UNC thread-forming mounting screw; four screws required per sensor, supplied with panel-mount housings.
03200006	Silicone self-fusing tape, 9.1 m roll, used for connector protection, provides electrical insulation and environmental sealing.
40113-02	Connector Protector Kit for 3300 XL 8 mm probes and extension cables, includes protectors and installation tools.
136536-01	Connector protector adapter, allows use of pre-1998 installation tools with 75Ω ClickLoc connectors.
40180-02	Connector protectors package, includes 10 pairs for 3300 XL 8 mm probes and extension cables.
03839410	75Ω triaxial male connector protector, provides environmental protection for extension cable connections.
03839420	75Ω triaxial female connector protector, protects probe and extension cable connections from environmental exposure.
04301007	3/8-24 probe lock nut with safety wire holes, designed to secure probe installation with safety wire.
04301008	M10 x 1 probe lock nut with safety wire holes, used to secure probe installation in industrial applications.
330153-01	3300 XL connector kit including male/female ClickLoc connectors, sleeves, slit FEP tubing, and silicone tape.
330153-09	3300 XL ETR connector kit for high-temperature applications, includes connectors, high-temp tubing, and silicone tape.
163356	Connector Crimp Tool Kit with multi-connector inserts and installation instructions, compatible with 330153 kits.
