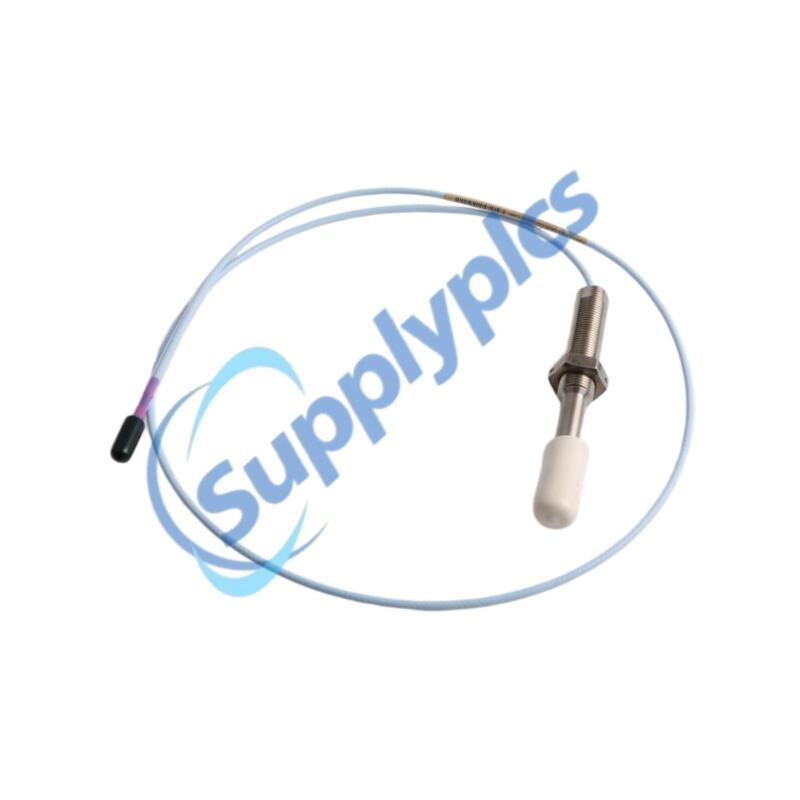

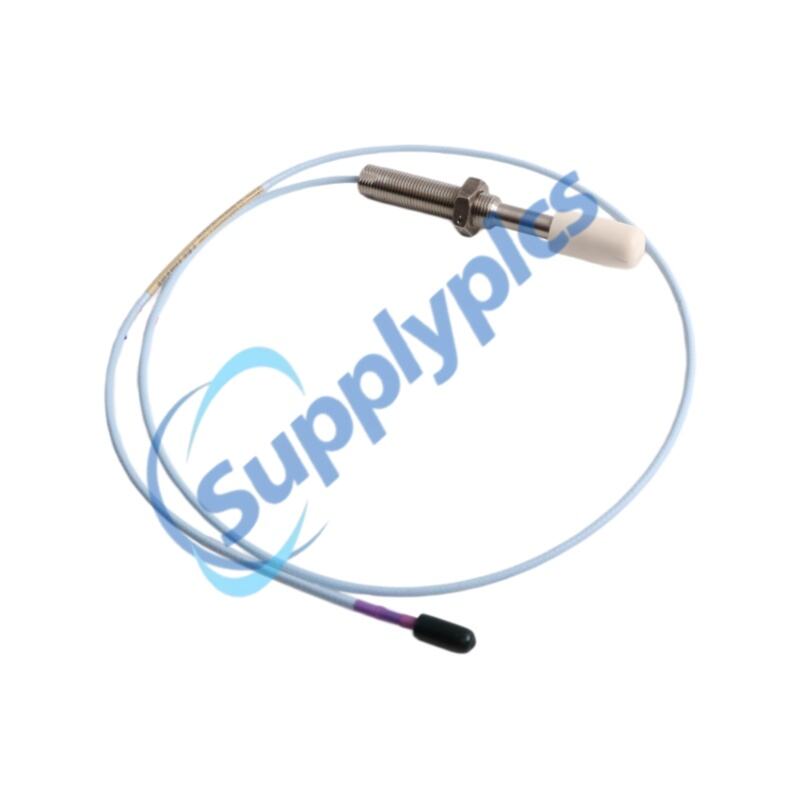

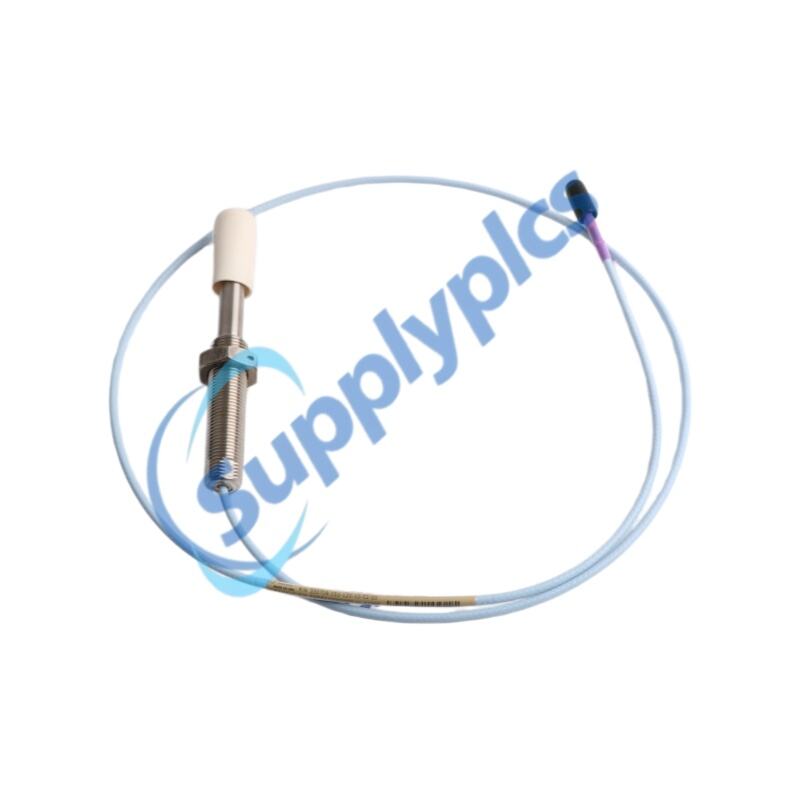

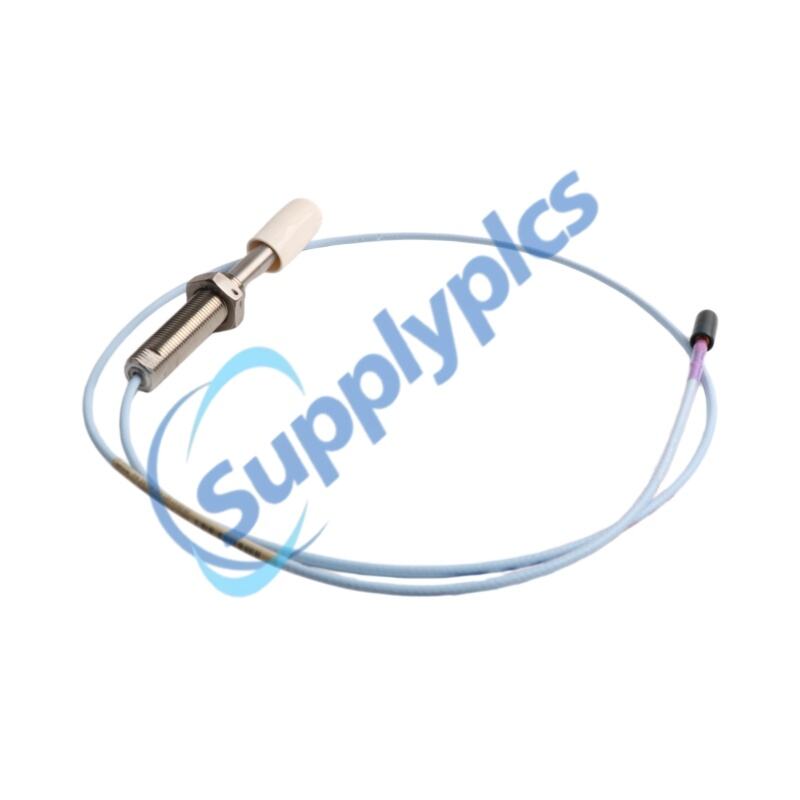

Product Name:3300 XL 11 mm Proximity Probes
Brand Name:BENTLY NEVADA
Model Number:330709-050-120-10-02-00
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
330709-050-120-10-02-00 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Item |
Details |
|
Model |
330709-050-120-10-02-00 |
|
Series |
3300 XL 11 mm Proximity Probe |
|
Thread Type |
M16 x 1.5 |
|
Armor |
Without armor |
|
Total Cable Length |
5.0 m (typical option “050”) |
|
Case Length |
120 mm option |
|
Unthreaded Length |
50 mm option |
|
Output Sensitivity |
3.94 V/mm (100 mV/mil) |
|
Linear Range |
0.5 – 4.5 mm |
|
Operating Temp |
-52°C to +177°C |
|
Weight (Probe) |
0.16kg |
|
Connector Type |
ClickLoc coaxial |
|
Dimension |
2.7x2.3x123cm |
The 330709-050-120-10-02-00 is part of the Bently Nevada 3300 XL 11 mm proximity probe series, engineered for high-accuracy vibration and position monitoring in rotating machinery. Designed with an M16 x 1.5 threaded housing, the 330709 variant ensures stable mounting and reliable signal transmission in demanding industrial environments.
This proximity transducer system delivers non-contact measurement performance for shaft vibration, axial displacement, and phase reference applications. Its 11 mm tip design provides an extended linear measurement range compared to standard 8 mm probes, improving stability in turbine and compressor monitoring systems.
Built for compatibility with the 3300 XL Proximitor Sensor and extension cable system, 330709-050-120-10-02-00 supports long-term reliability in critical assets such as power generation, petrochemical processing, and heavy machinery systems.
Q1: What is 330709-050-120-10-02-00 used for?
A1: It is used for non-contact vibration and shaft position measurement in rotating machinery systems.
Q2: Is the 330709 probe compatible with 3300 XL systems?
A2: Yes, it is fully compatible with Bently Nevada 3300 XL Proximitor Sensor systems.
Q3: What industries commonly use this probe?
A3: It is widely used in power generation, petrochemical plants, steel mills, and industrial automation.
Q4: Does the probe support harsh environments?
A4: Yes, it is designed for high temperature, high vibration, and EMI-heavy industrial conditions.
Q5: What is the advantage of the 11 mm tip design?
A5: It provides a longer linear range and improved stability compared to standard 8 mm probes.
| Number | Description |
|---|---|
| 40971-04 | 50 Ω cable with two BNC (M) connectors. Used with adapter 01609137 and 01609138 for checking transducer system performance from Proximitor Sensor test pin holes. |
| 04310310 | 3300 XL Proximitor Sensor panel-mount screws. Includes four 6-32 UNC thread forming mounting screws for standard 3300 XL housings. |
| 03200006 | Silicone self-fusing tape (9.1 m / 10 yd roll). Provides electrical isolation and environmental protection for connectors. Not recommended inside machine casing. |
| 40113-02 | Connector Protector Kit for 3300 XL probes and extension cables, including connector protectors and installation tools. |
| 136536-01 | Connector protector adapter enabling compatibility between legacy 3300 connector kits and 3300 XL probe/cable connectors. |
| 40180-02 | Connector protectors package containing 10 pairs of protective connector sets for 3300 XL probes and extension cables. |
| 03839410 | Male connector protector installed on extension cable to protect probe-to-cable connection from environmental contamination. |
| 03839420 | Female connector protector installed on probe lead or extension cable to ensure environmental sealing of connector joints. |
| 330153-01 | 3300 XL connector kit including male/female ClickLoc connectors, sleeves, and silicone tape for probe and extension cable assembly. |
| 163356 | Connector crimp tool kit including ClickLoc inserts and installation instructions, supplied with protective carrying case. |
