Product Name: Dynamic Pressure Monitor
Brand Name: Bently Nevada
Model Number: 3500/64M 140734-05
Place of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18020776782
Email：[email protected]
Commercial Terms
Minimum Order Quantity |
1 Piece |
Price |
Contact for Winnie |
Packaging Details |
Original new Factory Sealed |
Delivery Time |
3–7 Days |
Payment Terms |
T/T |
Shipping Method |
DHL / FedEx / UPS / TNT |
Supply Ability |
In stock |

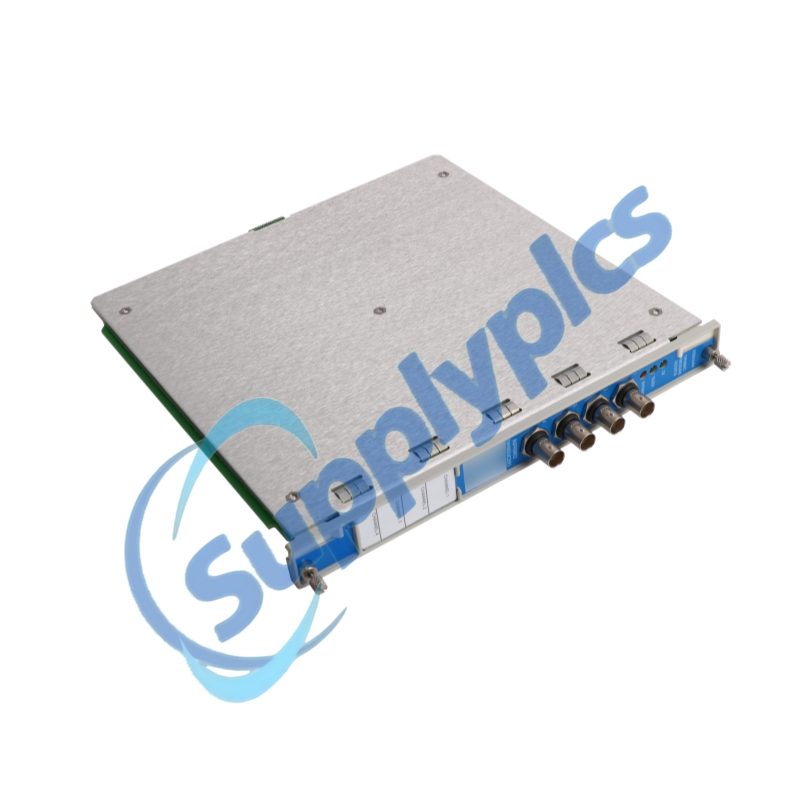

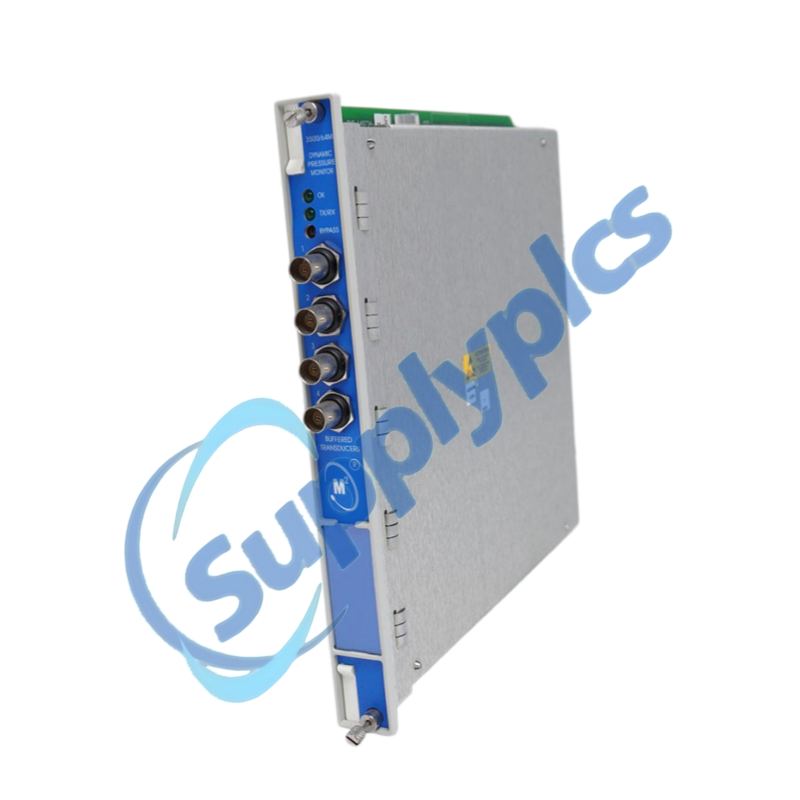

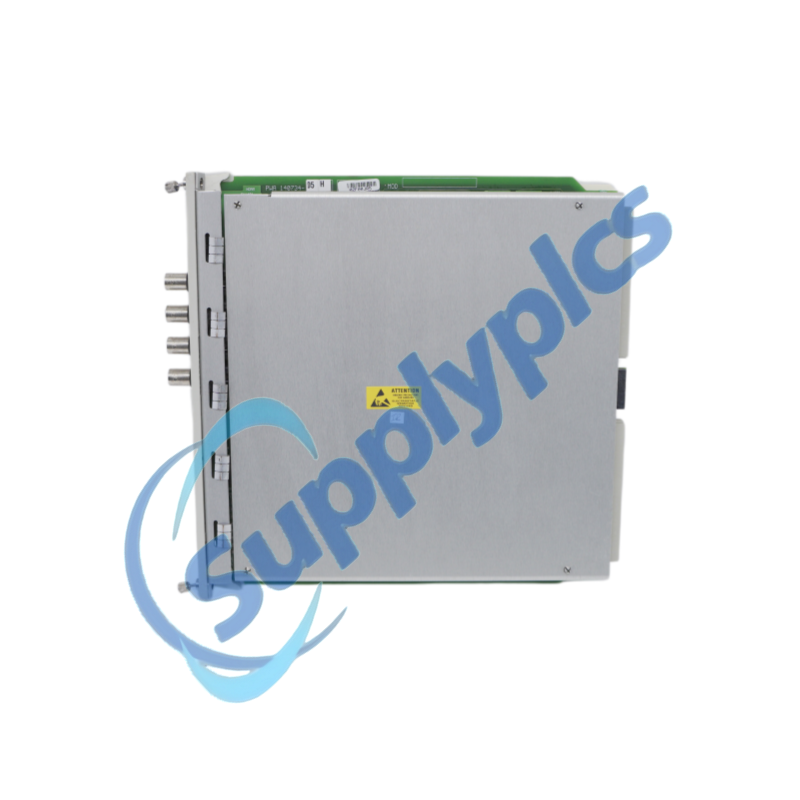

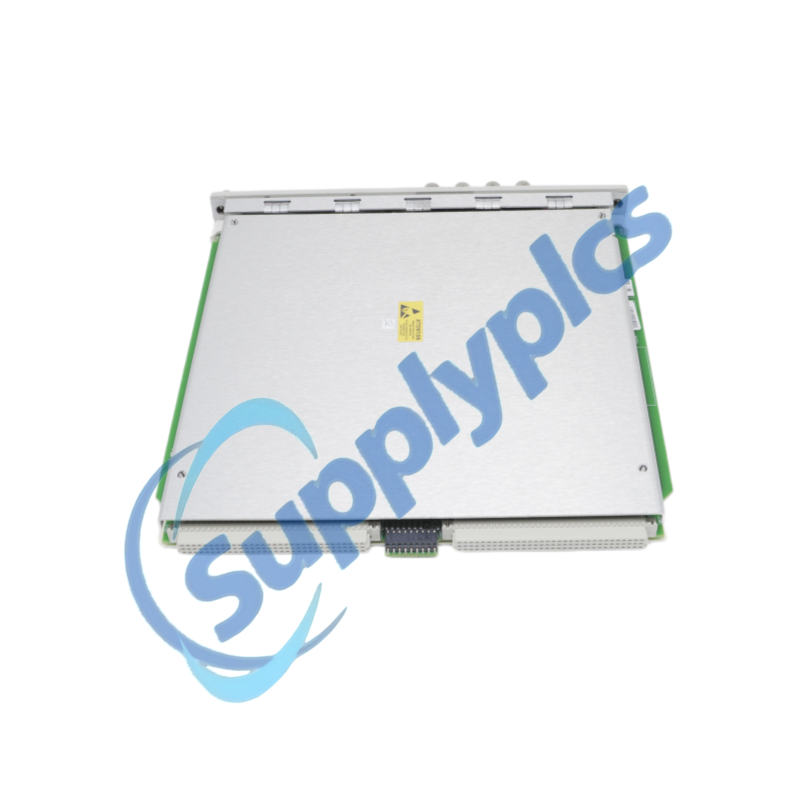

The Bently Nevada 3500/64M 140734-05 Dynamic Pressure Monitor is a high-performance monitoring module designed for the Bently Nevada 3500 machinery protection system. It is used to measure and condition signals from dynamic pressure transducers in industrial rotating machinery environments.
The module processes low-level pressure signals and converts them into reliable monitoring data for condition analysis and protection logic. It supports both 3-wire and 2-wire transducer configurations, with compatibility across a wide impedance range and standardized voltage compliance from 0 to +12 Vdc across load (0–600 Ω).
Designed for integration into the 3500 rack system, it provides accurate dynamic pressure measurement across a wide frequency spectrum, making it suitable for high-speed machinery diagnostics.
|
Sales |
|
|
|
Jim Pei |
| Product Name | Bently Nevada 3500/64M 140734-05 Dynamic Pressure Monitor |
| Manufacturer | Bently Nevada |
| Product Type | Dynamic Pressure Monitor |
| Part Number | 3500/64M 140734-05 |
| Weight | 0.84kg |
| Estimated shipping dimensions | 2.5x25.7x24cm |
| Place of shipment | Xiamen, China |
| Country of origin | USA |
| VoltageCompliance | 0 to +12 Vdc range across loadLoad resistance is 0 to 600 Ω |
| Low mode | 5 Hz to 4 KHz |
| High mode | 10 Hz to 14.75 KHzFixed low pass |
| High pass | 10-pole (200dB per decade,60 dB per octave) |
| 3 wiretransducer | 10 kΩ |
| 2 wire | 1.5 MΩ to 3.5 MΩ typical |
| Dynamicpressure | 100 mV/psi (1.45 mV/mBar) |
| Output Impedance | 550 Ω |
| 3 wire | -24 Vdc |
The 3500/64M 140734-05 Dynamic Pressure Monitor delivers high-performance signal processing across a wide operational frequency range, supporting both low-frequency structural pressure changes and high-frequency dynamic events. Its dual-mode frequency capability (5 Hz to 14.75 kHz) ensures accurate detection of both slow process variations and rapid pressure spikes.
Advanced filtering technology, including a 10-pole high-pass filter with steep attenuation (200 dB/decade), significantly reduces noise and improves signal clarity. The system maintains precise sensitivity at 100 mV/psi, enabling high-resolution pressure monitoring in demanding applications.
Electrical design supports flexible transducer compatibility, including 2-wire and 3-wire configurations, while maintaining stable operation under a wide impedance range. The module is engineered for integration within the 3500 rack system, ensuring consistent performance, reliable data processing, and efficient machinery protection in industrial environments.
