Bently Nevada 3300 XL NSv 330904-00-10-50-02-05 M8x1 Armored Proximity Probe 5.0 m

Bently Nevada 3300 XL NSv 330904-00-10-50-02-05 M8x1 Armored Proximity Probe 5.0 m

SIEMENS · 3300 XL NSv 330904-00-10-50-02-05 M8x1 Armored Proximity Probe, 5.0 m	Metric probe M8x1 ARMORED 5.0 m standard cable
Case: 100 mm · Unthreaded length: 0 mm · Approval option: Multiple Approvals
Order check: Confirm the complete six-field part number, matching Proximitor Sensor, extension-cable plan and target material before quotation. Email Inquiry WhatsApp [email protected] \| +86 18159889985

Overview
Applications
Features
Data
Construction
Wiring
Environment
FAQ
Models
Recommended Products

Official product overview

3300 NSv metric armored proximity probe

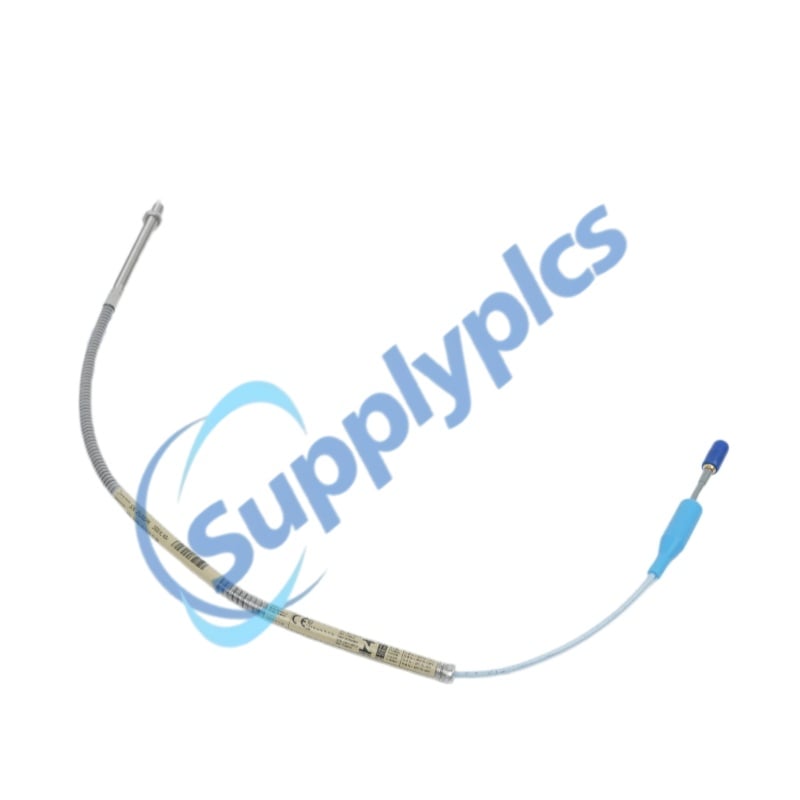

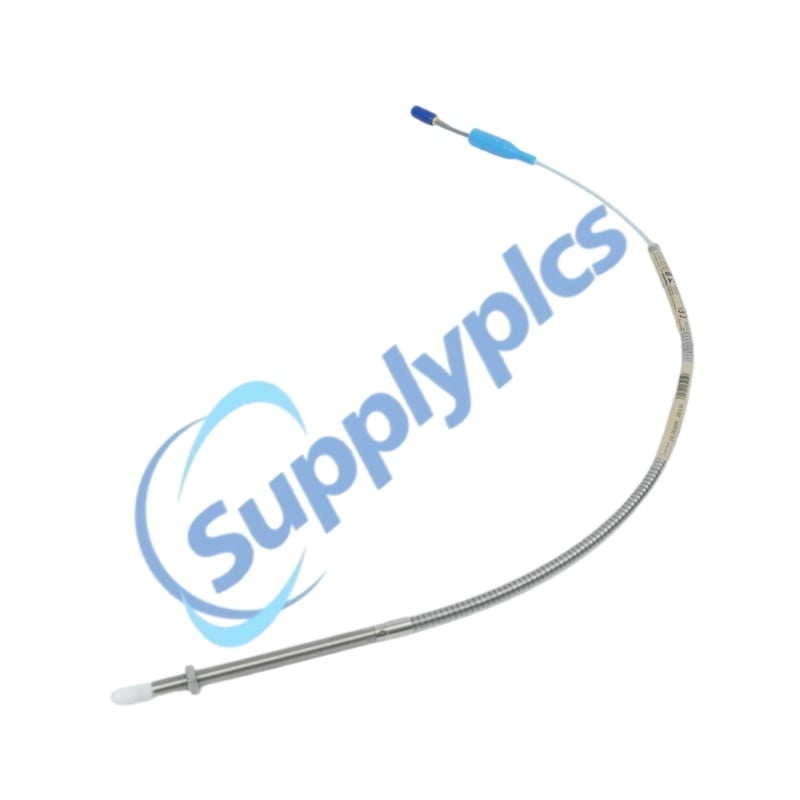

Bently Nevada 330904-00-10-50-02-05 is a standard-mount 3300 NSv proximity probe with an M8x1 thread and stainless-steel armor. The coded configuration specifies 0 mm unthreaded length, 100 mm overall case length, 5.0 m total probe length, a miniature coaxial ClickLoc connector with standard cable, and the Multiple Approvals option.

Lifecycle note: Current supply status, quoted-unit condition and commercial terms are subject to verification.

Applications

System role

Tight-clearance machinery measurements

Use within a complete 3300 XL NSv proximity transducer system for machinery applications with tight installation requirements.
Applications described by Bently Nevada include centrifugal air compressors, refrigeration compressors and process gas compressors.
Support radial vibration, radial position or axial position measurement only when the complete probe, cable, Proximitor Sensor, target and mounting geometry are correctly engineered.
Use the armored metric probe where the M8x1 thread, 100 mm case and 5.0 m total probe length match the installation.

Selection note: Suitability depends on the complete transducer system, target material, shaft geometry, probe spacing and hazardous-area requirements.

Features

PRODUCT-SPECIFIC DESIGN

Features

The selected probe combines metric mounting, protected cable construction and a coded electrical interface.

M8x1 metric thread Standard-mount probe case with a 13 mm lock nut and 7 mm wrench flats.	Armored lead Flexible stainless-steel armor protects the probe lead while preserving a 25.4 mm minimum bend radius.	100 mm case Option 10 defines the overall metric case length.
5.0 m lead Option 50 defines the total probe length and must coordinate with the complete NSv system.	ClickLoc termination Gold-plated brass connector locks in place; option 02 uses standard cable without the protector option.	Multiple Approvals Option 05 requires certificate scope to be checked for the destination and installation.

Data

Siemens data sheet

Key technical values

Use the exact article number and the official Siemens data sheet when validating a project.

Official product type	3300 NSv proximity probe, M8x1 thread, with armor
Unthreaded length option 00	0 mm
Overall case length option 10	100 mm
Total length option 50	5.0 m (16.4 ft)
Connector / cable option 02	Miniature coaxial ClickLoc connector, standard cable
Approval option 05	Multiple Approvals
Probe tip / case	PPS tip; AISI 304 stainless-steel case
Probe cable	75 ohm coaxial, FEP insulated
Minimum bend radius	25.4 mm (1.0 in), with or without armor
M8x1 thread engagement	12 mm maximum
Probe case torque	5.1 N m recommended; 7.3 N m maximum
System performance reference	1.5 mm linear range; 7.87 V/mm average scale factor; 1.0 mm recommended gap, only with the matching NSv system under datasheet conditions

Construction

Armored probe, cable and ClickLoc interface

The probe uses an M8x1 stainless-steel case, PPS tip, 75 ohm FEP-insulated coaxial cable and flexible stainless-steel armor. The option 02 termination is a miniature coaxial ClickLoc connector on standard cable without the connector-protector option. The matching probe and extension-cable length must coordinate with the selected 3300 XL NSv Proximitor Sensor system length.

Interface check: Confirm connector protection, extension-cable requirement, total system length, target material and monitor wiring before installation.

Wiring

INSTALLATION SEQUENCE

Wiring

Verify mechanical fit first, then protect the cable and coordinate the complete electrical chain.

INSTALL

Confirm M8x1 thread and 100 mm case clearance.
Keep thread engagement at or below 12 mm.
Use 5.1 N m recommended probe-case torque.
Maintain at least 25.4 mm cable bend radius.
Coordinate probe plus extension length with the Proximitor Sensor.

AVOID

Do not exceed 7.3 N m maximum torque.
Do not force a tighter bend into the armored lead.
Do not assume option 02 includes a connector protector.
Do not mix probe, extension cable and Proximitor lengths by appearance.
Do not assume calibration for a non-AISI 4140 target.

Connector protectors are recommended for junctions. Confirm protector or approved sealing method for the actual environment.

Environment

Protection and environment

Installation conditions

Apply the limits and approvals stated for the exact Siemens article.

Probe operating temperature	-52 to +177 °C
Probe storage temperature	-52 to +177 °C
Low-temperature caution	Sustained exposure below -34 °C may cause premature pressure-seal failure
Humidity	100% condensing, non-submersible when connectors are protected
Pressure seal	Probe is designed to seal differential pressure but is not pressure-tested before shipment
Approvals	Option 05 Multiple Approvals; verify exact country and product certificate scope before quotation
EMC / RoHS system reference	Confirm applicability from current Bently Nevada declarations for the complete installation

Engineering note: If a pressure-seal test or application-specific certification is required, request it before quotation and obtain written confirmation.

FAQ

SHORT ANSWERS

FAQ

Troubleshooting and procurement answers use verification language instead of unsupported promises.

No signal? Confirm the probe, cable and Proximitor Sensor are the matching NSv system.

Unstable reading? Check connector protection, cable damage, target material, gap and probe spacing.

Wrong scale factor? Verify the target, system length, gap and mounting geometry against the official datasheet.

Confirmed stock? Confirm before quotation for the exact model, quantity and destination.

New, used or refurbished? The quoted condition is stated in writing. No condition is assumed.

Current photos? Overall and nameplate photos are available on request for the quoted unit.

Test and warranty? Test scope and warranty are subject to the written quotation.

Dispatch time? Confirm after stock, destination and order approval are verified.

Payment methods? Available on request in the formal quotation.

Quotation response? Subject to request completeness and verification.

Trusted transaction? Review company documents, invoice and beneficiary details before payment.
