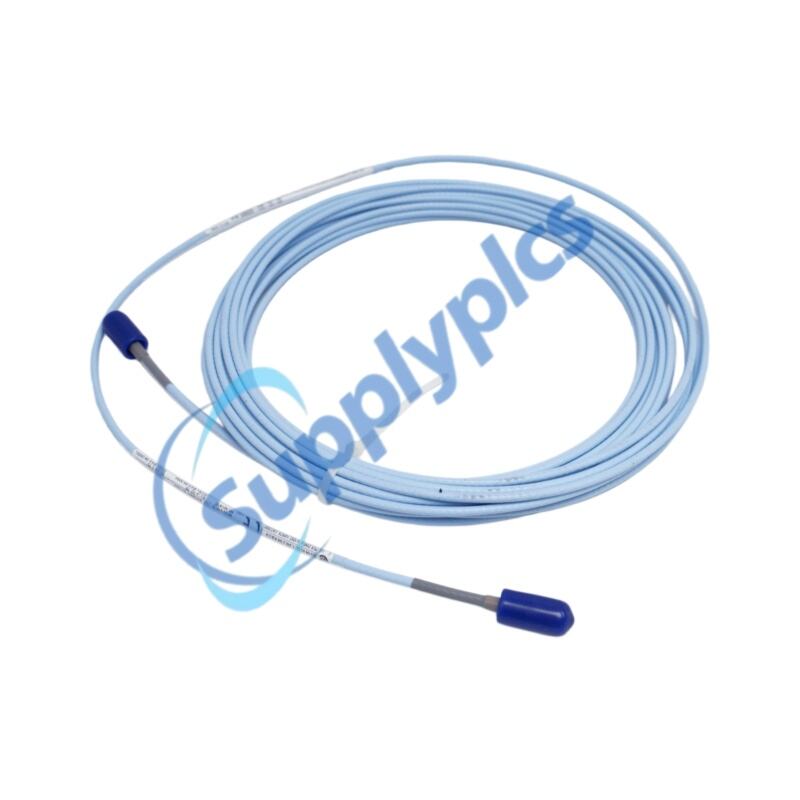

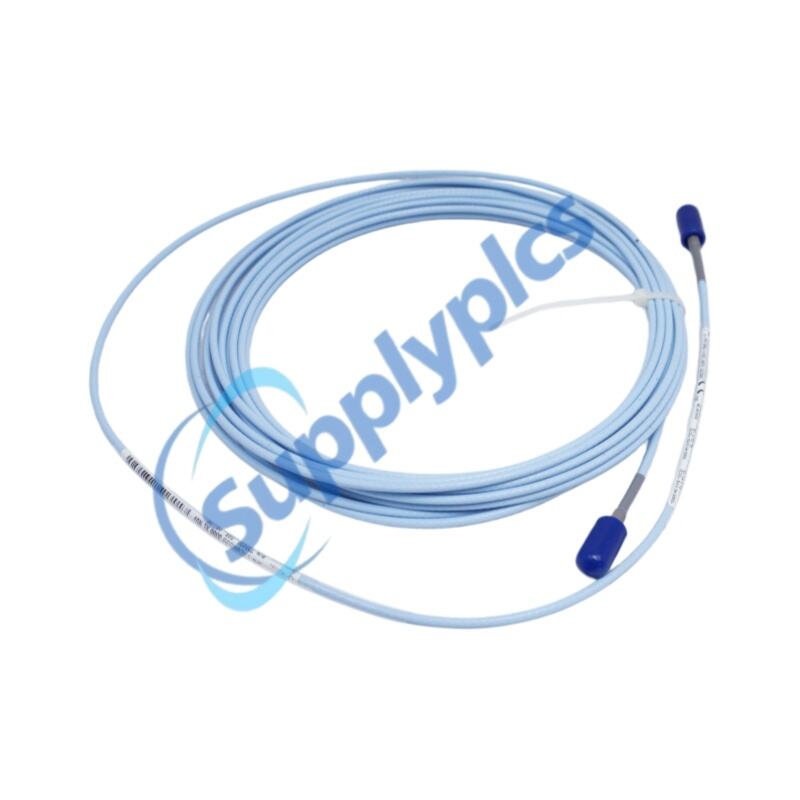

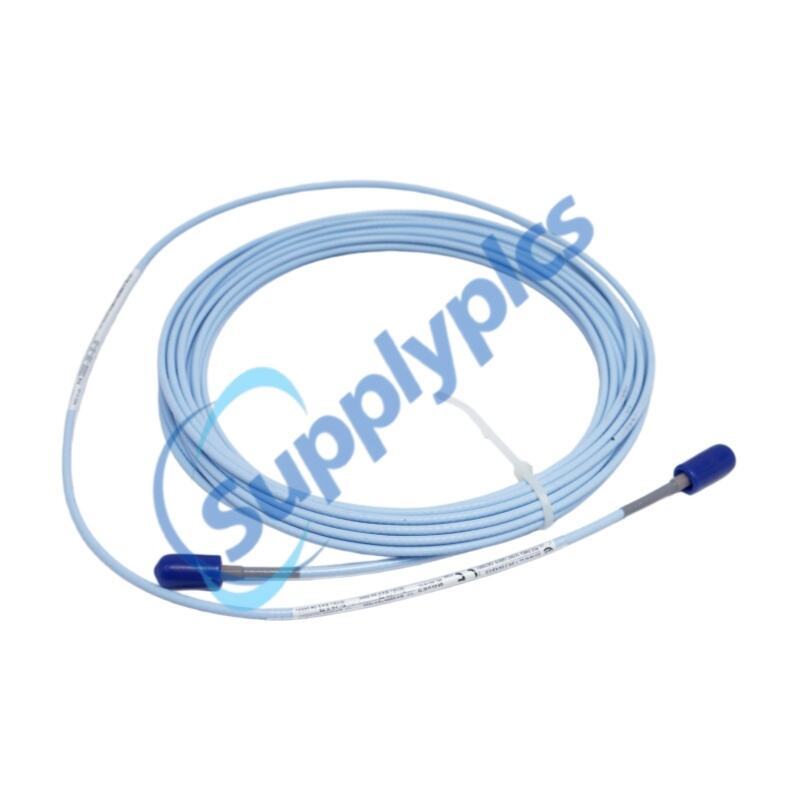

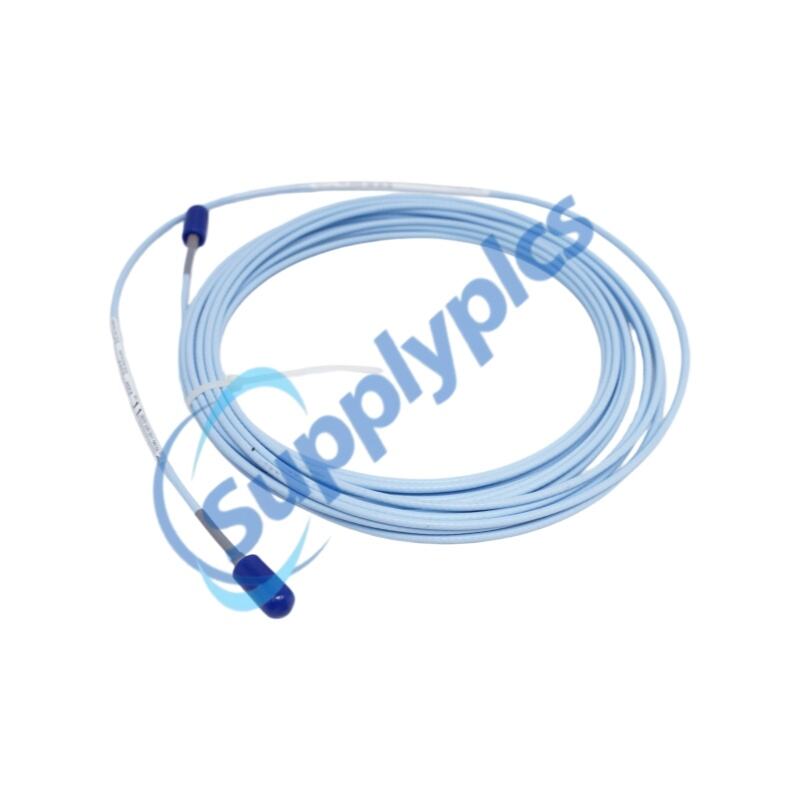

Product Name:3300 NSv Extension Cable
Brand Name:Bently Nevada
Model Number:330930-065-00-05
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
330930-065-00-05 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Item | Specification |
|---|---|
| Product Model | 330930-065-00-05 |
| Product Type | NSv extension cable |
| System Compatibility | 3300 XL NSv Proximity Transducer System |
| Cable Length | 6.5 meters |
| Cable Construction | Coaxial industrial signal cable |
| Connector Type | ClickLoc BNC-style connectors |
| Shielding | EMI/RFI protected braided shield |
| Armoring | Stainless steel armor option (variant dependent) |
| Jacket Material | FEP industrial insulation |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Humidity | 100% condensing (protected connectors) |
| Weight | Approx. 45 g/m |
| Minimum Bend Radius | 25.4 mm |
| Certification | CE, RoHS, IEC industrial compliance |
The Bently Nevada™ 330930-065-00-05 NSv Extension Cable is designed as part of the 3300 XL NSv proximity measurement system, providing reliable signal transmission between the probe and Proximitor Sensor. It is engineered for compact industrial installations where space constraints require flexible yet robust cabling solutions.
The 330930-065-00-05 supports high-performance vibration and position monitoring in compressors, turbines, and process machinery. With multiple configuration options including armored and FluidLoc designs, it ensures stable electrical integrity and protection against harsh industrial environments such as oil exposure, moisture, and mechanical stress.
As a key component of the 3300 XL NSv system, the 330930-065-00-05 extension cable delivers consistent signal quality and long-term durability. Its industrial-grade construction ensures compatibility with Bently Nevada probes and sensors, making it ideal for critical monitoring applications requiring high accuracy and reliability.
Q1: Is the 330930-065-00-05 compatible with all NSv probes?
A1: Yes, it is fully compatible with Bently Nevada 3300 XL NSv probes and sensors.
Q2: What is the main function of this extension cable?
A2: It transmits vibration and position signals between probe and Proximitor Sensor.
Q3: Can it be used in oil or humid environments?
A3: Yes, optional FluidLoc and armored versions provide environmental protection.
Q4: Does it support long-distance signal transmission?
A4: Yes, it supports stable signal transmission up to several meters with low loss.
Q5: Is the cable suitable for industrial harsh conditions?
A5: Yes, it is designed for high temperature, EMI, and heavy-duty industrial environments.
| Number | Describe |
|---|---|
| 147357 | 3300 XL NSv Proximitor User Guide |
| 02120015 | Bulk field wire 1.0 mm² (18 AWG), 3-conductor twisted shielded cable with drain wire; length customizable |
| 138492-01 | Replacement panel-mount mounting pad |
| 138493-01 | Replacement DIN-mount mounting pad |
| 01609137 | BNC (F) to banana plugs adapter |
| 01609138 | Proximitor connector test pin wiring set (two test pins to BNC (F) connector) |
| 40971-04 | 50 Ω cable with two BNC (M) connectors for transducer system performance testing with adapters |
| 04310310 | 3300 XL Proximitor Sensor panel-mount screw kit with 6-32 UNC thread-forming screw |
| 03200006 | Silicone self-fusing tape roll (9.1 m) for connector protection and environmental sealing |
| 40113-03 | Connector Protector Kit for 3300 NSv probes and extension cables including installation tools |
| 136536-01 | Connector Protector Adapter for compatibility with older connector installation tools |
| 40180-03 | Connector Protectors package containing 10 pairs for environmental sealing of connectors |
| 03800000 | Male connector protector for extension cable providing environmental sealing |
| 03800001 | Female connector protector for probe lead and extension cable connection protection |
| 330153-05 | 3300 NSv Connector Kit including ClickLoc connectors, sleeves, and silicone tape |
