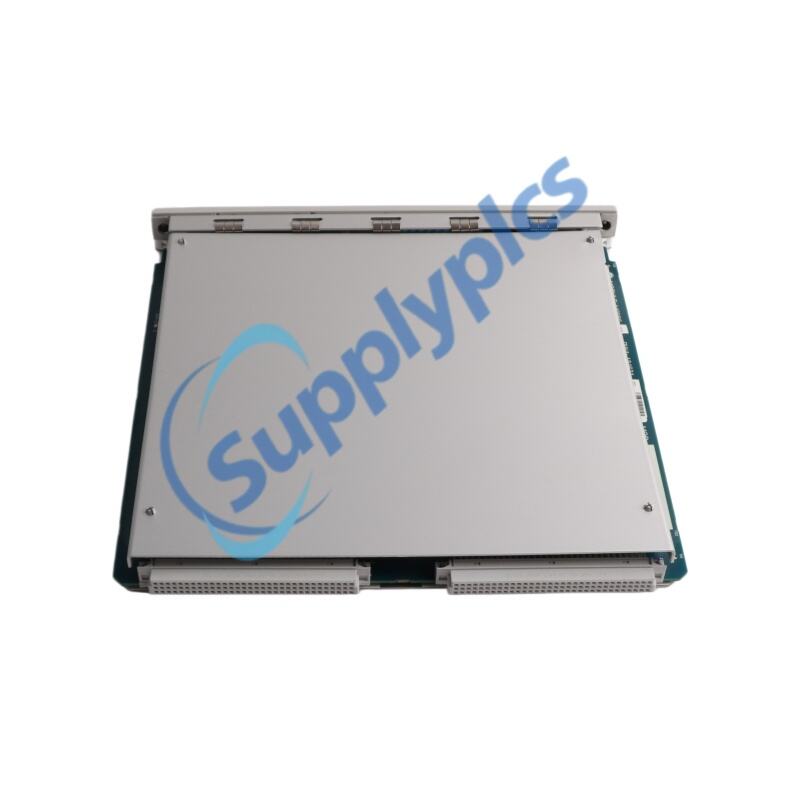

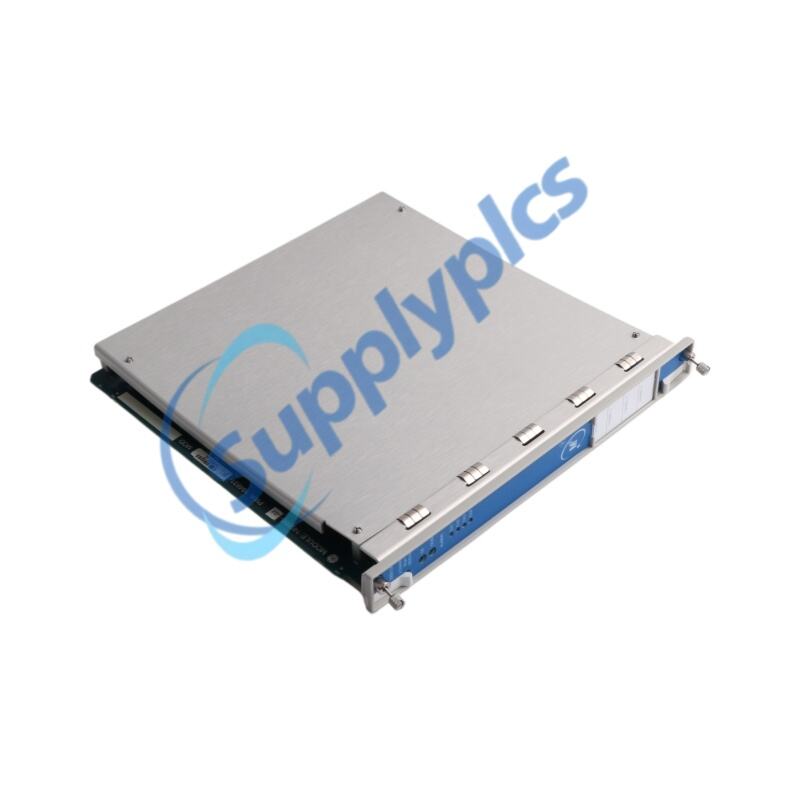

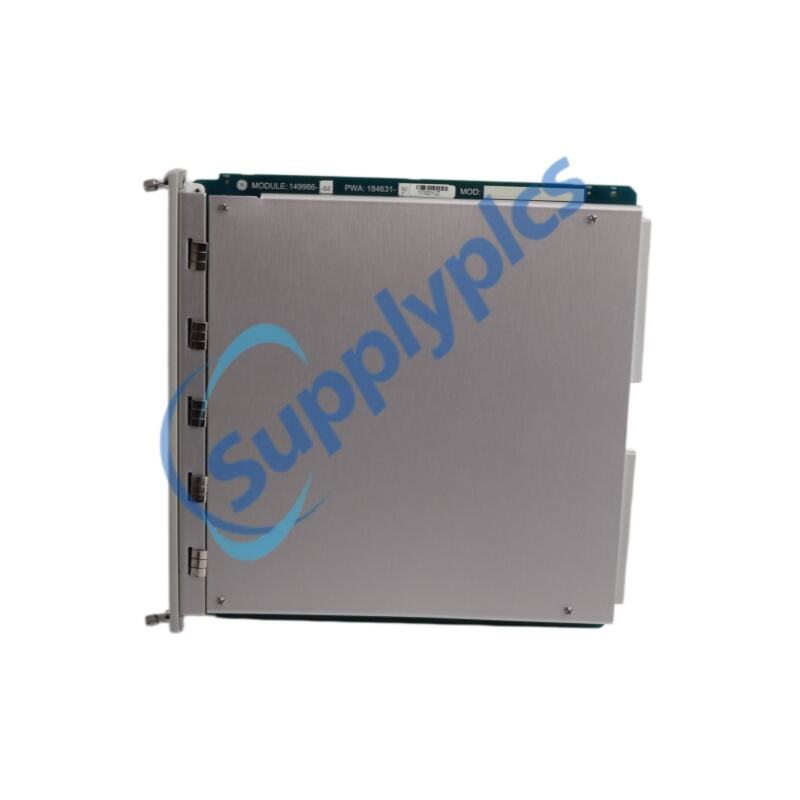

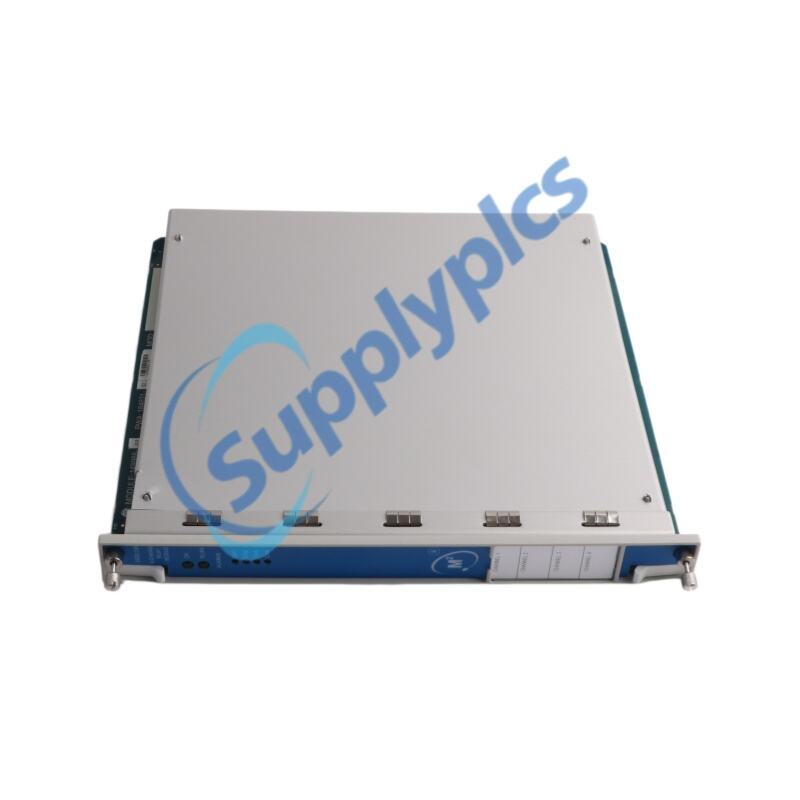

Product Name:4-Channel Relay Module
Brand Name:Bently Nevada
Model Number:3500/32M 149986-02
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
3500/32M 149986-02 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Item |
Description |
|
Model |
3500/32M 149986-02 |
|
Type |
4-Channel Relay Output Module |
|
Channels |
4 independent SPDT relays |
|
Power Consumption |
5.8 W typical |
|
Operating Temperature |
-30°C to +65°C |
|
Storage Temperature |
-40°C to +85°C |
|
Humidity |
Up to 95% non-condensing |
|
Dimensions (Main Module) |
2.5x25x24cm |
|
Dimensions (I/O Module) |
241 × 24.4 × 99.1 mm |
|
Weight (Main Module) |
0.76kg |
|
Weight (I/O Module) |
0.4 kg |
|
Mounting |
3500 rack full-height slot |
|
Relay Type |
SPDT epoxy-sealed |
3500/32M 149986-02 is a high-performance 4-channel relay output module designed for the Bently Nevada 3500 monitoring platform. It delivers reliable switching functions for industrial machinery protection and condition monitoring systems. As a core module in the rack, 3500/32M 149986-02 supports flexible configuration and is widely used in turbine, compressor, and critical rotating equipment applications.
The module provides four independent relay channels with programmable voting logic. Users can configure alarm drive conditions using AND/OR logic through the 3500 Rack Configuration Software, enabling customized protection strategies based on Alert, Danger, or OK status signals.
With robust industrial design, 3500/32M 149986-02 ensures stable performance in harsh environments. It is suitable for integration in safety systems, offering dependable relay switching, strong communication capability, and long operational life for continuous plant monitoring.
Q1: What is 3500/32M 149986-02 used for?
A1: It is used for converting monitoring signals into relay outputs for machinery protection systems.
Q2: How many relay channels does it have?
A2: It provides four independent SPDT relay output channels.
Q3: Can it be programmed for alarm logic?
A3: Yes, it supports AND/OR voting logic using Bently Nevada configuration software.
Q4: Is 3500/32M suitable for harsh environments?
A4: Yes, it is designed for industrial environments with temperature and vibration resistance.
Q5: Does it work with the Bently Nevada 3500 system?
A5A: Yes, it is fully integrated into the 3500 rack monitoring platform.
| Number | Describe |
|---|---|
| 149986-02 | Spare 4-Channel Relay Control Module for Bently Nevada 3500 system, used for relay output replacement and maintenance |
| 125720-01 | Spare 4-Channel Relay Output Module for repair-only applications in standard systems |
| 125720-02 | Spare relay module designed for hazardous area and functional safety applications |
| 04425545 | Single-use grounding wrist strap for ESD protection during installation and maintenance |
| 00580453 | 16-position green connector header with internal termination for rack wiring |
| 00580436 | 6-position green connector header for internal termination and signal connection |
| 166M2390 | Push-in spring-type connector header for fast and secure electrical installation |
