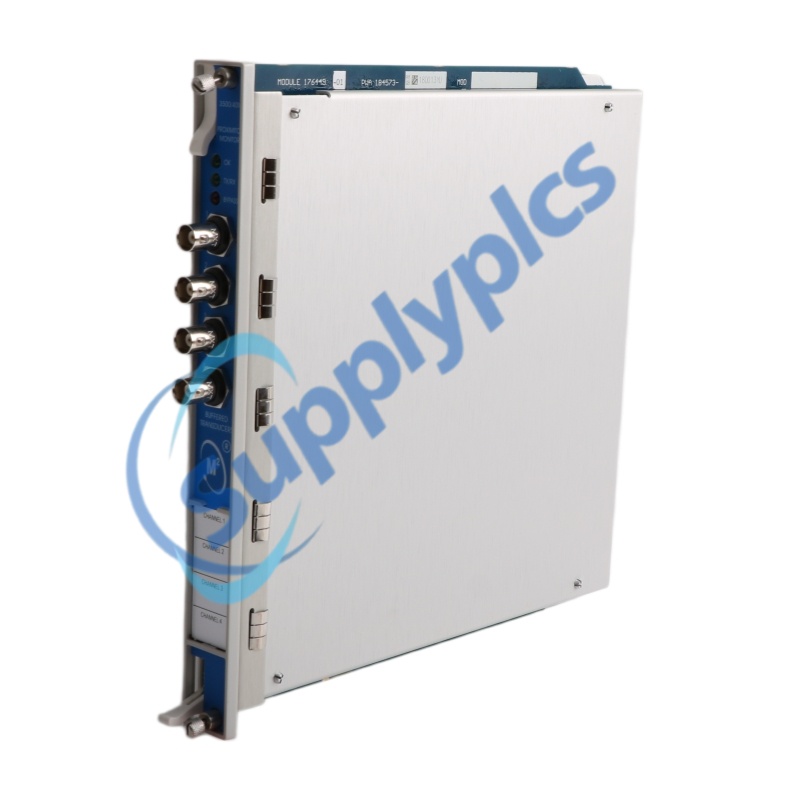

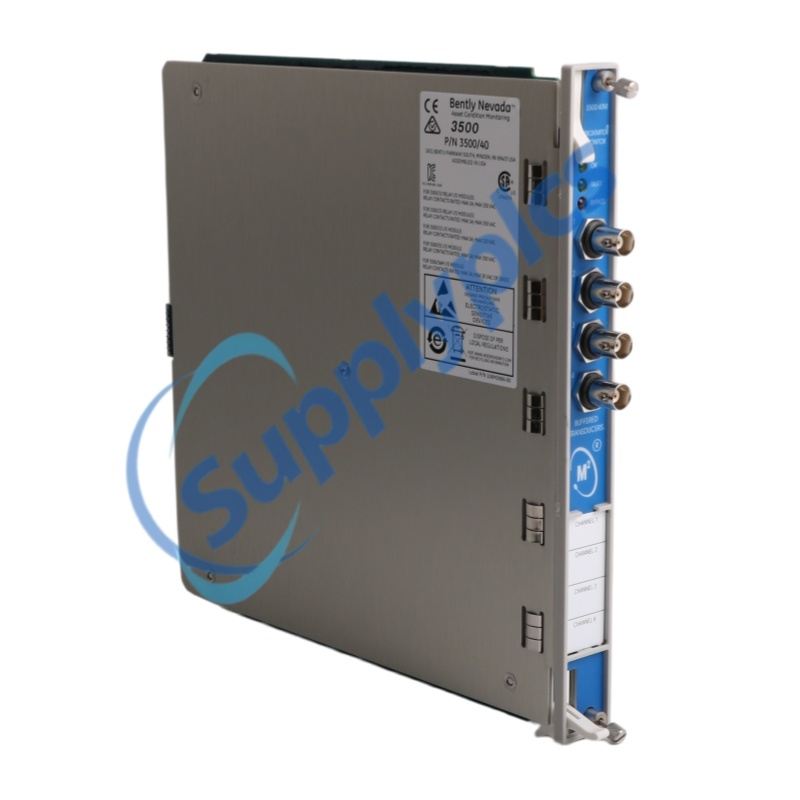

Product Name:3500/40M Proximitor Monitor
Brand Name:Bently Nevada
Model Number:3500/40M 176449-01
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
3500/40M 176449-01 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Number | Specification |
|---|---|
| Product Model | 3500/40M |
| Part Number | 176449-01 |
| Product Type | Proximitor Monitor |
| Monitoring Channels | 4 Channels |
| Input Signal | 1 to 4 Proximity Transducer Inputs |
| Power Consumption | 7.7 W Typical |
| Input Impedance | 10 kΩ |
| Transducer Power Supply | -24 VDC |
| Radial Vibration Sensitivity | 100 mV/mil or 200 mV/mil |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% Non-condensing |
| Monitor Dimensions (H×W×D) | 241.3 × 24.4 × 241.8 mm |
| Monitor Weight | 0.91 kg |
| I/O Module Dimensions | 241.3 × 24.4 × 99.1 mm |
| I/O Module Weight | 0.20 kg |
The 3500/40M Proximitor Monitor, identified by part number 176449-01, is an advanced machinery protection module engineered for continuous vibration and position monitoring in critical rotating equipment. Designed as part of the Bently Nevada 3500 Series Machinery Protection System, the monitor accepts signals from proximity transducers and converts them into actionable machine condition data for protection and diagnostics.
The 176449-01 monitor supports multiple measurement functions including radial vibration, thrust position, differential expansion, eccentricity, and REBAM bearing condition monitoring. Its flexible configuration allows users to customize alarm thresholds and monitoring parameters according to specific equipment requirements.
Built for high-reliability industrial environments, the 3500/40M enhances asset protection, improves predictive maintenance strategies, and helps minimize unplanned downtime in power generation, petrochemical, and heavy manufacturing facilities.
Q1: What is the primary purpose of the 3500/40M 176449-01?
A1: It provides continuous vibration and position monitoring for rotating machinery protection.
Q2: How many channels does the 3500/40M monitor support?
A2: The module supports up to four independent monitoring channels.
Q3: What measurements can the 3500/40M perform?
A3: It can monitor radial vibration, thrust position, differential expansion, eccentricity, and REBAM parameters.
Q4: Is the 176449-01 compatible with proximity probes?
A4: Yes, it accepts input signals from Bently Nevada proximity transducer systems.
Q5: Which industries commonly use the 3500/40M monitor?
A5: It is widely used in power generation, oil & gas, petrochemical, steel, and manufacturing industries.
| Number | Description |
|---|---|
| 176449-01 | 3500/40M Proximitor Monitor |
| 125680-01 | Proximitor I/O Module with Internal Terminations |
| 126615-01 | Proximitor I/O Module with External Terminations |
| 135489-04 | Proximitor I/O Module with Internal Barriers and Internal Terminations |
| 143488 | 3500/40M Monitor User Guide |
| 00580434 | Internal I/O Module Connector Header, Euro Style, 8-Pin |
| 00502133 | Internal I/O Module Connector Header, Euro Style, 12-Pin |
| 166M4363 | Connector Header, Push-in Spring Type (Alternative to PN 00580441) |
| 166M2389 | Connector Header, Push-in Spring Type (Alternative to PN 00580434) |
