Home > Products > BENTLY NEVADA > Bently Nevada transmitters

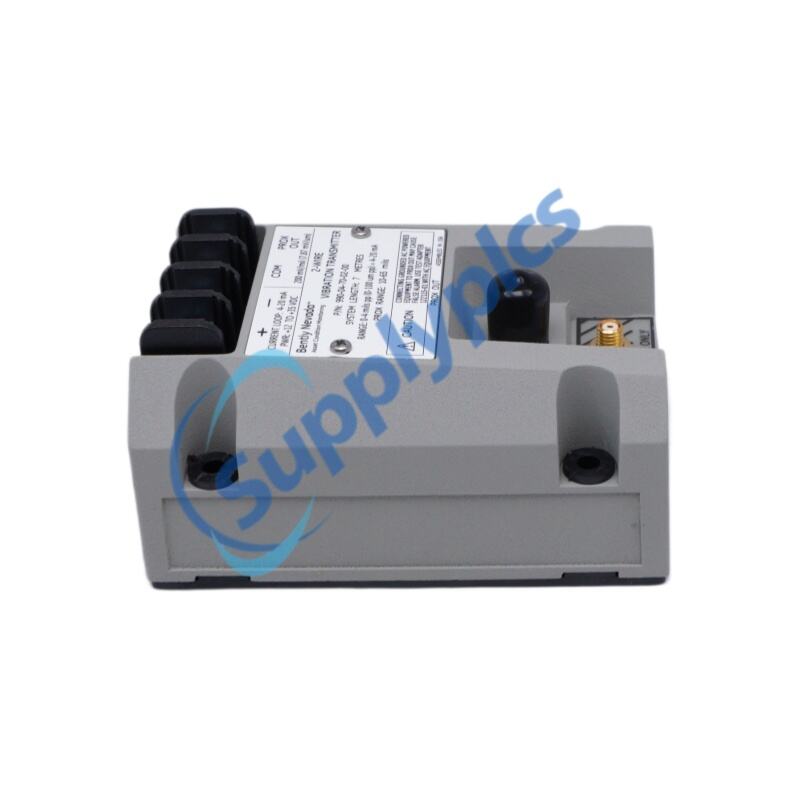

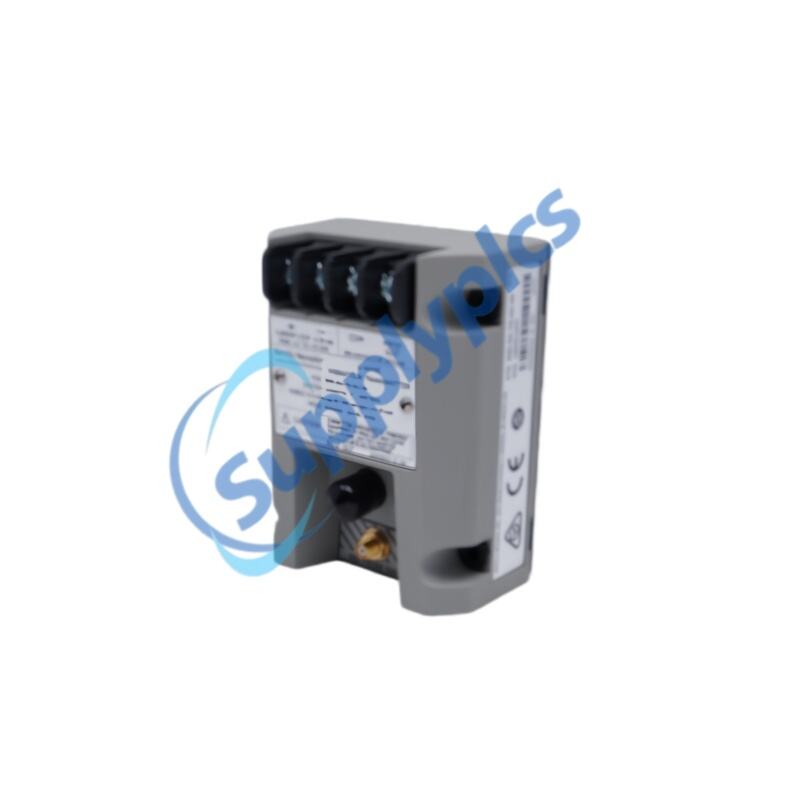

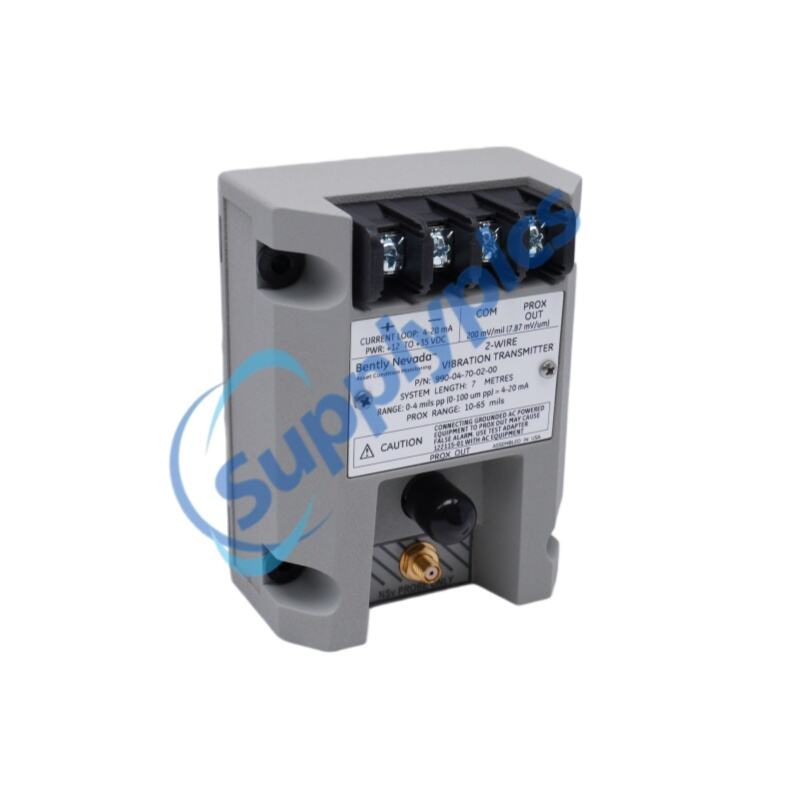

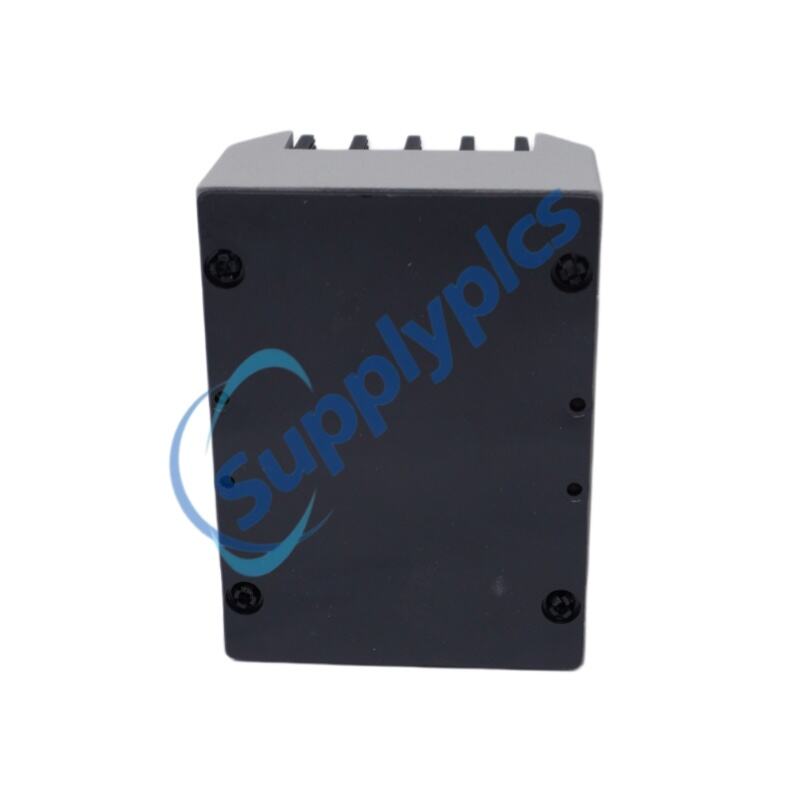

Product Name:990 Vibration Transmitter
Brand Name:BENTLY NEVADA
Model Number:990-04-70-02-00
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
990-04-70-02-00 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Item | Specification |
|---|---|
| Model | 990-04-70-02-00 |
| Input | 3300 NSv proximity probe system |
| Output Signal | 4–20 mA loop-powered |
| Full-scale Range | 0–4 mils peak-to-peak |
| System Length | 7.0 meters |
| Mounting Type | Bulkhead screw mounting |
| Supply Voltage | +12 to +35 Vdc |
| Loop Resistance | Max 1000 Ω |
| Operating Temperature | -35°C to +85°C |
| Storage Temperature | -52°C to +100°C |
| Weight | 0.43 kg (transmitter), 0.82 kg system |
| Dimensions | Not explicitly specified (compact OEM housing) |
The990-04-70-02-00 Vibration Transmitteris a compact loop-powered solution designed for OEM applications such as centrifugal compressors, pumps, motors, and industrial fans. It converts proximity probe signals into a stable 4–20 mA output, enabling simplified vibration monitoring within machinery control systems. The unit is optimized for integration with990 series transmittersand compatible with 3300 NSv proximity probe systems.
The system provides accurate peak-to-peak vibration data proportional to shaft movement, supporting both condition monitoring and basic protection logic. With a 7-meter system length, the990-04-70-02-00ensures flexible installation in space-constrained equipment layouts while maintaining signal integrity.
Built for reliability in harsh industrial environments, the transmitter offers stable performance, fast response, and simplified configuration for OEM machinery health monitoring applications.
Q1: What is the 990-04-70-02-00 used for?
A1: It is used to convert vibration signals from proximity probes into a 4–20 mA output for machinery monitoring and protection.
Q2: Which probe is compatible with this transmitter?
A2: It is compatible with the 3300 NSv proximity probe and matching extension cables.
Q3: What is the measurement range of this model?
A3: The 990-04-70-02-00 supports a 0–4 mils peak-to-peak full-scale vibration range.
Q4: Can it operate in harsh environments?
A4: Yes, it is designed for high humidity, industrial vibration, and OEM machinery conditions.
Q5: How is the device mounted?
A5: It uses bulkhead screw mounting for secure and compact installation in equipment panels.
| Number | Describe |
|---|---|
| 123266-01 | Coaxial Cable Kit includes 4 cables, each 1.5 meters (5 feet) for test adapter connection |
| 02211505 | Single coaxial cable, 1.5 meters (5 feet) length for signal transmission |
| 01810700 | 9V alkaline battery used for 990/991 Test Adapter power supply |
| 02270056 | Universal AC adapter with 108–132 Vac or 207–253 Vac input and 9 VDC output |
| 02198937 | North American power cord for AC outlet connection |
| 123133 | 990 Test Adapter user guide documentation manual |
| 02173006 | Bulk shielded twisted cable (1.0 mm² / 18 AWG, 2-conductor) for 4–20 mA loop or PROX OUT signal |
| 123655 | 990/991 transmitter system installation user guide manual |
| 330153-05 | Cable connector kit with 75 Ω male/female connectors, shrink tubing, and isolator seal |
| 163356 | Connector crimp tool kit with ClickLoc inserts and installation instructions in carrying case |
