Product Name:Dual Thrust Position Monitor
Brand Name:Bently Nevada
Model Number:3300/20
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
3300/20 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Item | Description |
|---|---|

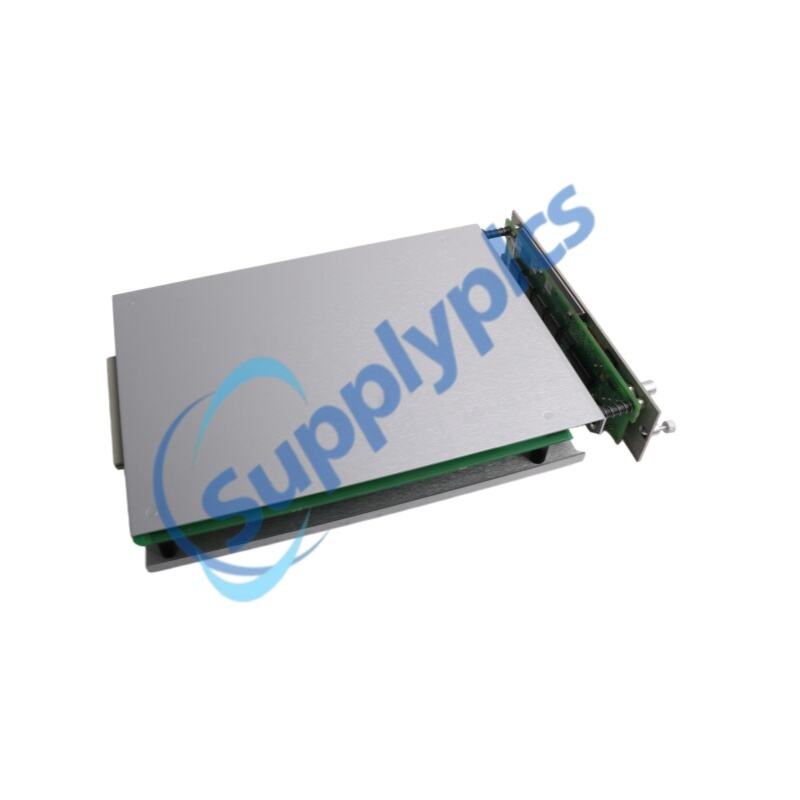

| Product Model | 3300/20 Dual Thrust Position Monitor |
| Input Channels | 1 or 2 proximity probe inputs |
| Input Impedance | 10 kΩ |
| Sensitivity | 200 mV/mil (8 V/mm) or 100 mV/mil (4 V/mm) |
| Power Consumption | 1.5 W nominal |
| Accuracy | ±0.33% typical, ±1% max (@25°C) |
| Output Types | 4–20 mA / 0–10 V / 1–5 V |
| Output Impedance | 100 Ω |

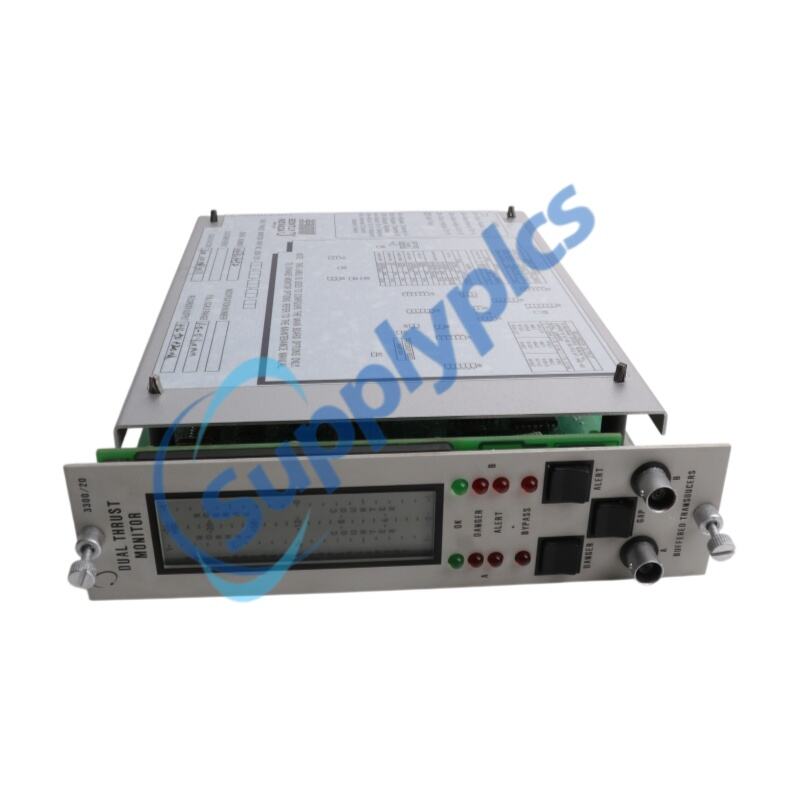

| Display Type | LCD bar graph per channel |
| Operating Temp | 0°C to +65°C |
| Storage Temp | -40°C to +85°C |
| Humidity | Up to 95% non-condensing |
| Dimensions | 83 mm (H) x rack module format |
| Weight | 1.0 kg (2.2 lbs) |
The3300/20 Dual Thrust Position Monitoris designed for continuous axial displacement supervision in rotating machinery, providing early detection of thrust bearing degradation. It measures two independent channels of shaft position using proximity probe inputs, offering accurate real-time monitoring of rotor movement relative to bearing clearance.
In Bently Nevada monitoring systems, the3300/20supports advanced alarm logic and flexible configuration, including AND/OR voting schemes for enhanced protection reliability. It is commonly paired with proximity transducers to observe thrust collars and ensure stable machinery operation under varying load conditions.
The module is fully compatible with the3300 series platform, delivering precise signal processing, configurable outputs, and dependable performance for industrial condition monitoring and protection applications in critical rotating equipment.
Q1: What is the 3300/20 used for?
A1: It is used to monitor thrust position in rotating machinery and detect early bearing wear conditions.
Q2: How many channels does the 3300/20 support?
A2: It supports one or two independent proximity probe input channels.
Q3: Can the alarm logic be customized?
A3: Yes, it allows programmable AND/OR voting logic for flexible protection settings.
Q4: What output signals does the module provide?
A4: It provides 4–20 mA, 0–10 Vdc, and 1–5 Vdc recorder outputs.
Q5: Is the 3300/20 suitable for industrial environments?
A5: Yes, it is designed for harsh industrial conditions with wide temperature and humidity tolerance.
| Number | Describe |
|---|---|
| 89634-01 | -24V to -18V Proximitor Power Converter |
| 128112 | Galvanic Isolator Kit |
| 02245002 | External Barrier |
| 02200214 | Surge Protector |
