Product Name: Personality Module
Brand Name: EMERSON Westinghouse
Model Number: 1C31132G01
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Westinghouse |
Model Number: |
1C31132G01 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Product Type |
Personality Module (Pmod) for Analog Output |
|
Compatible Electronics Module |
1C31129G01, 1C31129G02, 1C31129G03, 1C31129G04 |
|
Number of Channels |
|
|
Output Signal Types |
|
|
Maximum Update Time |
|
|
Resolution |
|
|
Output Loading (Current) |
|
|
Output Loading (Voltage) |
|
|
Dielectric Isolation |
|
|
Operating Temperature |
|
|
Storage Temperature |
|
|
Humidity (Non-condensing) |
0 to 95% |
The 1C31132G01 is a Personality Module specifically engineered for the Ovation Analog Output subsystem. It acts as the dedicated signal routing interface, connecting the field wiring to compatible Electronics Modules (1C31129G01 through G04). The 1C31132G01 personality module supports both voltage and current outputs and provides critical features like a shield terminal for noise reduction in non-CE Mark systems. This ensures precise and reliable analog signal transmission from the Ovation controller to field devices.
Optimized Ecosystem Compatibility: Engineered exclusively for the Ovation DCS, the 1C31132G01 provides seamless plug-and-play functionality with a range of Analog Output Electronics Modules (1C31129G0x).
Simplified System Design: It consolidates signal routing for voltage and current outputs, reducing cabinet wiring complexity and installation time.
Enhanced Signal Integrity: The module's design facilitates proper shielding and grounding techniques, essential for maintaining signal accuracy in electrically noisy industrial environments.
Application Versatility: By supporting multiple output ranges (0-5V, 0-10V, 0-20mA, 4-20mA), it provides the flexibility to interface with a wide array of field actuators and instruments.
Versatile Signal Support: Capable of routing both voltage (0-5V, 0-10V) and current (0-20mA, 4-20mA) analog signals to field devices.
High Channel Density: Configures the four isolated output channels of the Electronics module for termination.
Integrated Shielding: Provides a shield terminal (SH) for connecting cable shields to reduce electromagnetic interference in non-CE Mark systems.

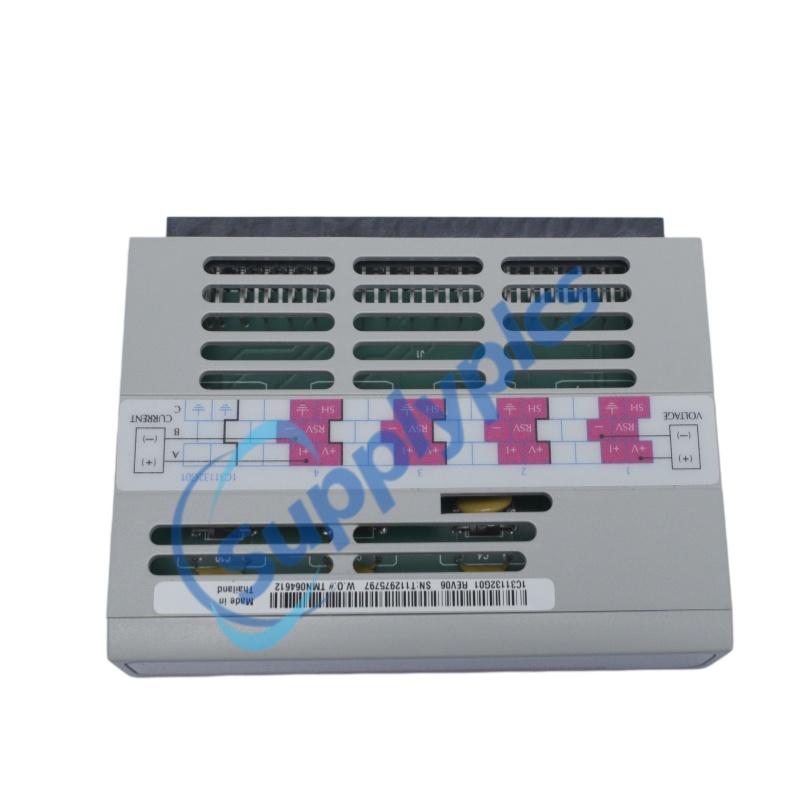

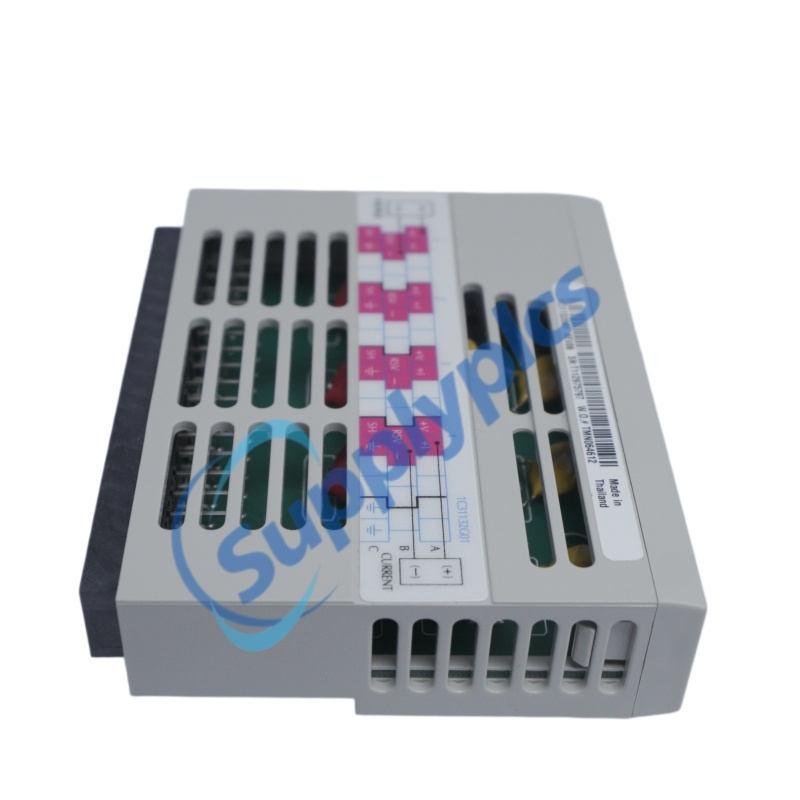

Clear Wiring Identification: Features a simplified wiring diagram on its side, with terminals clearly marked (+V, +I, -, SH) for error-free field connections.
CE Mark Compatibility: Fully compatible with CE Mark certified systems (shield terminals are not connected in these configurations).
The primary function of the 1C31132G01 is to serve as the physical interface between the Ovation Analog Output Electronics Module and the field wiring. It does not perform signal conversion itself but acts as a passive routing board that directs the conditioned analog signals from the Electronics module to the correct termination points on the base unit. The module simplifies field wiring by providing clearly labeled terminals for voltage (+V), current (+I), signal return (-), and shield (SH) connections. It also provides the necessary connections for the auxiliary power supply (PS+, PS-) and ensures proper isolation between channels.
Q1: What is the primary function of the 1C31132G01 module?
A: The 1C31132G01 is a Personality Module that routes analog signals between the Ovation Analog Output Electronics Module (e.g., 1C31129G03) and the field wiring terminal blocks.
Q2: Which Electronics modules are compatible with the 1C31132G01?
A: It is compatible with the 1C31129G01, 1C31129G02, 1C31129G03, and 1C31129G04 Analog Output Electronics modules.
Q3: What types of analog signals can the 1C31132G01 handle?
A: It can route both voltage signals (0-5V and 0-10V) and current signals (0-20mA and 4-20mA), depending on the Electronics module used.
Q4: How many output channels does the 1C31132G01 support?
A: It supports four output channels, corresponding to the four channels of the compatible Electronics module.
Q5: Are shield terminals (SH) on the 1C31132G01 used in CE Mark systems?
A: No, in CE Mark certified systems, the shield terminals (SH) are not connected.
