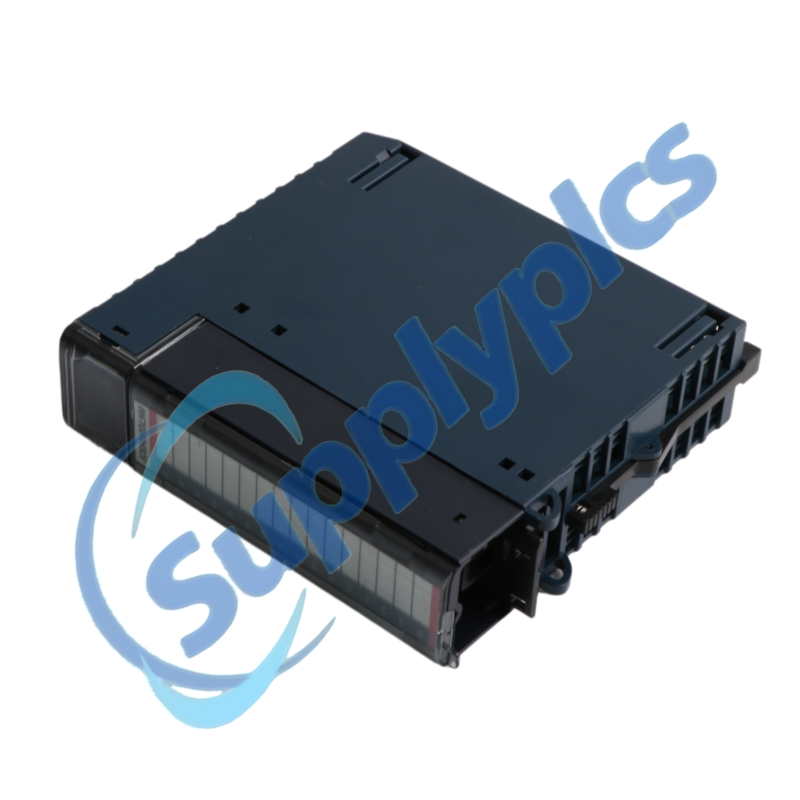

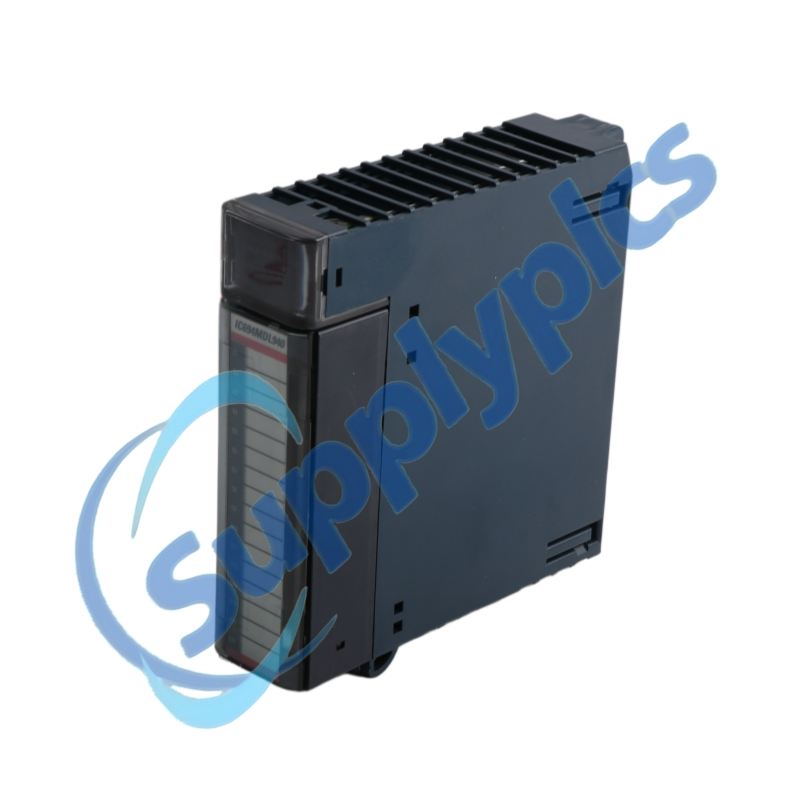

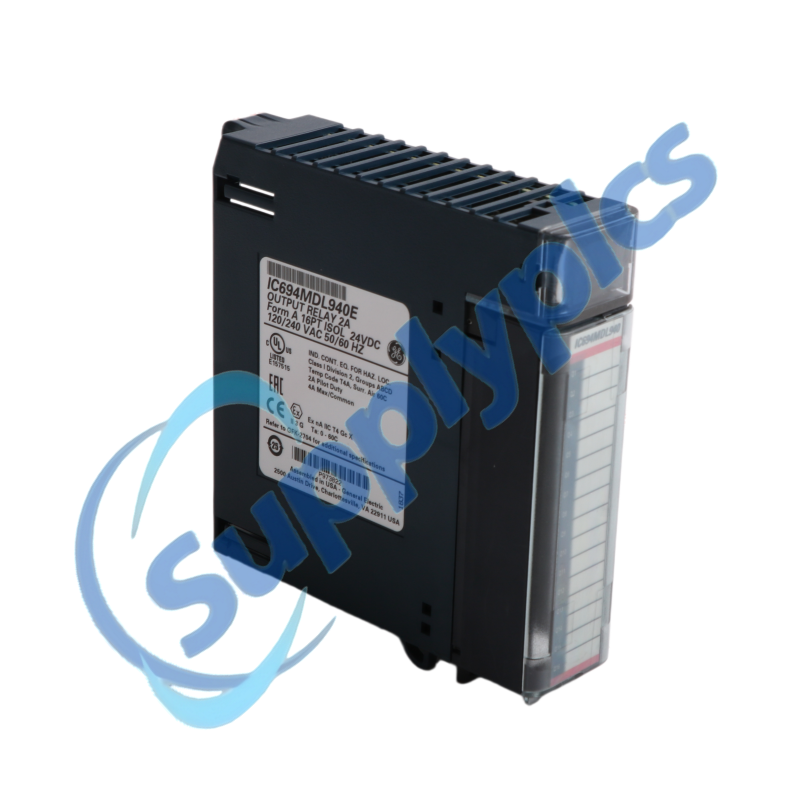

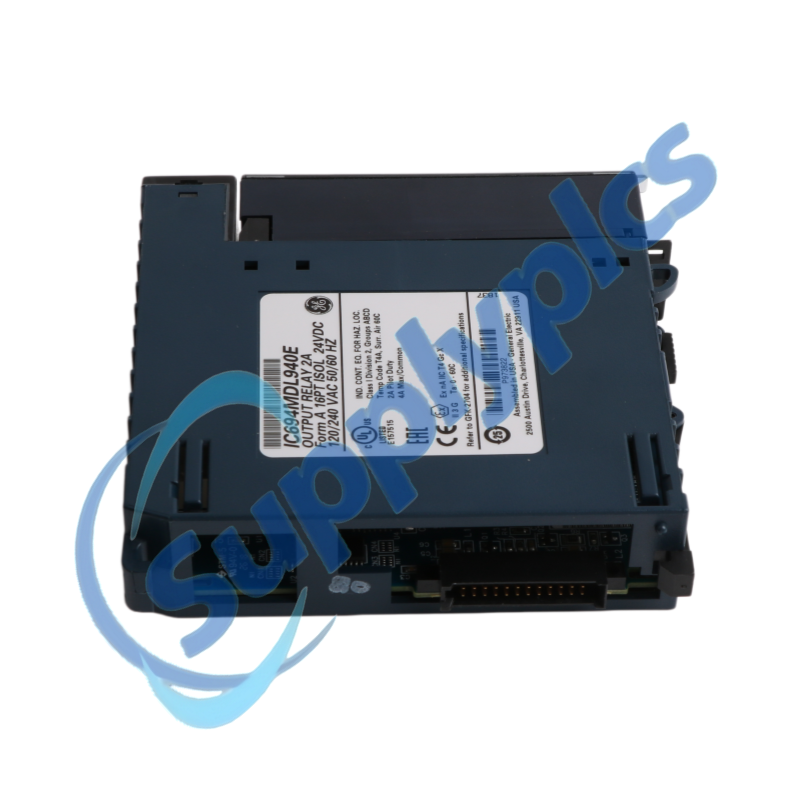

GE IC694MDL940 Discrete Output Module

Product Name: Discrete Output Module

Brand Name: General Electric

Model Number: IC694MDL940

Place of Origin: USA

Warranty: 12 Months

Whatsapp：+86 18020776782

Email：[email protected]

Appurtenance:

Overview
Commercial Terms
Product Parameters
Introduction
Functions
Features
Advantage
FAQ
Recommended Products

Contact Info

Sales	Email	Whatsapp
Jim Pei	[email protected]	+86 18020776782

Commercial Terms

Minimum Order Quantity	1 Piece
Price	Contact for Jim
Packaging Details	Original new Factory Sealed
Delivery Time	3–7 Days
Payment Terms	T/T
Shipping Method	DHL / FedEx / UPS / TNT
Supply Ability	In stock

Product Parameters

Product Name	GE IC694MDL940 Discrete Output Module
Manufacturer	General Electric
Product Type	Discrete Output Module
Part Number	IC694MDL940
Weight	0.34kg
Estimated shipping dimensions	3.5x13.2x13.5cm
Place of shipment	Xiamen, China
Country of origin	USA
Number of Groups	4 Groups of 4 Outputs Each
LED Indicators	32 Individually-Numbered LEDs
Maximum load	2 Amps pilot duty per output; 4 Amps maximum per common
Operating Voltage	5.0 to 30 Volts DC or 5.0 to 250 Volts AC
Current draw	7 mA (all outputs on) from 5 volt bus on backplane; 135 mA (all outputs on) from relay 24V bus on backplane
I/O Capacity	16 Individually isolated Normally Open (N.O) Outputs Contact form:Normally Open (N.O.) Form A contacts
Isolation, Field to Backplane (optical) and to Frame Ground	250 VAC continuous; 1500 VAC for 1 minute
Relay Contact Life	100,000 - 1,000,000 operations, depending on voltage and load type
Response time	15 ms
Product Lifecycle Status	Active
No. of channels	Eight (8)
No. of groups	Four (4)
Switching current	2.0 Amps
No. of channels per group	Four (4)
Output voltage, range	5 - 30 VDC; 5 - 250VAC (50/60 Hz);
Max. Backplane Draw	135 Milliamps
Rated voltage	24 VDC; 120/240 VAC
Inrush Rating	5.0 Amps
Max. Response Time	15 Milliseconds
Minimum load	10 mA
Location	PacSystems PLC I/O Slots
Maximum inrush	500 AM

Introduction

The GE IC694MDL940 Discrete Output Module is a high-reliability relay output module designed for use in GE PACSystems PLC architectures. It provides electrically isolated switching for a wide range of industrial loads, including motors, solenoids, relays, and indicator devices. With 16 individually isolated normally open relay outputs, the IC694MDL940 enables flexible and safe control of AC and DC field devices in demanding automation environments.

Built for industrial durability and versatility, the IC694MDL940 supports both AC (up to 250 V) and DC (up to 30 V) switching, making it suitable for mixed-voltage applications. Its four-group output structure and LED status indicators provide clear diagnostics and organized channel management. With robust isolation, long mechanical life, and reliable response performance, the IC694MDL940 is well-suited for process control, manufacturing systems, and general-purpose industrial automation.

Functions

Provides relay-based discrete output control for industrial automation systems
Switches AC and DC loads such as motors, solenoids, and relays
Executes output commands from PLC CPU in real time
Offers 16 individually isolated Normally Open (Form A) outputs
Organizes outputs into 4 independent groups for load management
Provides electrical isolation between field devices and backplane
Displays output status via 32 LED indicators
Supports mixed-voltage switching applications (AC and DC)
Enables safe control of industrial equipment and actuators
Integrates with GE PACSystems PLC I/O architecture

Features

Relay discrete output module for PACSystems PLC
16 individually isolated Normally Open (N.O.) outputs
Organized into 4 output groups (4 outputs per group)
Supports 5–30 VDC and 5–250 VAC output voltage range
Rated switching current: 2 A per output
Maximum 4 A per common group
Inrush current capability up to 5 A
Response time: 15 ms
32 individually numbered LED indicators
Electrical isolation: 250 VAC continuous, 1500 VAC for 1 minute
Relay contact life: 100,000 to 1,000,000 operations
Backplane current draw: 7 mA (logic), 135 mA (relay bus)
Minimum load: 10 mA
Compatible with PACSystems PLC I/O slots
Industrial-grade relay switching design
Designed for mixed AC/DC industrial control applications
Active product lifecycle status

Advantage

Compared with solid-state output modules, the IC694MDL940 provides stronger load flexibility and higher voltage handling capability, making it more suitable for mixed industrial switching environments.

Supports both AC and DC loads up to 250 V AC / 30 V DC
Provides true electrical isolation for each output channel
Handles a wide range of industrial devices without external relays
Offers high inrush current capability for inductive loads
Four-group design improves load organization and fault isolation
LED indicators simplify diagnostics and maintenance
Long relay life ensures reliable long-term operation
Compatible with diverse industrial automation systems
Suitable for harsh and mixed-voltage environments
Reduces need for external switching components

FAQ

Q: How many outputs does the IC694MDL940 provide?
A: The IC694MDL940 provides 16 individually isolated Normally Open relay outputs.

Q: What voltage range can the IC694MDL940 support?
A: The IC694MDL940 supports 5–30 VDC and 5–250 VAC switching applications.

Q: What is the switching current rating of the IC694MDL940?
A: The IC694MDL940 supports up to 2 A per output and 4 A per common group.

Q: Does the IC694MDL940 provide electrical isolation?
A: Yes, the IC694MDL940 provides 250 VAC continuous isolation and 1500 VAC for 1 minute between field and backplane.

Q: What is the response time of the IC694MDL940?
A: The IC694MDL940 has a maximum response time of 15 ms.

Q: How is the IC694MDL940 used in industrial systems?
A: The IC694MDL940 is used in PLC-based automation systems for controlling field devices in manufacturing, process control, and machinery applications.

Q: Why is the IC694MDL940 suitable for mixed voltage applications?
A: The IC694MDL940 supports both AC and DC switching with strong isolation and high voltage tolerance, making it ideal for mixed industrial environments.
