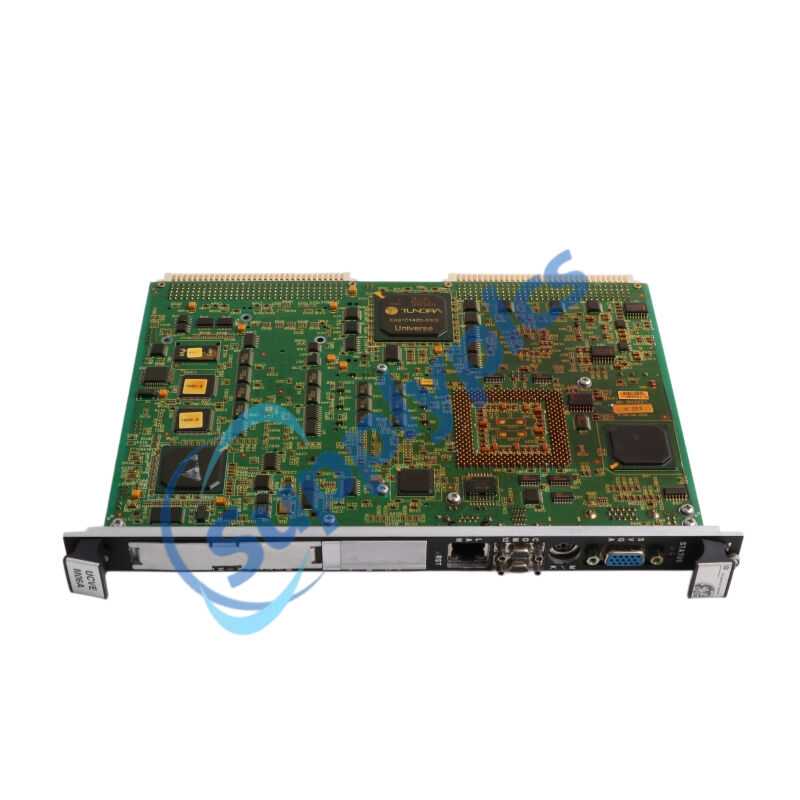

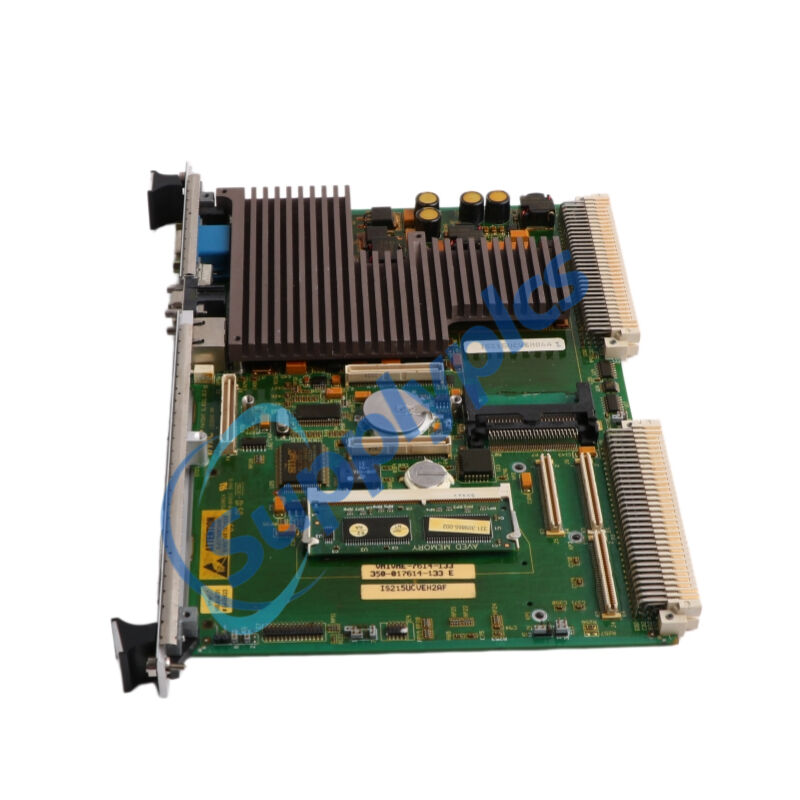

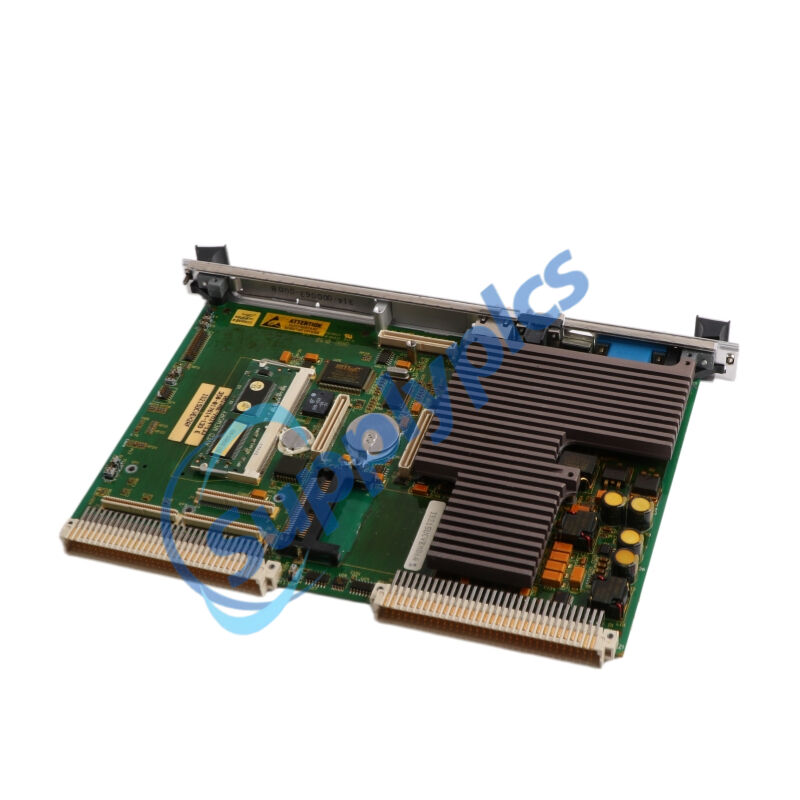

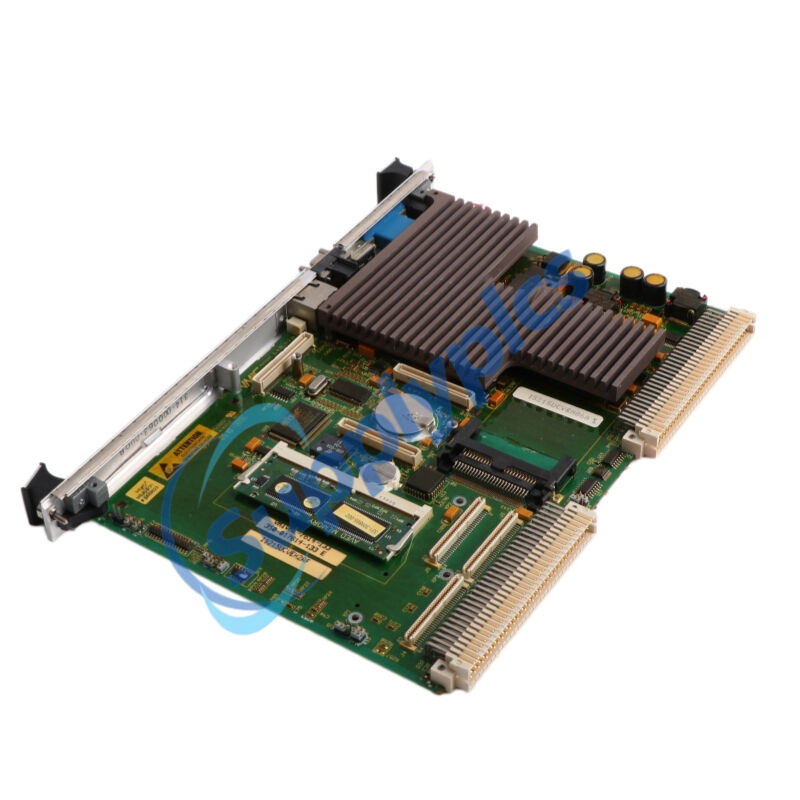

Product Name: VME Controller Board
Brand Name: GE
Model Number:IS215UCVEM06A/IS215UCVEH2AF
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
General Electric |
Model Number: |
IS215UCVEM06A/IS215UCVEH2AF |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
IS215UCVEM06A |
IS215UCVEH2AF |
|
Manufacturer |
General Electric (GE) |
General Electric (GE) |
|
Product Series |
Mark VI Speedtronic™ |
Mark VI Speedtronic™ |
|
Product Type |
Universal VME Controller Board (UCVE) |
Universal VME Controller Board (UCVE) |
|
Form Factor |
VME (Versa Module Eurocard) |
Single-slot 6U VME board |
|
Processor |
300 MHz Intel Celeron |
300 MHz Intel Celeron |
|
DRAM |
32 MB |
32 MB |
|
Flash Memory |
128 MB |
16 MB or 128 MB Compact Flash (removable) |
|
L2 Cache |
128 KB |
128 KB |
|
NVRAM |
8 KB battery-backed SRAM |
|
|
Ethernet |
2× 10BaseT/100BaseTX (RJ-45) |
|
|
PROFIBUS-DP |
Not specified |
|
|
Serial Ports |
2× RS-232C |
|
|
Operating Temp |
||
|
Dimensions |
||
|
Weight |
~0.975 kg |
|
|
Power Supply |
||
|
Operating System |
||
|
Mounting |
VME rack-mount |
|
|
Country of Origin |
USA |
USA |
The GE IS215UCVEM06A and IS215UCVEH2AF are high-performance VME controller boards engineered for the Mark VI Speedtronic™ turbine control system. Powered by a 300 MHz Intel Celeron processor with 32 MB DRAM and battery-backed SRAM, the IS215UCVEM06A and IS215UCVEH2AF execute real-time control algorithms for gas and steam turbines. The IS215UCVEM06A features dual redundant Ethernet for fault-tolerant networking, while the IS215UCVEH2AF offers three onboard PROFIBUS-DP masters. Both modules run the QNX real-time operating system and serve as the central processing hub within the VME rack, managing high-speed data processing, inter-rack communications, and critical turbine protection functions.
Power generation – gas and steam turbine control systems, combined-cycle plants
Oil & gas – offshore platforms, pipeline compression, refinery turbine control
Industrial cogeneration – process monitoring and control integration
Wind turbine control – real-time parameter adjustment and monitoring
Critical infrastructure – fault-tolerant redundant configurations for high-availability applications
High-speed deterministic control – 300 MHz Intel Celeron processor with QNX RTOS delivers <1 ms jitter for critical turbine protection loops
Dual Ethernet redundancy (IS215UCVEM06A) – two independent 10/100 Mbps channels ensure continuous operation and fault tolerance
Onboard PROFIBUS-DP masters (IS215UCVEH2AF) – manages up to three PROFIBUS networks for field device integration
Battery-backed NVRAM – 8 KB SRAM preserves critical configuration data during power loss
Flexible storage options – removable Compact Flash module (16 MB or 128 MB) for easy firmware upgrades and data storage
Multi-protocol communication – supports TCP/IP, EGD (for CIMPLICITY HMI), and Modbus over Ethernet
Hot-swappable design – field-replaceable modules minimize system downtime
Wide temperature range – -30°C to +65°C operation in harsh industrial environments
Enhanced conformal coating – protects against moisture, dust, and chemical contaminants for extended reliability
Diagnostic serial ports – COM1 dedicated to diagnostics (9600 baud); COM2 for serial Modbus communication (9600/19200 baud)
Executes real-time turbine control logic – runs speed regulation, fuel valve control, and overspeed protection algorithms
Manages VME backplane I/O – coordinates data exchange between the controller and I/O terminal boards
Provides fault-tolerant communication – dual Ethernet (IS215UCVEM06A) or PROFIBUS-DP (IS215UCVEH2AF) ensures uninterrupted system operation
Processes sensor and actuator data – acquires real-time data from turbine sensors and sends control signals to actuators
Performs continuous self-diagnostics – monitors internal health, detects faults, and reports status via front-panel indicators
Communicates with HMI and DCS – interfaces with CIMPLICITY HMI, Series 90-70 PLCs, and third-party DCS via Ethernet Modbus
Q1: What is the difference between IS215UCVEM06A and IS215UCVEH2AF?
A1: The IS215UCVEM06A features dual redundant Ethernet ports for fault-tolerant networking. The IS215UCVEH2AF offers a single Ethernet port plus three onboard PROFIBUS-DP masters for field device integration. Both share the same processor, memory, and QNX operating system.
Q2: Can the IS215UCVEM06A be used in a redundant control configuration?
A2: Yes. The IS215UCVEM06A supports redundant configurations with dual Ethernet channels, enabling hot-standby failover and continuous operation.
Q3: What operating system does the IS215UCVEH2AF run?
A3: The IS215UCVEH2AF runs the QNX real-time operating system, which provides deterministic control loops with ≤1 ms jitter for critical turbine applications.
Q4: Is the IS215UCVEM06A compatible with legacy Mark VI systems?
A4: Yes. The IS215UCVEM06A is backward compatible with existing Mark VI infrastructure and supports seamless integration with legacy components.
Q5: What communication protocols does the IS215UCVEH2AF support?
A5: The IS215UCVEH2AF supports TCP/IP, EGD (for CIMPLICITY HMI and Series 90-70 PLCs), Ethernet Modbus, and PROFIBUS-DP via three onboard masters.
