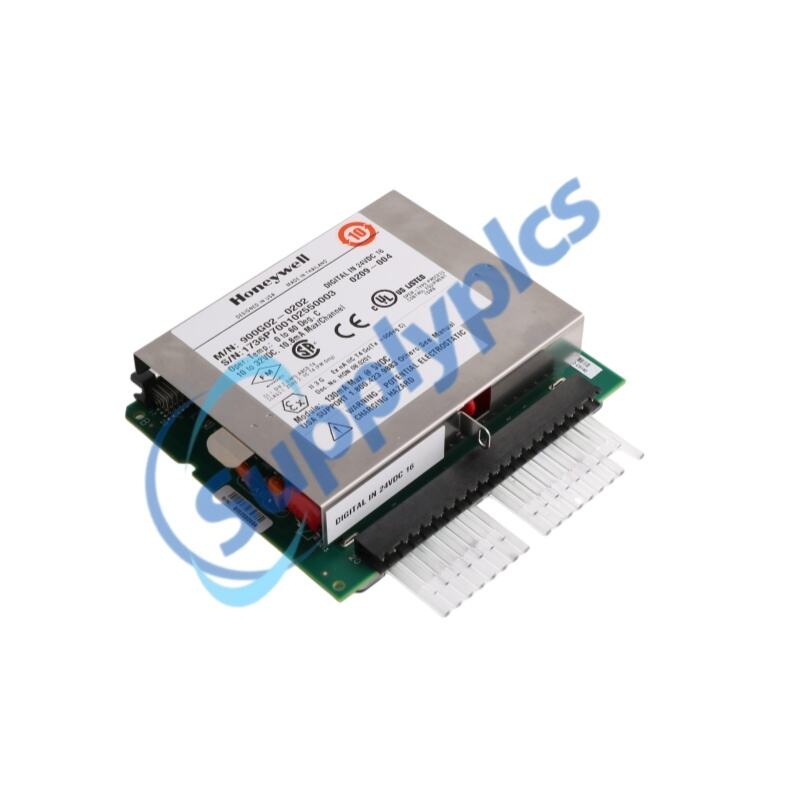

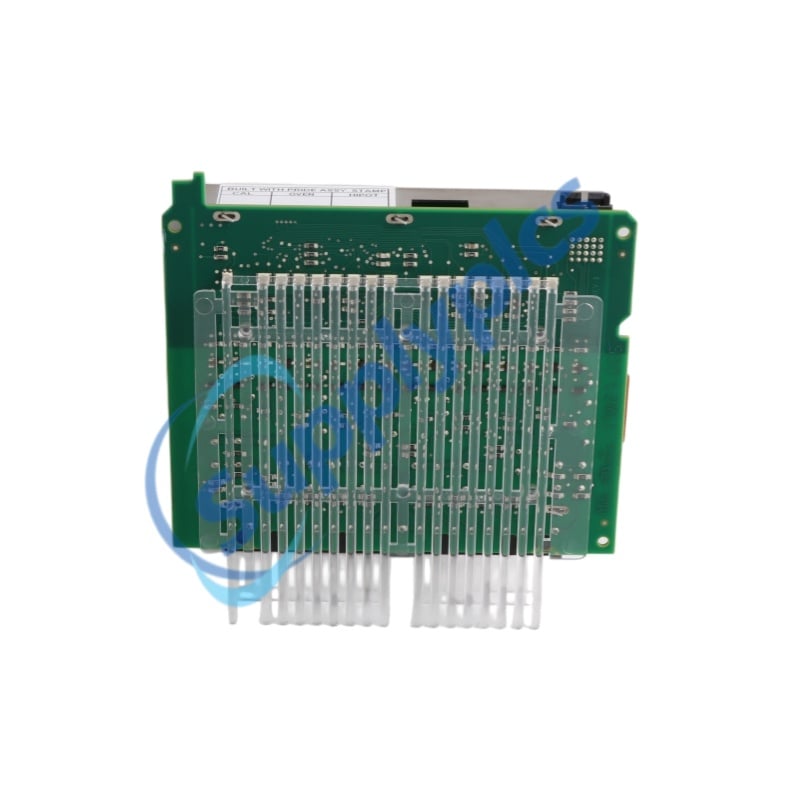

Product Name:Digital Input Module
Brand Name:Honeywell
Model Number:900G02-0202
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Honeywell |
Model Number: |
900G02-0202 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Product Model |
900G02-0202 |
|
Product Type |
DC Voltage Digital Input Module |
|
Input Channels |
16 Channels (Sinking) |
|
Input Voltage Range |
10 VDC to 32 VDC |
|
Peak Voltage |
32 VDC |
|
ON Voltage Level |
9.5 VDC Minimum |
|
OFF Voltage Level |
3.5 VDC Maximum |
|
Input Impedance |
2.6 KΩ Nominal |
|
Input Current |
2.3 mA @ 12 VDC / 6.9 mA @ 24 VDC |
|
Isolation |
2 Groups of 8 Inputs, 42.4 VDC Max |
|
Response Time |
4 ms Max ON/OFF |
|
Power Consumption |
5V; 130 mA Max |
|
Mounting Type |
35 mm DIN Rail |
|
Dimensions |
13.5x14.1x3.3cm |
|
Weight |
0.2kg |
|
Operating Temperature |
0°C to 60°C |
|
Certifications |
CE, UL, CSA, ATEX, FM |
Honeywell 900G02-0202 is a high-performance DC digital input module developed for the ControlEdge HC900 control platform. Designed for industrial automation and process monitoring applications, the module supports 16 sinking-type DC inputs with reliable signal acquisition from 10 to 32 VDC devices. Its compact DIN-rail design and robust electrical isolation make it suitable for demanding industrial environments requiring stable digital input processing.
The 900G02-0202 module features two isolated groups of 8 inputs, helping improve wiring flexibility and signal integrity in distributed control systems. Integrated LED indicators provide clear real-time diagnostics for channel status, communication activity, forced conditions, and fault detection, simplifying maintenance and troubleshooting operations.
Compatible with additional Honeywell HC900 series modules including 900G03-0202, 900G04-0101, and 900H32-0102, the 900G02-0202 is widely deployed in power plants, manufacturing systems, petrochemical facilities, and machinery automation projects where fast and accurate DC signal monitoring is essential.
Q1: What is the function of the 900G02-0202 module?
A1: It is a 16-channel DC digital input module used for monitoring industrial DC voltage signals in Honeywell HC900 systems.
Q2: What voltage range does the 900G02-0202 support?
A2: The module accepts input voltages from 10 VDC to 32 VDC.
Q3: Does the 900G02-0202 provide electrical isolation?
A3: Yes, it features two isolated groups of 8 inputs for improved signal protection and stability.
Q4: Can the module be replaced while powered on?
A4: Yes, the HC900 platform supports hot insertion and removal of I/O modules under power.
Q5: Which industries commonly use the 900G02-0202?
A5: It is widely used in power generation, petrochemical processing, manufacturing automation, and industrial machinery systems.
| Number | Description |
|---|---|
| 900G03-0202 | Digital Input 120/240 VAC, 16 Ch |
| 900G32-0101 | Digital Input 24VDC, 32 Ch |
| 900G01-0202 | Digital Input, Contact Type, 16 Ch |
| 900G04-0101 | Digital Input, 120/240 VAC / 125VDC, 16 Ch |
| 900H03-0202 | Digital Output, 120/240 VAC, 8 Ch |
| 900H32-0102 | Digital Output, 24VDC, 32 Ch |
| 900H01-0202 | Digital Output, Relays, 8 Ch |
| 900K01-0201 | Pulse/Frequency Module, 4 Ch |
| 900P01-0301 | Power Supply 120/240VAC, 60W |
| 900P24-0301 | Power Supply 24VDC, 60W |
| 900P01-0401 | SIL Power Supply 120/240VAC, 60W |
| 900P24-0401 | SIL Power Supply 24VDC, 60W |
| 900PSM-0200 | Power Status Module, Redundant |
| 50008930-001 | MOXA Network Switch, 8 Ports |
| 50008930-002 | MOXA Network Switch, 16 Port Multi-mode |
| 50135395-001 | MOXA IMC-101-M-SC Fiber Optic Converter |
