Product Name: CPU module
Brand Name: GE
Model Number:IS230TAISH2C/IS200TBAIS1CED
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
General Electric |
Model Number: |
UR9HH |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |

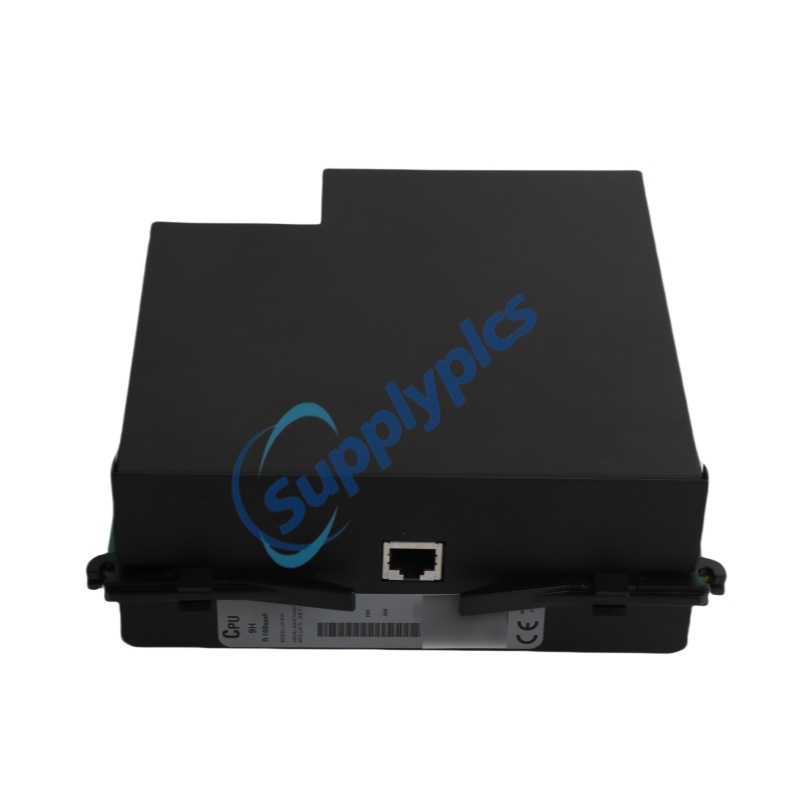

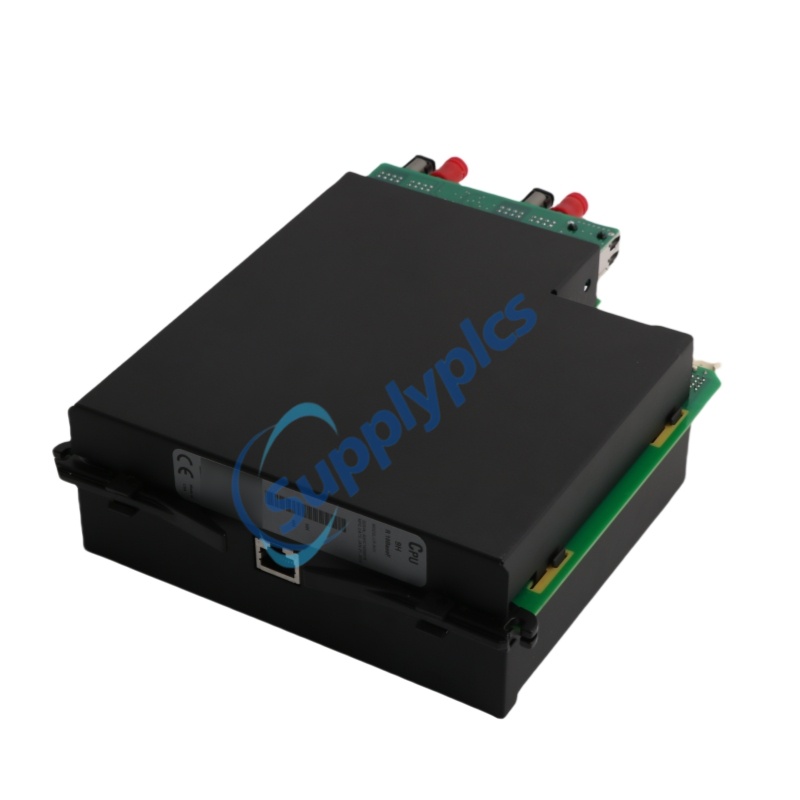

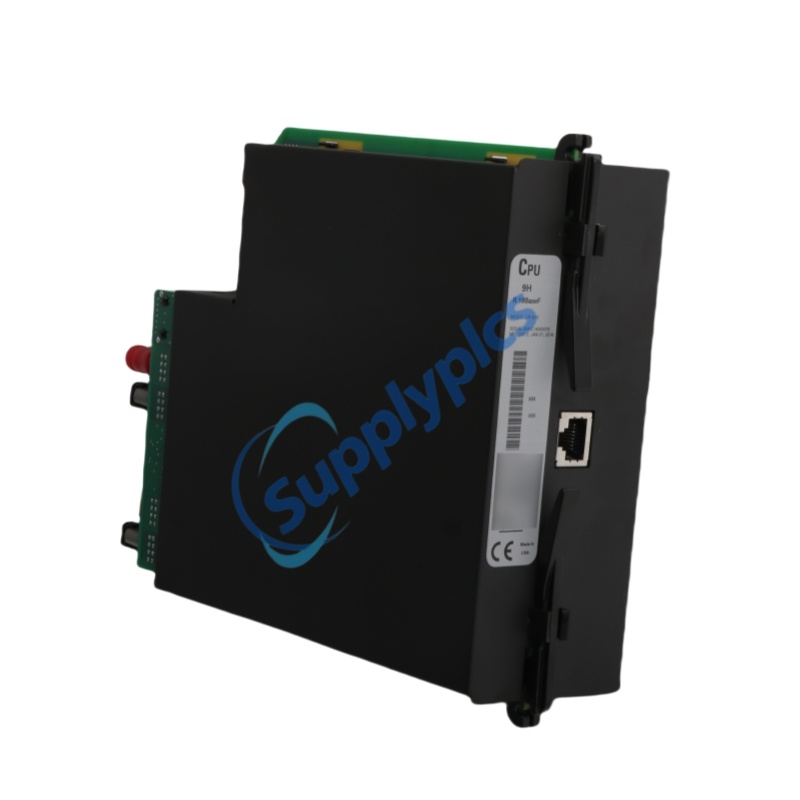

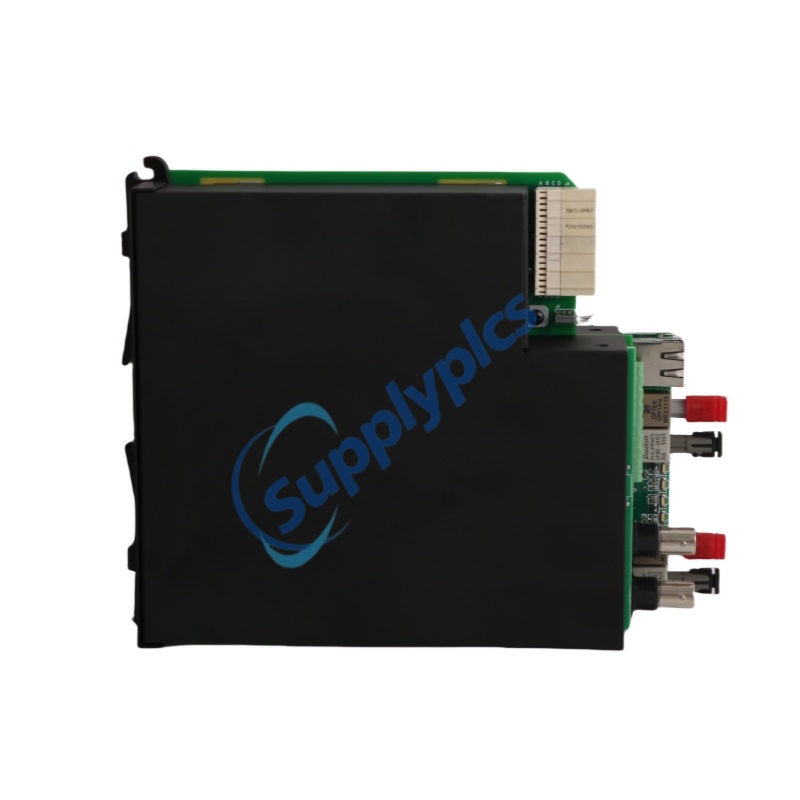

The UR9HH is a high-performance CPU module engineered by GE Multilin for the Universal Relay (UR) series, serving as the central processing core for protection and control systems . The UR9HH executes advanced protection algorithms, FlexLogic™ routines, and real-time monitoring functions with deterministic performance . The UR9HH provides robust communication capabilities including RS485, copper and fiber optic Ethernet, and supports protocols such as IEC 61850, DNP3, and Modbus . Designed for harsh environments, the UR9HH operates reliably across a wide temperature range .
Transmission and distribution line protection (L90, D60, F60 relays)
Generator protection (G60) and transformer protection (T60)
Substation automation and control systems
Industrial power systems and motor protection (M60)
Busbar protection (B90) and capacitor bank protection (C70)
Synchrophasor measurement and wide-area monitoring
CyberSentry™ Security: High-end cybersecurity aligned with NERC CIP standards, supporting AAA, RBAC, and Syslog
Self-Diagnostics: Comprehensive device health monitoring at startup and continuously during runtime
CT/VT Signal Integrity Monitoring: Advanced algorithms validate analog signal integrity
Redundant Configurations: Supports N+1 redundancy for enhanced system availability
IEEE 1588 Time Synchronization: Precision time protocol eliminates dedicated IRIG-B wiring
IEC 62439-3 PRP Support: Zero failover time for mission-critical networks
Event Logging & Fault Reporting: Comprehensive diagnostics via LED indicators and event logs
High-Speed Processing: The Intel 80188-based CPU of the UR9HH ensures deterministic execution of complex protection algorithms and logic schemes, reducing operating time during critical fault events.
Reduced Spare Parts Inventory: Modular construction across the UR platform means the UR9HH uses common hardware, simplifying maintenance and minimizing the stock of spare components.
Purpose-Specific LAN Support: With three independent Ethernet ports, the UR9HH segregates heavy traffic (e.g., synchrophasors) from mission-critical services (e.g., GOOSE), eliminating latency impacts on protection communications.
CyberSecurity Compliance: CyberSentry™ security features on the UR9HH align with NERC CIP standards, providing RBAC, AAA, and Syslog support for audit-ready security management.
Zero Failover Time: Built-in IEC 62439-3 PRP support enables the UR9HH to maintain continuous network availability with zero failover time for critical applications.
Extended Temperature Operation: Rated from -40°C to +70°C, the UR9HH delivers reliable performance in the harshest industrial and outdoor substation environments.
Simplified System Integration: The UR9HH supports over 10 communication protocols (IEC 61850, DNP3, Modbus, IEEE 1588, etc.), enabling direct integration into new or legacy automation infrastructures without costly gateways.
Q1: Is the UR9HH compatible with all UR-series relay frames?
A1: Yes, the UR9HH CPU module works with standard UR chassis and supports most relay configurations, including T60, L90, and F60 relays.
Q2: What communication protocols does the UR9HH support?
A2: It supports IEC 61850, DNP 3.0, Modbus TCP/IP, IEEE C37.118 synchrophasors, PRP, and IEEE 1588.
Q3: Can the UR9HH operate in extreme temperature conditions?
A3: Yes, it operates reliably from -40°C to +70°C and can be stored from -40°C to +85°C.
Q4: How many I/O points can the UR9HH manage?
A4: The module supports up to 1024 I/O points depending on the installed UR modules.
Q5: What software is used to configure the UR9HH?
A5: The UR9HH is managed and programmed through EnerVista UR software, which provides configuration, monitoring, and firmware management capabilities.
