Product Name: Communication Module
Brand Name: GE
Model Number:QPI-GEG-201-H
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
General Electric |
Model Number: |
QPI-GEG-201-H |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Part Number |
QPI-GEG-201-H |
|
Manufacturer |
General Electric (GE Fanuc) / Total Control Products |
|
Series |
QuickPanel |
|
Product Type |
Genius I/O Communication Module / QuickPanel Connector |
|
Functional Role |
Bridges Genius I/O network to QuickPanel touch screen HMIs |
|
Power Input (Backplane) |
5 V DC, 1.3 A max |
|
Operating Voltage |
20.4 – 27.6 V DC |
|
Power Consumption |
50 VA (nominal), 15 W typical |
|
Devices Supported on Genius Bus |
Up to 32 devices |
|
Max Baud Rate |
153.6 Kbps |
|
Communication Interfaces |
Genius Bus, Ethernet, Hand-Held Monitor port |
|
Serial Ports |
RS-232 / RS-485 |
|
Compatibility |
QuickPanel 9″, 10.5″, 12.1″ color / monochrome displays |
|
Withstand Voltage |
1500 VAC (10 mA, 1 min) |
|
Operating Temperature |
0°C to +50°C (some sources: –10°C to +50°C) |
|
Storage Temperature |
–10°C to +60°C (some sources: –40°C to +70°C) |
|
Humidity |
5% – 95% RH (non-condensing) |
|
Dimensions (W × H × D) |
17.6x3.3x11.7cm |
|
Weight |
0.44kg |
|
Mounting |
Backplane / rack-mount within QuickPanel assembly |
|
Country of Origin |
United States (USA) |
|
Compliance |
CE, UL, IEC |
|
Availability |
In Stock (new / refurbished) |
|
Warranty |
12 months (typical) |
|
Parameter |
Specification |
|
Part Number |
QPI-GEG-201-H |
|
Manufacturer |
General Electric (GE Fanuc) / Total Control Products |
|
Series |
QuickPanel |
|
Product Type |
Genius I/O Communication Module / QuickPanel Connector |
|
Functional Role |
Bridges Genius I/O network to QuickPanel touch screen HMIs |
|
Power Input (Backplane) |
5 V DC, 1.3 A max |

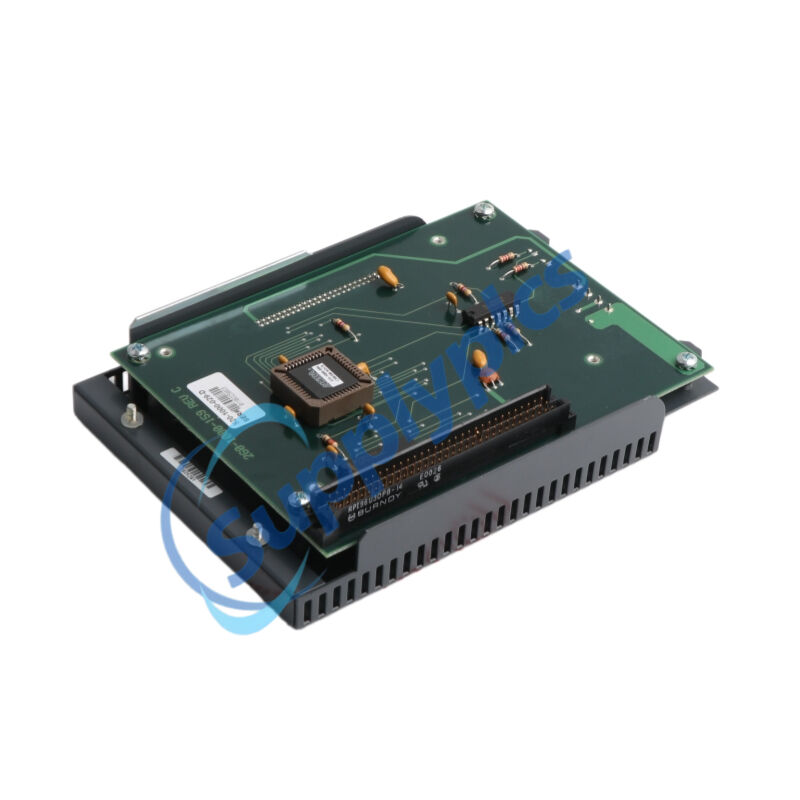

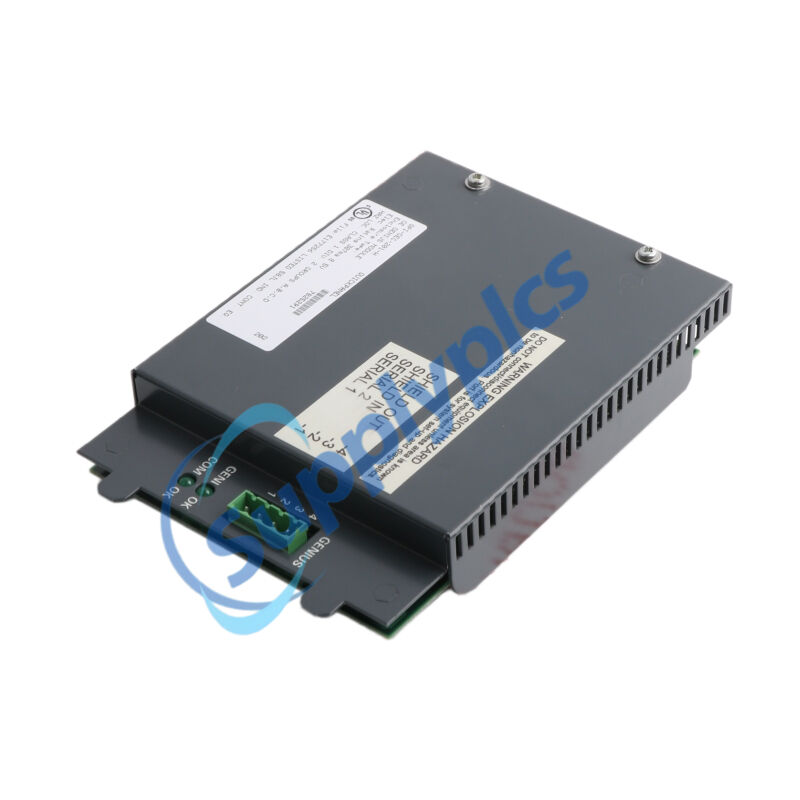

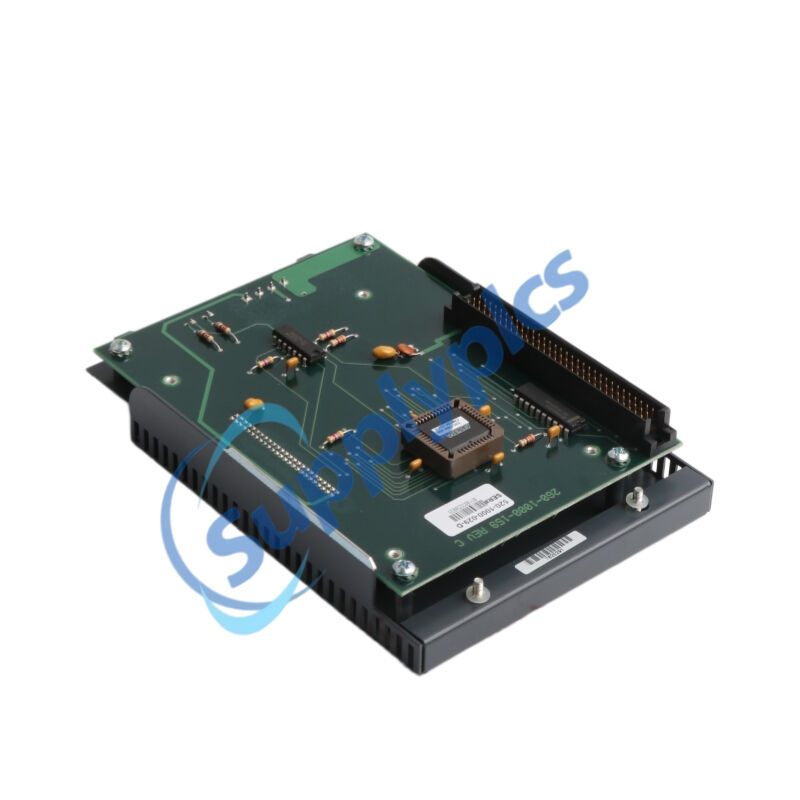

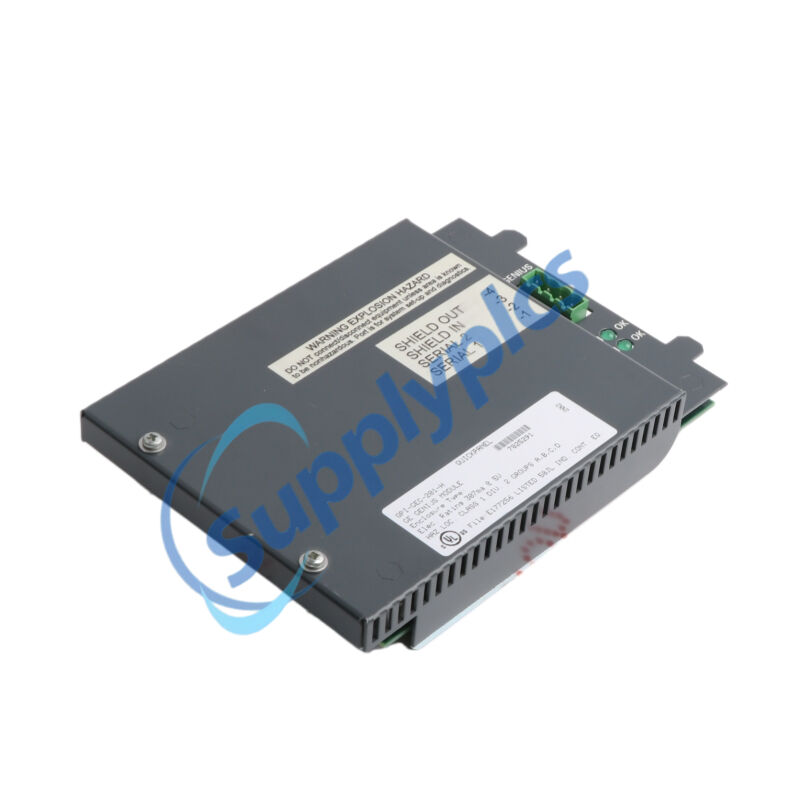

The QPI‑GEG‑201‑H is a dedicated Genius I/O communication module engineered by GE Fanuc for the QuickPanel series of operator interface terminals. Installed as an optional internal module, the QPI‑GEG‑201‑H bridges the QuickPanel touch screen HMI to a Genius I/O network, enabling real‑time data exchange with up to 32 remote I/O devices over the Genius Bus at speeds up to 153.6 Kbps. The QPI‑GEG‑201‑H integrates seamlessly with QuickPanel models ranging from 9″ monochrome to 12.1″ full‑color TFT displays, making it a versatile connectivity solution for SCADA visualization and control systems. The QPI‑GEG‑201‑H is powered directly from the backplane and includes a built‑in handheld monitor port for on‑site diagnostics, delivering reliable performance in industrial environments.
HMI connectivity to GE Genius I/O distributed control networks (power plants, refineries, chemical plants)
QuickPanel visualization for turbomachinery (GE Speedtronic systems) and reciprocating engine control
Industrial SCADA systems for real‑time process monitoring (water treatment, material handling)
Legacy QuickPanel upgrades and retrofits requiring Genius I/O expansion
Discrete manufacturing (paint booths, conveyor systems, filling machines) requiring operator interface
Pulp and paper, steel mills, food and beverage processing facilities with Genius I/O infrastructure
Dedicated Genius I/O bridge module: Connects QuickPanel touch screens directly to GE‘s Genius I/O network without an intermediate PLC — no additional gateway hardware required.
Multi‑protocol support: Compatible with seven PLC protocols (A‑B Remote I/O, DH+, Interbus‑S, Modbus Plus, DeviceNet, Profibus, Genius I/O), selectable via the QuickPanel‘s configuration menu.
Supports 32 remote I/O devices per bus: Manages up to 32 Genius I/O blocks (discrete I/O, analog I/O, intelligent modules) on a single Genius Bus segment, enabling medium‑scale distributed I/O architectures.
High‑speed Genius Bus communication: Operates at 153.6 Kbps over the rugged Genius twisted‑pair bus, delivering deterministic I/O updates for time‑sensitive control loops and operator interface responses.
Built‑in handheld monitor port: Provides direct connection for a Genius Hand‑Held Monitor (HHM) to perform on‑site bus configuration, force I/O points, and diagnose communication faults without external tools.
Seamless QuickPanel backplane integration: Designed as an internal slot‑in module for QuickPanel chassis; auto‑detects bus parameters upon power‑up, eliminating manual addressing and jumpers.
Wide operating temperature tolerance: Reliable operation from 0°C to +50°C and storage from –40°C to +70°C — suitable for outdoor cabinets, turbine enclosures, and unheated industrial buildings.
Galvanic isolation and surge protection: 1500 VAC withstand rating and built‑in transient suppression protect the HMI and controller electronics from high‑voltage noise, ground loops, and lightning‑induced surges common on long industrial fieldbus runs.
Low backplane power draw: Consumes only 1.3 A at 5 V DC and 15–50 VA total, minimising thermal load inside sealed operator panels.
Comprehensive LED fault reporting: Dedicated LEDs indicate bus active status, module health, and communication errors — immediate visual feedback during startup and runtime.
Acts as the communication gateway between the QuickPanel HMI and a Genius I/O fieldbus, translating touchscreen commands into Genius Bus messages and converting field I/O data into displayable values.
Polls up to 32 Genius I/O blocks over the twisted‑pair bus at 153.6 Kbps, continuously updating the HMI‘s internal data tables with current digital and analog values from remote sensors, actuators, and control devices.
Manages the complete Genius I/O protocol stack including global data broadcast, device configuration, and fault reporting — the QuickPanel CPU treats the QPI‑GEG‑201‑H as a native Genius bus master.
Provides operator interface terminals with direct read/write access to I/O points: pushbutton presses on the HMI trigger output writes to remote blocks (e.g., turning on a pump via a discrete output block at a distant location).
Passes Genius Hand‑Held Monitor commands through the QPI‑GEG‑201‑H to the bus, allowing technicians to connect an HHM to the module’s dedicated port and perform diagnostics on the entire Genius I/O segment without disturbing network wiring.
Reports Genius Bus health status (active nodes, communication errors, device faults) back to the QuickPanel‘s runtime environment, where alarms can be displayed to operators or logged for maintenance review.
Automatically re‑establishes bus communication after transient faults (e.g., electrical noise burst, momentary power drop) within milliseconds, minimising display data freezes in critical production environments.
Electrically isolates the QuickPanel‘s internal logic from the Genius Bus field wiring via integrated DC‑DC converters and optical couplers, blocking ground potential differences and conducted EMI.
Stores the complete Genius I/O configuration (device addresses, I/O maps, timing parameters) in the QuickPanel‘s non‑volatile memory, retaining settings through power cycles.
Supports three QuickPanel power‑up modes: normal run (immediately begin I/O scanning), configure (maintain settings while allowing HHM configuration), and ignore (skip Genius I/O initialization) — selectable via the module‘s dip switches.
Q1: What is the QPI‑GEG‑201‑H used for?
A1: The QPI‑GEG‑201‑H is a Genius I/O communication module that connects QuickPanel HMIs to GE‘s Genius I/O network, acting as a bus master for up to 32 remote I/O devices.
Q2: Which QuickPanel models are compatible with the QPI‑GEG‑201‑H?
A2: The QPI‑GEG‑201‑H interfaces with 9-inch (amber EL), 10.5-inch (monochrome LCD), 10.5-inch (STN full color), 10.5-inch (TFT full color), and 12.1-inch (TFT full color) QuickPanel models.
Q3: How many devices does the QPI‑GEG‑201‑H support?
A3: The QPI‑GEG‑201‑H supports up to 32 devices on the Genius Bus network at a maximum baud rate of 153.6 Kbps.
Q4: What power input does the QPI‑GEG‑201‑H require?
A4: The QPI‑GEG‑201‑H operates on 5 V DC power from the backplane, drawing 1.3 A, with additional field power supplied via the 20.4–27.6 V DC Genius Bus connection.
Q5: Does the QPI‑GEG‑201‑H have diagnostic LEDs?
A5: Yes. The QPI‑GEG‑201‑H includes dedicated LEDs for power, bus active status, module health, and communication errors, enabling quick on‑site troubleshooting.
