Product Name: High Density I/O Cables
Brand Name: GE
Model Number:IC693CBK001
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
General Electric |
Model Number: |
IC693CBK001 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Manufacturer |
GE Fanuc / Emerson |
|
Part Number |
IC693CBK001 |
|
Product Type |
Cable Kit for Series 90-30 High Density I/O |
|
Kit Contents |
IC693CBL327 (Left Side) + IC693CBL328 (Right Side) |
|
Cable Length |
1.0 meter (both cables) |
|
Connector Type |
24-pin right-angle connector on one end; 24 flying leads (stripped wires) on the opposite end |
|
Total Conductors per Cable |
24 wires (12 twisted pairs) |
|
Wire Identification |
Solid color paired with identical color + black tracer (e.g., Brown / Brown-Black) |
|
Connector Pin Arrangement |
Row A (Pins 1–12) and Row B (Pins 1–12) |
|
Compatible I/O Modules |
32-point high density discrete I/O modules (Series 90-30) |
|
Compatible Terminal Blocks |
IC693ACC334, IC693ACC329, IC693ACC330, IC693ACC331, IC693ACC332, IC693ACC333, IC693ACC337 |
|
Replacement For |
Obsolete IC693CBL315 (identical pin-out) |
|
Orientation |
90° angled exit (left and right sides) |
|
Dimension |
36x13x5cm |
|
Weight |
0.44kg |

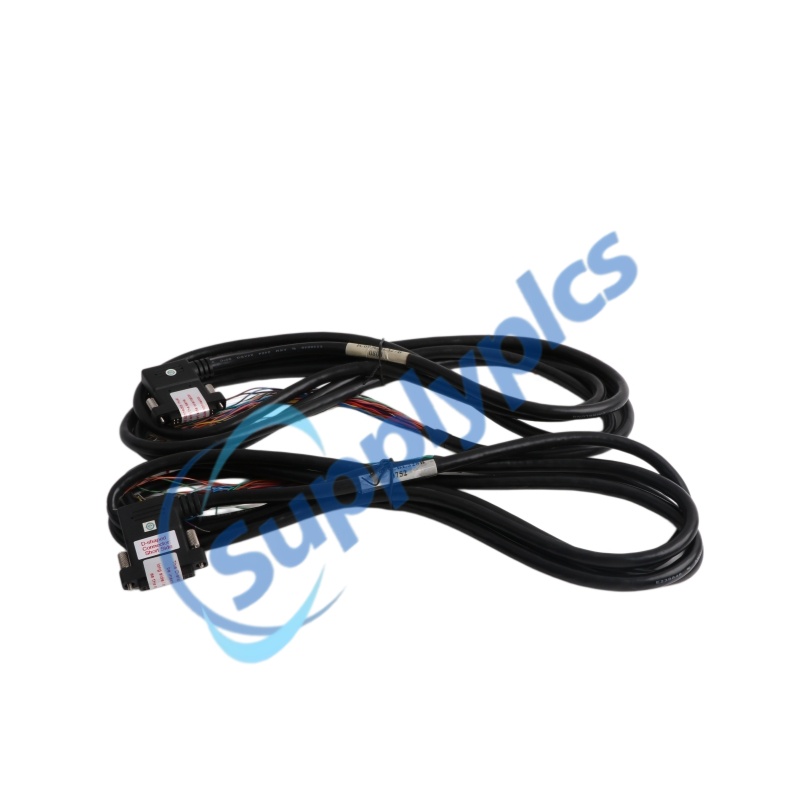

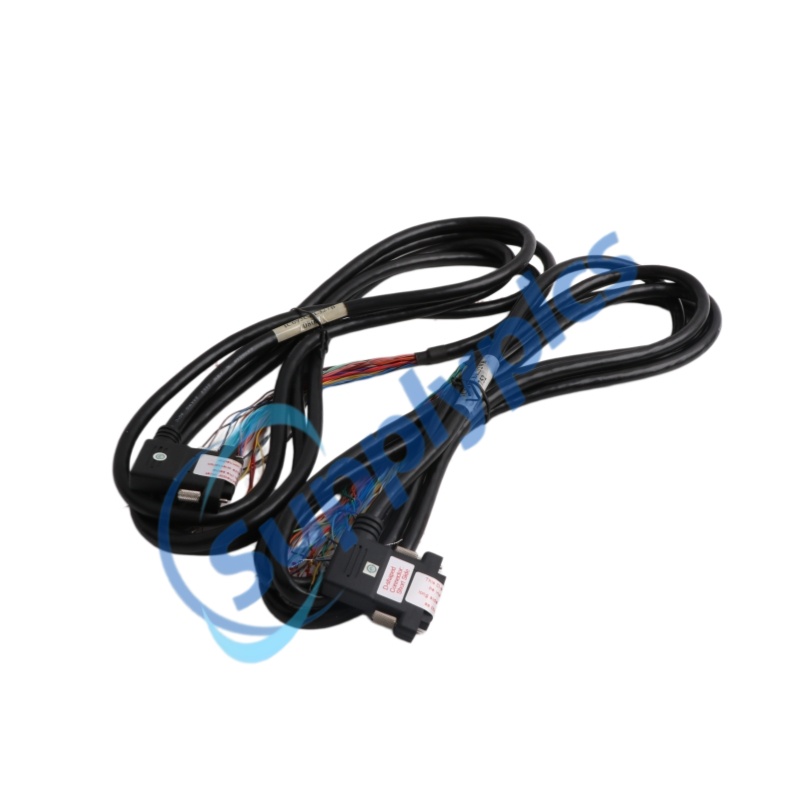

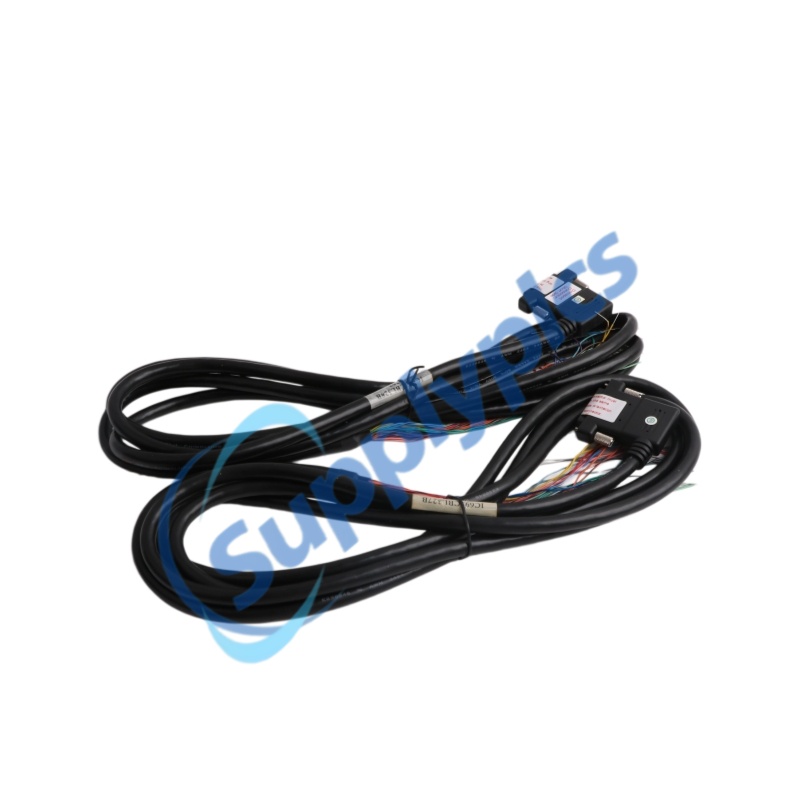

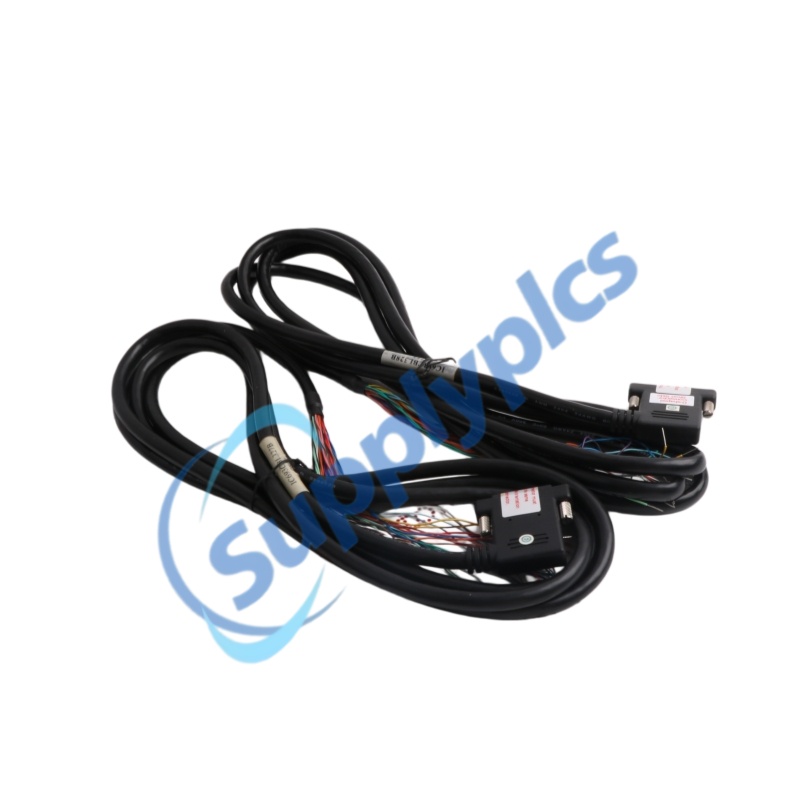

The IC693CBK001 is a comprehensive 1.0‑meter cable kit engineered specifically for GE Fanuc Series 90‑30 high‑density I/O installations. This IC693CBK001 kit bundles both the left‑exit (IC693CBL327) and right‑exit (IC693CBL328) cable assemblies, eliminating separate ordering. Each cable within the IC693CBK001 features a rugged 24‑pin right‑angle connector at one end and 24 color‑coded flying leads at the other, facilitating direct termination to field devices. The IC693CBK001 maintains the exact pin‑out of the discontinued IC693CBL315, ensuring seamless drop‑in replacement without rewiring modifications.
Complete Two‑Cable Set – Includes both left and right angled assemblies in a single package, simplifying procurement and spare parts management
Legacy Compatibility – Pin‑for‑pin match with obsolete IC693CBL315 enables risk‑free system upgrades and maintenance
Space‑Saving 90° Design – Angled connector reduces clearance requirements and prevents cable over‑bending in shallow enclosures
Quick Field Termination – Pre‑stripped flying leads with distinct color tracers accelerate wiring and reduce termination errors
Verified System Integration – Explicitly validated for 32‑point modules and TBQC accessories, ensuring out‑of‑box reliability
Dual‑Cable Configuration – IC693CBL327 (left side) and IC693CBL328 (right side) for symmetrical panel layout
24‑Pin Right‑Angle Connector – Low‑profile termination for high‑density I/O modules with restricted headroom
12 Twisted Wire Pairs – Solid color and striped companion wires (brown/black, red/black, orange/black, etc.) for systematic identification
Flying Lead Termination End – Uncommitted stripped wires offer flexible connection to terminal blocks, relays, or junction boxes
1.0 Meter Nominal Length – Optimal reach for most standard control cabinet layouts without excessive slack
Identical Pin‑Out to Legacy Model – Direct interchangeability with IC693CBL315 preserves existing wiring schemes
As a passive copper interconnect assembly, the IC693CBK001 does not carry active electronic certifications such as UL Listing or CE marking that typically apply to powered control equipment. However, the cable suite is manufactured to GE Fanuc’s internal quality benchmarks for industrial automation environments. The conductor insulation utilizes standard PVC material rated for continuous operation within 0°C to +60°C ambient temperatures, suitable for indoor control cabinets. The twisted‑pair construction provides inherent noise rejection for discrete signals in electrically noisy industrial settings. The assembly is intended for dry, non‑corrosive locations with Pollution Degree 2 classification, aligning with typical manufacturing floor conditions. Users should observe minimum bend radius guidelines during installation to preserve conductor integrity and signal reliability over the product’s service life.
Q1: What cables are included in the IC693CBK001 kit?
The IC693CBK001 comprises two separate cable assemblies: the IC693CBL327 for left‑side exit and the IC693CBL328 for right‑side exit, both measuring 1.0 meter in length.
Q2: Is the IC693CBK001 a direct replacement for the obsolete IC693CBL315?
Yes. The IC693CBK001 supersedes the discontinued IC693CBL315 while maintaining the identical connector pin‑out, enabling straightforward replacement without modifying existing wiring or termination schemes.
Q3: Are both ends of the cables terminated with connectors?
No. Each cable in the IC693CBK001 has a 24‑pin right‑angle connector only on the I/O module end. The opposite end consists of 24 individual flying leads (stripped wires) intended for user‑termination to field devices or TBQC blocks.
Q4: Which terminal block accessories work with the IC693CBK001?
The IC693CBK001 is compatible with the Terminal Block Quick Connect series, specifically IC693ACC334, IC693ACC329, IC693ACC330, IC693ACC331, IC693ACC332, IC693ACC333, and IC693ACC337.
Q5: How do I identify the individual wires during termination?
Each of the 24 wires in the IC693CBK001 is organized as 12 color‑coded pairs. Each pair consists of one solid‑color conductor and a second conductor of the same base color with a black tracer (e.g., brown and brown/black), making polarity or signal differentiation straightforward.
