Product Name: 8-channel analog input module
Brand Name: HIMA
Model Number: F3221
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
HIMA |
Model Number: |
F6217 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
Supply Ability: |
in stock |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |

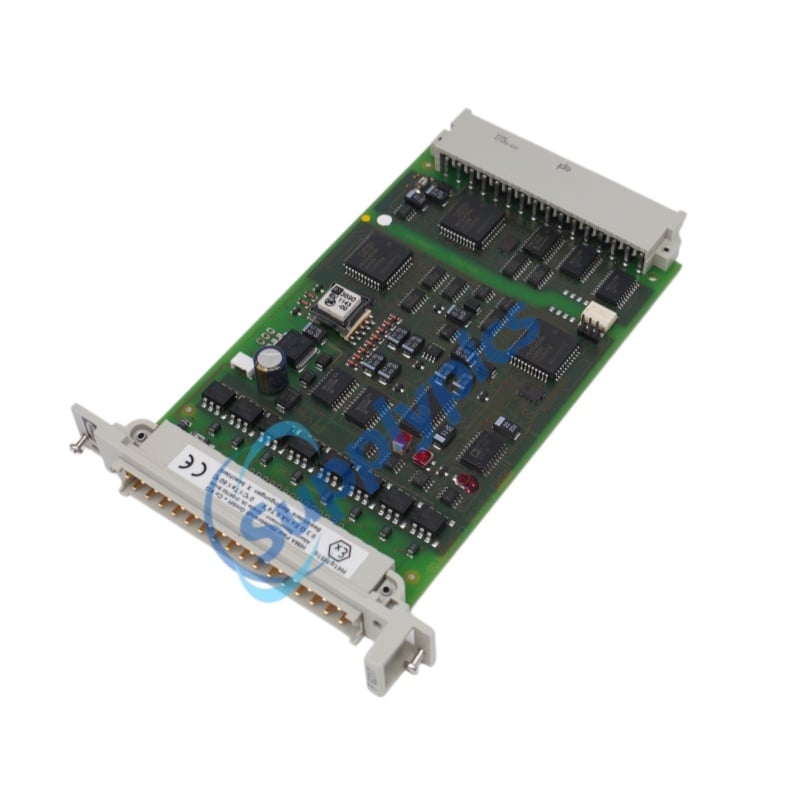

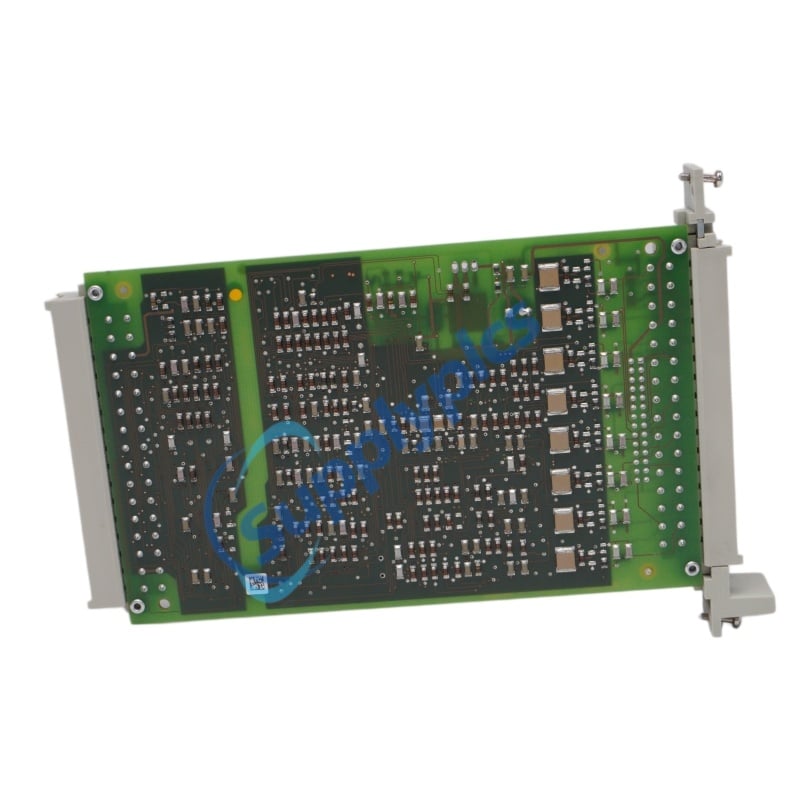

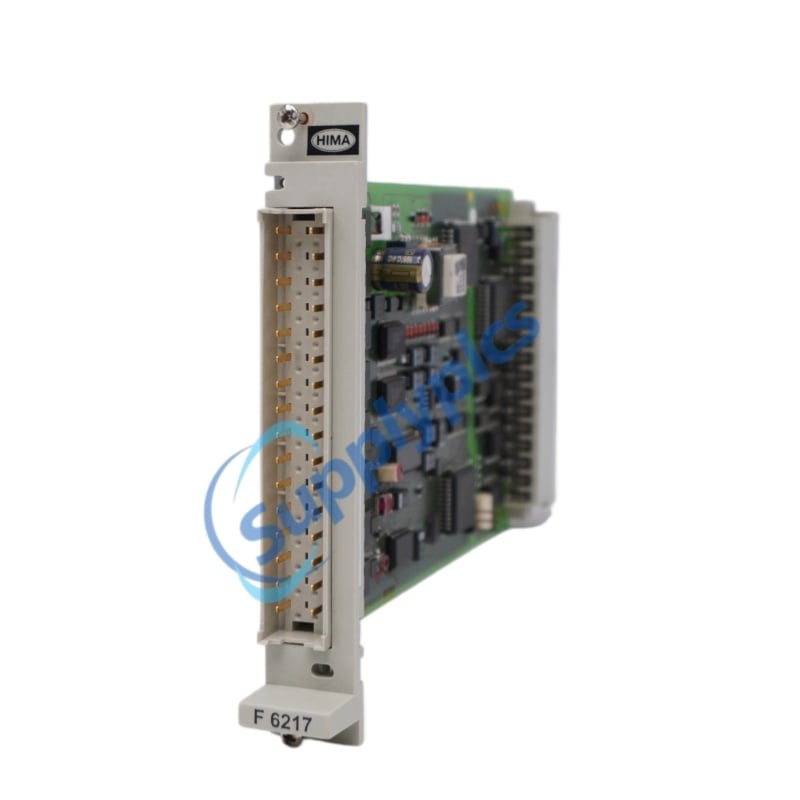

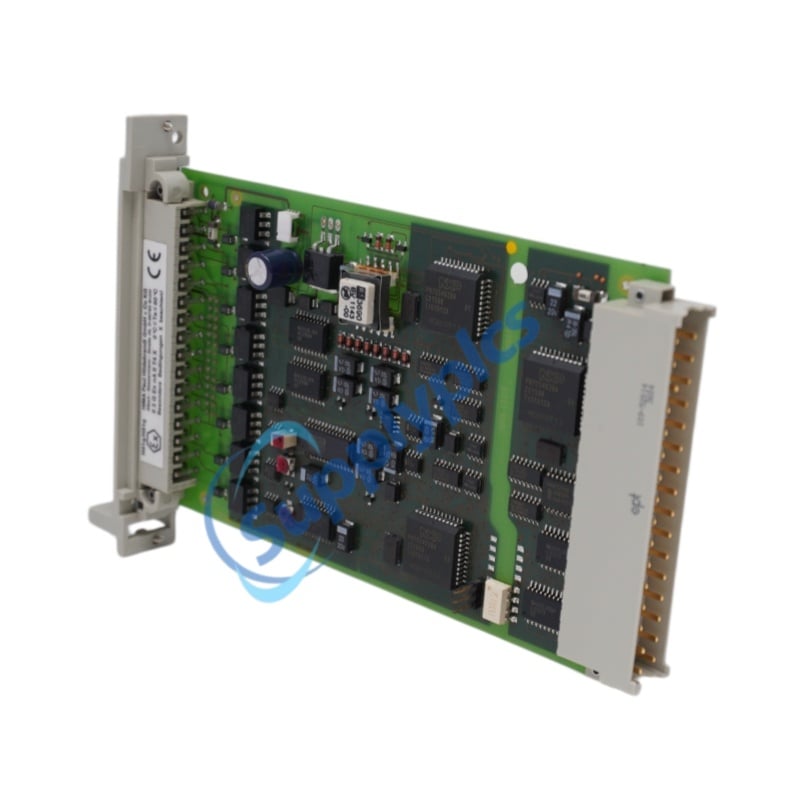

The HIMA F6217 is a high-precision 8-channel analog input module designed for safety-critical industrial applications. Certified for SIL 3 per IEC 61508, the F6217 captures current (0/4–20 mA) and voltage (0–5/10 V) signals with 12-bit resolution. Featuring a redundant, safety-related processor system, the HIMA F6217 performs comprehensive self-tests including A/D converter linearity, overflow, cross-talk, and memory integrity checks. The F6217 module provides per-channel fault bits for safety reaction programming and supports redundant transmitter connections.
SIL 3 safety certification: Compliant with IEC 61508 for safety instrumented systems
Redundant processor architecture: Dual-channel lockstep design with comprehensive self-diagnostics
8 isolated input channels: Each channel with independent filtering and fault detection
12-bit resolution: High-accuracy signal conversion for precise measurement
Wide signal compatibility: Supports 0/4–20 mA, 0–5 V, and 0–10 V inputs
Per-channel fault bits: Individual error flags for each input channel
Diagnostic coverage: Linearity, overflow, cross-talk, and memory self-tests
Converts analog current/voltage signals to digital values for safety controllers
Monitors input signal integrity and sets channel error bits upon fault detection
Performs continuous self-tests including A/D converter linearity, overflow, cross-talk, and memory integrity
Evaluates input signal quality in user program via per-channel fault bits
Provides safe isolation between input channels and system bus
Supports redundant transmitter connections for high availability applications
Q1: What is the HIMA F6217?
A1:The F6217 is an 8-channel safety-related analog input module certified for SIL 3 applications.
Q2: What signal types does the F6217 support?
A2:The F6217 supports current inputs (0/4–20 mA) and voltage inputs (0–5 V and 0–10 V).
Q3: What is the resolution of the HIMA F6217?
A3:The F6217 provides 12-bit resolution with a measurand update of 50 ms.
Q4: What safety certification does the F6217 have?
A4:The F6217 is certified for SIL 3 according to IEC 61508 for use in safety-critical applications.
Q5: Does the F6217 support redundant transmitters?
A5:Yes, the F6217 supports redundant transmitter connections with evaluation handled in the user program.
