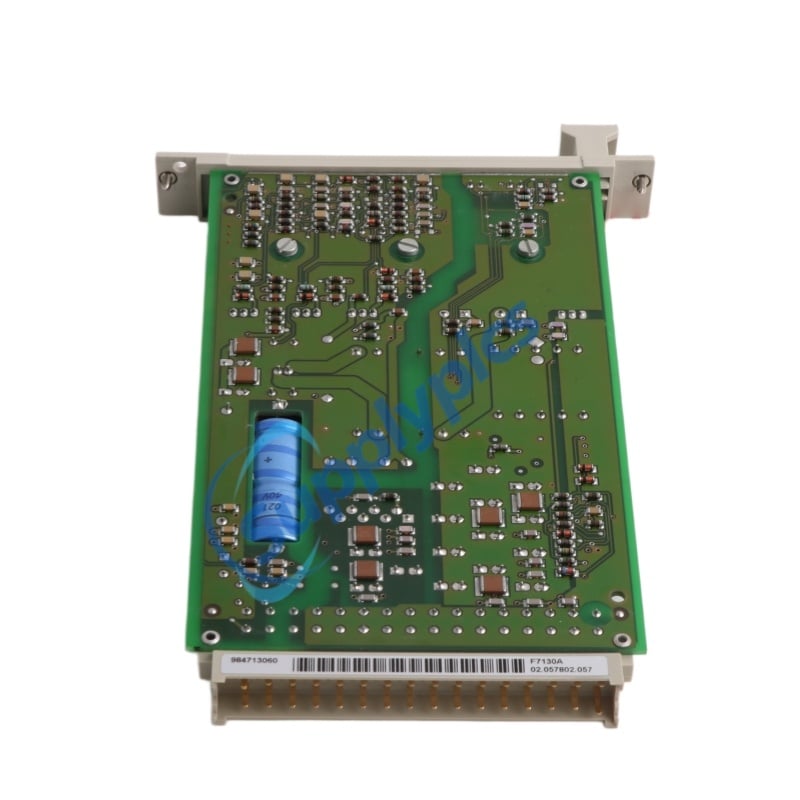

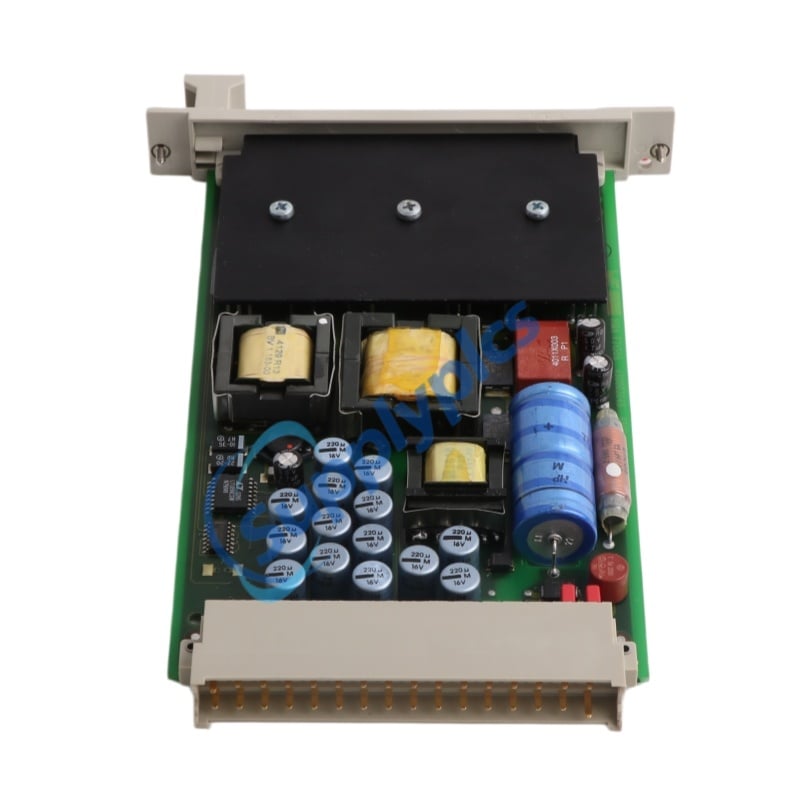

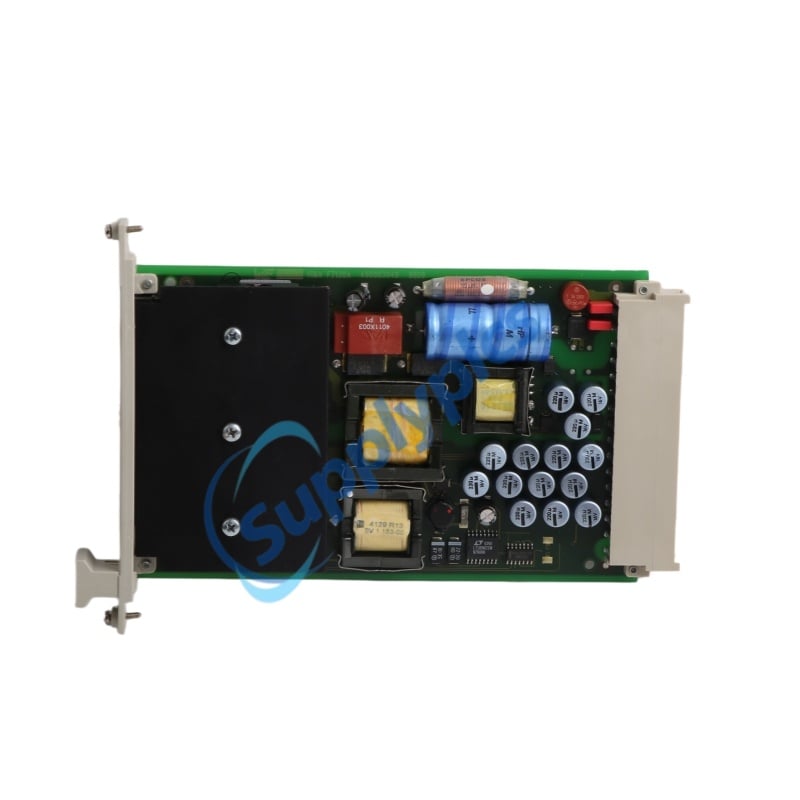

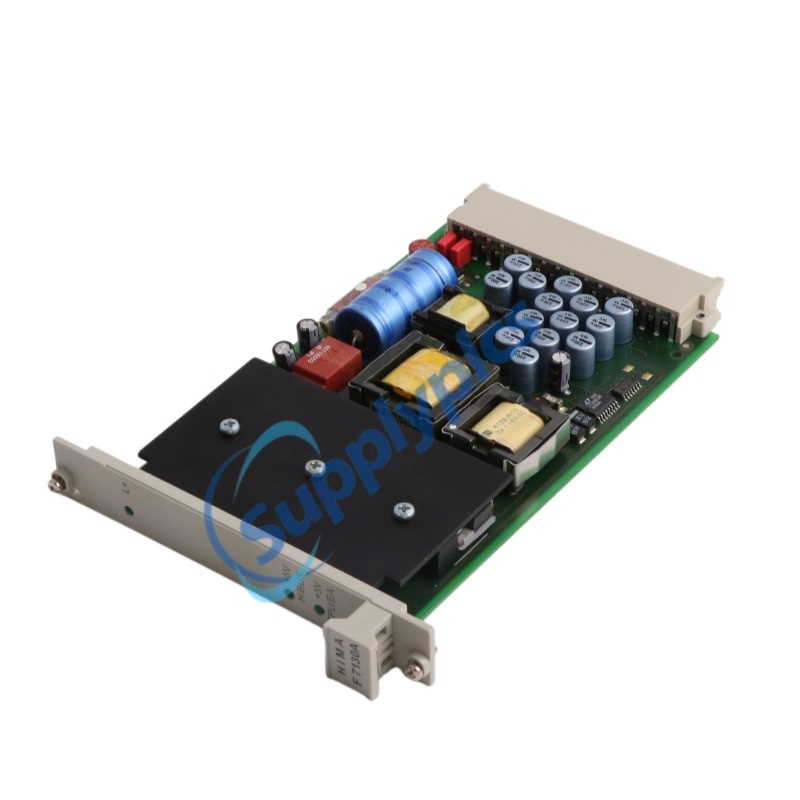

HIMA HIQuad Power supply module F7130A Original new

HIMA HIQuad Power supply module F7130A Original new

Product Name: Power supply module

Brand Name: HIMA

Model Number: F7130A

Country of Origin:GERMANY

Warranty: 12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

hima hiquad power supply module f7130a original new-1

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Recommended Products

Overview

Brand Name:	HIMA
Model Number:	F7130A
Country of Origin:	GERMANY
Packaging Details:	Original new Factory Sealed
Delivery Time:	Delivery time in stock
Payment Terms:	T/T
Supply Ability:	in stock

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Value / Description
Manufacturer	HIMA Paul Hildebrandt GmbH
Model Number	F7130A (Order No. 984713060)
Product Type	DC/DC power supply module for PES H41q
Input Voltage	24 VDC (-15% to +20%), ripple < 15%
Primary Fuse	5 A gL
Output 1 (CPU/IO Modules)	5 VDC ±0.25 V / 10 A
Output 2 (HIBUS Interface)	5 VDC ±0.25 V / 1 A
Efficiency	≥70%
Electrical Isolation	Yes, between input and output
Protection	Overvoltage protection, current limitation, short-circuit proof outputs
Indicators	LEDs for input (L+) and output voltages
Space Requirement	4 SU
Dimensions	2x18.8x12.7cm
Weight	0.32kg

Description

The HIMA F7130A is a dedicated power supply module for the PES H41q safety system. It converts a 24 VDC input into a stabilized 5 VDC output, supplying central devices, I/O modules, and the HIBUS interface . Featuring electrical isolation, overvoltage protection, and short-circuit-proof outputs, the HIMA F7130A ensures reliable system operation. LED indicators on the front panel display input and output status. The module occupies 4 SU and is suitable for SIL 3 safety applications .

Applications

Powering PES H41q central devices and I/O modules
Safety Instrumented Systems (SIS) requiring SIL 3 compliance
Industrial automation and process control systems
Oil & gas, chemical, and power generation plants

Features

DC/DC converter with isolation: Ensures safe separation between input and output
Overvoltage and short-circuit protection: Prevents damage to downstream components
Dual 5 V outputs: 10 A for CPU/IO modules, 1 A for HIBUS interface
LED status indicators: Quick visual diagnostics for input and output voltages
Efficient operation: ≥70% efficiency rate
Compact footprint: 4 SU space requirement for rack integration
SIL 3 compatible: Suitable for safety-critical applications

Functions

Converts 24 VDC input to stable 5 VDC output for PES H41q system components
Provides isolated power supply to central device, I/O modules, and HIBUS interface
Protects against overvoltage, overcurrent, and short-circuit conditions
Indicates input and output voltage status via front panel LEDs
Supports monitoring of central device via separate pin z16 (NG) connection

FAQ

Q1: What is the HIMA F7130A?
A1: The F7130A is a power supply module that converts 24 VDC to 5 VDC for HIMA PES H41q systems .

Q2: What are the output ratings of the F7130A?
A2: The F7130A provides 5 VDC / 10 A for CPU/IO modules and 5 VDC / 1 A for the HIBUS interface .

Q3: Does the F7130A have short-circuit protection?
A3: Yes, the F7130A outputs are short-circuit proof .

Q4: How is the F7130A monitored?
A4: The F7130A has LEDs on the front panel indicating input and output voltage status .

Q5: What is the efficiency of the F7130A?
A5: The F7130A has an efficiency rate of ≥70% .
