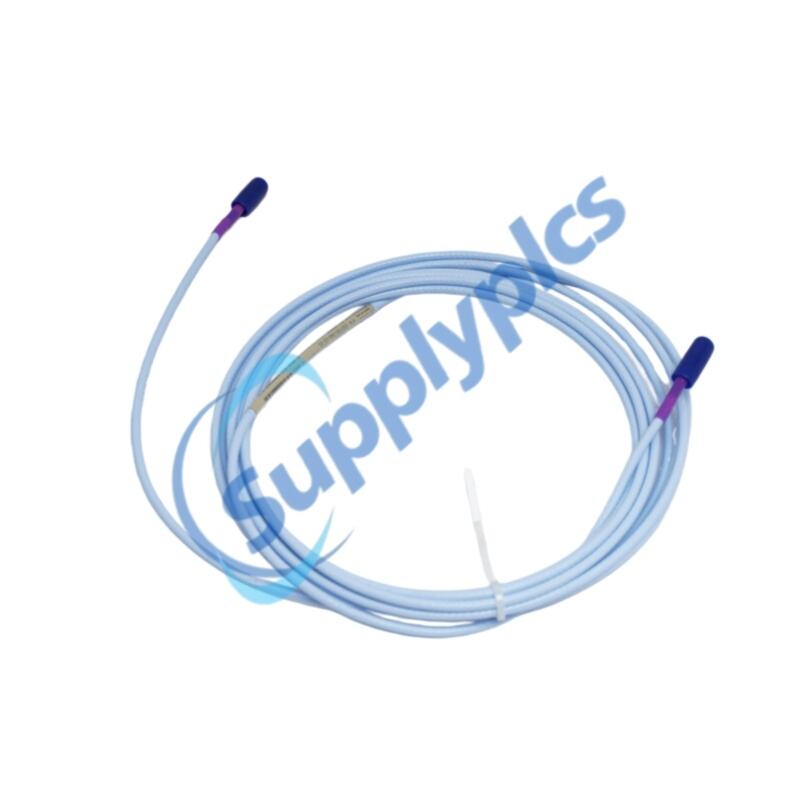

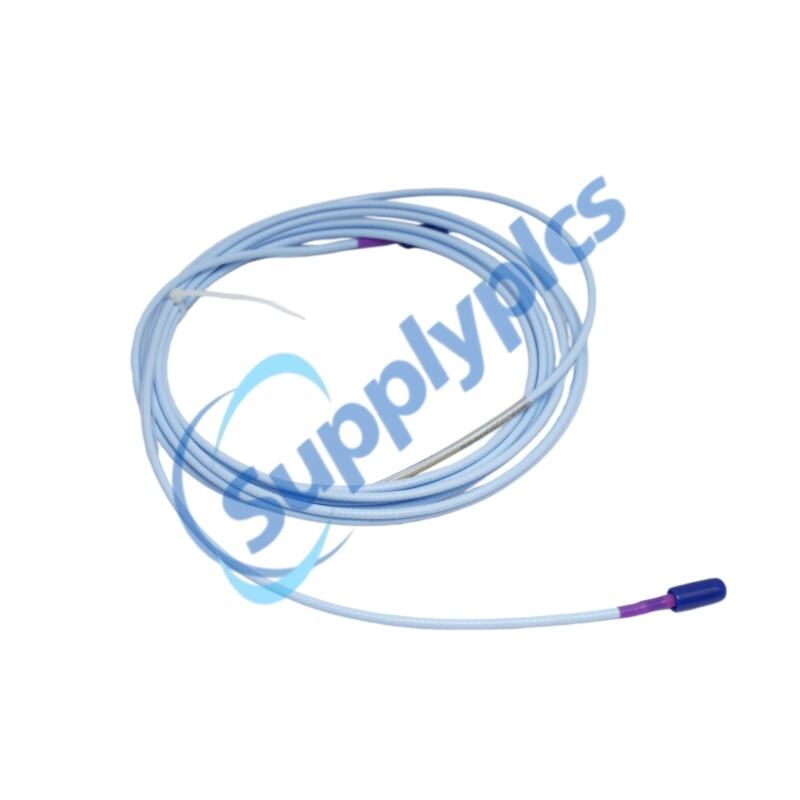

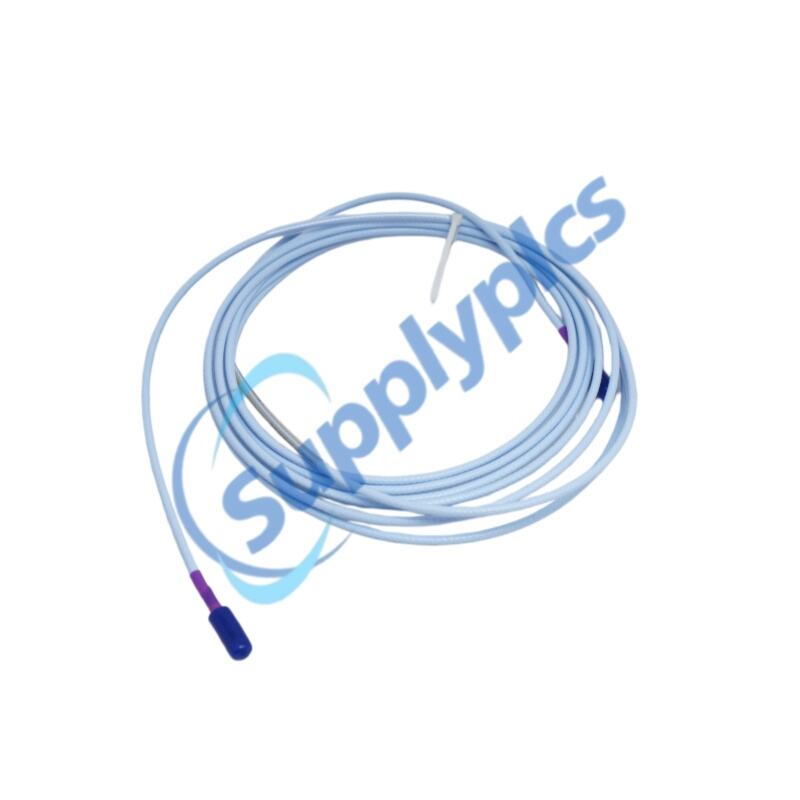

Bently Nevada 330730-040-00-00 3300 XL 11 mm Extension Cable Ready For Ship, China Bently Nevada 330730-040-00-00 3300 XL 11 mm Extension Cable Ready For Ship Manufacturers, Suppliers, Factory

Overview

Brand Name:	Bently Nevada
Model Number:	330730-040-00-00
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Item	Description
Model	330730-040-00-00
Product Type	Proximity Transducer Extension Cable
System Compatibility	Bently Nevada 3300 XL 11 mm system
Cable Length	4.0 meters (13.1 ft)
Cable Type	Triaxial, low-noise industrial cable
Connector Type	Gold-plated brass ClickLoc connectors
Insulation Material	FEP (Fluoroethylene Propylene)
Operating Temperature	-52°C to +177°C
Voltage Rating	Compatible with -24 Vdc system supply
Signal Type	Non-contact vibration / displacement signals
Dimension (approx.)	4000 mm x 6 mm x 6 mm
Weight	~180 g
Bend Radius	≥ 25.4 mm
Shielding	High EMI/RFI protection layer

Description

The 330730-040-00-00 extension cable is part of the Bently Nevada 3300 XL 11 mm proximity measurement system, designed to ensure stable signal transmission between the probe and Proximitor sensor. It works in combination with models such as 3300 XL 11 mm Probe and 3300 XL 11 mm Proximitor Sensor, forming a complete non-contact vibration and displacement monitoring solution for rotating machinery.

The 330730-040-00-00 cable features high-integrity triaxial construction with low-noise signal transfer and strong resistance to industrial EMI/RFI interference. Its precision-engineered connectors ensure secure ClickLoc locking, minimizing connection loosening in harsh environments.

Suitable for turbine, compressor, and generator monitoring systems, this extension cable supports long-distance signal stability and reliable machine condition data acquisition in critical industrial applications.

Applications

Power plants: Used for generator set status monitoring and relay protection.
Substations: Enable bus differential control, line protection, and switchyard signal acquisition.
Chemical plants: Integrate process control automation and intrinsically safe signal monitoring.
Steel mills: Perform equipment logic control in high-temperature and strong EMI environments.
Machinery manufacturing plants: Used for automated production lines, robotics, and packaging control systems.

Features

High-reliability triaxial signal transmission design
EMI/RFI resistant construction for industrial environments
ClickLoc locking connector system for secure installation
FluidLoc option prevents oil ingress (depending on variant)
Compatible with 3300 XL 11 mm probe systems
Designed for long-term vibration monitoring stability

Functions

Transmits proximity probe signals to monitoring systems
Maintains signal integrity over extended distances
Supports vibration and displacement measurement accuracy
Ensures stable machine condition data transfer
Reduces signal noise in harsh industrial environments

FAQ

Q1: What system is 330730-040-00-00 compatible with?
A1: It is designed for the Bently Nevada 3300 XL 11 mm proximity transducer system.

Q2: What is the cable length of 330730-040-00-00?
A2: The cable length is 4.0 meters (13.1 feet).

Q3: What type of protection does this extension cable provide?
A3: It offers EMI/RFI shielding and industrial-grade noise resistance.

Q4: Can it be used in harsh industrial environments?
A4: Yes, it is suitable for turbines, compressors, and power generation systems.

Q5: What material is used in the connectors?
A5: It uses gold-plated brass ClickLoc connectors for stable and secure connection.

Spares

Number	Description
146255	3300XL 11 mm User Guide
144979	Performance Specification
02120015	Bulk field wire: 1.0 mm² (18 AWG), 3-conductor, twisted, shielded cable with drain wire, length specified in feet
02173009	Bulk field wire: 1.0 mm² (18 AWG), 3-conductor, twisted, shielded cable, length specified in feet
138492-01	Replacement panel-mount mounting pad
138493-01	Replacement DIN-mount mounting pad
01609137	BNC (F) to banana plugs adapter
01609138	Proximitor connector test pin wiring (two test pins to BNC female connector)
40971-04	50 Ω cable with two BNC (M) connectors for system performance testing
04310310	3300 XL Proximitor Sensor panel-mount screws (4 × 6-32 UNC forming screws)
03200006	Silicone self-fusing tape roll (9.1 m) for connector protection and insulation
40113-02	Connector Protector Kit for 3300 XL probes and extension cables
136536-01	Connector Protector Adapter for compatibility with older 3300 systems
40180-02	Connector Protectors (10 pairs per package)
03839410	Male connector protector for probe or extension cable environmental sealing
03839420	Female connector protector for probe lead, extension cable, and Proximitor protection
330153-01	3300 XL connector kit including ClickLoc connectors and silicone tape
163356	Connector crimp tool kit with installation tools and carrying case
