Product Name: Power supply monitoring with buffer batteries
Brand Name: HIMA
Model Number: F7131
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
HIMA |
Model Number: |
F7131 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
Supply Ability: |
in stock |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Value / Description |
|
Manufacturer |
HIMA |
|
Model Number |
F7131 |
|
Product Type |
|
|
Monitoring Voltage |
|
|
LED Indicators |
|
|
Test Bits |
|
|
Outputs (with B9361 kit) |
|
|
Battery Type |
|
|
Battery Replacement |
|
|
Power Consumption |
|
|
Space Requirement |
|
|
Dimensions |
2.1x18.8x12.9cm |
|
Weight |
0.14kg |
The HIMA F7131 is a dedicated power supply monitoring module designed for the PES H51q safety system. The F7131 continuously supervises the 5 VDC system voltage generated by up to three power supplies, providing essential diagnostics for safety-critical applications. It features three front-panel LEDs and three test bits for integration with central modules F8650 or F8651. The HIMA F7131 includes integrated buffer batteries to maintain monitoring during power interruptions.
Real-time voltage monitoring: Continuously supervises up to three 5 VDC system power supplies

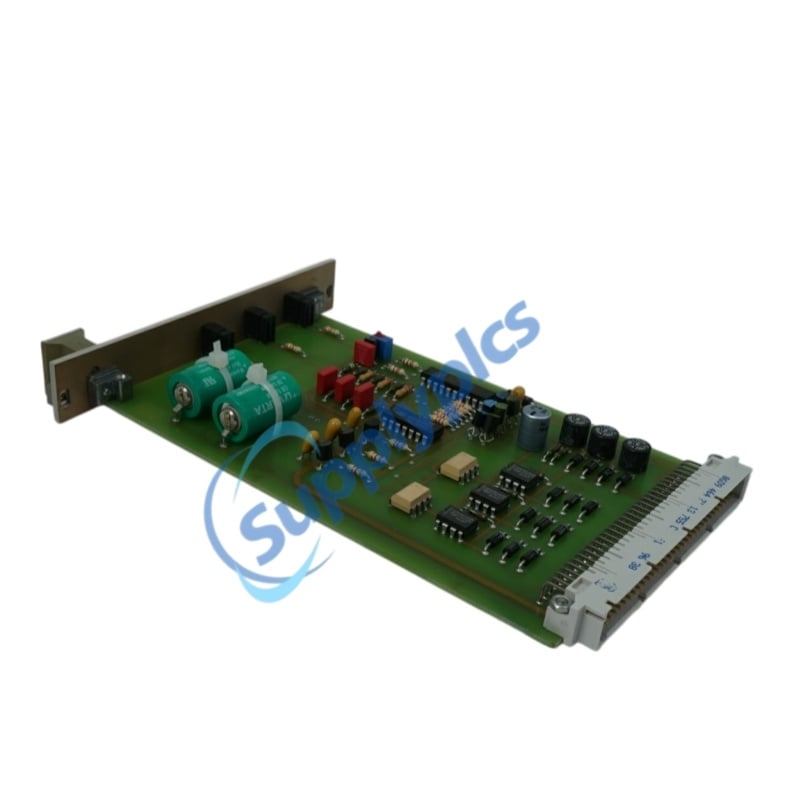

Integrated buffer batteries: Maintains monitoring capability during main power loss

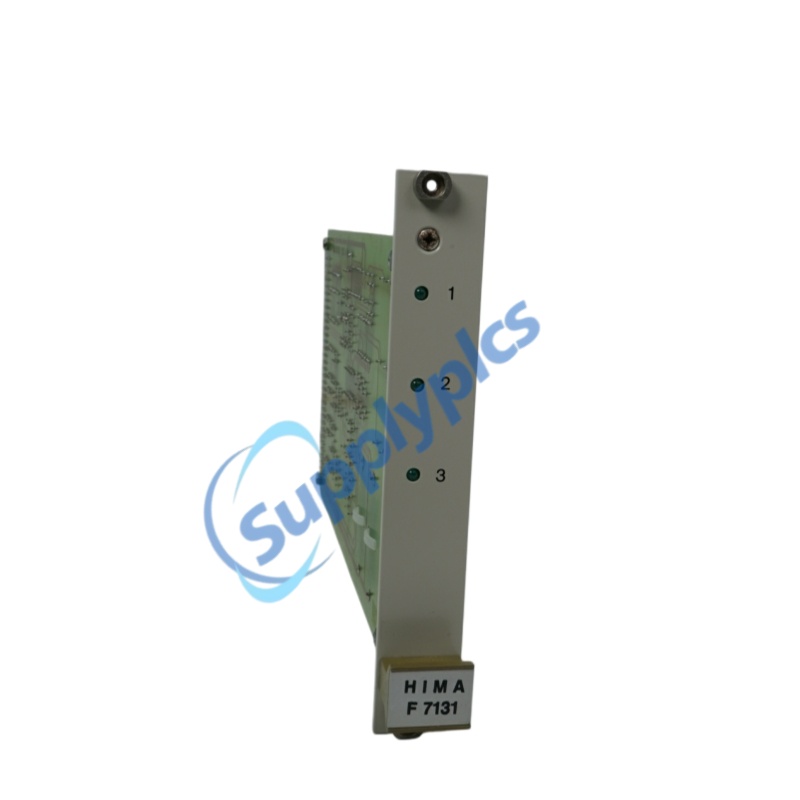

LED status indicators: Three front-mounted LEDs provide immediate visual diagnostics
Diagnostic test bits: Interfaces with F8650/F8651 central modules for program-level monitoring
External power supply monitoring: When used with B9361 kit, monitors via 3 × 24 VDC outputs
Safety system compatible: Designed for HIMA high-integrity control systems
Monitors the 5 VDC system voltage generated by up to three power supplies
Displays voltage status via three front-panel LED indicators
Provides three test bits for diagnostic display and user program integration with central modules F8650/F8651
Supports additional power supply monitoring through three 24 VDC outputs (PS1–PS3) when used with the B9361 assembly kit
Maintains monitoring operation during power interruption via integrated buffer batteries
Q1: What is the HIMA F7131?
A1:The F7131 is a power supply monitoring module for HIMA PES H51q safety systems with buffer batteries.
Q2: What type of battery does the F7131 use?
A2:The F7131 uses a CR-1/2 AA-CB battery (HIMA part no. 44 0000016).
Q3: How often should the battery on the F7131 be replaced?
A3:The battery on the F7131 should be replaced every four years.
Q4: What power sources does the F7131 monitor?
A4:The F7131 monitors up to three 5 VDC system voltage supplies generated by the power supplies.
Q5: What central modules does the F7131 interface with?
A5:The F7131 interfaces with HIMA central modules F8650 or F8651 via its three diagnostic test bits.
