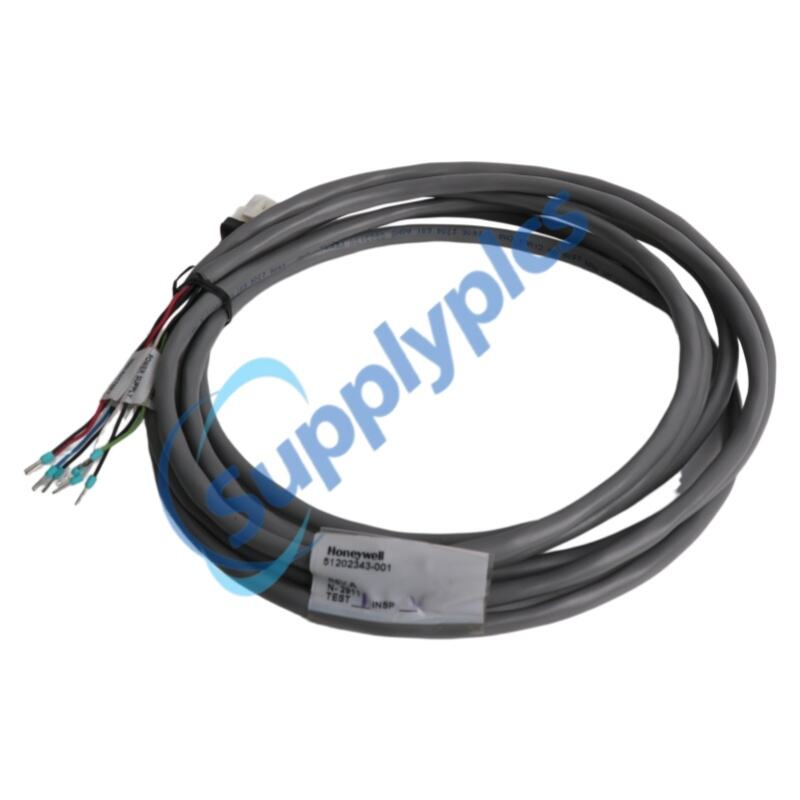

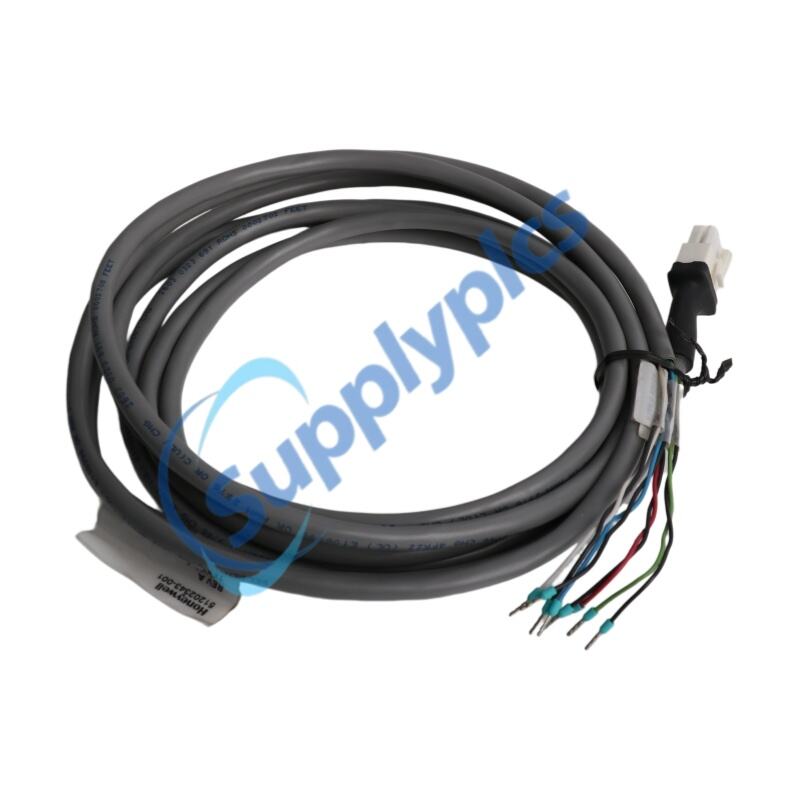

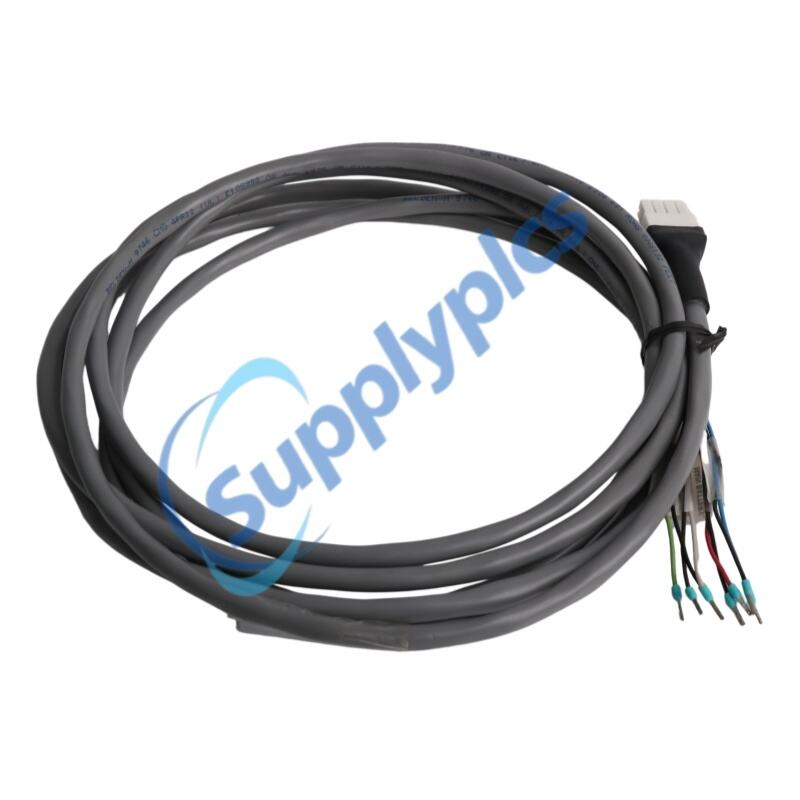

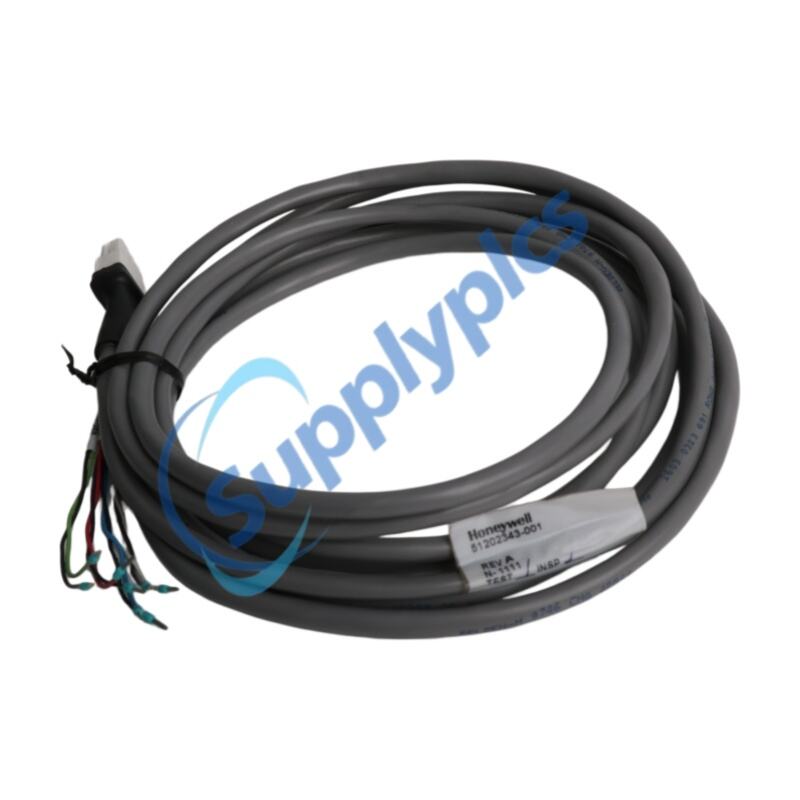

Product Name:Power Supply Status Indication Cable
Brand Name:Honeywell
Model Number:51202343-001
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Honeywell |
Model Number: |
51202343-001 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Parameter | Value |
|---|---|
| Product Model | 51202343-001 |
| Product Type | Power Supply Alarm Cable |
| System Compatibility | Honeywell Series C DI Modules |
| Supported Modules | CC-TDIL01, CC-TDIL11, Cx-TDIL51, Cx-TDIL61 |
| Application Interface | Power supply alarm port to DI IOTA |
| Signal Type | Digital alarm input (24V DC systems) |
| Cable Length | 12 ft (approx. 3.6 m) |
| Connector Type | Pre-assembled alarm connection plug |
| Installation Method | Terminal block connection (IOTA) |
| Operating Environment | Industrial control systems |
| Weight | Approx. 0.2–0.4 kg |
| Dimensions | Standard industrial cable assembly (flexible routing design) |
The 51202343-001 alarm cable is designed for industrial control systems to enable reliable transmission of power supply alarm signals into 24V DC digital input modules. It is commonly used in Honeywell Series C architecture, supporting DI modules such as CC-TDIL01, CC-TDIL11, Cx-TDIL51, and Cx-TDIL61 for accurate alarm status reporting in distributed control systems.
The 51202343-001 connects directly to the alarm interface on power supply units and routes signal feedback to DI IOTA terminal blocks. This ensures that system-level fault conditions are converted into digital input signals, allowing control strategies to process alarms in real time through FLAGARRAY or similar function blocks.
Engineered for industrial automation environments, the 51202343-001 supports structured alarm integration for RAM Charger Assemblies such as 51199932-100 and 51199932-200. It improves system visibility, enhances safety response, and ensures stable communication between power modules and control logic systems.
Q1: What is the 51202343-001 used for?
A1: It is used to transmit power supply alarm signals to 24V DC digital input modules.
Q2: Which DI modules are compatible with this cable?
A2: It is compatible with CC-TDIL01, CC-TDIL11, Cx-TDIL51, and Cx-TDIL61 modules.
Q3: Where is the cable installed?
A3: It connects between the power supply alarm port and the DI IOTA terminal block.
Q4: What type of signal does it carry?
A4: It carries digital alarm signals for control system monitoring.
Q5: Is it suitable for industrial environments?
A5: Yes, it is designed for industrial automation and control cabinet applications.
