Overview

Brand Name:	Honeywell
CC-PAON01 51410070-175	CC-PAIH51 51410069-275
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Product Model	CC-PAIH51 (51410069-275)
Function	High-Level Analog Input with HART
Input Type	4–20 mA (2-wire or self-powered transmitters)
Input Channels	16 single-ended channels
IOTA Models	CC-TAIX51 / CC-TAIX61
A/D Resolution	16-bit
Scan Rate	50 ms
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Dimension	5.5x16.2x14.5cm
Weight	0.3kg
Common Mode Rejection	70 dB (DC to 60 Hz)
Crosstalk	-60 dB
Input Impedance	200 Ω
Isolation	Channel-to-channel & system isolation
Field Power	Built-in non-incendive current-limited supply

Description

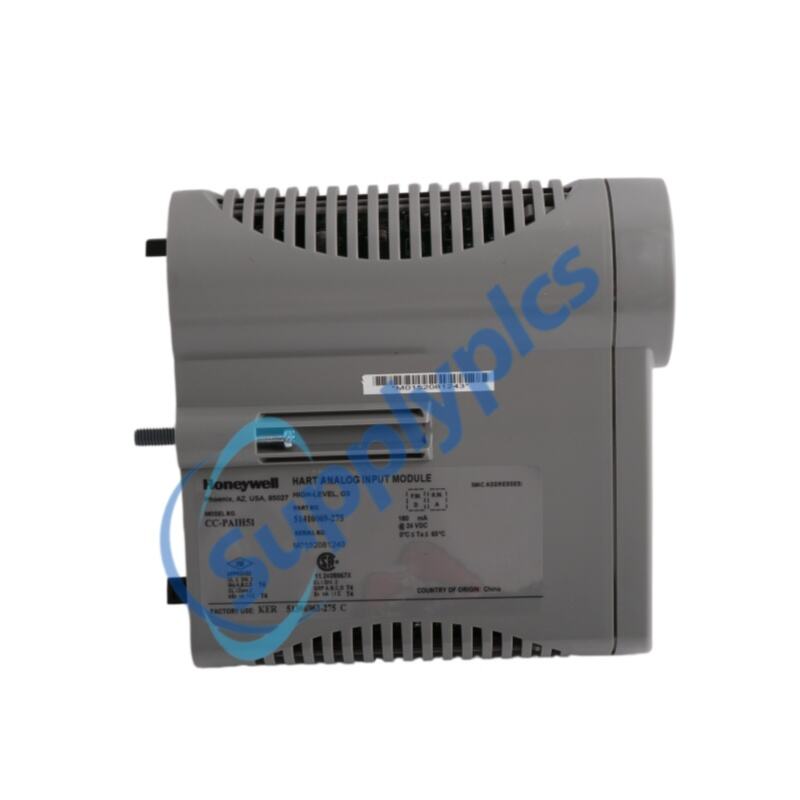

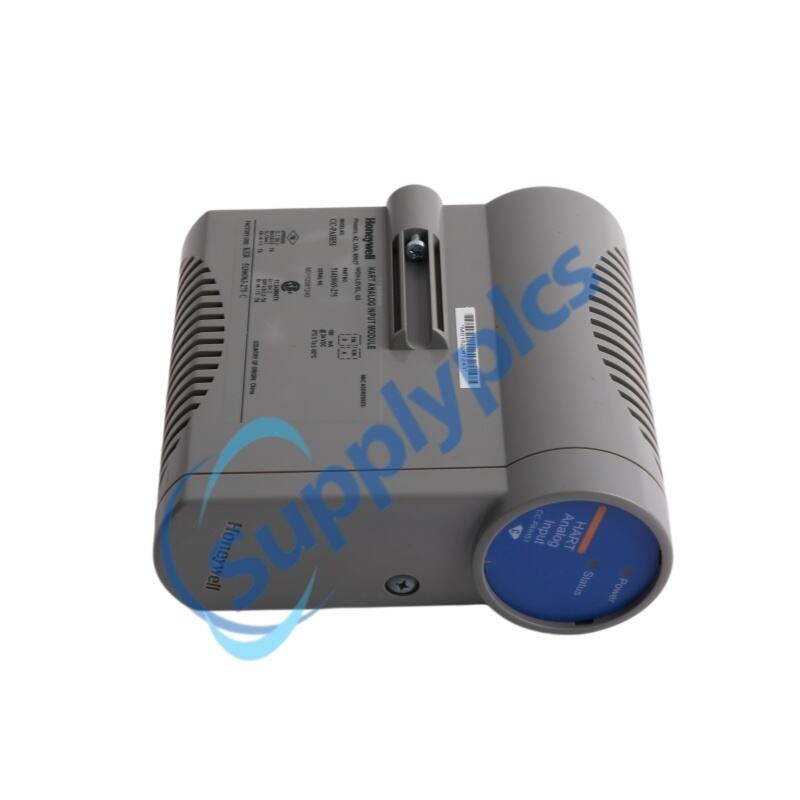

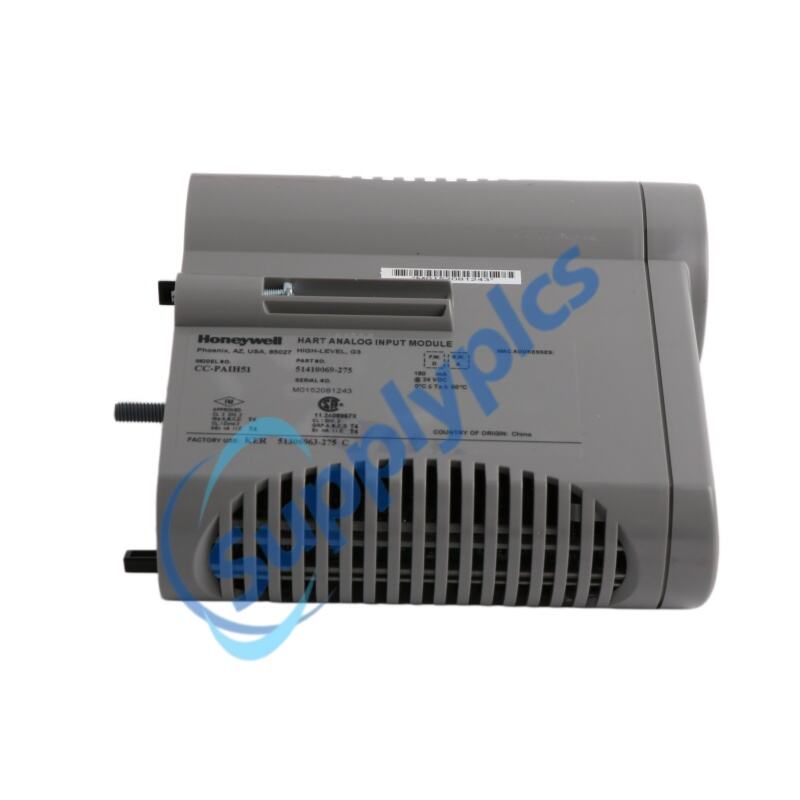

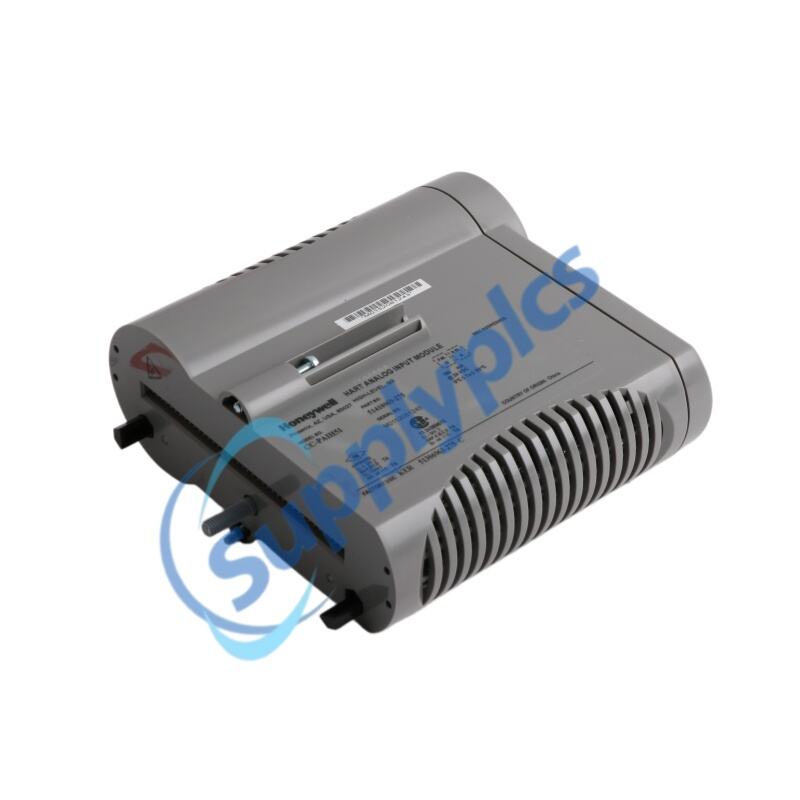

TheCC-PAIH51 (51410069-275)is a high-performance Series-C analog input module designed for precise acquisition of 4–20 mA signals in industrial process control systems. It integrates HART communication capability, enabling advanced diagnostics and real-time data exchange from smart field transmitters.

The module supports up to 16 single-ended input channels and is paired withCC-TAIX51(non-redundant) orCC-TAIX61(redundant) IOTA platforms. Its architecture is optimized for fast loop scanning and stable signal processing, ensuring accurate measurement even in electrically noisy environments.

With built-in field power supply, non-incendive design, and configurable redundancy, theCC-PAIH51provides reliable performance for safety-critical automation applications. It is widely used in modern DCS systems requiring high integrity analog signal acquisition and HART-based device management.

Applications

Power plants: turbine monitoring, generator status acquisition, and relay protection
Substations: bus protection, line monitoring, and switchyard signal collection
Chemical plants: process automation and hazardous area instrumentation monitoring
Steel mills: high-temperature equipment control under strong EMI conditions
Machinery manufacturing: robotics control, production line automation, and packaging systems

Features

16-channel high-density analog input processing
Integrated HART communication for smart device diagnostics
Fast 50 ms loop scan for real-time process control
Built-in non-incendive field power supply
Supports redundant and non-redundant IOTA configurations
High immunity to noise with strong CMRR performance
Advanced self-diagnostics for fault detection and reliability

Functions

Converts 4–20 mA signals into digital process variables
Enables HART-based configuration and status monitoring
Provides continuous diagnostic feedback from field devices
Supports fast acquisition of multi-variable transmitter data
Ensures safe operation through current-limited field power design

FAQ

Q1: What is CC-PAIH51 used for?
A1: It is used for high-level analog signal acquisition with HART communication in industrial automation systems.

Q2: How many channels does CC-PAIH51 support?
A2: It supports up to 16 single-ended analog input channels.

Q3: Does CC-PAIH51 support HART communication?
A3: Yes, it supports HART for device configuration, diagnostics, and multi-variable data collection.

Q4: What type of signals can it process?
A4: It processes 4–20 mA current signals from field transmitters and sensing devices.

Q5: Is redundancy available for CC-PAIH51?
A5: Yes, redundancy is supported when used with the appropriate IOTA module (CC-TAIX61).

Spares

Number	Describe
CC-PAIH01	High-Level AI HART 16pt
CC-TAIX01	AI IOTA 6"
CC-TAIX11	AI IOTA Redundant 12"
CC-PAIH02 / CC-PAIX01 / CC-PAIX02	High-Level AI HART / High-Level AI w/o HART 16pt
CC-TAIX01	AI IOTA 6"
CC-TAIX11	AI IOTA Redundant 12"
CC-TAID01	AI IOTA – 16 Channel Differential 9"
CC-TAID11	AI IOTA Red – 16 Channel Differential 12"
CC-PAIH51	High-Level AI HART 16pt
CC-TAIX51	AI IOTA 6"
CC-TAIX61	AI IOTA Redundant 12"
CC-PAIN01	High-Level AI w/o HART 16pt
CC-TAIN01	AI IOTA 6"
CC-TAIN11	AI IOTA Redundant 12"
CC-PPIX01	Pulse Input w/ Fast Cut-off 8pt
CC-TPIX11	Pulse Input IOTA Redundant 12"
CC-PAIM01	PMIO Low Level Mux 64 channels
CC-TAIM01	PMIO LL Mux IOTA 6"
Mx-TAMT04	LL Mux TC FTA 16pt
Mx-TAMT14	LL Mux TC FTA w/ Remote CJR 16pt
Mx-TAMR04	LL Mux RTD FTA 16pt
CC-PAIL51	Low-Level Analog Input 16pt
CC-TAIL51	Low-Level AI IOTA 9"
CC-PPIX01	Pulse Input IOTA 8pt / Redundant 12"
