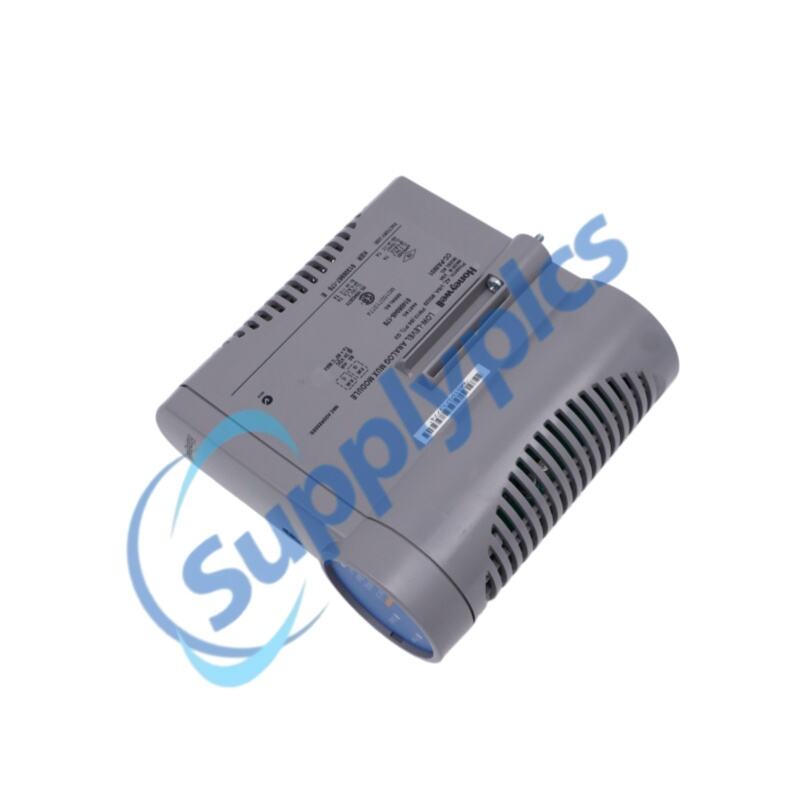

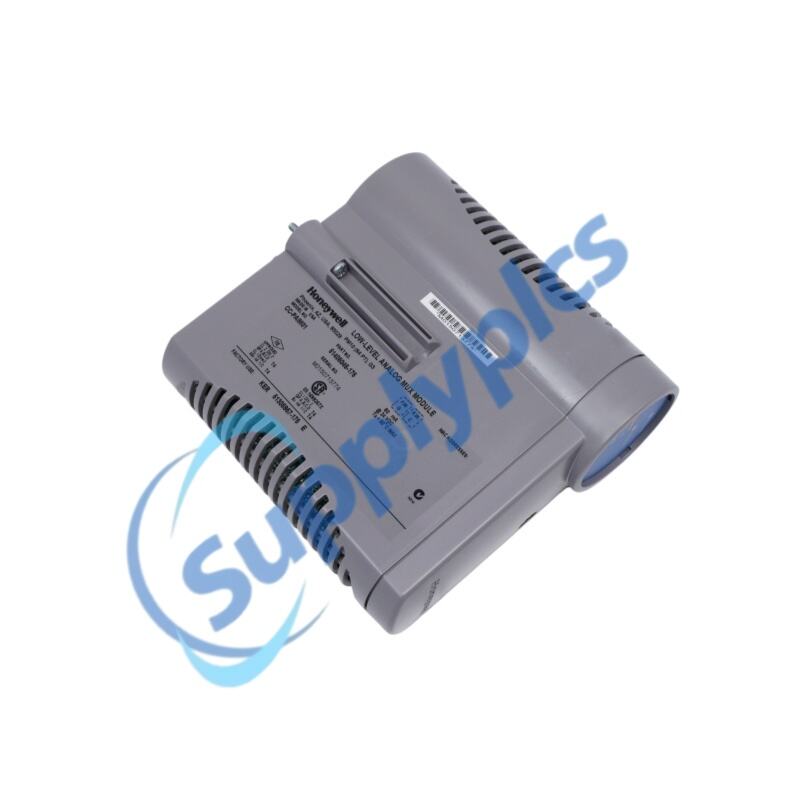

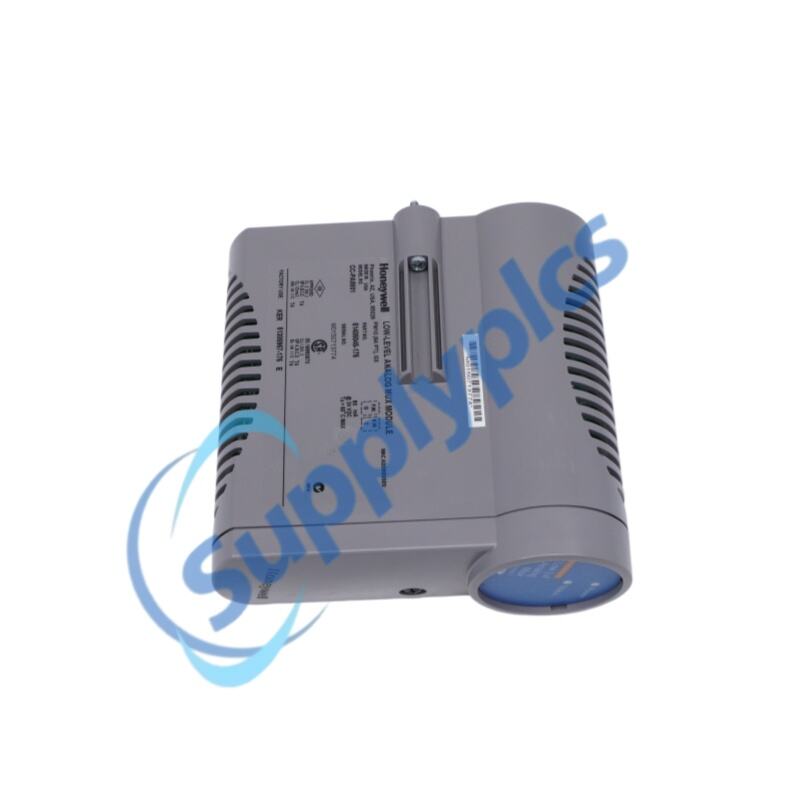

Honeywell CC-PAIM01 51405045-175 Low Level Analog (Temperature) Input Original new, China Honeywell CC-PAIM01 51405045-175 Low Level Analog (Temperature) Input Original new Manufacturers, Suppliers, Factory

Overview

Brand Name:	Honeywell
CC-PAON01 51410070-175	CC-PAIM01 51405045-175
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Description

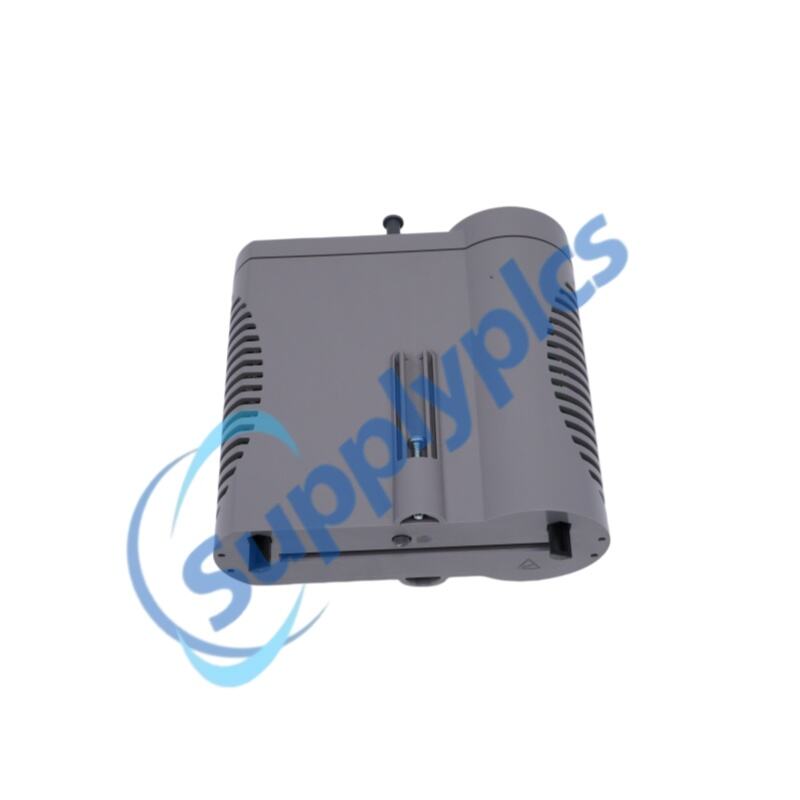

Product Model	CC-PAIM01 51405045-175
Brand	Honeywell
Product Type	Low Level Analog Temperature Input (LLMUX)
Input Type	Thermocouple / RTD / mV
Input Channels	Up to 64 Channels
Channel Expansion	16-channel FTA increments
Scan Rate	1 Second
Bandwidth	0–4.7 Hz (-3 dB)
A/D Resolution	16-bit equivalent processing
Input Impedance	1 MΩ (TC)
CMRR	120 dB minimum
Normal Mode Rejection	60 dB
Crosstalk	80 dB (120 dB @ 50/60 Hz)
Cold Junction Accuracy	±1.0°C (0–50°C)
RTD Excitation Current	1 mA
OTD Protection	Configurable open thermocouple detection
Supported FTAs	MU-TAMR04, TAMT04, TAMT14
Dimensions	Approx. 220 × 180 × 60 mm
Weight	Approx. 0.85 kg

Description

The CC-PAIM01 51405045-175 is a high-density Low Level Analog (Temperature) Input module designed for Honeywell Experion Series C systems. It supports multi-channel temperature acquisition from thermocouples and RTDs using PMIO LLMUX technology, enabling precise and stable process temperature monitoring across industrial automation environments.

The CC-PAIM01 provides up to 64 input channels through modular 16-channel FTA expansion, supporting flexible combinations of TC, RTD, and millivolt signals. With 1-second scanning cycles, cold junction compensation, and configurable open thermocouple detection (OTD), it ensures accurate and safe data acquisition even under fault conditions.

Engineered for high reliability, the Honeywell CC-PAIM01 51405045-175 features strong noise immunity, high common-mode rejection, and advanced signal conditioning. It is compatible with PMIO LLMUX FTAs such as MU-TAMR04 and TAMT series, making it ideal for complex, large-scale temperature monitoring systems.

Applications

Power plants: Temperature monitoring for turbines, boilers, and generator systems.
Substations: Supports thermal monitoring of transformers and switchgear equipment.
Chemical plants: Provides precise temperature control for reactors and process systems.
Oil & gas facilities: Used for pipeline and refinery temperature monitoring.
Steel mills: Ensures stable operation in high-temperature industrial environments.
Water treatment plants: Supports process temperature regulation and monitoring.
Manufacturing plants: Used in automated production lines and thermal process control systems.

Features

Supports up to 64 temperature input channels
Compatible with thermocouple, RTD, and millivolt signals
1-second fast scanning for real-time monitoring
Advanced open thermocouple detection (OTD)
Cold junction compensation for TC accuracy
High noise immunity and signal stability
Modular 16-channel FTA expansion design
High common-mode rejection performance
Industrial-grade isolation and protection
Designed for large-scale distributed temperature systems

Functions

Collects temperature signals from multiple field sensors
Converts analog thermal signals into digital data
Performs real-time process temperature monitoring
Detects open sensor and fault conditions automatically
Provides signal conditioning and filtering
Supports safe data propagation during abnormal conditions
Enables scalable multi-channel temperature acquisition
Enhances process safety and control accuracy

FAQ

Q1: What is the main function of CC-PAIM01 51405045-175?
A1: It collects and processes multi-channel temperature signals from thermocouples and RTDs in industrial systems.

Q2: How many channels does the module support?
A2: It supports up to 64 temperature input channels using modular expansion.

Q3: What types of sensors are supported?
A3: It supports thermocouples, RTDs, and millivolt temperature signals.

Q4: Does the CC-PAIM01 support fault detection?
A4: Yes, it includes open thermocouple detection (OTD) and signal fault protection.

Q5: Where is this module commonly used?
A5: It is widely used in power plants, chemical industries, steel mills, and large-scale process automation systems.
