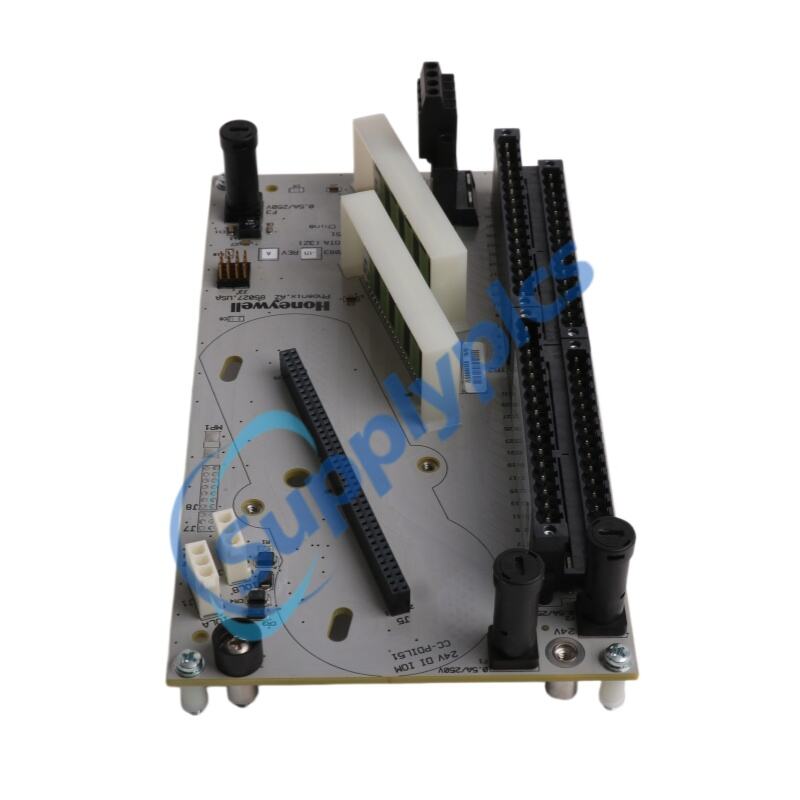

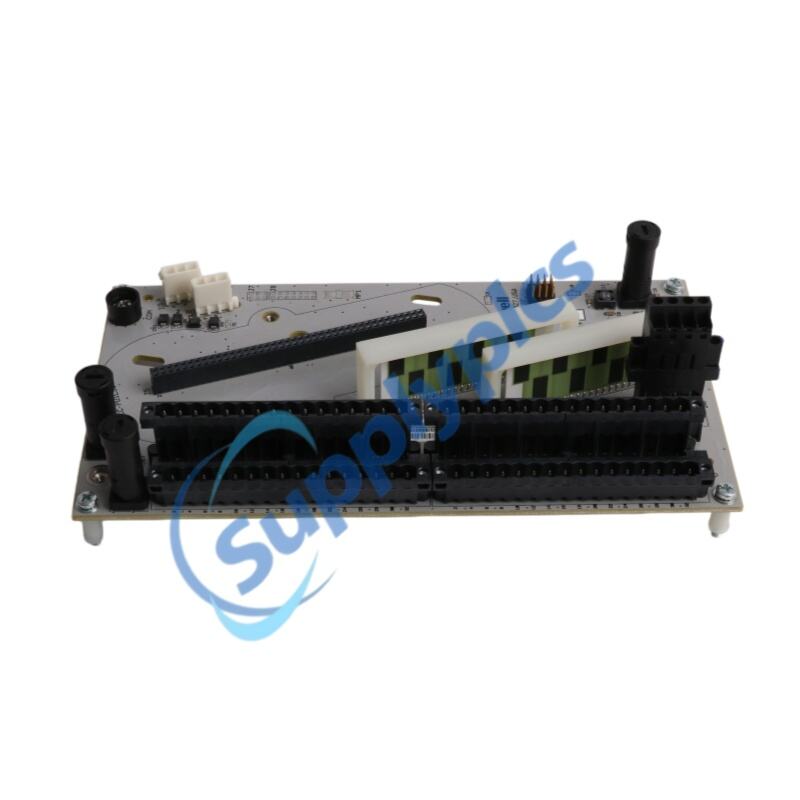

Honeywell CC-TDIL51 51307083-175 Digital Input 24VDC Original new, China Honeywell CC-TDIL51 51307083-175 Digital Input 24VDC Original new Manufacturers, Suppliers, Factory

Overview

Brand Name:	Honeywell
Model Number:	CC-TDIL51 51307083-175
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Item	Specification
Model	CC-TDIL51 51307083-175
Type	24VDC Digital Input Module
Channels	32 input channels
Input Voltage Range	18–30 VDC
Isolation	1000 VAC RMS galvanic isolation
Input Impedance	4.2 KΩ
Response Delay	5 ms ±20%
ON Detection	≥ 13 VDC / ≥ 3 mA
OFF Detection	≤ 5 VDC / ≤ 1.2 mA
Dimensions	22x12x7cm
Weight	0.28kg
Mounting	DIN rail TS35 compatible

Description

The CC-TDIL51 51307083-175 is a high-reliability 24VDC digital input module designed for industrial automation systems within the Honeywell Experion Series C platform. It works in combination with Series C IOTA solutions such as CC-TDIL51, CC-TDIL61, and related DI architectures to deliver stable and accurate discrete signal acquisition.

Engineered with galvanic isolation and optical input protection, the CC-TDIL51 ensures safe operation even in electrically noisy environments. It supports 32-channel input processing with fast response and precise voltage/current detection, making it suitable for critical monitoring applications.

With flexible field power configuration and built-in diagnostics, the CC-TDIL51 provides dependable signal integrity for distributed control systems used in modern industrial plants requiring high availability and fault tolerance.

Applications

Power plants: Generator monitoring and protection systems
Substations: Signal acquisition and breaker status control
Chemical plants: Process automation and safe signal isolation
Steel mills: High-EMI environment control and logic operations
Machinery manufacturing: Automated production and robotic systems

Features

32-channel high-density input design
Optical isolation for noise immunity
Built-in field power support
Redundancy-ready configuration
Fast signal detection and processing
Diagnostic and fault reporting capability

Functions

Collects 24VDC discrete field signals
Supports ON/OFF state detection
Provides safe signal isolation and conversion
Enables system-level status monitoring
Ensures fault detection and open-wire identification

FAQ

Q1: What is CC-TDIL51 used for?
A1: It is used for collecting 24VDC digital input signals in industrial control systems.

Q2: Does CC-TDIL51 support redundancy?
A2: Yes, it supports redundant configurations with compatible IOTA modules.

Q3: How many input channels are available?
A3: It provides up to 32 discrete input channels per module.

Q4: Is electrical isolation included?
A4: Yes, it includes 1000 VAC galvanic isolation for safe operation.

Q5: Where is CC-TDIL51 commonly used?
A5: It is widely used in power plants, substations, and process industries.

Spares

number	describe
CC-PAIH01	High-Level AI HART, 16 circuits, redundant option
CC-TAIX01	AI IOTA, 6-inch module base unit
CC-TAIX11	AI IOTA Redundant, 12-inch version
CC-PAIH02 / CC-PAIX01 / CC-PAIX02	High-Level AI (HART / No HART), 16 circuits, redundant supported
CC-TAIX01	AI IOTA, 6-inch standard mounting
CC-TAIX11	AI IOTA Redundant, 12-inch
CC-TAID01	AI IOTA, 16-channel differential input, 9-inch
CC-TAID11	AI IOTA Redundant, 16-channel differential, 12-inch
CC-PAIH51	High-Level AI HART, 16 circuits, redundant capable
CC-TAIX51	AI IOTA, 6-inch base type
CC-TAIX61	AI IOTA Redundant, 12-inch version
CC-PAIN01	High-Level AI without HART, 16 circuits
CC-TAIN01	AI IOTA, 6-inch standard
CC-TAIN11	AI IOTA Redundant, 12-inch
CC-PPIX01	Pulse Input with Fast Cut-off, 8 channels, redundant supported
CC-TPIX11	Pulse Input IOTA Redundant, 12-inch
CC-PAIM01	PMIO Low-Level Multiplexer, 64 channels
CC-TAIM01	PMIO LL Mux IOTA, 6-inch
Mx-TAMT04	Low-Level TC FTA, 16 channels, 12-inch
Mx-TAMT14	TC FTA with Remote CJR, 16 channels, 12-inch
Mx-TAMR04	RTD FTA, 16 channels, 12-inch
