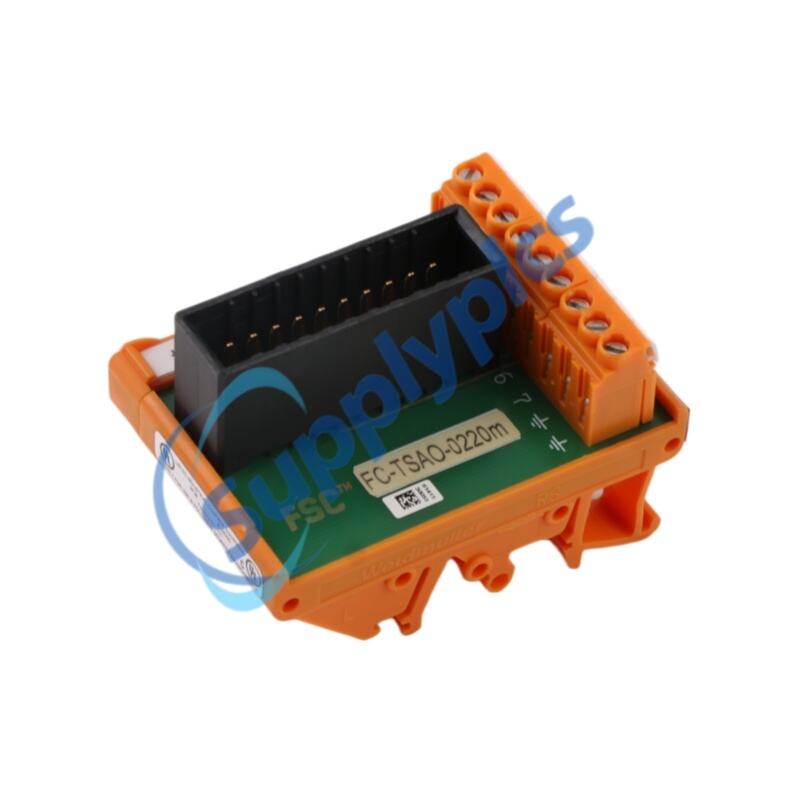

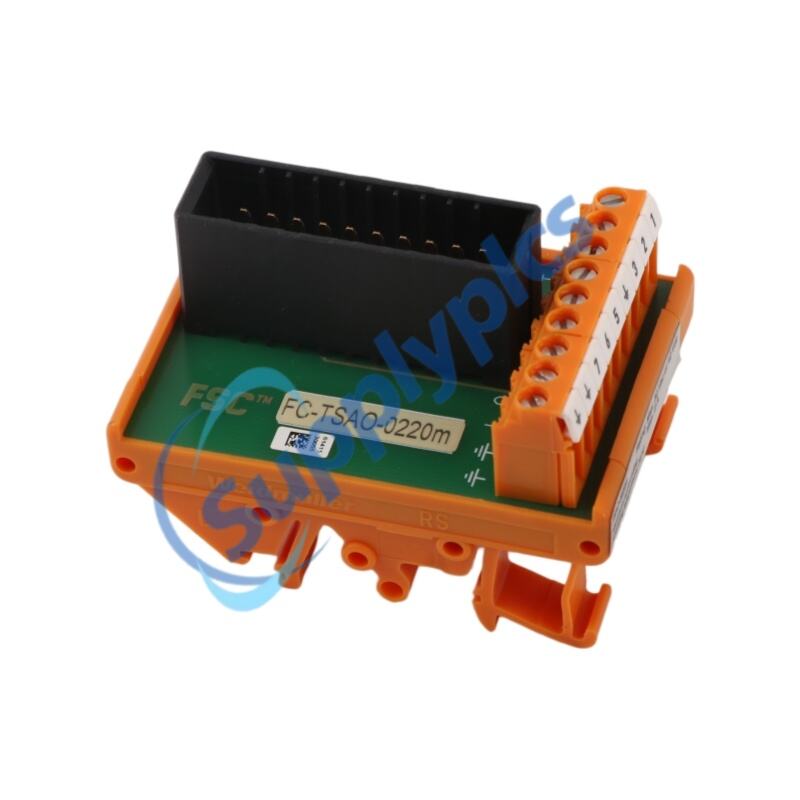

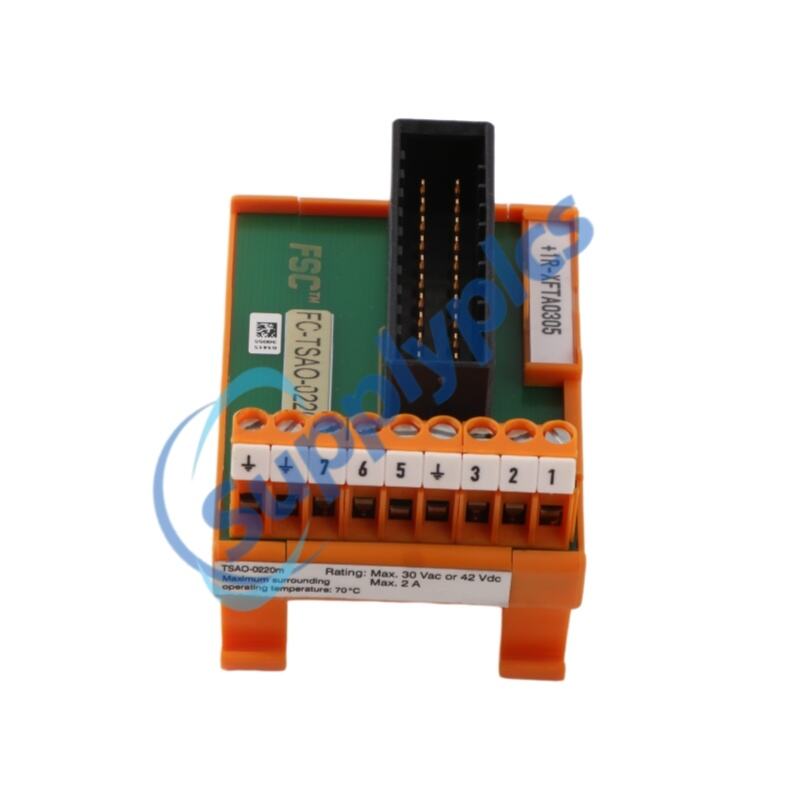

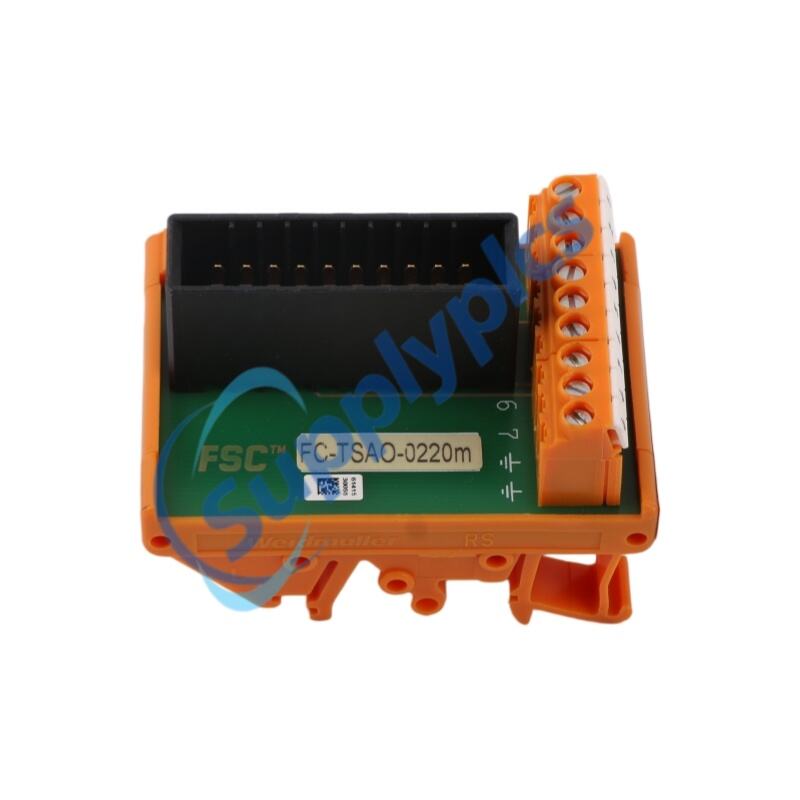

Honeywell FC-TSAO-0220M Safe analog output FTA (0(4)-20 mA, 2 channels) In stock, China Honeywell FC-TSAO-0220M Safe analog output FTA (0(4)-20 mA, 2 channels) In stock Manufacturers, Suppliers, Factory

Overview

Brand Name:	Honeywell
Model Number:	FC-TSAO-0220M
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Model Number	FC-TSAO-0220m
Product Type	Safe Analog Output FTA
Output Channels	2 Channels
Output Signal Range	0(4)-20 mA
Maximum Voltage	40 Vdc
Maximum Continuous Current	25 mA per channel
Connection Type	Screw Terminals
Mounting Type	DIN EN Rail TS32 / TS35 × 7.5
Module Dimensions	7x5x4.8cm
Used Rail Length	51 mm
Maximum Wire Size	2.5 mm² (AWG 14)
Certifications	CE, TUV, UL, CSA, FM
Compatible Cable	SICC-0001/Lx
Weight	0.06kg

Description

FC-TSAO-0220mis a compact and high-reliability safe analog output field termination assembly designed for Safety Manager process automation and SIL-rated control applications. Engineered to support precise 0(4)-20 mA analog signal transmission, this module provides dependable interfacing between field devices and redundantSAO-0220moutput modules. BothFC-TSAO-0220mandFS-TSAO-0220mare widely applied in industrial control systems requiring stable analog output handling and secure field wiring integration.

The module connects through theSICC-0001/Lxsystem interconnection cable and offers two independent analog output channels for accurate process signal distribution. Its DIN-rail mounting structure and screw-terminal design simplify installation, maintenance, and cabinet integration within PLC, DCS, and SIS environments.

Designed for demanding industrial operations,FC-TSAO-0220mdelivers robust electrical performance, certified safety compliance, and reliable long-term operation in power generation, oil & gas, chemical processing, and manufacturing automation systems.

Applications

Power plants: Used for turbine control output signals and process regulation systems.
Substations: Supports analog signal transmission for electrical monitoring and protection systems.
Chemical plants: Integrates process automation control and analog actuator management.
Steel mills: Provides stable analog output control in high-temperature and high-interference environments.
Machinery manufacturing plants: Applied in robotic systems, automated production lines, and precision control equipment.
Oil & gas facilities: Suitable for process valve control and distributed safety systems.
Water treatment plants: Used for pump speed regulation and analog process control applications.

Features

Supports precise 0(4)-20 mA analog output signals
Two-channel compact analog output design
Compatible with redundant SAO-0220m modules
DIN-rail mounting for fast cabinet installation
Industrial-grade screw terminal connections
Certified for demanding industrial environments
High compatibility with Safety Manager systems
Reliable long-term operational stability

Functions

Interfaces analog output signals between controllers and field devices
Transfers process control signals with high accuracy
Supports redundant analog output architectures
Simplifies field wiring and maintenance tasks
Enhances process stability in automation systems
Provides dependable signal distribution for critical applications
Supports PLC, DCS, and SIS process control infrastructures

FAQ

Q1: What is the primary function of the FC-TSAO-0220m module?
A1: It provides safe analog output signal interfacing for industrial automation and Safety Manager systems.

Q2: How many output channels does the module support?
A2: The module supports two independent analog output channels.

Q3: Which output signal range is supported?
A3: The module supports standard 0(4)-20 mA analog output signals.

Q4: Is the module suitable for redundant system architectures?
A4: Yes, it is designed for use with redundant SAO-0220m output modules.

Q5: What mounting method does the module use?
A5: The module is designed for DIN EN rail mounting in industrial control cabinets.

Spares

Number	Describe
TDOL-0724P	Line-monitored relay contact digital output (7 channels, 24Vdc)
TDOL-0724U	Line-monitored relay contact digital output (7 channels, 24Vdc, RUSIO)
TDOL-07120	Line-monitored relay contact digital output (7 channels, 120Vac/120Vdc)
TSDO-0424	Safe digital output FTA (24 Vdc, 4 channels)
TSDO-04UNI	Safe digital output FTA (24/48/110 Vdc, 4 channels)
TSDOL-0424C	Conformal-coated safe digital output FTA, current limited, loop monitored (24 Vdc, 4 channels)
TDO-1624	Non-safe digital output FTA (24 Vdc, 16 channels)
TSRO-0824	Safe dry digital output FTA for SIL3 applications (8 channels)
TRO-0824	Non-safe dry digital output FTA (8 channels, NO/NC)
TRO-1024	Non-safe dry digital output (relay contact) FTA (10 channels)
TSAO-0220m	Safe analog output FTA (0(4)-20 mA, 2 channels)
TSAOH-0220m	Safe analog output FTA with HART interface (0-20mA, 2 channels)
TPSU-2430	24 Vdc to 30 Vdc / 1 A converter
TSPKUNI-1624	Sub-D to Powered Knife terminals FTA (Universal, 16ch)
DCOM-232/485	RS232/485 communication FTA
SDW-550 EC	5 port HSE communication FTA or switch
MTL 24571	Single channel ethernet surge protector
IOTA-R24	Redundant IO Termination Assembly
IOTA-NR24	Non-redundant IO Termination Assembly
