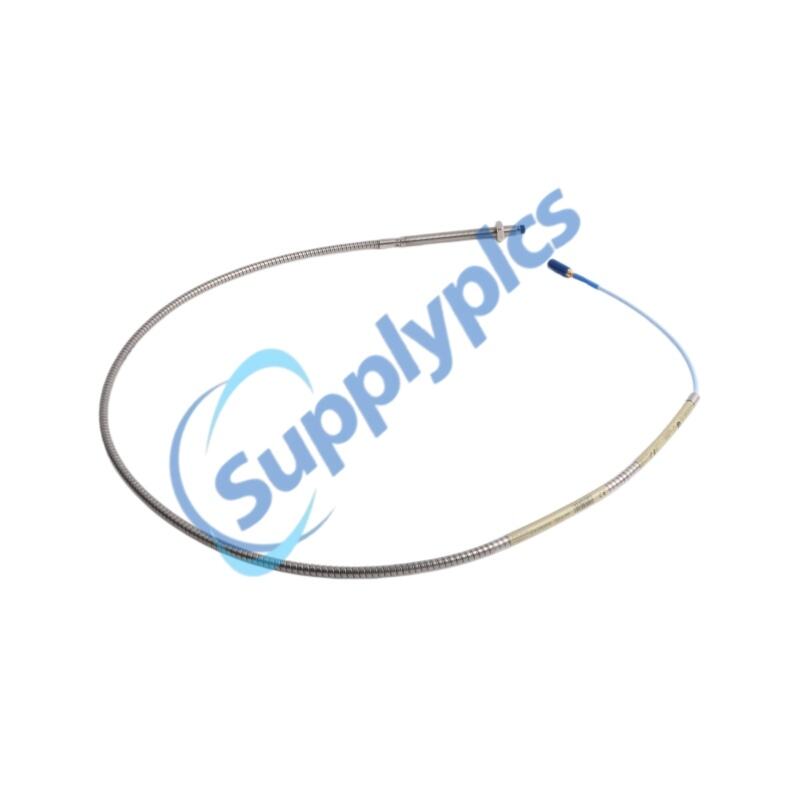

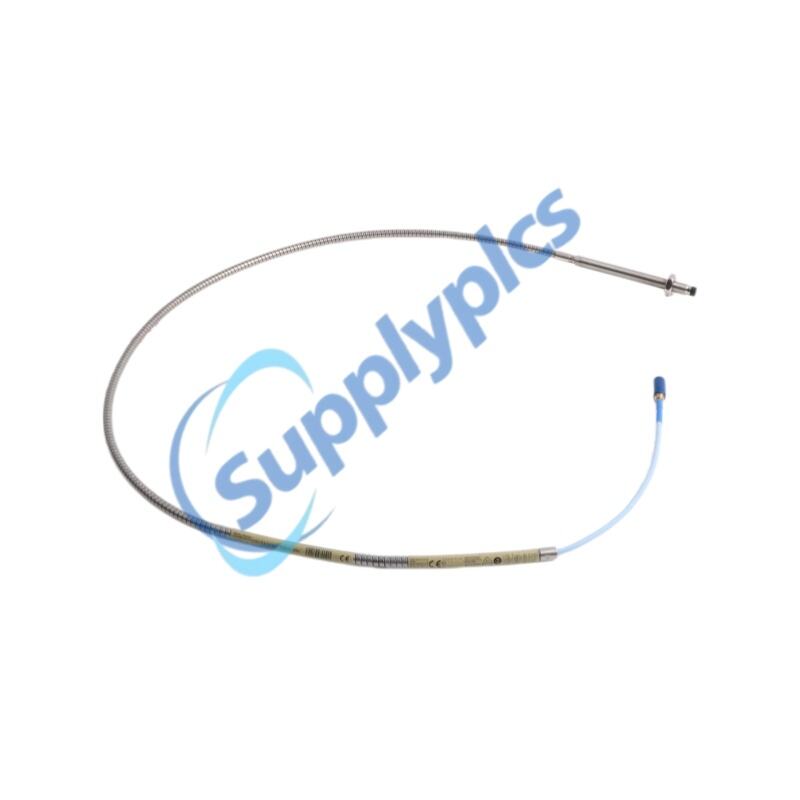

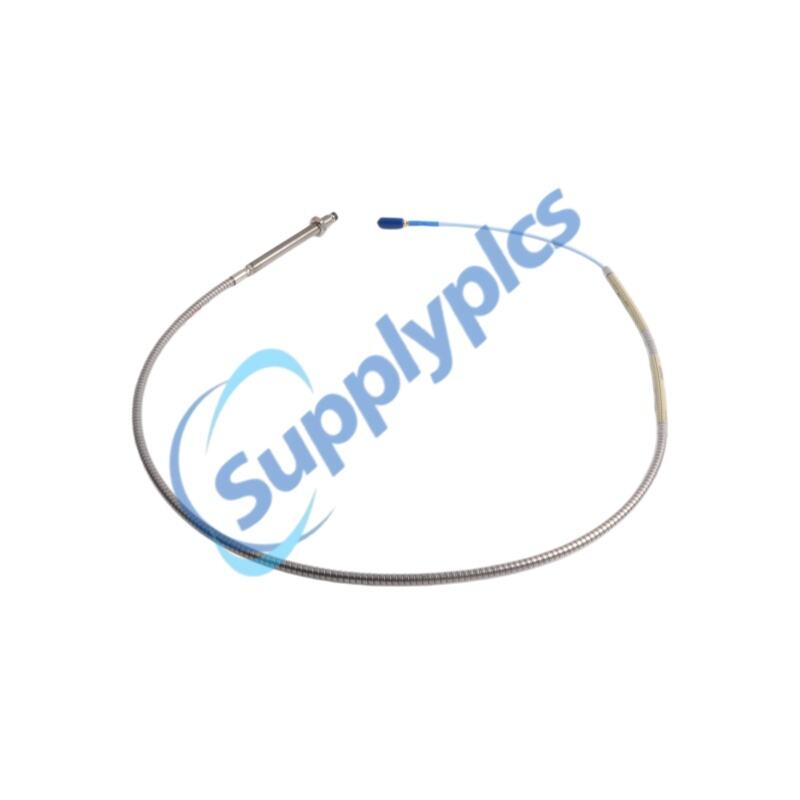

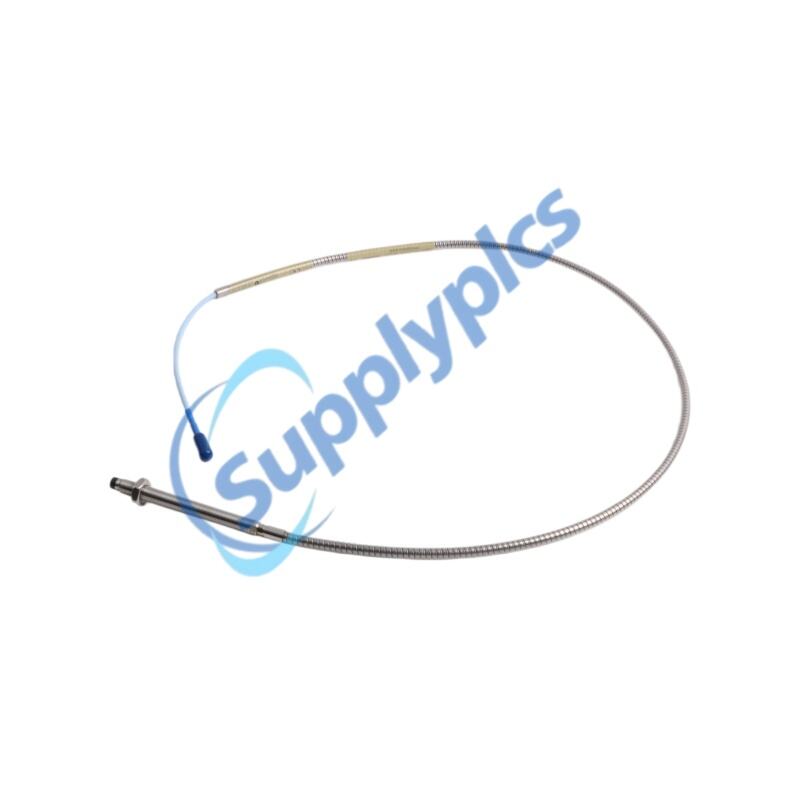

Product Name:3300 XL 8 mm Proximity Probes
Brand Name:BENTLY NEVADA
Model Number:330104-00-10-10-02-05
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-10-10-02-05 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Description |
|
Model |
330104-00-10-10-02-05 |
|
Probe Type |
8 mm Eddy Current Proximity Probe (Armored) |
|
Thread Size |
M10 x 1 |
|
Total Length |
1.0 meter |
|
Linear Range |
2 mm (80 mils) |
|
Sensitivity |
7.87 V/mm (200 mV/mil) |
|
Frequency Response |
0–10 kHz |
|
Operating Temperature |
-52°C to +177°C (standard) |
|
Extended Temp Option |
Up to +260°C (cable) |
|
Cable Type |
75Ω triaxial, FEP insulated |
|
Probe Material |
Stainless steel (AISI 303/304) |
|
Dimension |
1.8x1.5x118cm |
|
Weight |
0.16kg |
|
Connector Type |
Gold-plated ClickLoc |
The330104-00-10-10-02-05is a high-performance eddy current proximity probe designed for precise shaft vibration and position monitoring in industrial rotating machinery. As part of the 3300 XL 8 mm series, it works seamlessly with extension cables and Proximitor sensors to generate a voltage output proportional to the target distance. Models such as330103and330104offer flexible configuration options to suit different installation environments.
Built with advanced mechanical and electrical design improvements, the330104-00-10-10-02-05ensures stable operation in demanding conditions. Its armored construction enhances durability, while the optimized probe tip design improves signal integrity and measurement consistency. The system complies with API 670 standards, making it suitable for critical machinery protection applications.
In addition, this probe supports full interchangeability with other 3300 series components, reducing maintenance complexity and spare parts requirements. With robust resistance to EMI/RFI interference and reliable ClickLoc connectors, it delivers long-term operational stability in harsh industrial environments.
Q1:What is the main function of the 330104-00-10-10-02-05?
A1:It is used for non-contact measurement of vibration and shaft position in rotating machinery.
Q2:Is this probe compatible with other 3300 series components?
A2:Yes, it is fully interchangeable with other 3300 XL and non-XL 5 mm and 8 mm systems.
Q3:Can it operate in high-temperature environments?
A3:Yes, with extended temperature options, it can handle up to 260°C for cables.
Q4:What industries commonly use this probe?
A4:It is widely used in power generation, oil & gas, steel, and manufacturing industries.
Q5:Does the probe require special tools for installation?
A5:No, the ClickLoc connectors allow easy installation without special tools.
| Number | Describe |
|---|---|
| 141078 | 3300 XL 8 mm and 3300 5 mm Proximity Transducer System manual |
| 175751 | 3300 XL stainless steel housing (12”×12”×6”), supports up to 8 DIN-mount or 6 panel-mount Proximitor sensors, ATEX Zone 0/1 certified |
| 176467 | 3300 XL stainless steel housing (12”×8”×6”), supports up to 4 Proximitor sensors, DIN or panel mounting, ATEX Zone 0/1 certified |
| 330181 | 3300 XL stainless steel housing (13”×9.5”×7”), supports up to 8 DIN-mount or 6 panel-mount sensors, hazardous area approved (ATEX & Division 1/2) |
| 02120015 | Bulk field wire, 1.0 mm² (18 AWG), 3-conductor shielded cable with drain wire |
| 138492-01 | Replacement panel-mount mounting pad |
| 138493-01 | Replacement DIN-mount mounting pad |
| 148722-01 | 3300 XL test plug with 3 test pins and 1-meter color-coded banana plug wires for sensor testing |
| 04310310 | Proximitor sensor panel-mount screw (6-32 UNC), requires 4 screws per sensor |
| 03200006 | Silicone self-fusing tape (9.1 m roll) for connector insulation and environmental protection |
| 40113-02 | Connector protector kit for 3300 XL probes and extension cables, includes protectors and installation tools |
