Product Name:Digital Input
Brand Name:Honeywell
Model Number:MC-TDID12 51304441-175
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Honeywell |
Model Number: |
MC-TDID12 51304441-175 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Item |
Specification |
|
Model |
MC-TDID12 |
|
Part Number |
51304441-175 |
|
Input Type |
24 Vdc Digital Input |
|
Terminal Type |
Compression terminals |
|
Channels |
16-point typical configuration |
|
Operating Voltage |
24 Vdc nominal |
|
Signal Type |
Discrete digital input |
|
Isolation |
Channel-to-system isolation |
|
Mounting Type |
FTA cabinet mounted |
|
Dimensions (W×H×D) |
46.2x12x5.5cm |
|
Weight |
1.32kg |
|
Operating Temperature |
0 to 60°C |
|
EMC Protection |
Industrial-grade shielding |

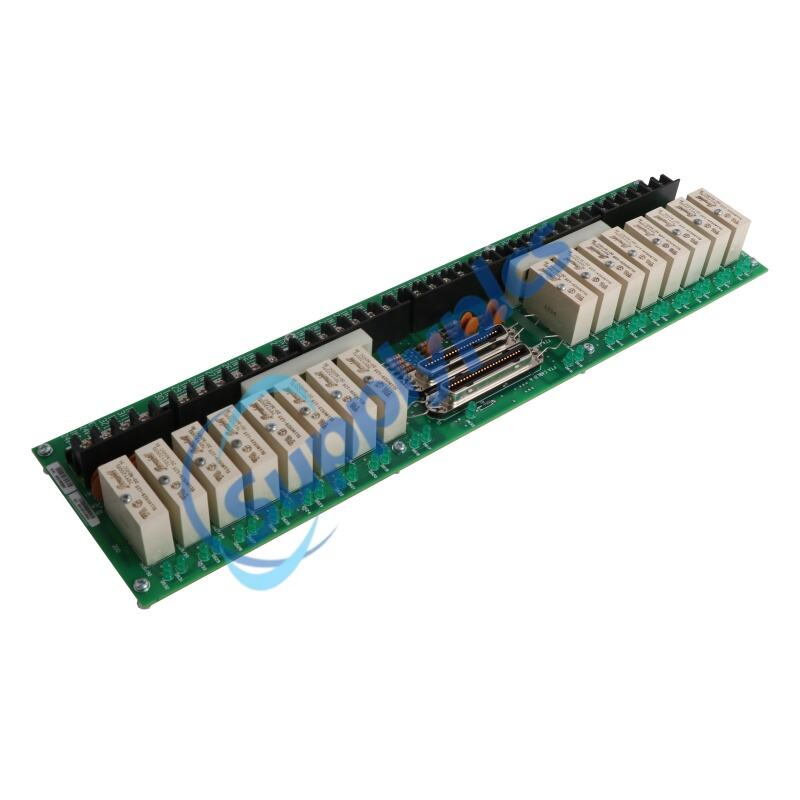

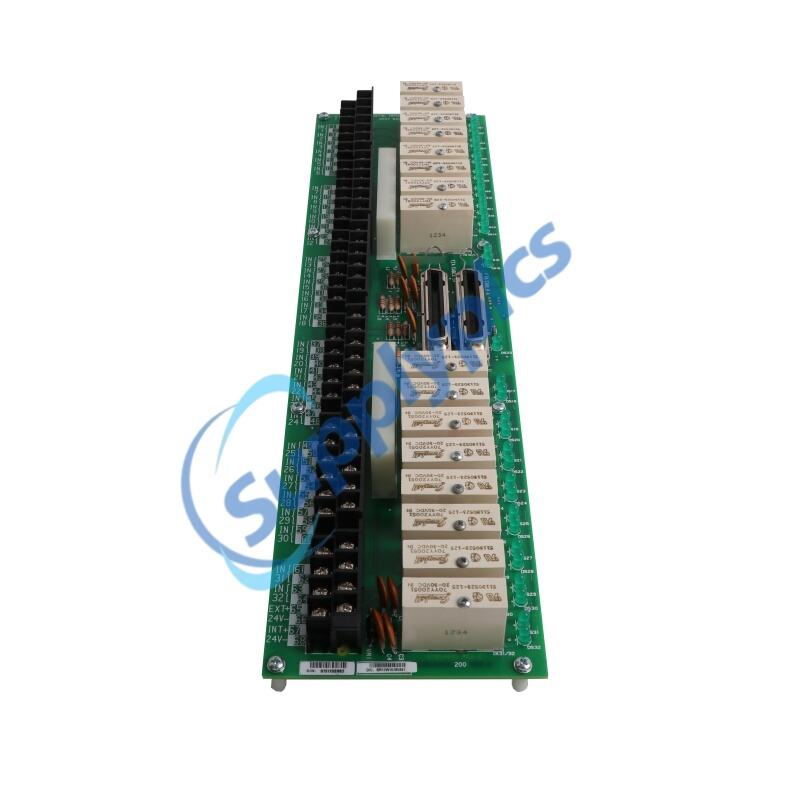

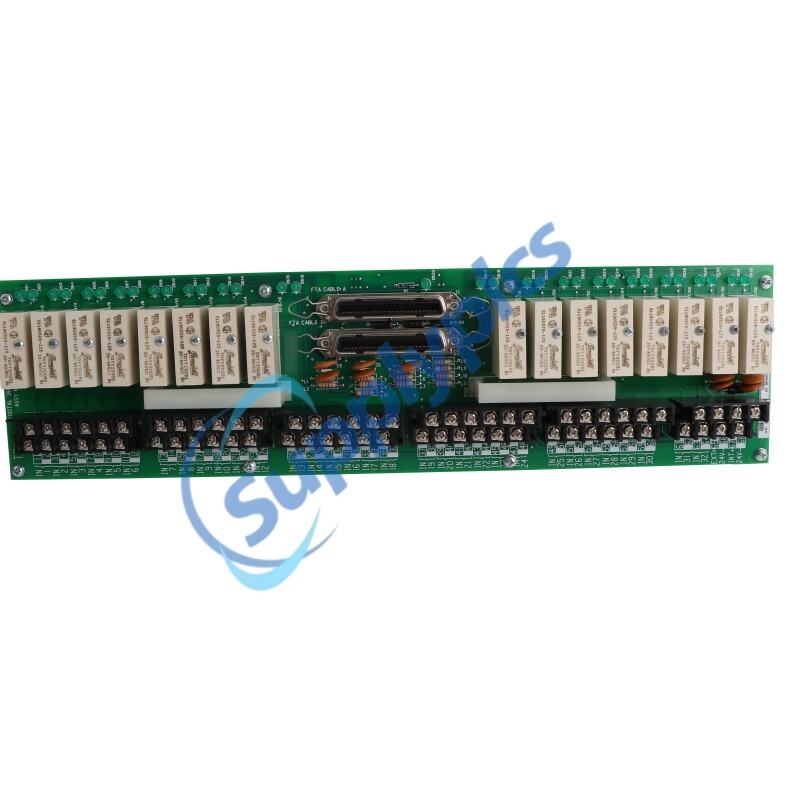

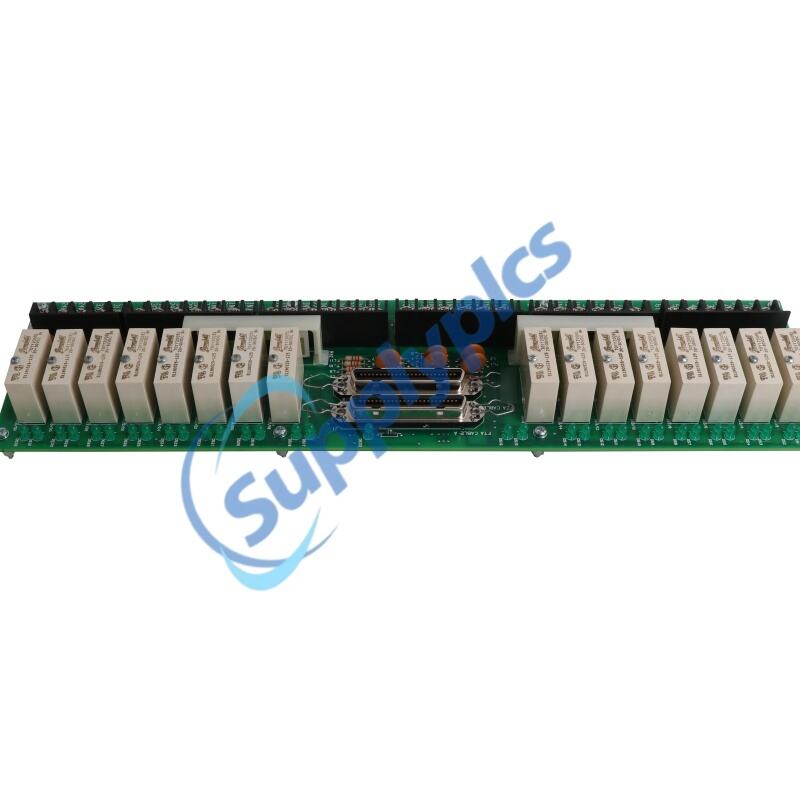

TheMC-TDID12 51304441-175is a 24 Vdc digital input Field Termination Assembly designed for stable and accurate signal acquisition in industrial control systems. It provides a dependable interface between field devices and control processors, ensuring consistent data transmission in demanding automation environments.
TheMC-TDID12 51304441-175features compression terminal connections, enabling secure wiring installation and improved vibration resistance. It is part of the MC-TDID family, which also includes related models such asMC-TDID52andMC-TDIY62, offering flexible configuration options for different system architectures.
Engineered for industrial reliability,MC-TDID12 51304441-175supports efficient 24 Vdc digital input processing with strong noise immunity. Its rugged construction ensures long-term operation in harsh environments, making it suitable for large-scale process automation and distributed control applications.
Q1: What is MC-TDID12 used for?
A1: It is used for 24 Vdc digital input signal acquisition in industrial automation systems.
Q2: What type of terminals does MC-TDID12 use?
A2: It uses compression terminals for secure and vibration-resistant wiring.
Q3: Is MC-TDID12 compatible with other TDID modules?
A3: Yes, it works with models like MC-TDID52 and MC-TDIY62 in the same system family.
Q4: Can MC-TDID12 be used in harsh environments?
A4: Yes, it is designed for high EMI and industrial-grade operating conditions.
Q5: What voltage level does MC-TDID12 support?
A5: It supports standard 24 Vdc digital input signals.
| Number | Describe |
|---|---|
| MC-TDIA62 | 51304431-250 / 51304431-275 — 240 Vac Digital Input with fixed-screw terminals |
| MC-TDID12 | 51304441-150 / 51304441-175 — 24 Vdc Digital Input with compression terminals |
| MC-TDID52 | 51304441-250 / 51304441-275 — 24 Vdc Digital Input with fixed-screw terminals |
| MC-TDID72 | 51303928-150 / N/A — 24 Vdc Digital Input with removable-screw terminals |
| MC-TDIY22 | 80366180-150 / 80366180-175 — 24 Vdc Digital Input with compression terminals |
| MC-TDIY62 | 80366180-250 / 80366180-275 — 24 Vdc Digital Input with fixed-screw terminals |
| MC-TDOA13 | 51304648-150 / 51304648-175 — 120/240 Vac Solid-State Digital Output with compression terminals |
| MC-TDOA53 | 51304648-250 / 51304648-275 — 120/240 Vac Solid-State Digital Output with screw terminals |
| MC-TDOD13 | 51304650-150 / N/A — 3-30 Vdc Digital Output with compression terminals |
| MC-TDOD14 | N/A / 51309153-175 — 3-30 Vdc Digital Output with compression terminals |
| MC-TDOD22 | 51304428-150 / N/A — 31-200 Vdc Digital Output with compression terminals |
| MC-TDOD23 | N/A / 51309154-175 — 31-200 Vdc Digital Output with compression terminals |
| MC-TDOD53 | 51304650-250 / N/A — 3-30 Vdc Digital Output with screw terminals |
| MC-TDOD54 | N/A / 51309153-275 — 3-30 Vdc Digital Output with screw terminals |
| MC-TDOD62 | 51304428-250 / N/A — 31-200 Vdc Digital Output with screw terminals |
