Product Name:Redundant Switch module
Brand Name: HONEYWELL
Model Number:900S75S-0360-00
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
HONEYWELL |
Model Number: |
900S75S-0360-00 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |

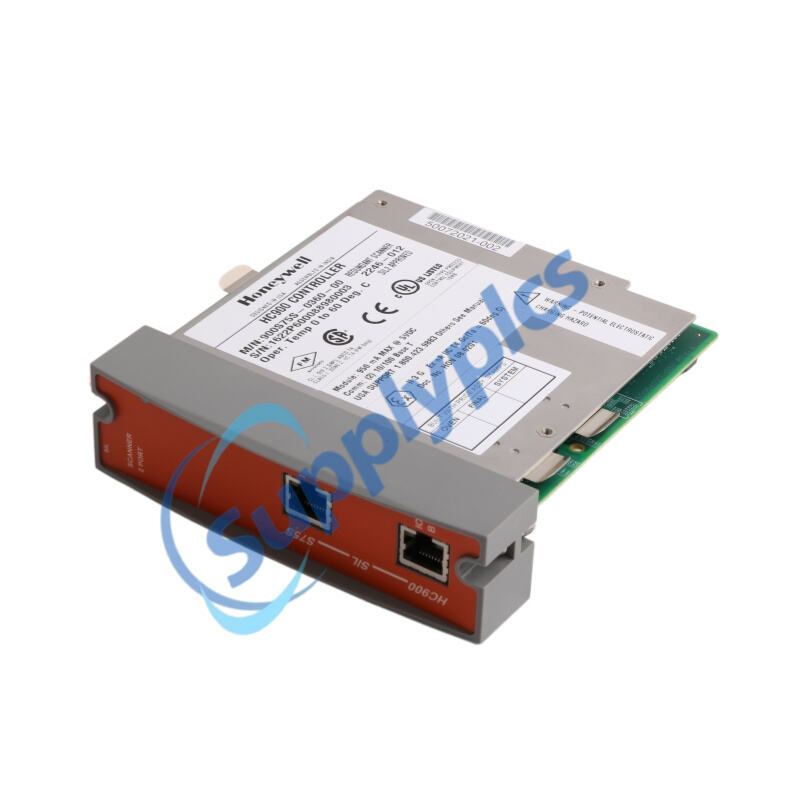

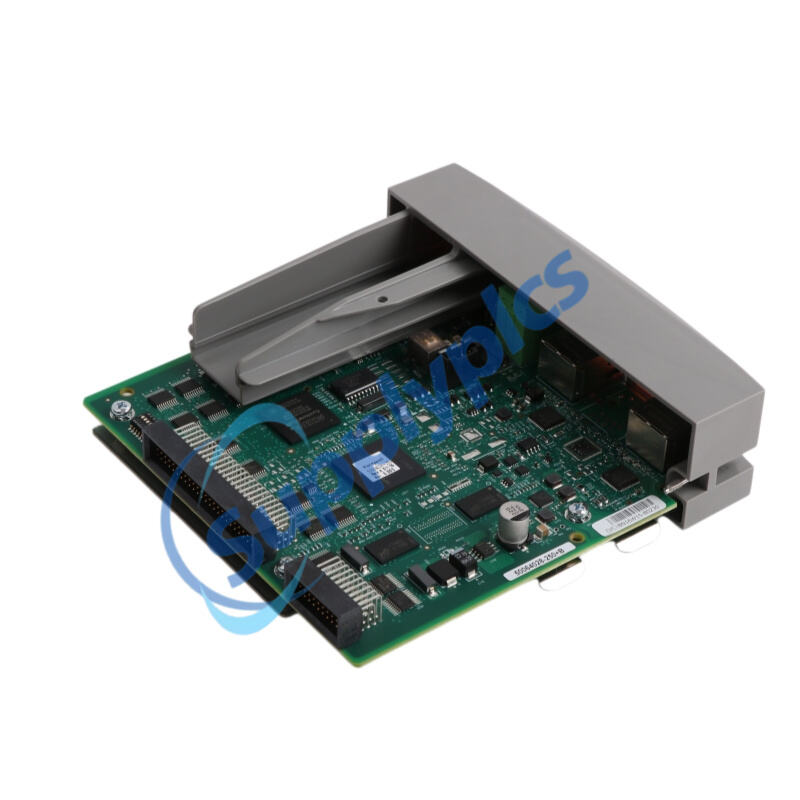

The Honeywell 900S75S-0360-00 is an advanced SIL‑rated I/O Scanner 2 module purpose-built for the ControlEdge HC900 hybrid controller series. This dual‑port scanner provides a private Ethernet communication bridge between redundant C75 CPUs and remote I/O racks, enabling safe and deterministic data exchange in safety‑critical processes. The Honeywell 900S75S-0360-00 features two 10/100 Base‑T ports (Port A for CPU‑A, Port B for CPU‑B) that support automatic failover to maintain continuous field device visibility during controller switchovers. Designed for demanding environments, this 900S75S-0360-00 module delivers high‑speed I/O scanning, hot‑swappable replacement, and comprehensive onboard diagnostics for maximum system uptime.
Emergency Shutdown (ESD) Systems: Monitors critical process parameters and initiates safe shutdown sequences
Fire & Gas Detection Systems: Gathers hazardous condition data for safety interlocks
Turbine Control Systems: Delivers high-speed I/O scanning for precise speed and temperature regulation
Pipeline Control Systems: Monitors pressure, flow, and safety valve status across extended networks
Oil & Gas Refineries: Interfaces with remote instrumentation in hazardous areas (SIL 3 environments)
Power Generation Plants: Acquires data from safety shutdown logic and burner management systems
Process Automation: Acts as a remote I/O communication bridge in distributed control architectures
Chemical Processing Plants: Provides redundant communication links for safety instrumented functions

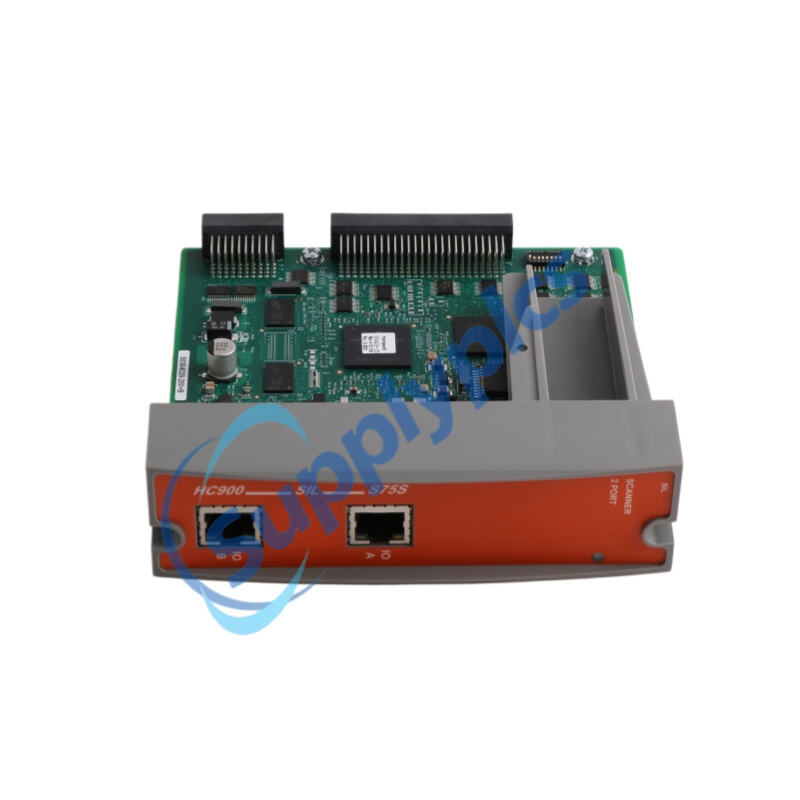

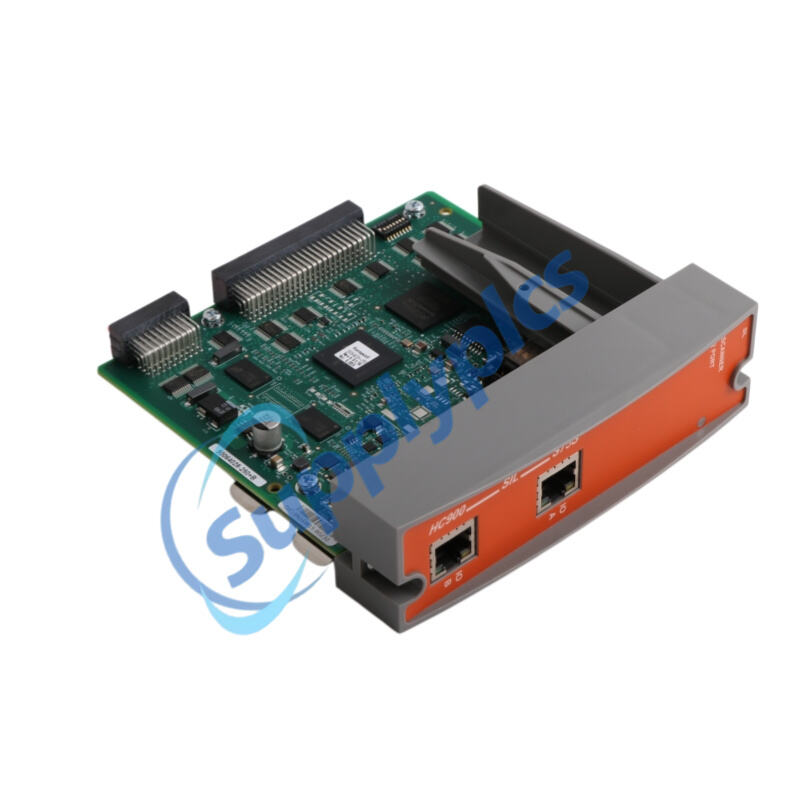

Dual Redundant Ethernet Ports: Two private 10/100 Base‑T ports (I/O A and I/O B) enable independent connections to CPU‑A and CPU‑B for automatic failover without process interruption
Hot‑Swappable Design: Supports Removal and Insertion Under Power (RIUP), allowing module replacement without system downtime or safety loop interruption
Onboard LED Diagnostics: Provides immediate visual feedback on scanner status, communication link integrity, and fault conditions
Extended Temperature Tolerance: Operates reliably from –40°C to +70°C for deployment in extreme industrial environments
High‑Speed I/O Scanning: Enables rapid and deterministic data exchange between controllers and remote field modules
Private I/O Network Security: Dedicated Ethernet link prevents unauthorized access and foreign messaging interference
Fault‑Resilient Architecture: Maintains I/O communication even if one processor connection fails, ensuring continuous field visibility
Rugged DIN Rail Mounting: Compact 133 mm × 71 mm × 26 mm form factor for tight control cabinet installations
Safety Integrity Level (SIL) 3 Certified: Meets IEC 61508 standards for use in safety instrumented systems (SIS)
Wide Protocol Support: Compatible with Modbus RTU, Modbus TCP/IP, and Honeywell proprietary protocols
Remote I/O Data Acquisition: Reads digital and analog inputs from modules in expansion racks and transmits field data back to the lead CPU
Redundant Communication Bridging: Serves as the critical I/O link interface between the controller rack (C75 CPU-A and CPU-B) and all distributed I/O racks
Automatic Failover Management: Seamlessly switches communication from a failed lead CPU to the reserve CPU, preventing I/O data loss
I/O Module Detection & Management: Automatically identifies installed I/O modules in each slot and verifies they match the configured control strategy【34†L22-L24】
Diagnostics & Status Reporting: Continuously monitors I/O link health and reports faults (e.g., module mismatch, communication failure, power supply issues) to the controller【35†L1-L11】
Synchronization: Works with the C75 CPU’s Hold/Sync input to coordinate measurement timing and acoustic interference prevention when multiple sensors are mounted closely【34†L49-L55】
Configuration Validation: Compares physical rack/module configurations against the loaded control strategy and reports discrepancies【34†L22-L24】
Failsafe Output Management: Forces I/O outputs to predefined safe states if communication with the controller is lost【34†L21-L22】
Q1: Is the 900S75S-0360-00 compatible with the ControlEdge HC900 platform?
A1: Yes. The Honeywell 900S75S-0360-00 is a Scanner 2 module specifically designed for the ControlEdge HC900 system, listed under new SIL‑compatible hardware with complete model‑number compatibility requirements. For redundant systems, the scanner is designed for use with C75/C75S controller models.
Q2: How does the dual‑port redundancy function on this scanner?
A2: Port A connects exclusively to CPU‑A and Port B to CPU‑B. Under normal operation, the lead CPU controls I/O through its dedicated path. If the lead CPU fails or is taken offline, the reserve CPU automatically takes over via the alternate port without interrupting I/O scanning or control outputs.
Q3: Can I replace a 900S75S-0360-00 scanner without shutting down my process?
A3: Yes. The Honeywell 900S75S-0360-00 supports Removal and Insertion Under Power (RIUP). However, to prevent any potential control disruption, site personnel must first assess the specific risks—such as loss of critical signals—and transfer affected loops to manual control or bring the process to a safe stop before removal.【201†L1-L18】
Q4: What do the LEDs on the scanner’s front panel indicate?
A4: The scanner has four front‑panel LEDs: a green flashing status LED indicates Scan Mode; a green solid indicates Startup Mode; a flashing red signal indicates a diagnostic code (refer to the scanner diagnostic table in the user manual). The Ethernet LEDs provide link and activity status for each port. Specific port‑level diagnostics (e.g., I/O link failures, module mismatch, or power supply problems) are displayed via the controller’s diagnostic interface.【196†L4-L17】
Q5: Is the 900S75S-0360-00 rated for hazardous locations?
A5: The 900S75S-0360-00 carries SIL 3 certification and complies with Class I, Division 2 hazardous location standards for Groups A, B, C, D (FM and CSA). In division 2 installations, do not disconnect equipment unless power has been switched off or the area is known to be non‑hazardous. Temperature rating (‘T’ code) varies by application, but general environmental conditioning for safety applications requires installation in a grounded metal enclosure.【210†L19-L22】
