Product Name: Device Interface Module
Brand Name:Honeywell
Model Number:MU-TSIM12 51303932-401
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
MU-TSIM12 51303932-401 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Item |
Specification |
|
Model Number |
MU-TSIM12 51303932-401 |
|
Product Type |
Serial Interface Field Termination Assembly (FTA) |
|
Communication Protocol |
Modbus RTU |
|
Interface Type |
EIA-232 / EIA-422 / EIA-485 |
|
Connector Type |
DB-25 / 5-terminal compression |
|
Channels |
1 |
|
Power Interface |
MU-TLPA02 Power Adapter |
|
Communication Distance |
Up to 15m (RS-232) / up to 1200m (RS-485) |
|
Max Devices (RS-485) |
Up to 15 nodes |
|
Dimension |
15.2x12x8cm |
|
Weight |
0.3kg |
|
Mounting Type |
Panel / cabinet installation |

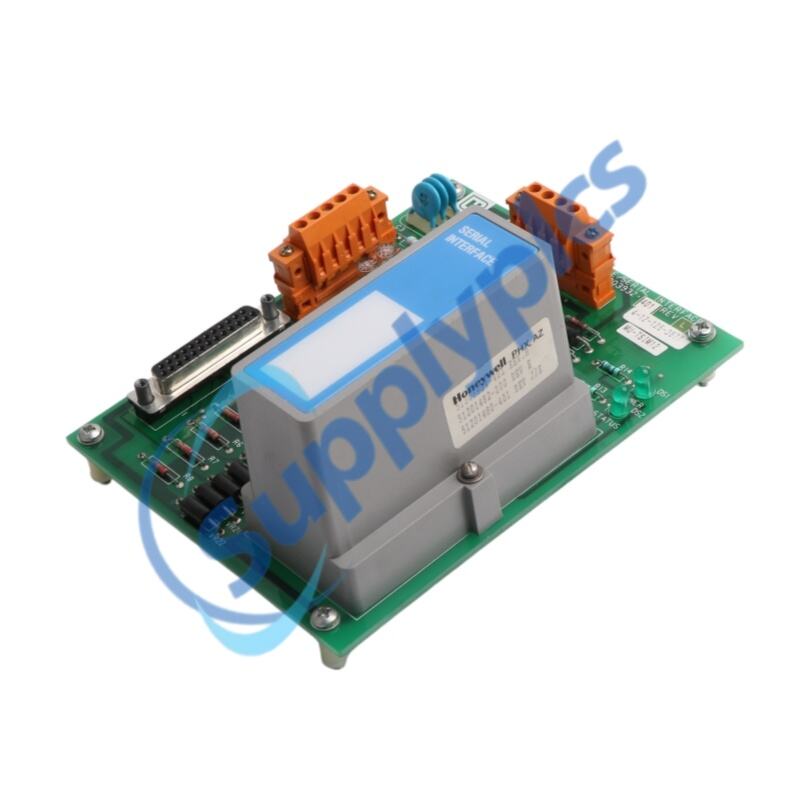

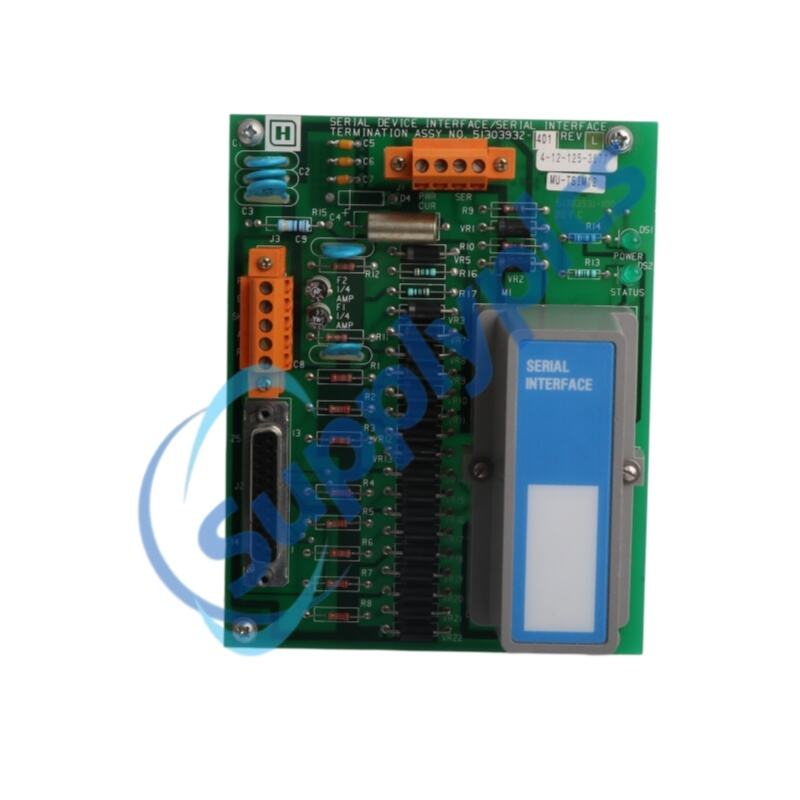

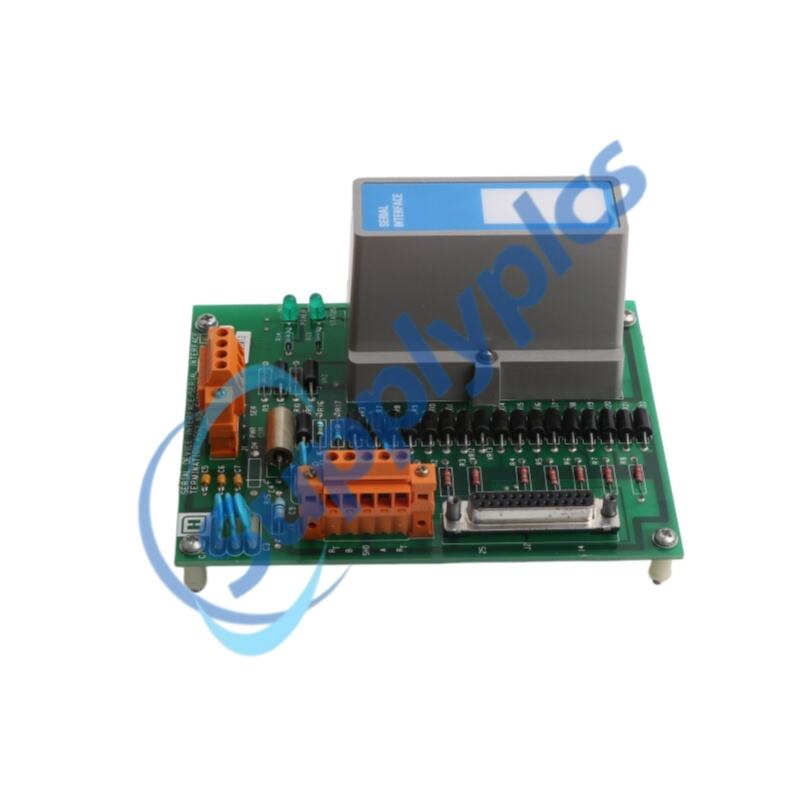

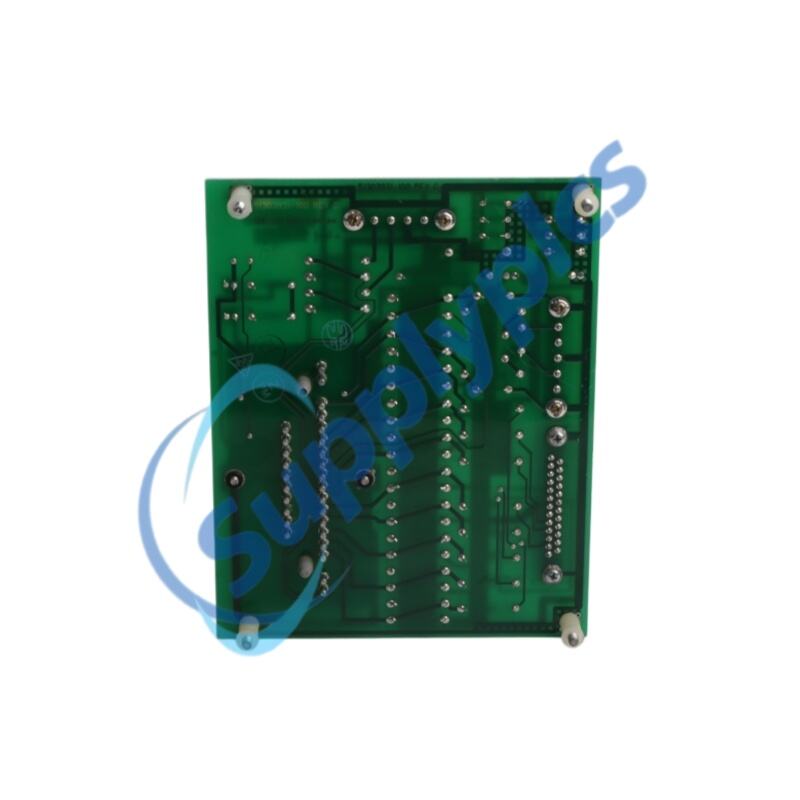

TheMU-TSIM12 51303932-401Serial Interface Field Termination Assembly is designed for reliable Modbus RTU communication in Honeywell HPM system architectures. It works in combination with compatible Serial Interface I/O modules, enabling stable integration between field devices and control systems through a dedicated power adapter interface.
Built to support both EIA-232 and EIA-422/485 communication standards, theMU-TSIM12 51303932-401provides flexible serial connectivity for industrial automation environments. It is engineered for Modbus protocol compatibility, ensuring seamless data exchange with third-party devices that meet Honeywell’s multivendor interface requirements.
As part of the Honeywell High-Performance Process Manager ecosystem, theMU-TSIM12 51303932-401delivers robust signal termination, flexible network configuration, and dependable long-distance communication support, making it suitable for complex distributed control applications.
Q1 A1What is MU-TSIM12 51303932-401 used for?
A1 It is a Serial Interface FTA used for Modbus RTU communication in Honeywell control systems.
Q2 A1Which communication standards does it support?
A1 It supports EIA-232, EIA-422, and EIA-485 serial interfaces.
Q3 A1How many devices can be connected on RS-485?
A1 Up to 15 serial devices can be connected in a multidrop configuration.
Q4 A1Is MU-TSIM12 compatible with Modbus devices?
A1 Yes, it supports Modbus protocol devices approved under Honeywell multivendor standards.
Q5 A1What is the maximum cable distance?
A1 RS-232 supports up to 15 meters, while RS-485 supports up to 1200 meters.
| Number | Description |
|---|---|
| MU-TSDT02 | SDI FTA—Toledo Scale Cell |
| MU-TSDM02 | SDI FTA—Manual/Auto Station |
| MU-TSDU02 | SDI FTA—UDC6000 |
| MU-MASX02 | Manual/Auto Station |
| MU-TSIA12 | SI FTA—Allen-Bradley |
| MU-TSIM12 | SI FTA—Modbus |
| MU-TLPA02 | Power Adapter (LLMux, SDI, SI FTAs) |
| MU-GAIH12/82 | Galvanically Isolated HLAI FTA |
| MU-GAIH13/83 | Galvanically Isolated HLAI/STI FTA |
| MU-GAIH14/84 | Galvanically Isolated HLAI/STI FTA |
| MU-GAIH22/92 | Galvanically Isolated HLAI FTA |
| MU-GAOX02/72 | Galvanically Isolated AO FTA |
| MU-GAOX12/82 | Galvanically Isolated AO FTA |
| MU-GDID12/82 | Galvanically Isolated 24 Vdc DI FTA |
| MU-GDID13/83 | Galvanically Isolated 24 Vdc DI FTA |
| MU-GDOD12/82 | Galvanically Isolated 24 Vdc DO FTA |
| MU-GDOL12/82 | Galvanically Isolated 24 Vdc DO FTA |
| MU-GLFD02 | Combiner Panel |
| MU-GMAR02 | Marshalling Panel |
| MU-GPRD02 | Galvanic Isolation Power Distribution Assembly |
| MU-ILDX02 | Long Distance I/O Link Extender Cards/Couplers |
| MU-ILDX03 | Long Distance I/O Link Extender Cards/Couplers |
| MU-IOLM02 | Standard I/O Link Extender Cards/Couplers |
| MU-IOLX02 | Standard I/O Link Extender Cards/Couplers |
| MU-SMAC02 | Analog Output Standby Manual with case |
| 51401926-100 | Analog Output Standby Manual - Digital |
| MU-SMDC02 | Digital Output Standby Manual with case |
| MU-SMDX02 | Digital Output Standby Manual without case1 |
