Product Name:Trusted Communication Interface Adapter
Brand Name: ICS TRIPLEX
Model Number:T8153C
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
ICS TRIPLEX |
Model Number: |
T8153C |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Manufacturer |
ICS Triplex / Rockwell Automation |
|
Catalog Number |
T8153C |
|
Product Type |
Trusted Communication Interface Adapter |
|
Primary Connector |
78+2-way Inverse DIN41612 (SK1) to T8151 Communication Interface |
|
Ethernet Ports |
2 × 10/100BaseT (RJ45) |
|
RS422/485 Ports |
4 (each with two connector access points) |
|
RS232 Ports |
2 (one full, one partial) |
|
Operating Temperature |
0°C to +60°C |
|
Storage Temperature |
–25°C to +70°C |
|
Relative Humidity |
10-95% (non-condensing) |
|
Dimensions (H×W×D) |
150×28×106 mm |
|
Weight |
418 g |
|
Safety Rating |
SIL 3 (IEC 61508), TÜV certified |
|
Environmental |
Conformal coated for harsh conditions |

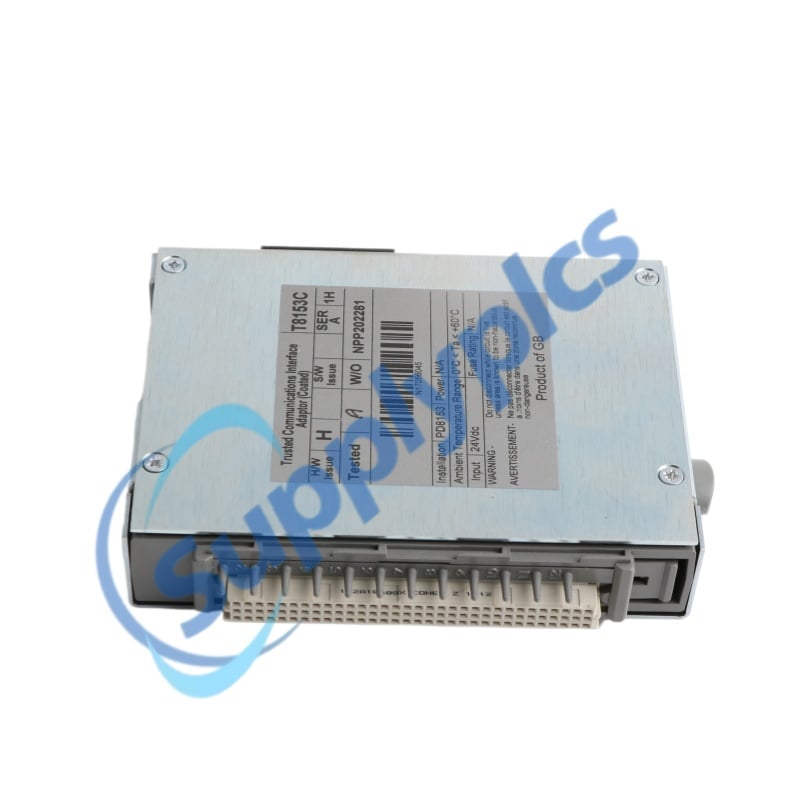

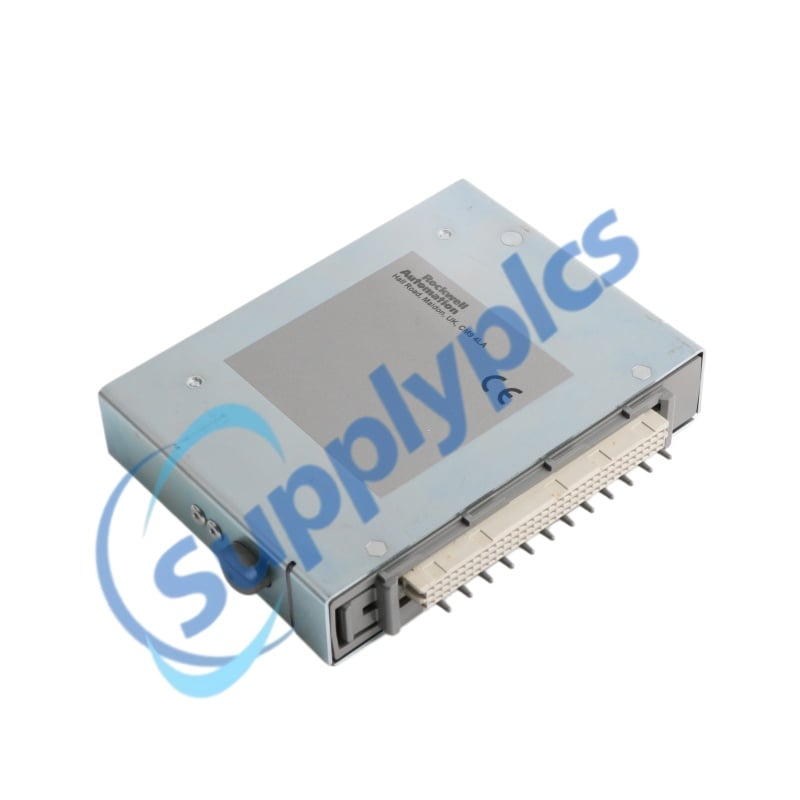

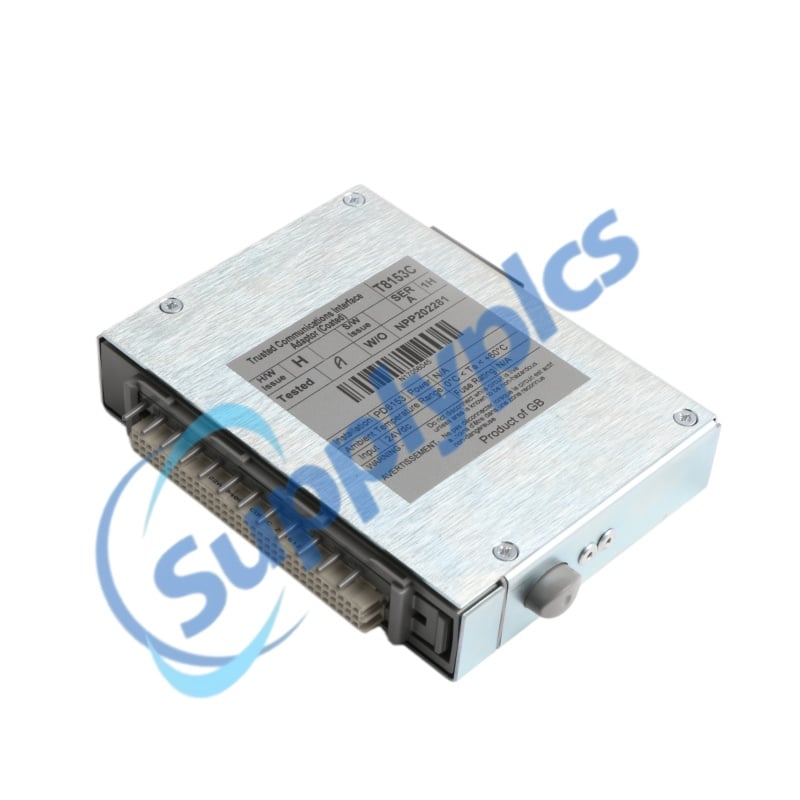

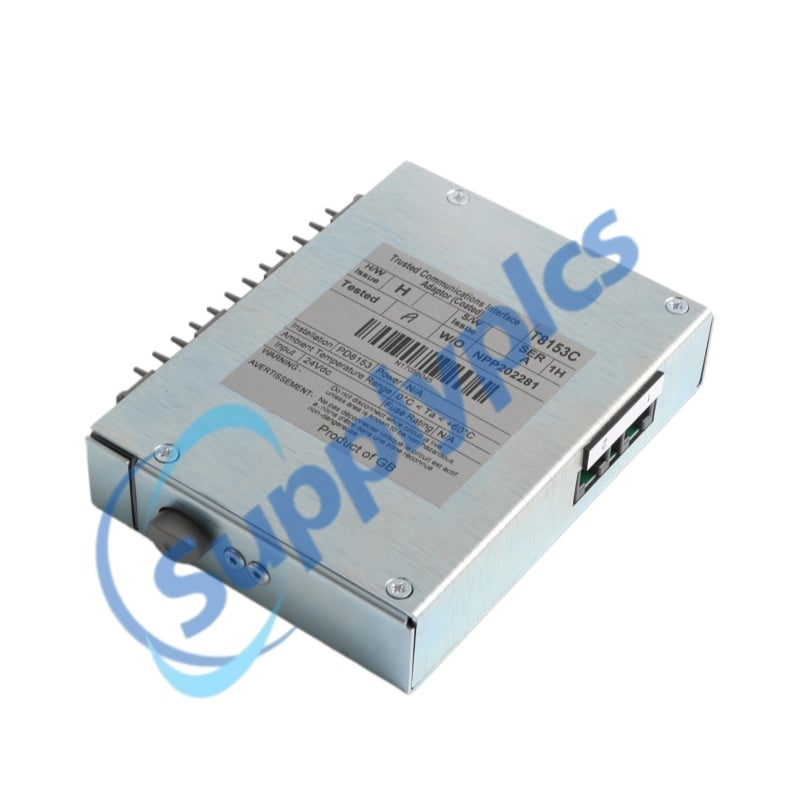

The T8153C is a Trusted Communication Interface Adapter that mounts directly behind the T8153C‑matched Communication Interface Module inside the T8100 chassis. This T8153C adapter translates internal TMR signals into standard Ethernet, RS485, and RS232 ports. With SIL 3 certification and conformal coating, the T8153C enables safe, reliable connectivity between Trusted safety controllers and external DCS, SCADA, or peer systems.
Direct backplane‑mounted design eliminates external cable bundles and simplifies installation.
Provides two Ethernet, four RS485, and two RS232 ports in a compact 150 mm form factor.
SIL 3 certified for safety‑critical communications.
Conformal coating protects against moisture, dust, and corrosive environments.
Link‑selectable RS485 termination simplifies multi‑drop and multiplexed wiring.
2 × 10/100BaseT Ethernet (RJ45) for IP networking.
4 × RS422/485 ports with dual connectors and selectable 120Ω AC termination.
2 × RS232 ports (one full, one partial).
78+2‑way inverse DIN connector for direct mating to T8151.
Release button for easy disconnection.
Factory‑fitted Phoenix Contact connectors.
Lightweight (418 g) and space‑saving footprint.
The T8153C serves as the physical‑layer interface between the Trusted TMR Communication Interface Module and external networks. It connects via SK1 to the rear of the T8151, routing signals to its eight external ports. Ethernet ports support 10/100BaseT for TCP/IP links; RS485 ports offer multi‑drop or point‑to‑point fieldbus with link‑selectable termination to avoid reflections; RS232 ports provide local programming and diagnostics. Signal grounds must be connected for RS485 reliability. The adapter does no protocol conversion – the Communication Module handles that – but ensures robust physical connectivity, with conformal coating protecting against industrial stresses.
|
Item |
Description |
Part Number |
|
Communication Interface Adapter |
T8153C – 2×Eth, 4×RS485, 2×RS232 |
T8153C |
|
Communication Interface Module |
TMR Communication Interface for T8100 |
T8151B / T8151C |
|
Gateway Adapter |
Recommended for T8170 Gateway (includes KVM) |
T8173 |
|
9-way Connector (J3) |
Phoenix Contact socket for full RS232 |
18 81 39 6 |
|
5-way Connectors (J4/J5/J7/J9–J14) |
Phoenix Contact socket for partial RS232 & RS485 banks |
18 81 35 4 |
|
RJ45 Plug (J6/J8) |
Standard Ethernet connector |
Molex 87281-8003 (or equivalent) |
