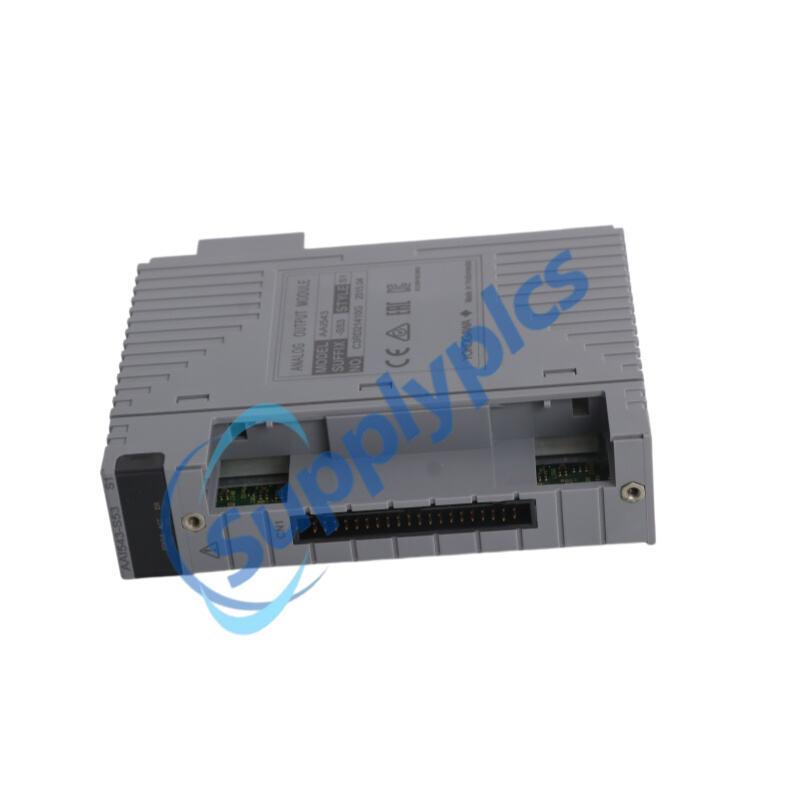

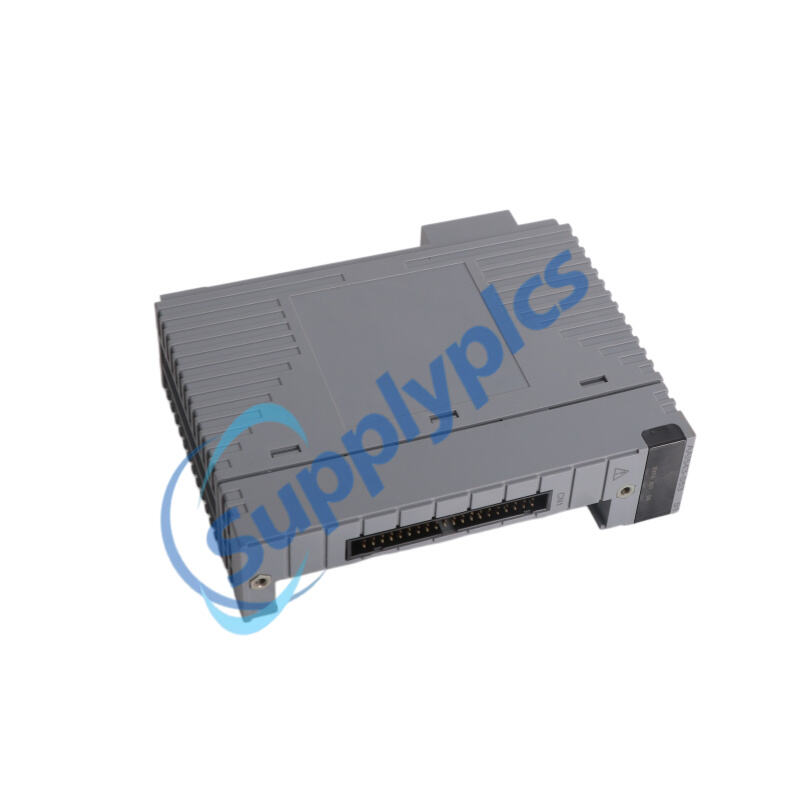

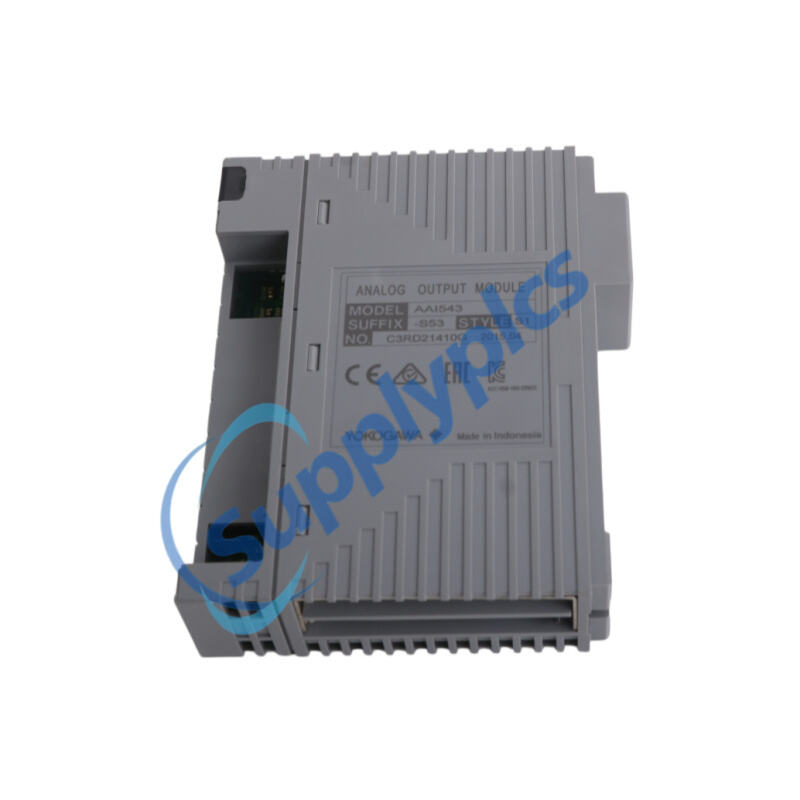

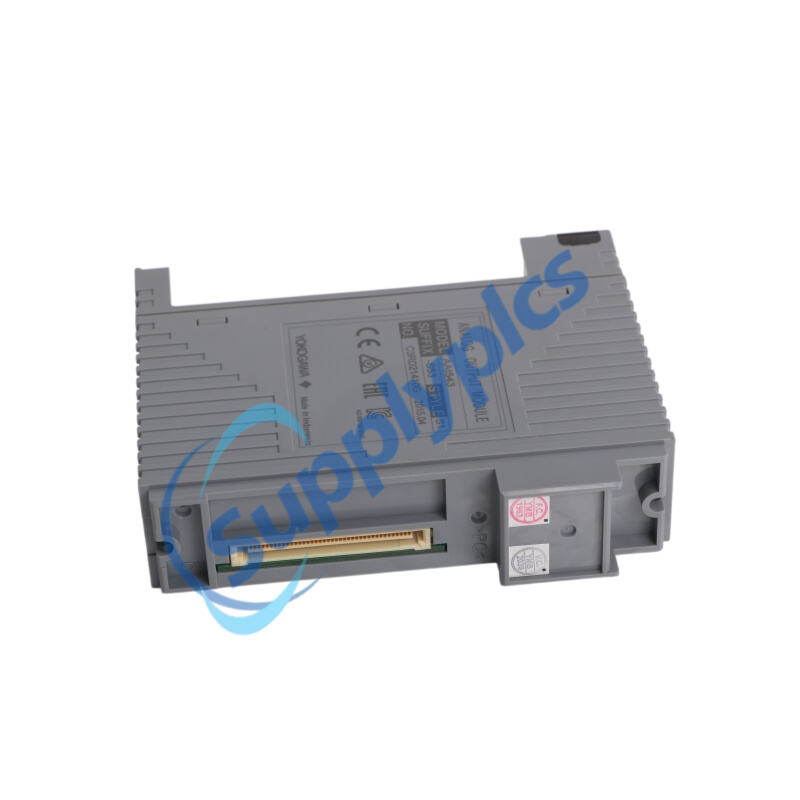

Product Name: Analog Output Module
Brand Name: YOKOGAWA
Model Number:AAI543-S53 S1
Country of Origin:JAPAN
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
YOKOGAWA |
Model Number: |
AAI543-S53 S1 |
Country of Origin: |
JAPAN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Items |
Specifications |
|
|
Model |
AAI543-□5□/-□E□ |
AAI543-□6□/-□F□ (*2) |
|
Number of output channels |
16, isolated, standard switch-over response in redundant configuration (*3) |
16, isolated, fast switch-over response in redundant configuration (*3) |
|
Output signal |
4 to 20 mA |
|
|
Withstanding voltage |
Between output and system: 1500 V AC, for 1 minute (*4) |
|
|
Allowable load resistance |
0 to 750 Ω |
|
|
Circuit-open detection |
Less than 0.65 mA |
|
|
Accuracy |
±48 μA |
|
|
Data update period |
10 ms |
|
|
Drift due to ambient temperature change |
±16 μA/10 °C |
|
|
Dimensions |
3.2x10.6x13cm |
|
|
Weight |
0.32kg |
|
The YOKOGAWA Analog I/O Series AAI543-S53 S1 is a high-performance 16-channel isolated analog output module for CENTUM VP and CS 3000 DCS, delivering 4–20 mA signals to field actuators and final control elements. It features ISA Standard G3 conformal coating and operates reliably from -20 to 70 °C, making it ideal for harsh industrial environments.
Valve positioning and flow control in chemical plants, refineries, and petrochemical facilities
Continuous process control for burner management, boiler combustion, and motor speed regulation
High-reliability control loops in power generation, offshore platforms, and coastal facilities
Space-constrained cabinets requiring high channel density with full channel-to-channel isolation
16 fully isolated output channels delivering 4–20 mA signals with ±48 μA rated accuracy and 0–750 Ω load capability
ISA Standard G3 conformal coating ensures corrosion resistance against gases like H₂S and SO₂ in harsh environments
Hardware-based redundancy support with standard switch-over response for fail-safe and uninterrupted plant operation
1500 V AC output-to-system isolation prevents field-side electrical surges from reaching the control system
Intelligent diagnostics — Continuous loop integrity monitoring with open-circuit detection triggered below 0.65 mA for proactive fault identification
Redundancy switch-over — In dual-redundant configurations, secondary module instantly takes control upon primary failure without process bump
Rapid loop response — 10 ms data update period enables tight PID tuning and near-real-time control for high-speed actuators, improving product quality
Temperature compensation — Automatic drift compensation at ±16 μA per 10 °C ensures consistent output accuracy across a wide temperature range
|
Model |
AAI543 |
Description |
|
Suffix Codes |
-S |
Analog Output Module (4 to 20 mA, 16-channel, Isolated) |
|
|
-H |
Standard type |
|
|
5 |
With digital communication (HART protocol) |
|
|
6 |
Standard switch-over response in redundant configuration with no explosion protection(*1) |
|
|
E |
Fast switch-over response in redundant configuration with no explosion protection(*2) |
|
|
F |
Standard switch-over response in redundant configuration with explosion protection(*1) |
|
|
0 |
Basic type |
|
|
1 |
With ISA Standard G3 option |
|
|
3 |
With ISA Standard G3 option and temperature (-20 to 70 °C) option |
|
Option Codes |
/K4A00 |
With KS Cable Interface Adapter (For connecting AEA4D Terminal Board) [Model: ATK4A-00] |
|
|
/A4S00 |
With Pressure Clamp Terminal Block [Model: ATA4S-00] |
|
|
/A4S10 |
With Pressure Clamp Terminal Block (surge absorber) [Model: ATA4S-10] |
|
|
/A4D00 |
With Dual Pressure Clamp Terminal Block [Model: ATA4D-00] |
|
|
/A4D10 |
With Dual Pressure Clamp Terminal Block (surge absorber) [Model: ATA4D-10] |
|
|
/CCC01 |
With Connector Cover for MIL Cable [Model: ACCC01] |
