Product Name: Adjustable Frequency AC Drive
Brand Name: Allen Bradley
Model Number:1762-L40BWA
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Allen Bradley |
Model Number: |
1762-L40BWA |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |

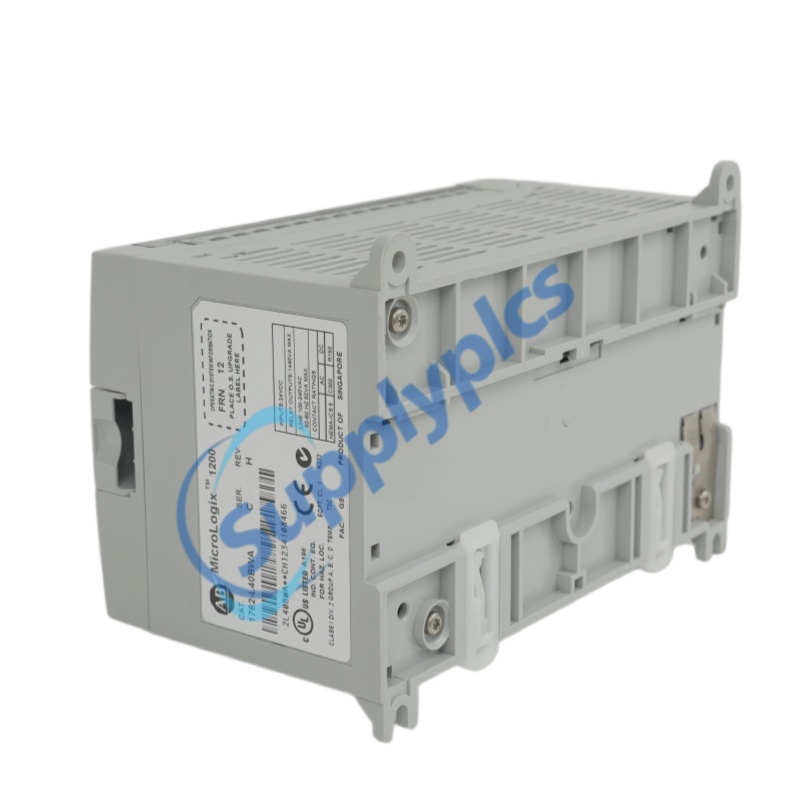

The 1762-L40BWA is a 40‑point MicroLogix 1200 programmable logic controller from Allen‑Bradley, designed for compact yet powerful industrial control applications. This 1762-L40BWA unit features 24 digital inputs (20 standard and 4 fast 24V DC) and 16 relay outputs. The 1762-L40BWA supports expansion up to 136 I/O points via six 1762 expansion modules. With 4 KB user memory, an RS‑232/RS‑485 communication port, and Modbus RTU support, the 1762‑L40BWA provides a cost‑effective solution for machine and process control.
High‑Speed Inputs: Four fast 24V DC inputs for high‑speed counting and pulse capture
Built‑in High‑Speed Counter: Independent 20 kHz counter
Removable Terminal Blocks: Simplifies wiring and maintenance
Expansion Capable: Supports up to six 1762 expansion I/O modules
Multiple Communication Protocols: DF1, Modbus RTU, and ASCII
Trimpot Adjustments: Two built‑in ¾‑turn trim potentiometers
Hazardous Location Ready: Class I, Division 2 certified
The 1762-L40BWA executes user‑defined ladder logic programs to control industrial processes and machinery. It reads input signals from field devices (sensors, switches), processes the logic, and activates output devices (relays, contactors). The built‑in high‑speed counter handles fast pulse inputs, while the RS‑232/RS‑485 port enables communication with HMIs, drives, and SCADA systems via Modbus RTU. Expansion modules allow the system to scale up to 136 I/O points for larger applications.
Q1: What is the difference between 1762-L40BWA and 1762-L40BXB?
A1: Both are 40‑point MicroLogix 1200 controllers. The 1762-L40BWA has 16 relay outputs, while the 1762-L40BXB has a mixed output configuration of relay and FET (solid‑state) outputs.
Q2: What input voltage does the 1762-L40BWA require?
A2: The 1762-L40BWA accepts 120/240V AC (-15%, +10%) at 47‑63 Hz.
Q3: How many I/O expansion modules can the 1762-L40BWA support?
A3: The 1762-L40BWA supports up to six 1762 expansion I/O modules, for a maximum of 136 I/O points.
Q4: What communication protocols does the 1762-L40BWA support?
A4: The 1762-L40BWA supports DF1 Half‑Duplex, Modbus RTU, and ASCII protocols.
Q5: Does the 1762-L40BWA have a real‑time clock?
A5: The real‑time clock is optional and requires a memory module.
