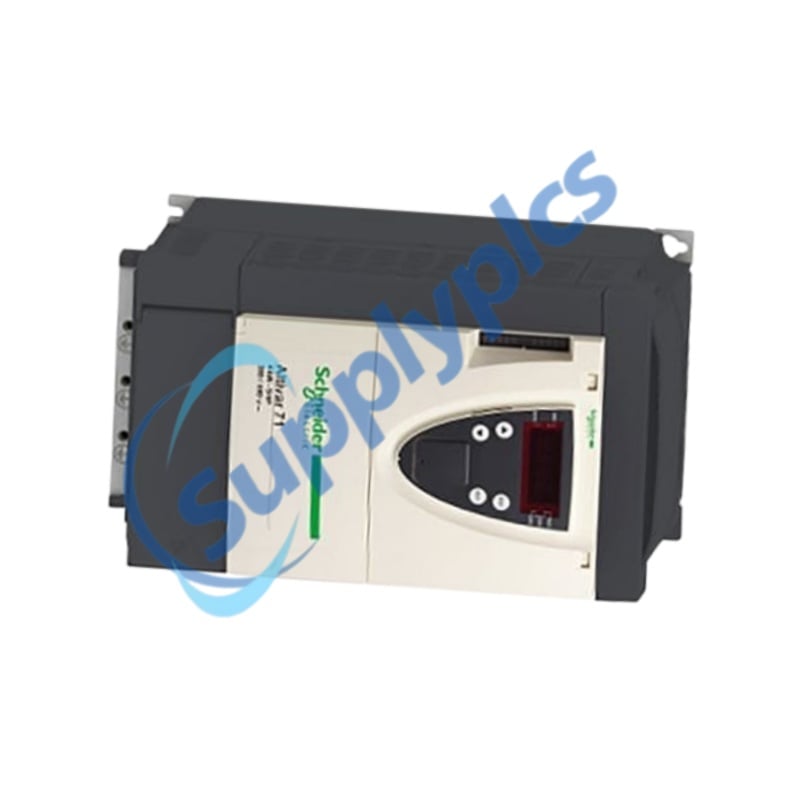

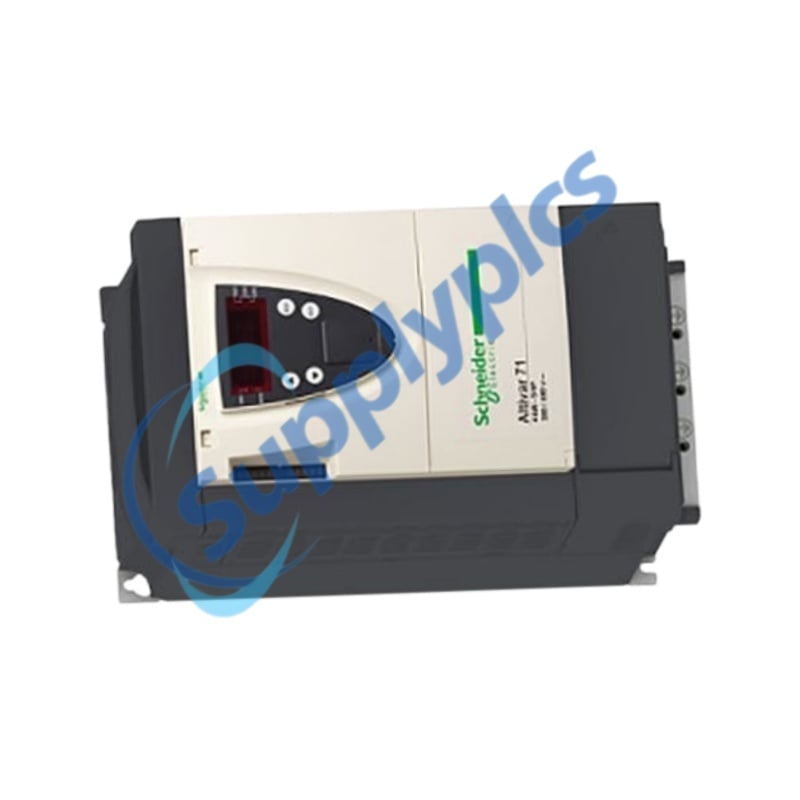

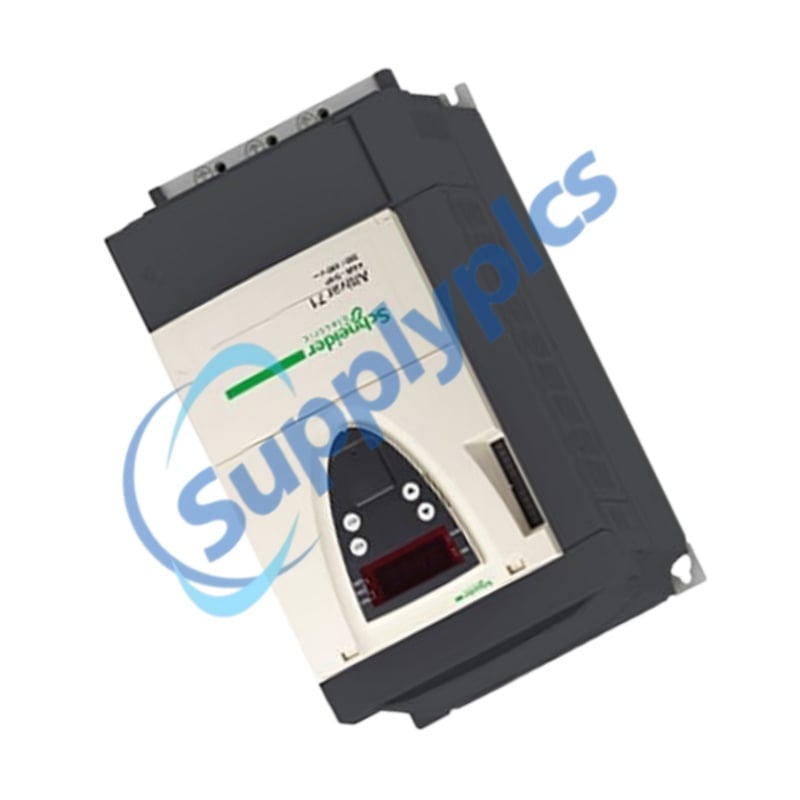

Schneider ATV71HD75N4 high-performance variable frequency drive Ready For Ship

Schneider ATV71HD75N4 high-performance variable frequency drive Ready For Ship

Product Name:variable frequency drive

Brand Name:Schneider

Model Number:ATV71HD75N4

Country of Origin:France

Warranty:12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

schneider atv71hd75n4 high performance variable frequency drive ready for ship-1

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Spares
Recommended Products

Overview

Brand Name:	Schneider
Model Number:	ATV71HD75N4
Country of Origin:	France
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Product Model	ATV71HD75N4 Variable Frequency Drive (VFD)
Product Series	Schneider Electric Altivar 71
Rated Motor Power	75 kW / 100 HP
Input Voltage	380–480 VAC, 3-Phase
Input Frequency	50/60 Hz
Nominal Output Current	124 A @ 460 V, 160 A @ 380 V
Output Frequency Range	0.1–500 Hz
Switching Frequency	Adjustable from 1–16 kHz
Motor Control Method	SFVC, FVC, V/F Control, ENA Energy Adaptation
Communication Protocols	Modbus, CANopen
Digital Inputs	7 programmable digital inputs
Analog Inputs	2 configurable analog inputs
Analog Outputs	1 configurable analog output
Protection Rating	IP20
Dimensions	630 × 320 × 290 mm
Weight	44 kg

Description

ATV71HD75N4 is a high-performance variable frequency drive from Schneider Electric’s Altivar 71 series, engineered for demanding industrial applications requiring precise motor control and advanced automation capabilities. Rated at 75 kW (100 HP), it operates on 380–480 V three-phase power systems and supports both asynchronous and synchronous motors.

Designed for complex machinery, ATV71HD75N4 incorporates advanced motor control technologies including Sensorless Flux Vector Control (SFVC), Flux Vector Control (FVC), and Energy Adaptation (ENA). These functions help optimize torque performance, improve energy efficiency, and maintain stable operation under varying load conditions.

As part of the Altivar 71 family, models such as ATV71HD75N4, ATV71HD90N4, and ATV71HC11N4 provide flexible communication options, integrated EMC filtering, comprehensive protection features, and reliable speed regulation for modern industrial automation systems.

Applications

Power plants: Used for cooling water pumps, boiler feed pumps, induced draft fans, and auxiliary motor speed regulation.
Substations: Supports HVAC systems, pump drives, and power distribution auxiliary equipment control.
Chemical plants: Provides accurate speed control for mixers, agitators, compressors, and process pumps.
Steel mills: Ensures stable motor operation in rolling mills, conveyors, and high-temperature production environments.
Machinery manufacturing plants: Controls automated production lines, robotic systems, packaging machines, and CNC equipment.
Water treatment facilities: Optimizes pump and blower performance while reducing energy consumption.
Mining operations: Drives crushers, conveyors, ventilation fans, and material handling equipment.

Features

Advanced Sensorless Flux Vector Control technology.
Supports both asynchronous and synchronous motors.
Integrated EMC filter for reduced electromagnetic interference.
Wide adjustable output frequency range up to 500 Hz.
High overload capability for demanding industrial loads.
Built-in Modbus and CANopen communication interfaces.
Adjustable acceleration and deceleration ramps.
Comprehensive motor and drive protection functions.
Compatible with multiple industrial communication option cards.

Functions

Provides precise motor speed and torque regulation.
Optimizes energy consumption through ENA technology.
Enables closed-loop and open-loop motor control.
Supports Safe Torque Off (STO) safety functionality.
Monitors motor thermal conditions and operating status.
Performs fault diagnostics and alarm management.
Facilitates integration into industrial automation networks.
Maintains stable operation under dynamic load variations.

FAQ

Q1: What is the rated power of the ATV71HD75N4?
A1: The ATV71HD75N4 is rated for 75 kW (100 HP) motor applications.

Q2: Which motor types can the ATV71HD75N4 control?
A2: It supports both asynchronous and synchronous motors with multiple control modes.

Q3: Does the ATV71HD75N4 include communication interfaces?
A3: Yes, the drive includes built-in Modbus and CANopen communication capabilities.

Q4: What is the maximum output frequency of the ATV71HD75N4?
A4: The drive can deliver output frequencies up to 500 Hz depending on the application requirements.

Q5: Is the ATV71HD75N4 suitable for high-torque industrial applications?
A5: Yes, it offers high overload capacity and advanced vector control for demanding torque-intensive operations.
