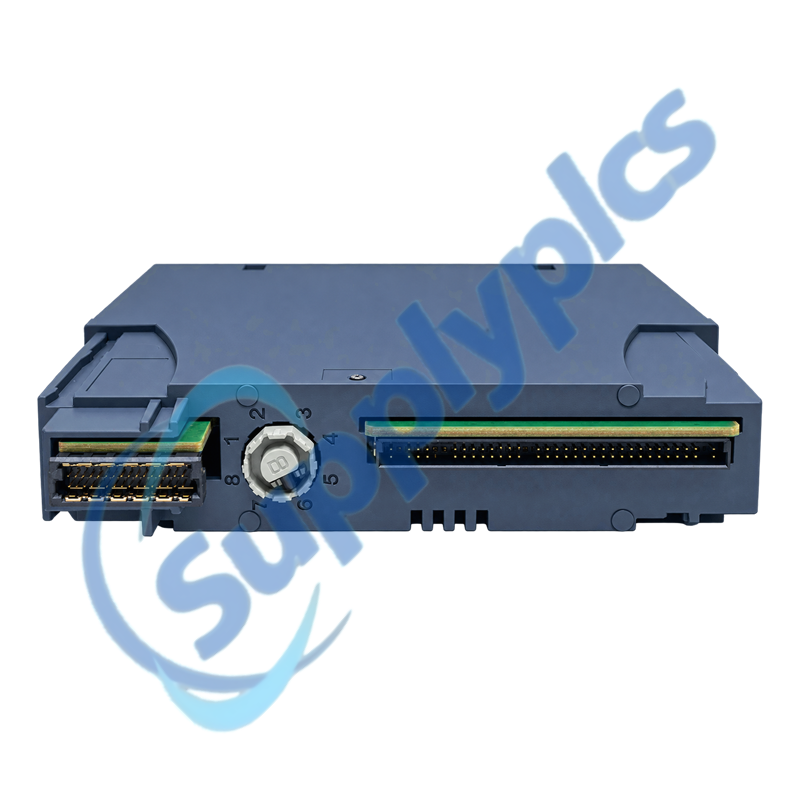

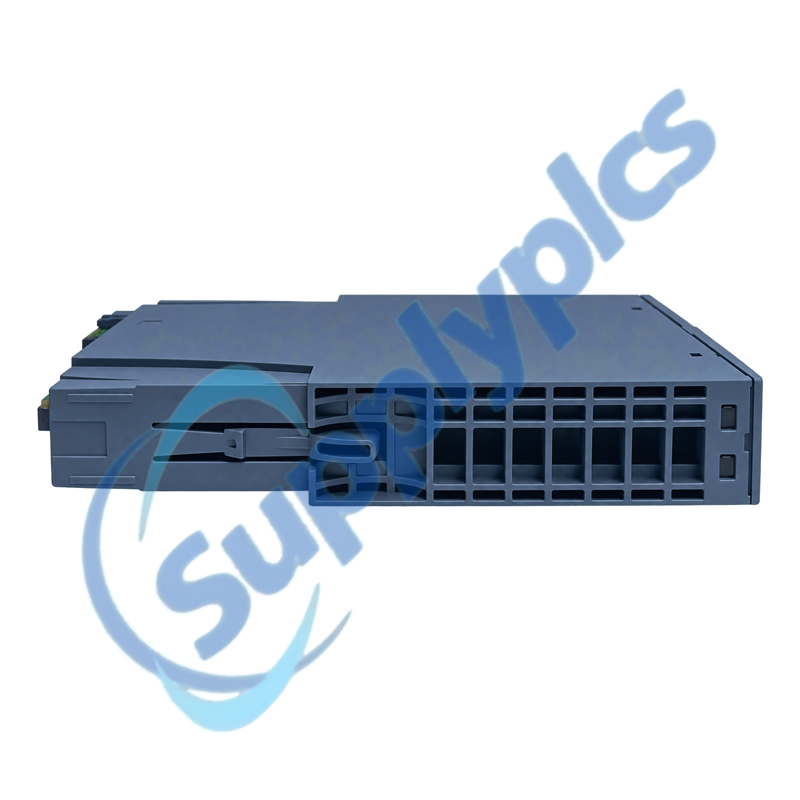

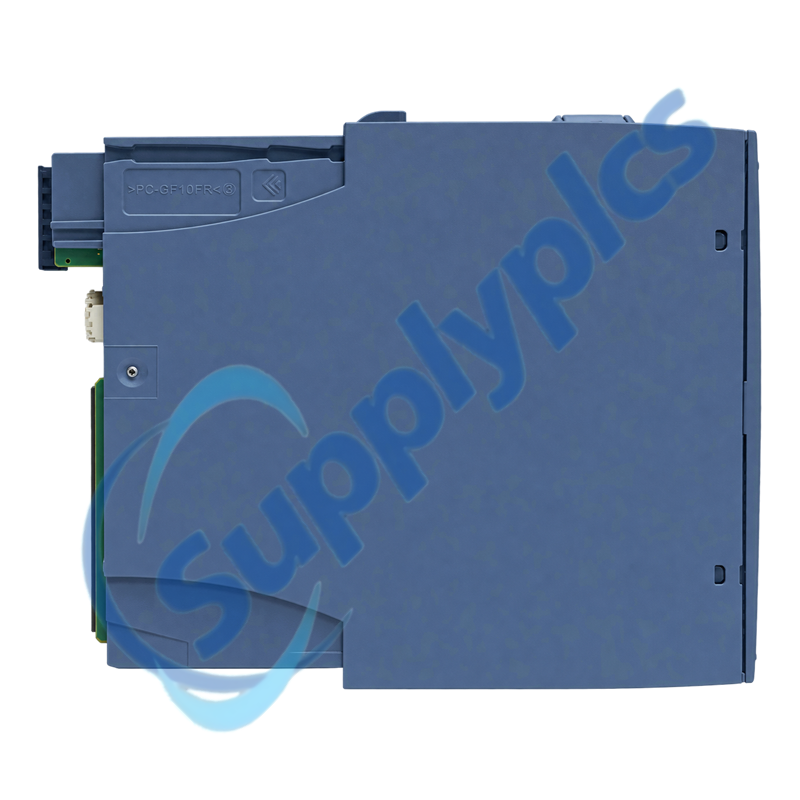

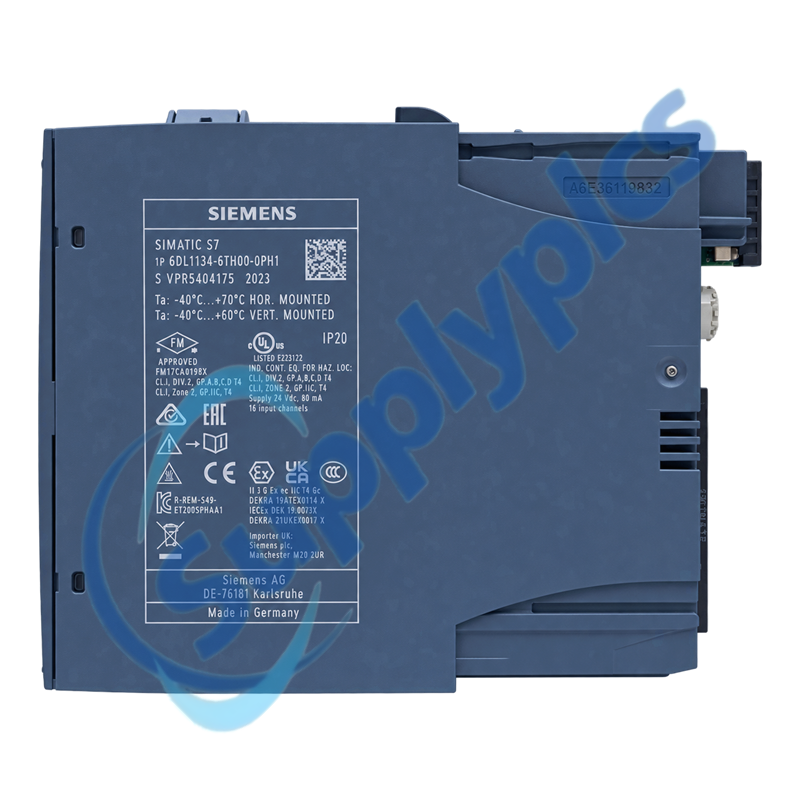

Siemens 6DL1134-6TH00-0PH1 ET 200SP HA AI 16×I 2-Wire HART Module

Siemens 6DL1134-6TH00-0PH1 ET 200SP HA AI 16×I 2-Wire HART Module

Product Name: ET 200SP HA AI 16×I 2-Wire HART Module

Brand Name: Siemens

Model Number: 6DL1134-6TH00-0PH1

Place of Origin: Germany

Warranty: 12 Months

Whatsapp: +86 18020776782

Email: [email protected]

Appurtenance:

siemens 6dl1134 6th00 0ph1 et 200sp ha ai 16 i 2 wire hart module-1

Overview
HART Integration
Diagnostics & Control
Specifications
Commercial Term
Contact info
FAQ
Other Products
Recommended Products

Sixteen-channel HART analog input for high-availability process I/O and channel-level diagnostics

The Siemens ET 200SP HA module accepts sixteen 0/4–20 mA two-wire transmitter signals with HART communication, 16-bit conversion, per-channel diagnostics and support for redundant operation with the appropriate M1 terminal block.

Process-I/O checkConfirm terminal-block type, color code CC01, redundancy arrangement, sensor supply load, HART or MultiHART data use, PCS 7 or TIA Portal integration and every channel assignment before ordering 6DL1134-6TH00-0PH1.

HART Integration

6DL1134-6TH00-0PH1 is a compact 22.5 mm ET 200SP HA analog input module for sixteen two-wire current transmitters. It supports 0–20 mA and 4–20 mA ranges, HART communication, channel-specific smoothing and two upper plus two lower limit alarms.

A replacement should preserve terminal-block compatibility, channel wiring, transmitter power, HART variables, diagnostics and redundancy configuration. The official specification supports reparameterization during RUN and redundancy with terminal block type M1.

Preserve both the cyclic analog values and the HART device data used by the process-control system.

Channel mapping

Document each transmitter tag, terminal position, current range, engineering scale and HART address.

Process-system data

Confirm whether the project uses standard HART, MultiHART, secondary variables or asset-management diagnostics.

Terminal block

Match the installed H1, M1, N0, H0 or M0 terminal block and verify whether redundancy requires M1.

Diagnostics & Control

Channel-level alarms help separate transmitter, wiring, power and configuration faults.

Current-loop checks

Measure loop current safely and inspect transmitter supply, polarity, shielding and cable continuity before replacing the module.

Diagnostic sequence

Use the channel LED, module DIAG LED and system messages to identify wire break, short circuit, overrange or underrange.

Maintenance in RUN

Coordinate any reparameterization or redundant exchange with the plant procedure and verify the process value before returning the channel to service.

Specifications

Product type designation	AI 16 × I 2-wire mA HART
Order number	6DL1134-6TH00-0PH1
Analog inputs	16 current inputs
Input ranges	0–20 mA and 4–20 mA
Resolution	Up to 16 bit including sign
Input resistance	250 Ω
Measurement accuracy	±0.1% basic error at 25 °C
Transmitter connection	Two-wire current transmitters with HART
Diagnostics	Supply, wire break, short circuit, overflow and underflow
Redundancy	Supported with terminal block M1
Supply range	19.2 to 28.8 V DC
Operating temperature	-40 to +70 °C horizontal; -40 to +60 °C vertical

Commercial Term

Quotation

Current price and availability

Payment

T/T or agreed terms

Lead time

Confirmed with quotation

Shipping

DHL, FedEx, UPS or agreed freight

Warranty

12 months

Contact info

CONTACT

Jim Pei

[email protected]

+86 180 2077 6782

FAQ

How should I verify that 6DL1134-6TH00-0PH1 matches my ET 200SP HA station?

Compare the exact order number, terminal-block type and color code, firmware, redundancy requirement, engineering version, 24 V DC supply and all sixteen channel assignments.

What should I archive before replacing 6DL1134-6TH00-0PH1?

Save the PCS 7, PCS neo, STEP 7 or TIA Portal project and export the channel ranges, filters, alarm limits, HART tags, secondary-variable mapping, diagnostics and redundancy configuration.

Why can one input on 6DL1134-6TH00-0PH1 show an underrange or wire-break alarm?

Check the transmitter supply, loop polarity, terminal seating, cable continuity and actual current. Compare the configured 0–20 mA or 4–20 mA range and verify that the transmitter is not in a fault state.

What should I check when HART communication through 6DL1134-6TH00-0PH1 is unavailable but the current value is correct?

Confirm HART is enabled for that channel, verify the compatible transmitter and loop impedance, inspect noise and shielding, and check the configured HART address and asset-management path.

How should I replace 6DL1134-6TH00-0PH1 in a redundant process-I/O arrangement?

Follow the approved plant procedure, identify the active and standby paths, confirm the M1 terminal block and redundancy status, exchange only the permitted module and verify every process value and diagnostic afterward.

Which information should I provide when requesting 6DL1134-6TH00-0PH1 for maintenance stock?

Provide the exact order number, firmware, ET 200SP HA station and interface module, terminal-block type, project platform, redundancy use, HART requirement, channel count and clear label photos.
