Product Name:Logic Module
Brand Name: SIEMENS
Model Number:6ED1 052-1CC01-0BA6
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
6ED1 052-1CC01-0BA6 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Details |
|
Manufacturer |
Siemens |
|
Product Type |
LOGO! 24C Logic Module |
|
Order Number |
6ED1052-1CC01-0BA6 |
|
Product Family |
LOGO! 0BA6 Series |
|
Display |
|
|
Mounting |
|
|
Supply Voltage |
24 V DC |
|
Permissible Range (DC) |
|
|
Digital Inputs |
|
|
Digital Outputs |
|
|
Output Current (Signal "1") |
|
|
Memory Capacity |
|
|
Real-Time Clock |
|
|
Time Switching Clocks |
190 |
|
RTC Power Reserve |
|
|
Expandability |
Yes, with digital, analog and communication modules |
|
EMC / Radio Interference |
|
|
Protection Rating |
|
|
Operating Temperature |
|
|
Storage / Transport Temperature |
–40 °C … +70 °C |
|
Dimensions (W × H × D) |
|
|
Weight |
|
|
Programming Interface |
RS-232 (PC cable) |
|
Approvals |
|
|
RoHS Compliant |
Yes |
|
Country of Origin |
DE (Germany) |

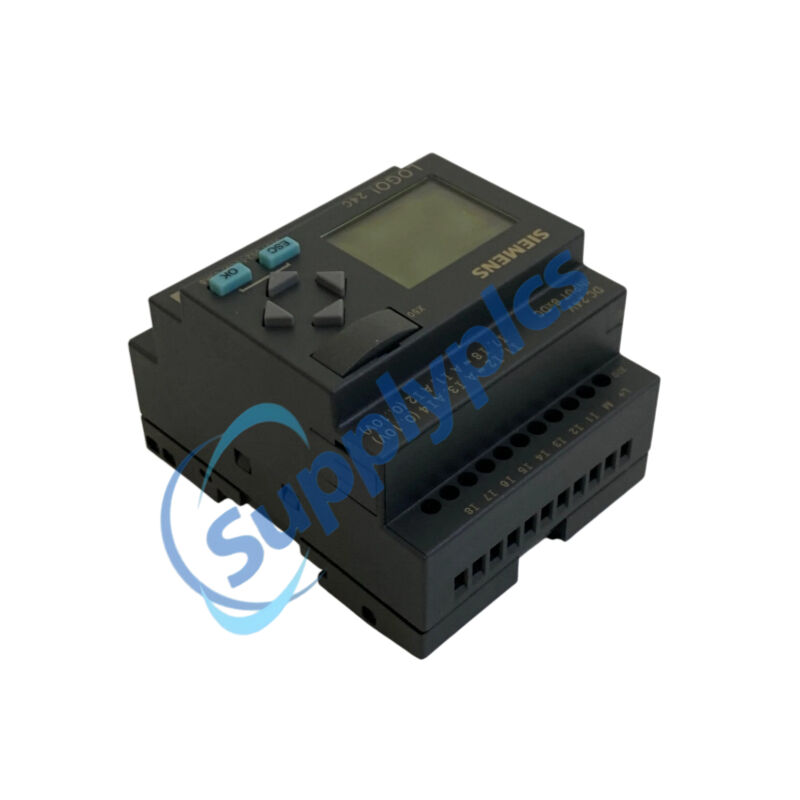

The Siemens 6ED1052-1CC01-0BA6 is a compact logic module from the LOGO! 24C series, operating on 24 V DC with an integrated LCD display. The Siemens 6ED1052-1CC01-0BA6 provides eight digital inputs (four of which can be used as 0–10 V analog inputs) and four transistor outputs with integrated short‑circuit protection. With 200‑block memory capacity, real‑time clock, and modular expandability, the 6ED1052-1CC01-0BA6 is an intelligent upgrade from traditional relay‑based controls for a wide range of building and industrial automation tasks.
Building automation: lighting systems, corridor lighting, stairway lighting, sun blinds, shutters
Gate and door control: automatic doors, factory gates, garage openers
HVAC systems: ventilation, air‑conditioning controls
Machine control: conveyor belts, packaging machines, bending machines
Pump systems: service water pumps, irrigation systems, rainwater utilization
Greenhouse automation: climate control, irrigation systems
Shop window lighting and outdoor lighting control
200‑block memory for medium‑complexity automation programs
8 digital inputs with 4 configurable as 0–10 V analog inputs
4 transistor outputs with built‑in short‑circuit protection (1 A, 0.3 A rated)
Integrated LCD display with backlight for local programming and monitoring
Built‑in real‑time clock for precise time‑based switching
Expandable with digital (DM8/DM16), analog (AM2), and communication modules
IP20 protection rating for control cabinet installation
EN 55011 Limit Class B certification for residential environments
Password‑protected circuit programs for security
Timer functions: On‑delay, Off‑delay, On/Off‑delay, Weekly timer, Yearly timer, Pulse generator
Counter functions: Up/Down counter, Hours counter, Threshold trigger
Basic logic: AND, OR, XOR, NAND, NOT, edge evaluation
Analog functions: Analog comparator, Analog threshold trigger, Analog amplifier, Analog differential trigger
Special functions: Latching relay, Pulse relay, Shift register, Softkey, Message texts, Softkey
Programming: PC‑based programming via LOGO! Soft Comfort (V6 or higher) or pre‑programmed memory module
Q1: What is the Siemens 6ED1052-1CC01-0BA6 used for?
A1: It is a compact logic module used to replace relays, timers and counters in small automation tasks like lighting, gate control, machine sequencing and pump systems.
Q2: Is the 6ED1052-1CC01-0BA6 still available?
A2: No, this product has been discontinued (end‑of‑life since October 2023). Please contact Siemens or check the SIPLUS LOGO! V8 series for a replacement.
Q3: Does the Siemens 6ED1052-1CC01-0BA6 have a real‑time clock?
A3: Yes. The 24C version features an integrated real‑time clock with 190 time switching clocks and an 80‑hour power reserve.
Q4: Can the 6ED1052-1CC01-0BA6 be expanded?
A4: Yes. It is modularly expandable with additional digital (DM8/DM16), analog (AM2), and communication modules to increase I/O capacity.
Q5: What software is required to program the Siemens 6ED1052-1CC01-0BA6?
A5: LOGO! Soft Comfort V6 or higher is required. The software runs on Windows, Linux and Mac OS and supports offline simulation and online testing.
