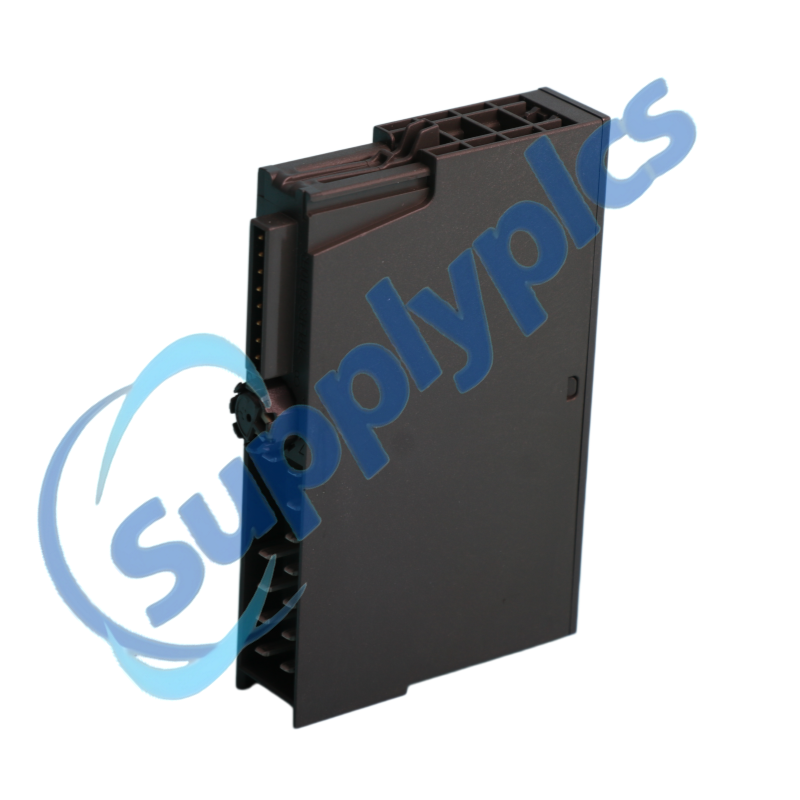

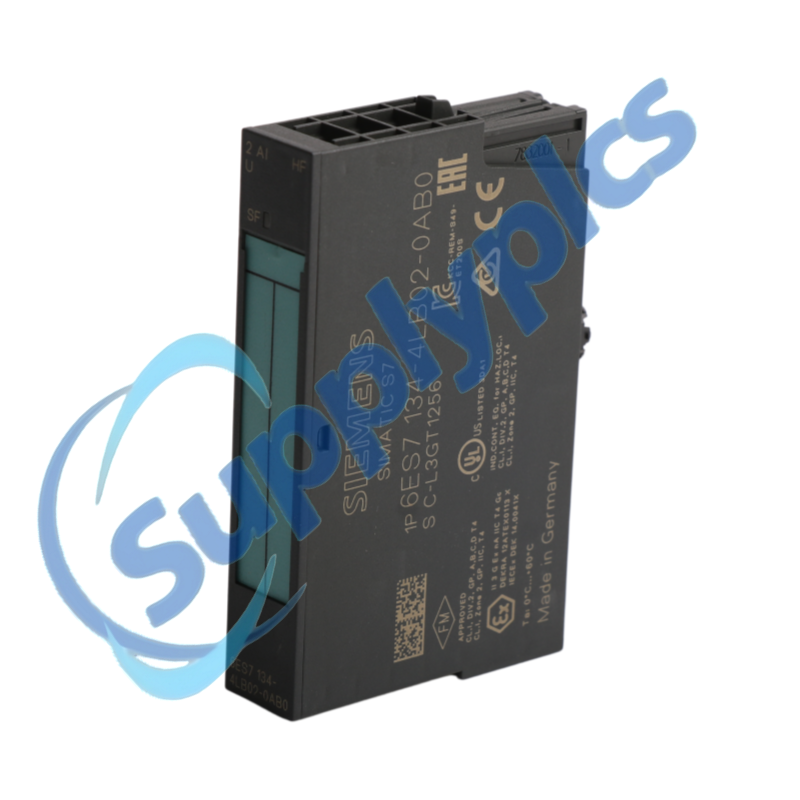

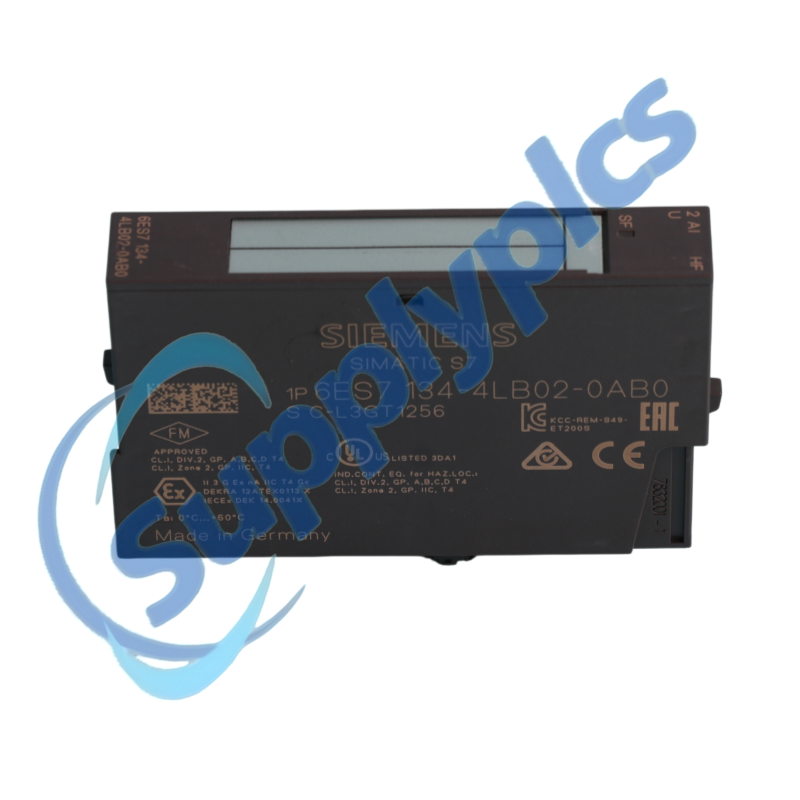

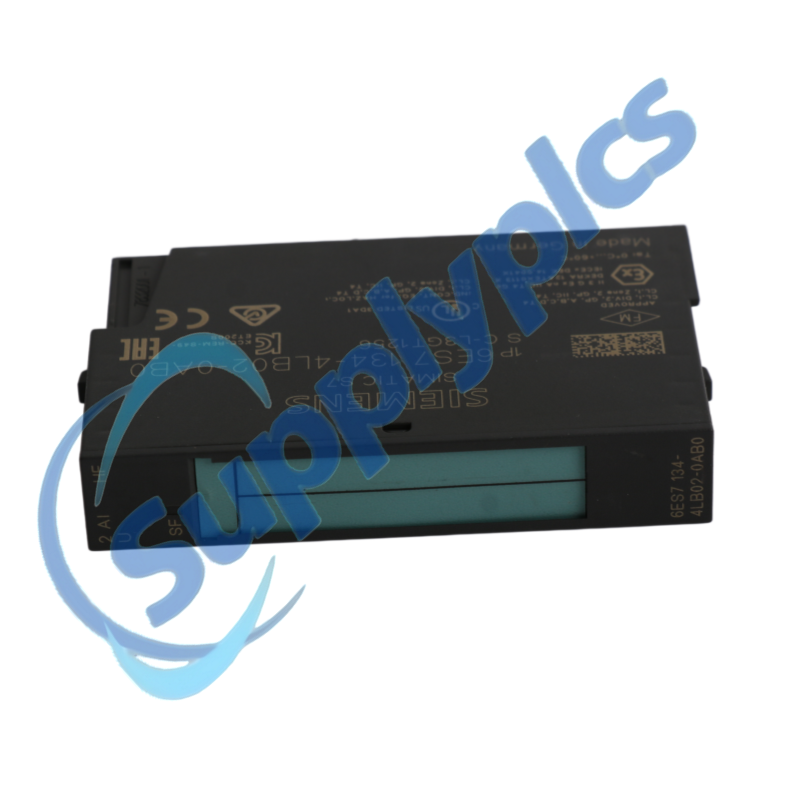

Siemens 6ES7134-4LB02-0AB0 2 AI U HIGH FEATURE ELECTRONIC MODULE

Siemens 6ES7134-4LB02-0AB0 2 AI U HIGH FEATURE ELECTRONIC MODULE

Product Name: 2 AI U HIGH FEATURE ELECTRONIC MODULE

Brand Name: Siemens

Model Number: 6ES7134-4LB02-0AB0

Place of Origin: Germany

Warranty: 12 Months

Whatsapp：+86 18020776782

Email：[email protected]

Appurtenance:

siemens 6es7134 4lb02 0ab0 2 ai u high feature electronic module -1

Overview
Commercial Terms
Description
Functions
Specifications
Advantage
Applications & Use Cases
Product Recommendations
Recommended Products

Contact Info

Sales	Email	Whatsapp
Jim Pei	[email protected]	+86 18020776782

Commercial Terms

Minimum Order Quantity	1 Piece
Price	Contact for Jim
Packaging Details	Original new Factory Sealed
Delivery Time	3–7 Days
Payment Terms	T/T
Shipping Method	DHL / FedEx / UPS / TNT
Supply Ability	In stock

Description

The Siemens 6ES7134-4LB02-0AB0 High Feature 2 AI U Electronic Module is a compact analog input module designed for the SIMATIC ET 200S distributed I/O system. It provides two high-precision voltage analog input channels, enabling accurate measurement and monitoring of industrial signals such as 0–10 V, ±10 V, and other standard voltage ranges used in automation and process control applications.

Engineered for high-performance signal acquisition, the module delivers fast cycle times, high resolution up to 16-bit, and robust electrical protection features. With integrated reverse polarity protection and high input resistance, it ensures stable and reliable operation even in electrically noisy industrial environments. Its compact design and seamless integration into Siemens distributed systems make it ideal for space-efficient and scalable automation architectures.

Functions

Provides 2 high-precision analog voltage input channels.
Supports standard industrial voltage ranges (e.g., 0–5 V, 0–10 V, ±5 V, ±10 V).
Converts analog voltage signals into digital data for PLC processing.
Enables high-speed signal acquisition with cycle times down to 0.5 ms.
Offers up to 16-bit resolution for accurate measurement.
Supports shielded cable lengths up to 200 m for flexible installation.
Includes reverse polarity protection for enhanced electrical safety.
Filters and processes signals with optional noise suppression modes.
Integrates into SIMATIC ET 200S backplane communication architecture.

Specifications

Product Name	Siemens 6ES7134-4LB02-0AB0 2 AI U HIGH FEATURE ELECTRONIC MODULE
Manufacturer	Siemens
Product Type	2 AI U HIGH FEATURE ELECTRONIC MODULE
Part Number	6ES7134-4LB02-0AB0
Weight	0.05kg
Estimated shipping dimensions	1.4x5.5x8.3cm
Place of shipment	Xiamen, China
Country of origin	Germany
Rated value (DC)	24 V
Reverse polarity protection	Yes
from load voltage L+ (without load), max.	55 mA
from backplane bus 3.3 V DC, max.	10 mA
Power loss, typ.	0.85 W
Address space per module, max.	4 byte
Number of analog inputs	2
permissible input voltage for voltage input (destruction limit), max.	35 V ; 35 V continuous; 75 V for max. 1 ms
Cycle time (all channels) max.	0.5 ms ; 0.5 ms for 2 channels without noise suppression, 18 / 21 ms per channel with noise suppression
Input resistance (1 to 5 V)	800 kΩ
Cable length, shielded, max.	200 m
Resolution with overrange (bit including sign), max.	16 bit ; 0 to 5 V: 15 bits, +/-10 V: 16 bits, +/-5 V: 16 bits

Advantage

The Siemens 6ES7134-4LB02-0AB0 delivers high-precision analog signal acquisition with fast response and strong electrical robustness. Compared with standard analog input modules, it offers higher resolution, improved noise handling, and faster processing performance, making it suitable for demanding industrial measurement applications.

High-Precision Measurement

Up to 16-bit resolution ensures accurate and stable voltage signal acquisition.

Fast Signal Processing

Cycle times as low as 0.5 ms enable real-time monitoring and control applications.

Robust Industrial Design

High input resistance and protection features ensure reliable operation in harsh environments.

Flexible Signal Compatibility

Supports multiple standard industrial voltage ranges for versatile application use.

Long-Distance Signal Transmission

Supports shielded cable lengths up to 200 m without significant signal degradation.

Easy Integration

Seamlessly integrates into SIMATIC ET 200S distributed I/O systems for simplified engineering.

Applications & Use Cases

Industrial process monitoring and control systems
Machine condition monitoring and diagnostics
Automation systems requiring high-precision voltage measurement
Packaging and production machinery signal acquisition
Automotive manufacturing and testing systems
Conveyor and material handling monitoring systems
Energy and utility monitoring applications
Laboratory and industrial testing environments
Distributed I/O analog signal expansion in ET 200S systems
Retrofit and upgrade of existing analog measurement systems

This module is well suited for applications requiring fast, accurate, and reliable analog voltage measurement. Its combination of high resolution, compact design, and robust industrial performance makes it a strong choice for modern Siemens-based automation systems.
