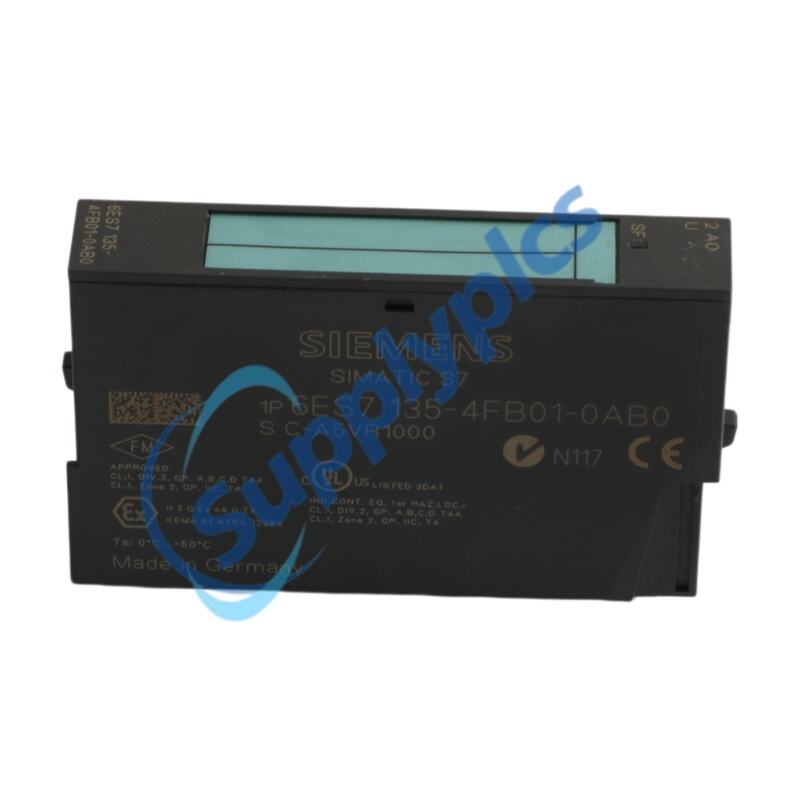

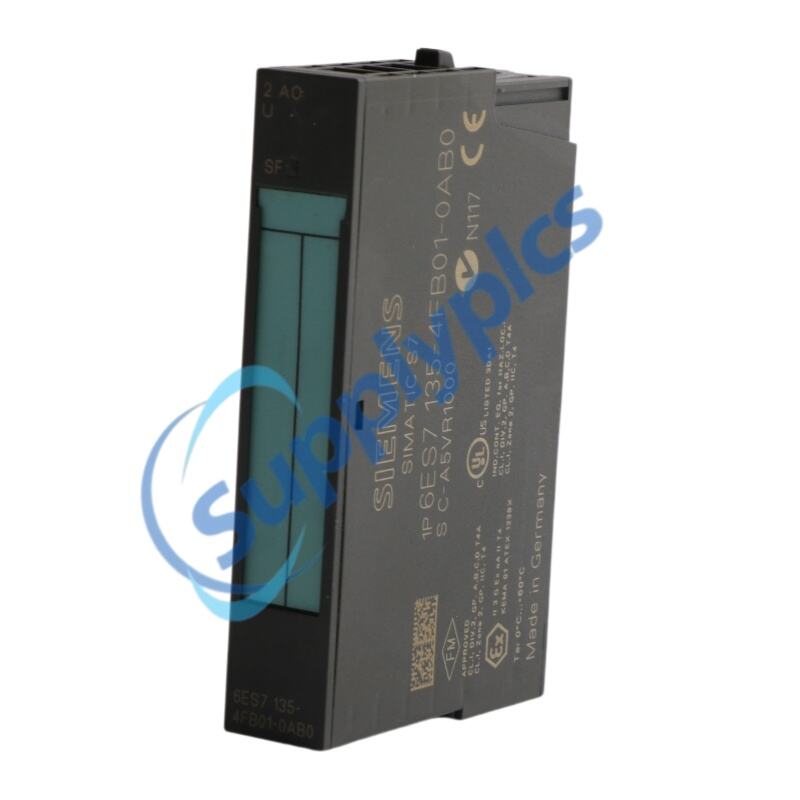

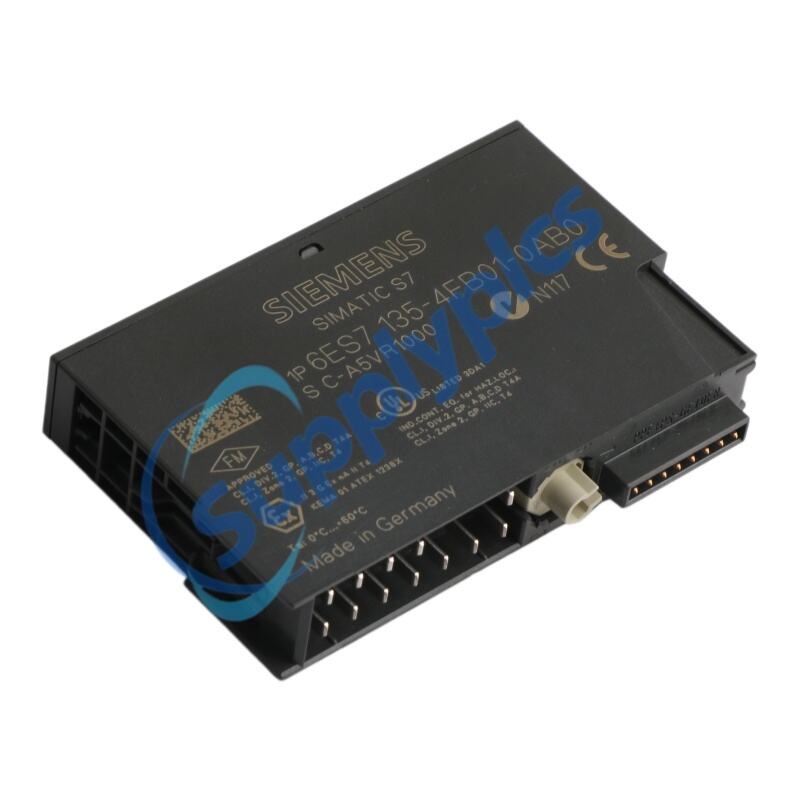

Siemens 6ES7135-4FB01-0AB0 Electronics module Ready For Ship

Siemens 6ES7135-4FB01-0AB0 Electronics module Ready For Ship

Product Name:Electronics module

Brand Name:Siemens

Model Number:6ES7135-4FB01-0AB0

Country of Origin:Germany

Warranty: 12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

siemens 6es7135 4fb01 0ab0 electronics module ready for ship-1

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Spares
Recommended Products

Overview

Brand Name:	Siemens
Model Number:	6ES7135-4FB01-0AB0
Country of Origin:	Germany
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Item	Details
Product Model	6ES7135-4FB01-0AB0
Product Type	Electronics module (2 AO U)
Output Channels	2 analog voltage outputs
Output Range	±10 V / 1–5 V
Resolution	13 bit + sign (±10 V), 12 bit (1–5 V)
Cycle Time	< 1 ms (typical up to 1.5 ms)
Supply Voltage	24 V DC (via power module)
Current Consumption	130 mA (L+ max)
Cable Length	Up to 200 m (shielded)
Dimension (W×H×D)	15 × 81 × 52 mm
Weight	Approx. 40 g
Protection	Short-circuit protected outputs
Isolation	500 V DC tested
Mounting	ET 200S I/O system rail mounting

Description

The 6ES7135-4FB01-0AB0 is a compact high-precision electronics module designed for fast and stable analog signal control in distributed automation systems. It provides two voltage analog outputs with selectable ranges of ±10 V and 1–5 V, making it suitable for a wide range of industrial process control applications.

As part of the Siemens Siemens SIMATIC ET 200S series, this module supports fast cycle times below 1 ms and delivers high-resolution output control up to 13-bit + sign accuracy. Its integrated diagnostics, short-circuit protection, and SF LED status indication ensure reliable operation in demanding environments.

The module is widely used in modular I/O systems where space-saving design, fast response, and high signal accuracy are required for modern industrial automation networks.

Applications

Power plants: Used for generator set status monitoring and relay protection
Substations: Enable bus differential control, line protection, and switchyard signal acquisition
Chemical plants: Process automation and intrinsically safe signal monitoring
Steel mills: Equipment control in high-temperature and EMI-heavy environments
Machinery manufacturing: Automated production lines, robotics, and packaging systems

Features

Dual-channel analog voltage output
High-speed response (<1 ms cycle time)
Compact 15 mm module design
Short-circuit protection on outputs
Integrated SF diagnostic LED
High resolution signal conversion
Reliable isolation between backplane and load

Functions

Analog signal generation and control
Precision voltage regulation for actuators
Real-time process output adjustment
Fault detection and diagnostic reporting
Stable signal transmission in distributed I/O systems

FAQ

Q1: What is the main function of 6ES7135-4FB01-0AB0?
A1: It provides high-precision dual analog voltage outputs for industrial automation control systems.

Q2: What output ranges does this module support?
A2: It supports ±10 V and 1–5 V voltage output ranges.

Q3: Is the module protected against short circuits?
A3: Yes, both output channels include built-in short-circuit protection.

Q4: What is the typical response time?
A4: The cycle time is less than 1 ms, ensuring fast signal response.

Q5: Where is this module commonly used?
A5: It is widely used in power plants, substations, and industrial automation systems.
