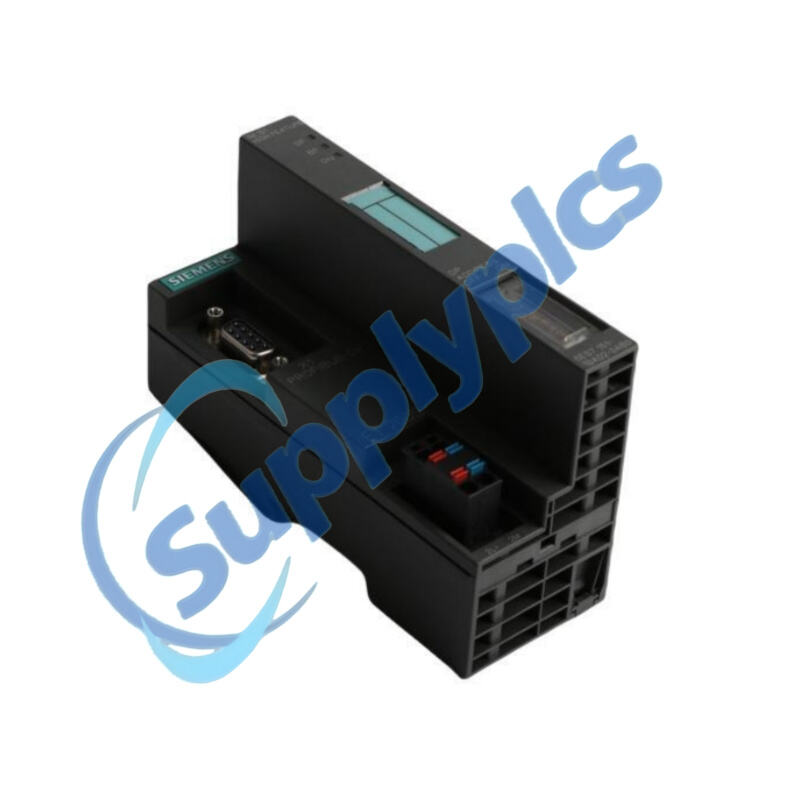

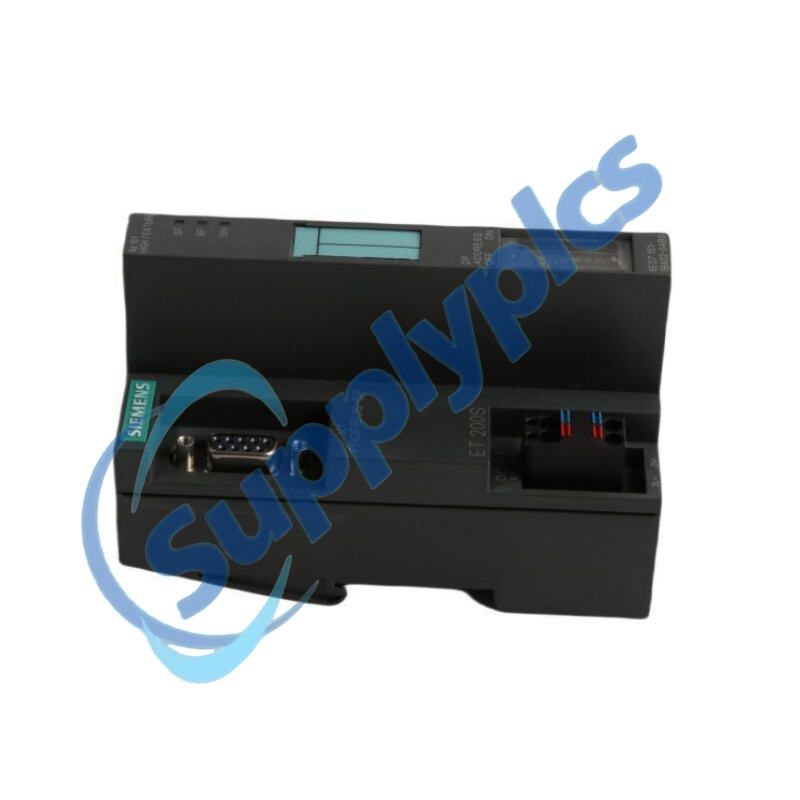

Siemens 6ES7151-1BA02-0AB0 Interface Module

Siemens 6ES7151-1BA02-0AB0 Interface Module

Product Name: Interface Module

Brand Name: Siemens

Model Number: 6ES7151-1BA02-0AB0

Place of Origin: Germany

Warranty: 12 Months

Whatsapp：+86 18020776782

Email：[email protected]

Appurtenance:

siemens 6es7151 1ba02 0ab0 interface module-1

Overview
Contact Info
Parameter Information
Description
Functions
Features
FAQ
Recommendations
Recommended Products

Commercial Terms

Minimum Order Quantity	1 Piece
Price	Contact for Jim
Packaging Details	Original new Factory Sealed
Delivery Time	3–7 Days
Payment Terms	T/T
Shipping Method	DHL / FedEx / UPS / TNT
Supply Ability	In stock

Contact Info

Sales	Email	Whatsapp
Jim Pei	[email protected]	+86 18020776782

Parameter Information

Product Name	Siemens 6ES7151-1BA02-0AB0 Interface Module
Manufacturer	Siemens
Product Type	Interface Module
Part Number	6ES7151-1BA02-0AB0
Estimated shipping dimensions	5.2x7.3x12cm
Weight	0.14kg
Place of shipment	Xiamen, China
Country of origin	Germany
Product type designation	IM 151-1 HF
Mains/voltage failure stored energy time	20 ms
from supply voltage 1L+, max	200 mA
Power loss, typ.	3.3 W
Transmission procedure	RS 485
Transmission rate, max.	12 Mbit/s
Isolation tested with	500 V DC
I/O Data Volume	244 bytes (input / output each)
Maximum Modules Supported	Up to 63 modules
Operating Mode	Isochronous mode supported
Bus Connection	9-pin D-sub connector
Included Components	Termination module included

Description

The Siemens 6ES7151-1BA02-0AB0 is a high-feature interface module designed for the ET200S distributed I/O system, enabling fast and reliable communication between control systems and remote I/O stations. It uses RS485 transmission with speeds up to 12 Mbit/s, supporting efficient real-time data exchange in industrial automation networks.

The module is capable of handling up to 63 I/O modules per station, with a cyclic data capacity of 244 bytes for both input and output, making it suitable for medium to large-scale distributed control applications. It also supports isochronous mode, ensuring precise synchronization for time-critical automation processes.

Designed for industrial environments, the 6ES7151-1BA02-0AB0 provides stable performance, low power consumption, and robust electrical isolation. Its compact design and integrated bus interface with a 9-pin D-sub connector, along with the included termination module, ensure easy installation and reliable operation in ET200S system architectures.

Functions

Acts as a communication interface between PLC systems and ET200S distributed I/O modules
Transfers input/output data via RS485 fieldbus communication
Enables real-time data exchange in industrial automation networks
Supports synchronization through isochronous mode
Manages up to 63 connected I/O modules in a single system
Handles cyclic data transmission of 244 bytes for both input and output
Ensures stable communication between control systems and field devices

Features

IM 151-1 High Feature interface module for ET200S system
RS485 communication interface
Maximum transmission rate: 12 Mbit/s
Supports isochronous mode for synchronized automation
I/O data volume: 244 bytes input / 244 bytes output
Supports up to 63 I/O modules per station
9-pin D-sub bus connector for fieldbus integration
Includes termination module for stable communication
Power loss: approx. 3.3 W (typical)
Supply current: max. 200 mA from 1L+
Isolation strength: tested up to 500 V DC
Energy storage time during voltage failure: 20 ms
Compact industrial design (0.14 kg)
Designed for ET200S modular expansion systems
Reliable performance for industrial automation environments

FAQ

1. What happens during power failure for 6ES7151-1BA02-0AB0?

6ES7151-1BA02-0AB0 provides an energy storage time of approximately 20 ms during voltage failure.

2. Which system is 6ES7151-1BA02-0AB0 compatible with?

6ES7151-1BA02-0AB0 is compatible with Siemens ET200S distributed I/O systems.

3. What communication method does 6ES7151-1BA02-0AB0 use?

6ES7151-1BA02-0AB0 uses RS485 communication with a maximum transmission rate of 12 Mbit/s.

4. How many I/O modules can 6ES7151-1BA02-0AB0 support?

6ES7151-1BA02-0AB0 supports up to 63 I/O modules in a single system configuration.

5. What is the I/O data capacity of 6ES7151-1BA02-0AB0?

6ES7151-1BA02-0AB0 supports 244 bytes of input data and 244 bytes of output data.

6. Does 6ES7151-1BA02-0AB0 support real-time synchronization?

Yes, 6ES7151-1BA02-0AB0 supports isochronous mode for real-time synchronized communication.

7. What type of connector does 6ES7151-1BA02-0AB0 use?

6ES7151-1BA02-0AB0 uses a 9-pin D-sub bus connector for fieldbus connection.

8. What is the power consumption of 6ES7151-1BA02-0AB0?

6ES7151-1BA02-0AB0 has a typical power loss of about 3.3 W and a maximum current draw of 200 mA.
