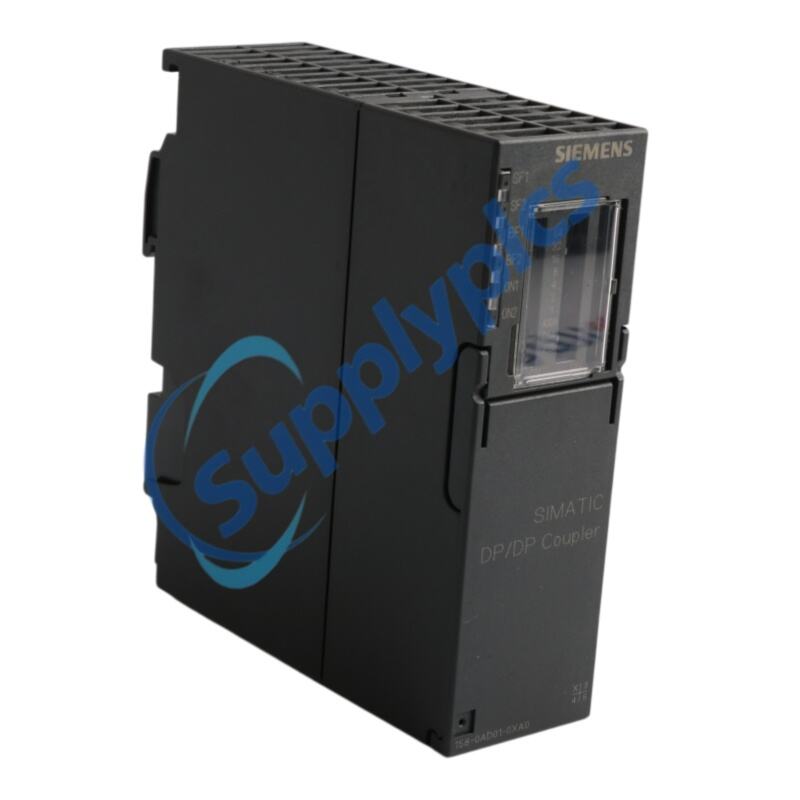

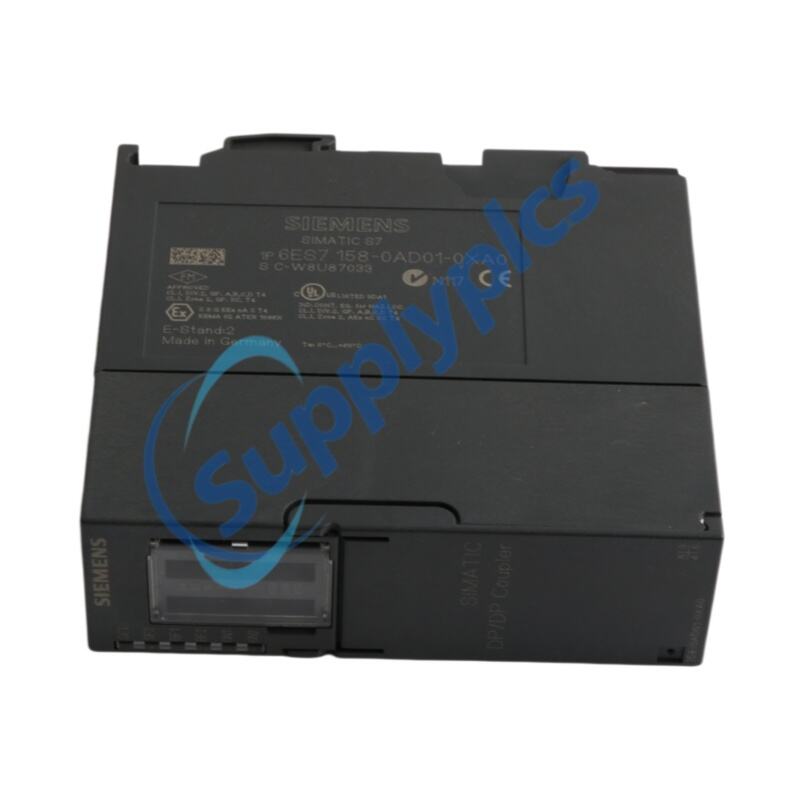

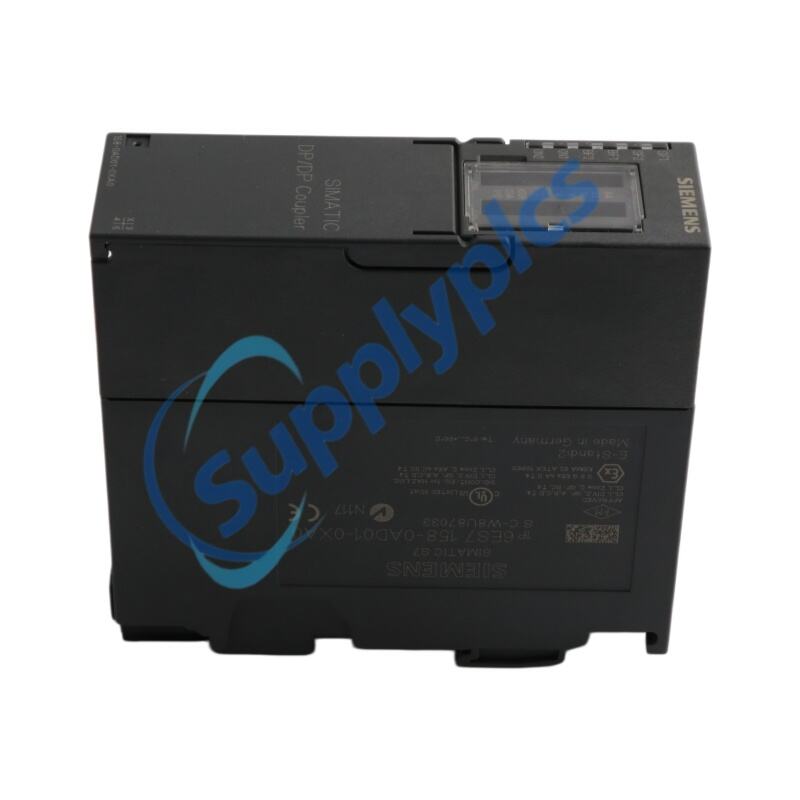

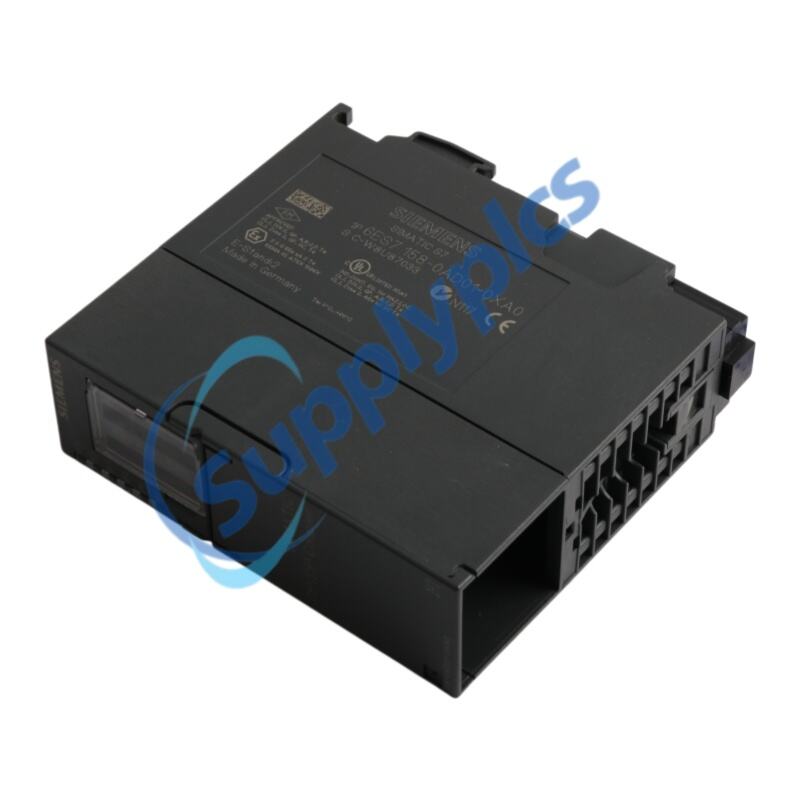

Siemens 6ES7158-0AD01-0XA0 DP/DP coupler Coupling module In stock

Siemens 6ES7158-0AD01-0XA0 DP/DP coupler Coupling module In stock

Product Name:DP/DP coupler Coupling module

Brand Name:Siemens

Model Number:6ES7158-0AD01-0XA0

Country of Origin:Germany

Warranty: 12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Spares
Recommended Products

Overview

Brand Name:	Siemens
Model Number:	6ES7158-0AD01-0XA0
Country of Origin:	Germany
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Item	Details
Product Model	6ES7158-0AD01-0XA0
Product Type	PROFIBUS DP/DP Coupler
Manufacturer	Siemens
Supply Voltage	24 V DC (20.4–28.8 V DC)
Current Consumption	~90 mA typical
Power Loss	~2 W typical
Protocol	PROFIBUS DP
Protection Class	IP20
Operating Temperature	0°C to 60°C
Dimensions (W×H×D)	40 × 127 × 117 mm
Width	40 mm
Height	127 mm
Depth	117 mm
Weight	approx. 250 g (typ.)
Mounting Type	DIN rail mounting

Description

The 6ES7158-0AD01-0XA0 is a dedicated communication interface designed to link two PROFIBUS DP networks within industrial automation systems. It ensures stable and efficient data exchange between redundant control segments, improving overall system reliability and operational continuity.

As part of the Siemens SIMATIC DP family, the module supports robust integration in distributed I/O architectures. The coupler operates with a 24 V DC supply and is engineered for consistent performance under standard industrial conditions, making it suitable for demanding control environments.

With compact DIN-rail mounting and integrated diagnostic functions, the unit enables fast system monitoring and simplified maintenance. Its dual-network coupling capability enhances redundancy and supports uninterrupted PROFIBUS DP communication in critical automation applications.
