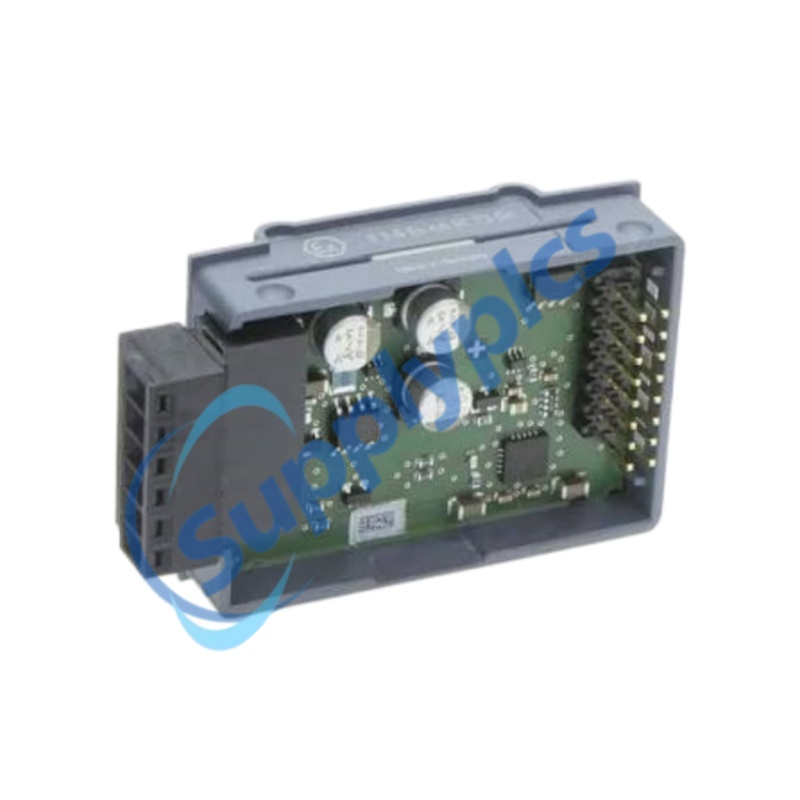

Siemens SIMATIC S7-1200 6ES7222-1BD30-0XB0 is the SB 1222 digital output signal board with 4 DQ, 24 V DC and a specified output rate of 200 kHz.
Product type designation: SB 1222, DQ 4x24 V DC 200 kHz. Confirm the CPU configuration, load and wiring before quotation.
Article number |
6ES7222-1BD30-0XB0 |
Series |
SIMATIC S7-1200 |
Official description |
Digital output SB 1222, 4 DQ, 24 V DC 200 kHz |
Core verified point |
Four 24 V DC MOSFET outputs rated up to 200 kHz |
|
Article number
|
6ES7222-1BD30-0XB0
|
|
Product type designation
|
SB 1222, DQ 4x24 V DC 200 kHz
|
|
Digital outputs
|
4; MOSFET, solid-state, current-sinking/current-sourcing
|
|
Output grouping
|
One group of 4
|
|
Rated output voltage
|
24 V DC
|
|
Rated output current for signal 1
|
0.1 A
|
|
Resistive-load switching capacity, maximum
|
0.1 A
|
|
Short-circuit protection
|
No
|
|
Backplane-bus current at 5 V DC, typical
|
35 mA
|
|
Power loss, typical
|
0.5 W
|
|
Shielded cable length, maximum
|
50 m
|
|
Output-status indication
|
Yes
|
|
Dimensions W x H x D
|
38 x 62 x 21 mm
|
|
Approximate weight
|
35 g
|
|

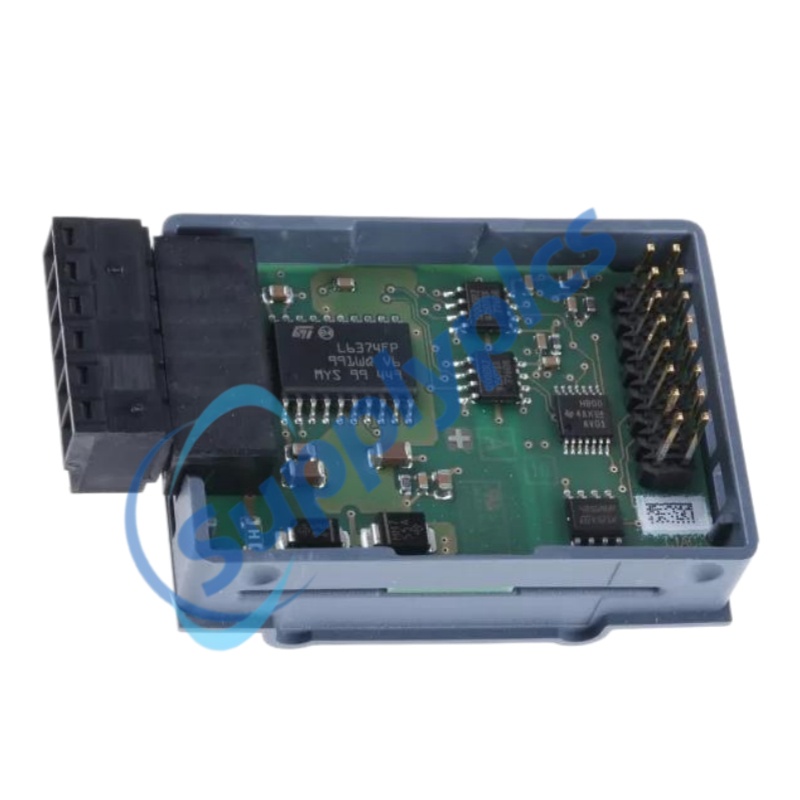

Output structure
Four MOSFET outputs in one group 24 V DC, up to 200 kHz |
CPU mounting

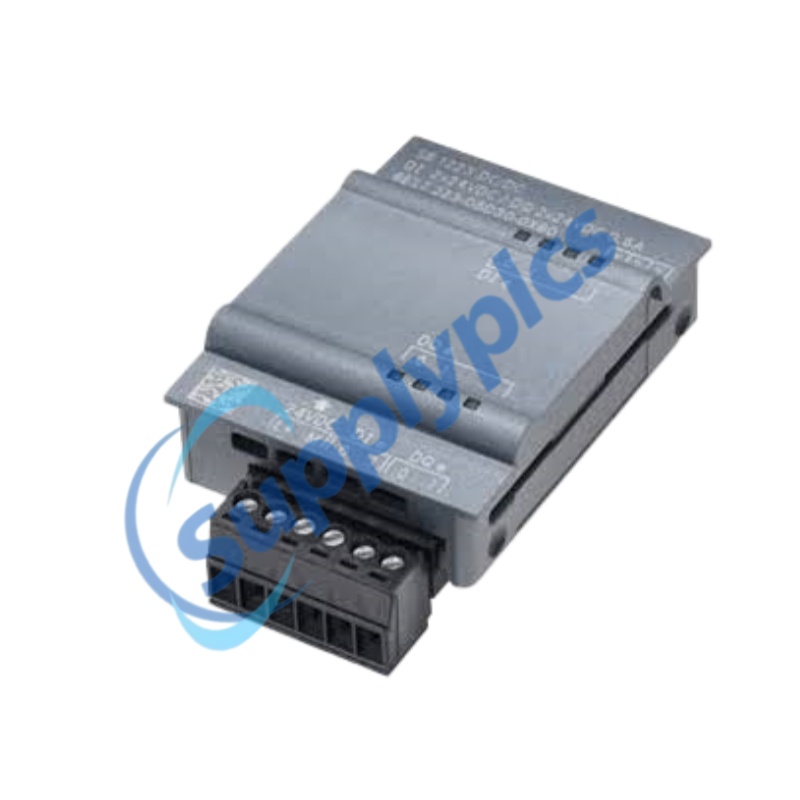

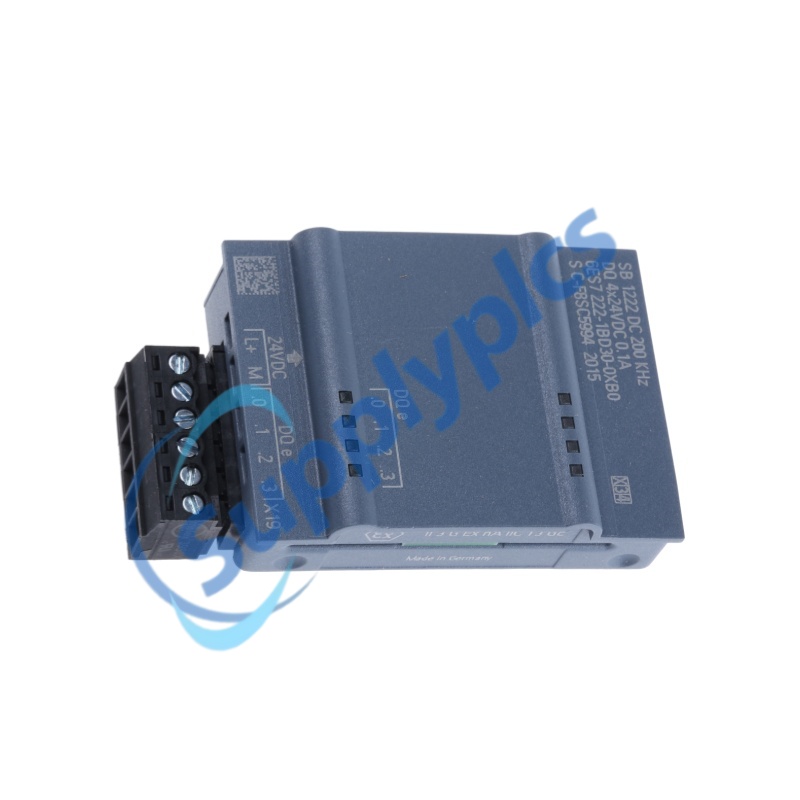

Signal board plugs directly into a compatible S7-1200 CPU Gold-plated terminal-block spare: 6ES7292-1BF30-0XA0 |
The signal board adds digital outputs without using a separate side-mounted signal-module position. Exact CPU support and terminal assignment must be checked in the current Siemens S7-1200 documentation.
Do not assume short-circuit protection. Siemens states that this output board is not short-circuit protected.
|
Short-circuit protection
|
No; external circuit protection and coordination must be verified.
|
|
Operating temperature
|
-20 to 60 degrees C for horizontal installation; vertical installation maximum 50 degrees C.
|
|
Storage and transport temperature
|
-40 to 70 degrees C.
|
|
Relative humidity
|
Up to 95% at 25 degrees C without condensation.
|
|
Approvals listed by Siemens
|
CE, CSA, UL, cULus, FM, RCM, KC and marine approval.
|
|
Installation environment
|
Enclosure, wiring protection and site suitability are subject to verification.
|
|
01
|
Confirm the exact 24 V DC article number: 6ES7222-1BD30-0XB0.
|
|
02
|
Confirm the selected SIMATIC S7-1200 CPU accepts this SB 1222 signal board.
|
|
03
|
Confirm four output channels and the required current-sinking/current-sourcing mode.
|
|
04
|
Confirm the resistive-load current does not exceed the Siemens rating.
|
|
05
|
Confirm pulse frequency, shielded-cable length and terminal assignment.
|
|
06
|
Provide external short-circuit and load-circuit protection as required.
|
|
Identity
|
Match 6ES7222-1BD30-0XB0 and the complete suffix on the nameplate.
|
|
CPU fit
|
Verify the exact CPU hardware and supported signal-board configuration.
|
|
Output load
|
Verify voltage, current, frequency, wiring and protection.
|
|
Condition
|
Confirm New, Used or Refurbished before quotation.
|
|
Photos
|
Current physical-product and nameplate photos are available on request.
|
|
Certificates
|
Confirm the current approval documents required by the destination project.
|
|
Technical documents
|
Check the current Siemens datasheet and S7-1200 manual.
|
|
Transaction record
|
Verify the written quotation, payee information and agreed terms.
|
|
Real stock
|
Subject to verification. Request current inventory evidence for 6ES7222-1BD30-0XB0.
|
|
Condition
|
New, Used or Refurbished: confirm before quotation.
|
|
Current photos
|
Physical-product and nameplate photos are available on request.
|
|
Warranty
|
Confirm before quotation.
|
|
Dispatch time
|
Confirm before quotation.
|
|
Testing
|
Subject to verification; available test records can be requested.
|
|
Payment methods
|
Available on request and subject to the written quotation.
|
|
Quotation response time
|
Subject to verification.
|
|
Transaction confidence
|
Request company details, written quotation, payee verification and an agreed transaction record before payment.
|
|
