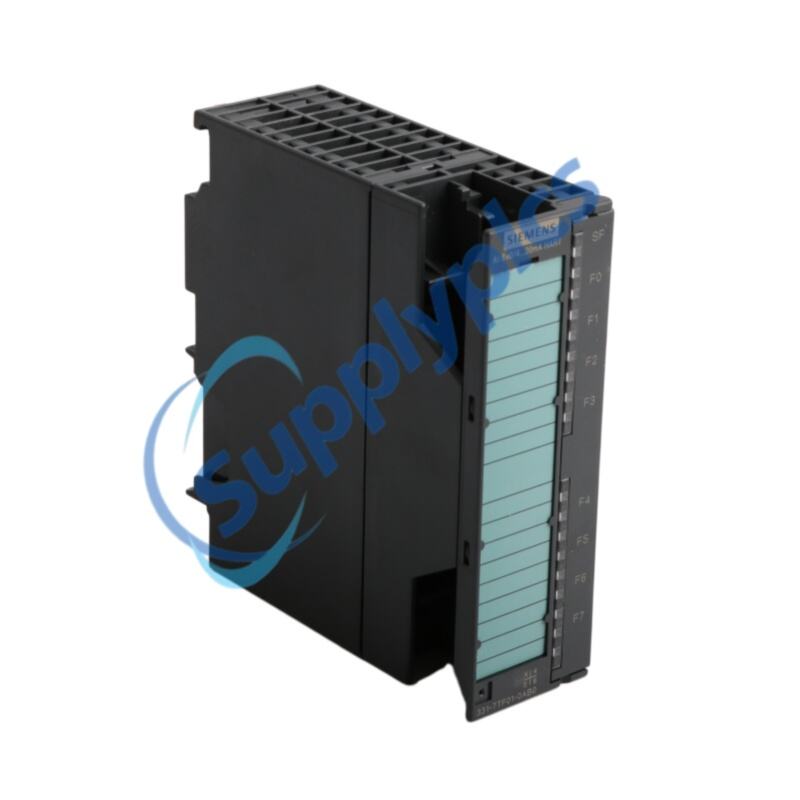

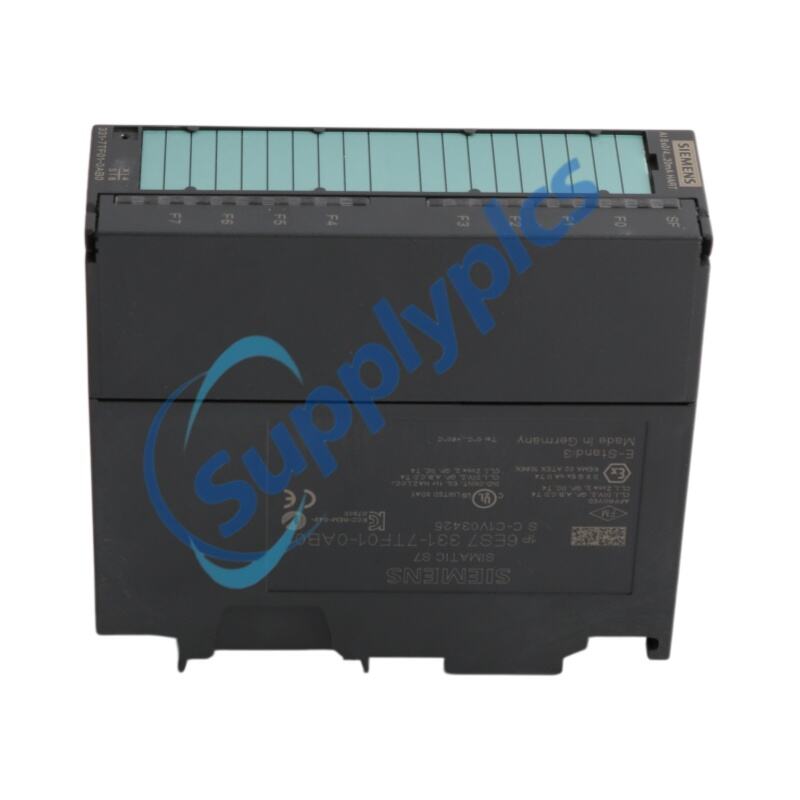

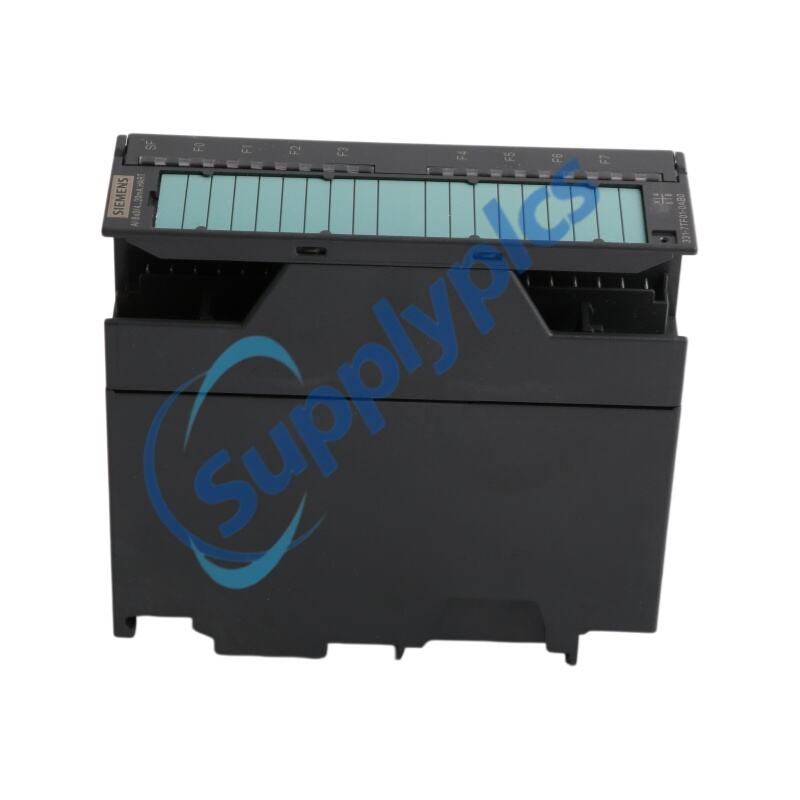

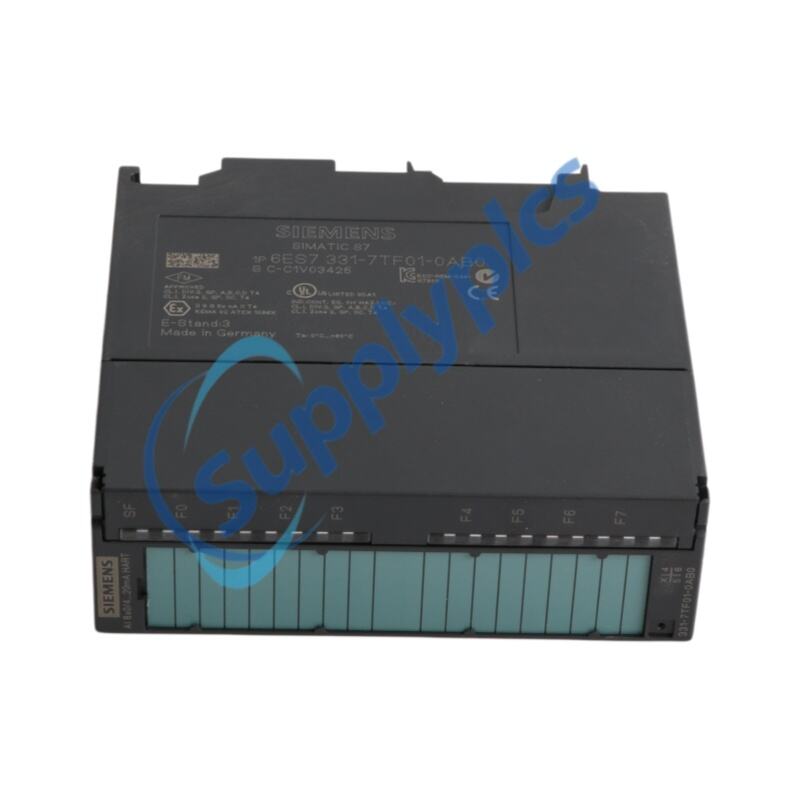

Product Name:HART ANALOG INPUT SM 331
Brand Name:Siemens
Model Number:6ES7331-7TF01-0AB0
Country of Origin:Germany
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Siemens |
Model Number: |
6ES7331-7TF01-0AB0 |
Country of Origin: |
Germany |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Item | Description |
|---|---|
| Product Model | 6ES7331-7TF01-0AB0 |
| Product Type | HART Analog Input Module |
| Series | Siemens SIMATIC S7-300 / ET200M |
| Channels | 8 AI channels |
| Input Signal | 0/4–20 mA HART |
| Resolution | 16-bit with overrange |
| Load Voltage | 24 V DC |
| Power Loss | Approx. 1.5 W |
| Backplane Current | Max. 120 mA @ 5 V DC |
| Electrical Isolation | Between channels and backplane |
| Mounting | IM153-2 ET200M system |
| Connector Type | 20-pin front connector |
| Dimension (W×H×D) | 40 × 125 × 117 mm |
| Weight | Approx. 205 g |
| Cable Length | Up to 800 m shielded |
| Operating Temperature | Industrial standard Siemens rating |
The 6ES7331-7TF01-0AB0 is a Siemens SIMATIC S7-300 SM 331 HART analog input module designed for precise process signal acquisition in industrial automation systems. It is widely used in distributed ET200M configurations with IM153-2 interface modules for reliable field data integration.
The 6ES7331-7TF01-0AB0 supports 8-channel 0/4–20 mA HART input, enabling both primary and secondary variable communication from smart field transmitters. With high-resolution 16-bit signal processing and robust diagnostic capabilities, it ensures accurate monitoring in complex process environments.
As part of the Siemens SIMATIC family, including other SM331 variants, the 6ES7331-7TF01-0AB0 provides redundancy support, firmware update capability, and timestamped diagnostic buffering. It is engineered for demanding industrial sectors requiring stable analog signal handling and advanced condition monitoring.
Power plants: Used for generator set monitoring, turbine control, and relay protection systems.
Substations: Enable bus differential protection, switchyard monitoring, and signal acquisition.
Chemical plants: Support process automation and intrinsically safe HART signal monitoring.
Steel mills (metallurgical plants): Provide reliable control in high-temperature and high-EMI environments.
Machinery manufacturing plants: Used in automated production lines, robotics, and control systems.
Q1: What is the 6ES7331-7TF01-0AB0 used for?
A1: It is used for acquiring 0/4–20 mA HART analog signals in Siemens ET200M automation systems.
Q2: How many input channels does this module support?
A2: It supports 8 analog input channels.
Q3: Does the module support HART communication?
A3: Yes, it supports HART primary and secondary variables from smart transmitters.
Q4: Can it be used in ET200M systems?
A4: Yes, it is designed for ET200M with IM153-2 interface modules.
Q5: Is diagnostic monitoring available?
A5: Yes, it provides diagnostic alarms and timestamped event buffering.
