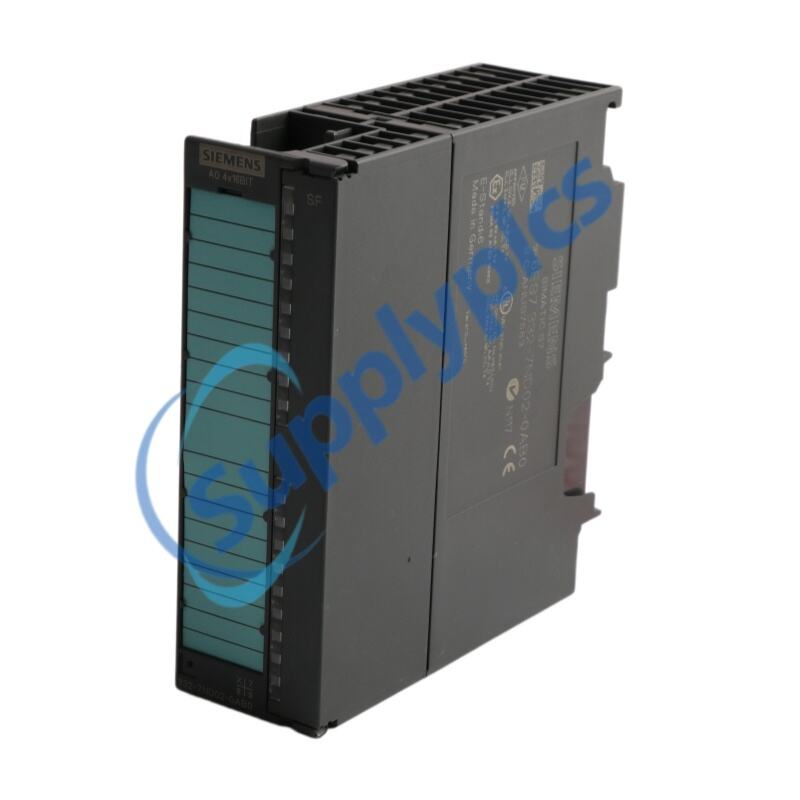

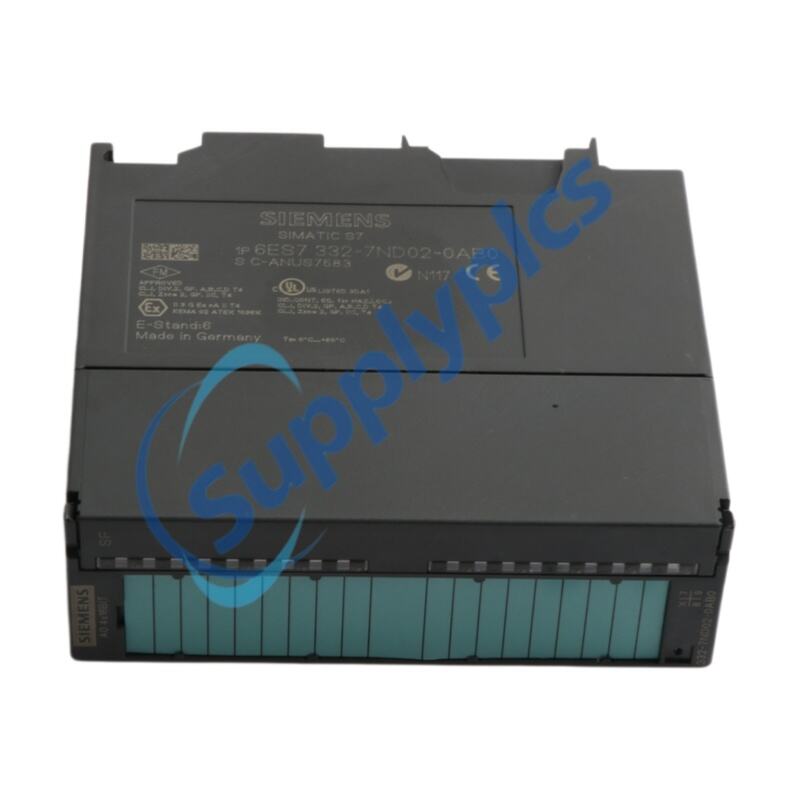

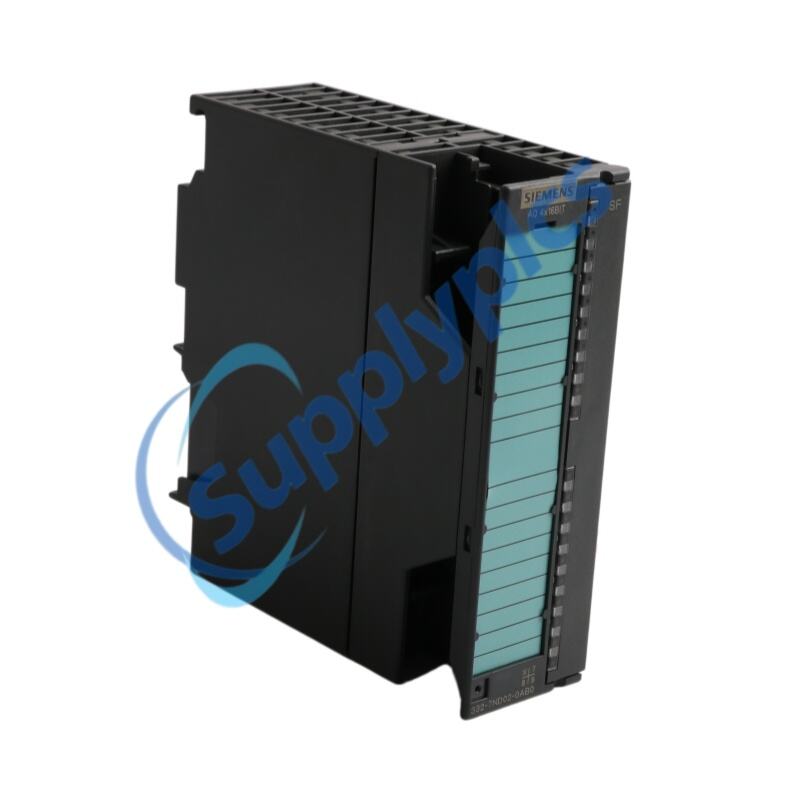

Siemens 6ES7332-7ND02-0AB0 high-performance analog output module Original new

Siemens 6ES7332-7ND02-0AB0 high-performance analog output module Original new

Product Name:high-performance analog output module

Brand Name:Siemens

Model Number:6ES7332-7ND02-0AB0

Country of Origin:Germany

Warranty:12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

siemens 6es7332 7nd02 0ab0 high performance analog output module original new-1

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Spares
Recommended Products

Overview

Brand Name:	Siemens
Model Number:	6ES7332-7ND02-0AB0
Country of Origin:	Germany
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Product Model	6ES7332-7ND02-0AB0
Manufacturer	Siemens
Product Series	SIMATIC S7-300
Product Type	Analog Output Module (SM 332)
Output Channels	4 AO
Resolution	16-bit
Output Voltage Range	0–10 V, ±10 V, 1–5 V
Output Current Range	0–20 mA, ±20 mA, 4–20 mA
Conversion Time	200 µs per channel
Isochronous Mode	Supported
Load Resistance	Max. 500 Ω (current), ≥1 kΩ (voltage)
Power Supply	24 V DC
Backplane Current	Max. 120 mA
Power Loss	Approx. 3 W
Cable Length	Up to 200 m (shielded)
Isolation Voltage	1500 V DC
Dimensions	40 × 125 × 120 mm
Weight	approx. 0.22 kg

Description

The Siemens 6ES7332-7ND02-0AB0 is a high-performance analog output module from the SIMATIC S7-300 series, designed for precise multi-channel signal control in industrial automation systems. It ensures accurate conversion of digital control values into stable analog output signals for process regulation and actuator control.

The 6ES7332-7ND02-0AB0 provides 4 isolated analog output channels with 16-bit resolution, supporting multiple voltage and current ranges including 0–10 V, ±10 V, 4–20 mA, and ±20 mA. It is optimized for isochronous mode operation, enabling improved DP cycle performance and real-time control synchronization. High accuracy and fast conversion times make it suitable for demanding automation tasks.

As part of the Siemens S7-300 platform, the 6ES7332-7ND02-0AB0 is widely used in process industries, manufacturing automation, and energy systems where high precision analog signal output and stable multi-channel control are required.

Applications

Power Plants: Used for turbine control, generator regulation, and analog process signal output.
Substations: Enables control signal distribution for protection systems and switching operations.
Chemical Plants: Supports precise dosing control, process automation, and instrumentation systems.
Steel Mills: Ensures stable analog control in high EMI and high-temperature environments.
Machinery Manufacturing Plants: Used in automated production lines, robotics, and motion control systems.
Oil & Gas Facilities: Supports valve positioning, flow regulation, and process automation.
Water Treatment Plants: Used for pump control, chemical dosing, and distributed process control.

Features

4-channel isolated analog output design
16-bit high-resolution signal conversion
Supports multiple voltage and current ranges
Isochronous mode for synchronized control
High precision and low error rate output
Industrial-grade electrical isolation
Fast 200 µs per channel response
Compatible with S7-300 automation systems

Functions

Converts digital signals into analog outputs
Provides precise process control signals
Supports real-time synchronized automation
Controls actuators, valves, and drives
Ensures stable multi-channel output operation
Reduces signal distortion and interference
Enhances system accuracy and reliability

FAQ

Q1: What is the main function of Siemens 6ES7332-7ND02-0AB0?
A1: It is a 4-channel analog output module for precise industrial signal control.

Q2: How many output channels does it provide?
A2: It provides 4 analog output channels.

Q3: What signal types are supported?
A3: It supports voltage and current outputs including 0–10 V and 4–20 mA.

Q4: Does it support isochronous mode?
A4: Yes, it is optimized for isochronous operation with improved DP cycle performance.

Q5: Where is this module commonly used?
A5: It is used in automation, process industries, and industrial control systems.
