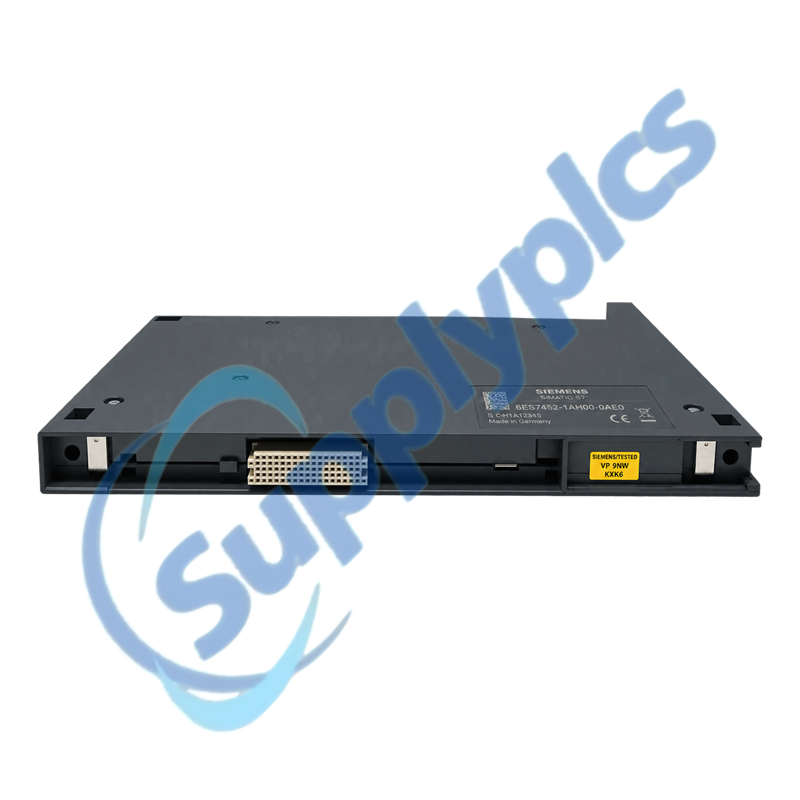

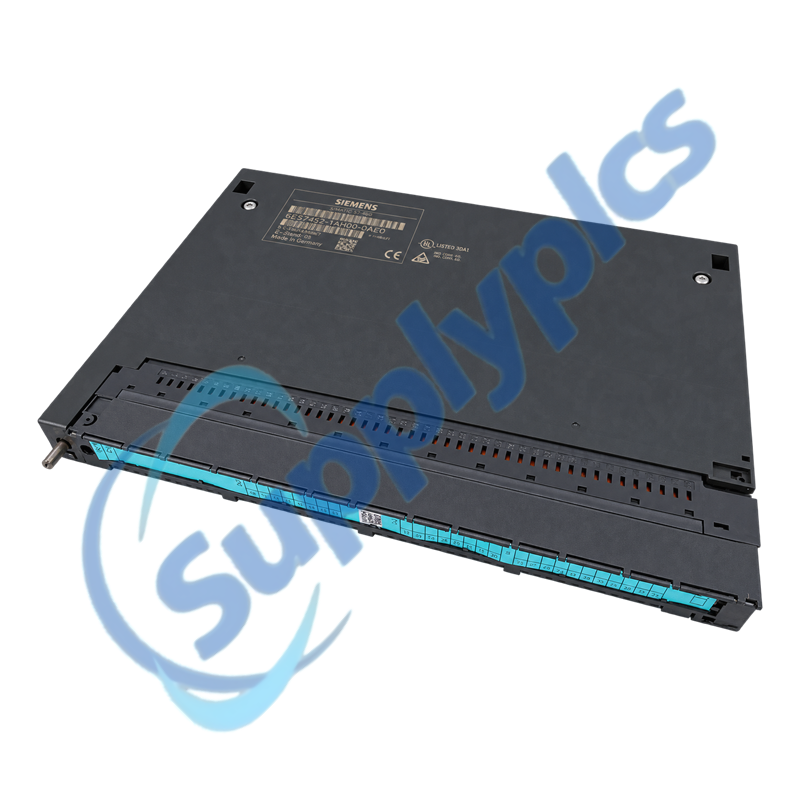

Siemens 6ES7452-1AH00-0AE0 SIMATIC S7-400 FM 452 Cam Controller

Siemens 6ES7452-1AH00-0AE0 SIMATIC S7-400 FM 452 Cam Controller

Product Name: SIMATIC S7-400 FM 452 Electronic Cam Controller

Brand Name: Siemens

Model Number: 6ES7452-1AH00-0AE0

Place of Origin: Germany

Warranty: 12 Months

Whatsapp: +86 18020776782

Email: [email protected]

Appurtenance:

siemens 6es7452 1ah00 0ae0 simatic s7 400 fm 452 electronic cam controller-1

Overview
Configuration
Specs
Details
Installation
Terms
Contact
FAQ
Other Products
Recommended Products

High-Speed Cam Control for SIMATIC S7-400

Control function6ES7452-1AH00-0AE0 is an FM 452 electronic cam controller that evaluates incremental or SSI encoder position and switches sixteen 24 V cam-track outputs for machine timing, reference and measurement tasks.

Engineering checkConfirm the FM 452 order number, encoder type and signal level, axis resolution and scaling, cam program, input/output wiring, front connector and STEP 7 parameterization before replacement.

Configuration

Cam timing depends on the saved module parameters and the physical machine reference.

Parameter backup

Archive the STEP 7 project, FM 452 parameter set, cam tracks, scaling and reference-point data.

Encoder data

Record encoder type, resolution, signal level, direction, zero point and SSI coding where applicable.

Online comparison

Verify actual position, module diagnostics and configured cam transitions before enabling outputs.

Specs

Product type designation	SIMATIC S7-400 FM 452 electronic cam controller
Order number	6ES7452-1AH00-0AE0
Rated supply voltage	24 V DC
Maximum module current	500 mA
Digital inputs	11
Digital outputs	16 cam-track outputs
Encoder support	Symmetrical incremental encoder and SSI absolute encoder
Encoder supplies	5 V and 24 V, up to 300 mA
Typical power loss	8.1 W
Required front connector	One 48-pin connector
Operating temperature	0 to +55 °C
Dimensions / weight	25 × 290 × 210 mm; approximately 650 g

Details

6ES7452-1AH00-0AE0 is used where mechanical cam functions are implemented electronically at high switching speed. The module relies on correct encoder data, machine zero and cam-track parameterization to switch outputs at the intended positions.

Before exchange, archive the hardware configuration and FM 452 parameters and record all encoder, input and output wiring. After installation, verify actual position, direction and reference behavior before enabling machine movement.

Installation

Maintain encoder integrity and prove machine timing under controlled conditions after replacement.

Connector map

Label the 48-pin connector wiring, encoder cable, supply and every input and cam output.

Signal quality

Inspect shielding, grounding, encoder supply and cable routing before attributing position errors to the module.

Commissioning

Test reference, direction and cam points at reduced risk before returning the machine to automatic production.

Terms

Quotation

Current price and availability

Payment

T/T or agreed terms

Lead time

Confirmed with quotation

Shipping

DHL, FedEx, UPS or freight

Warranty

12 months

Contact

CONTACT	Jim Pei	[email protected]	+86 18020776782

FAQ

Q01

How should I verify that 6ES7452-1AH00-0AE0 fits my S7-400 machine application?

Confirm the exact FM 452 order number, S7-400 rack and CPU configuration, 48-pin front connector, encoder type and signal level, axis scaling, sixteen cam outputs and STEP 7 parameter package.

Q02

What should I back up before replacing 6ES7452-1AH00-0AE0?

Archive the complete STEP 7 project and FM 452 parameters, including encoder resolution, scaling, direction, reference data, cam tracks, input functions, output assignments and current diagnostics.

Q03

Why can the displayed position be incorrect after 6ES7452-1AH00-0AE0 is installed?

Check encoder type and signal level, resolution and scaling, direction, reference point, SSI coding, supply voltage, shield and connector wiring. Verify actual position before enabling cam outputs.

Q04

What should I inspect if outputs from 6ES7452-1AH00-0AE0 switch at the wrong machine position?

Compare cam parameters, machine zero, direction and compensation settings with the approved project. Check encoder coupling and slip, input conditions and output wiring while testing at reduced speed.

Q05

How should I commission 6ES7452-1AH00-0AE0 after a hardware exchange?

Restore the validated parameter set, confirm the module is fault-free, prove encoder position and reference behavior and test each cam track and safety-related machine response before automatic operation.

Q06

Which information should I provide when requesting replacement 6ES7452-1AH00-0AE0?

Provide the full order number, S7-400 CPU and rack details, encoder type and resolution, front-connector and I/O map, STEP 7 version, parameter backup, fault history and clear label photographs.
