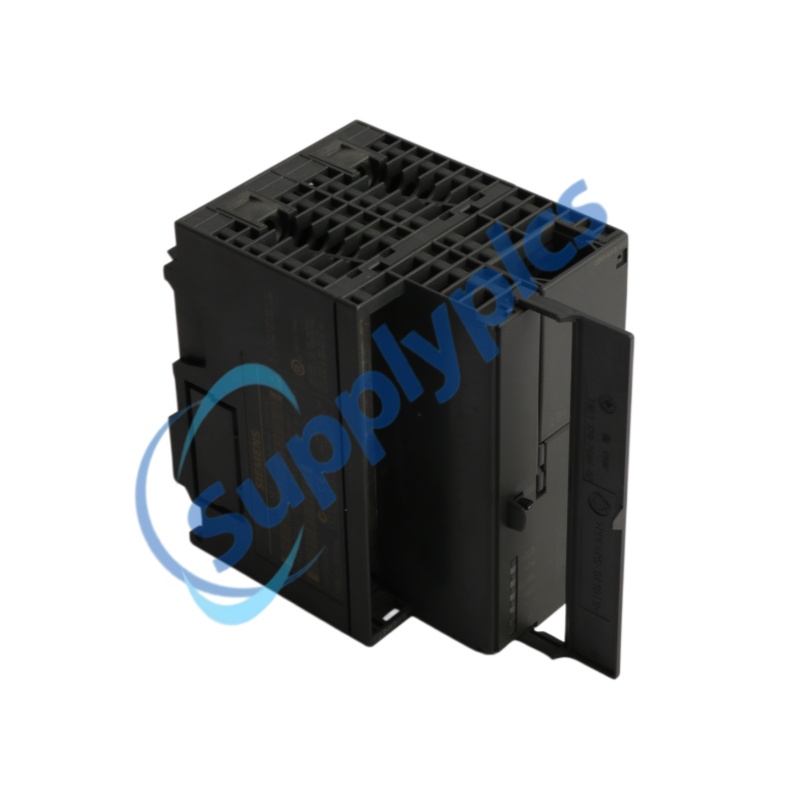

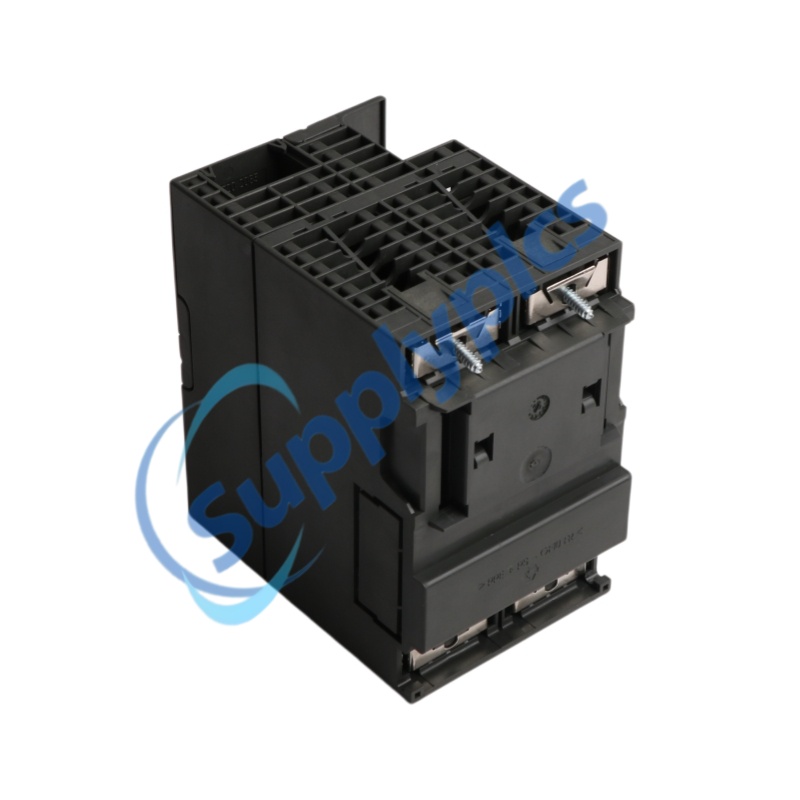

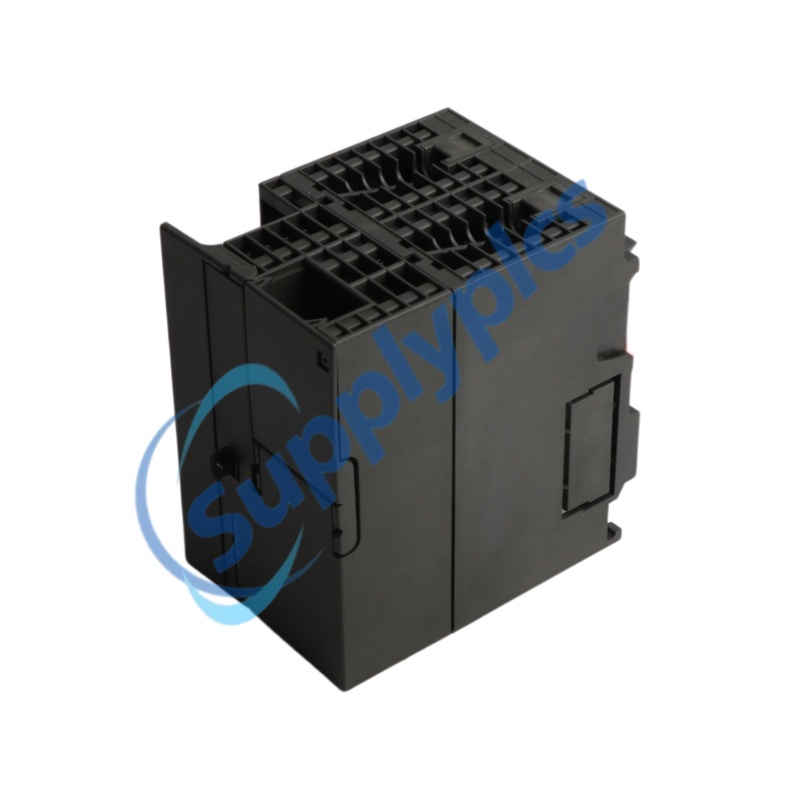

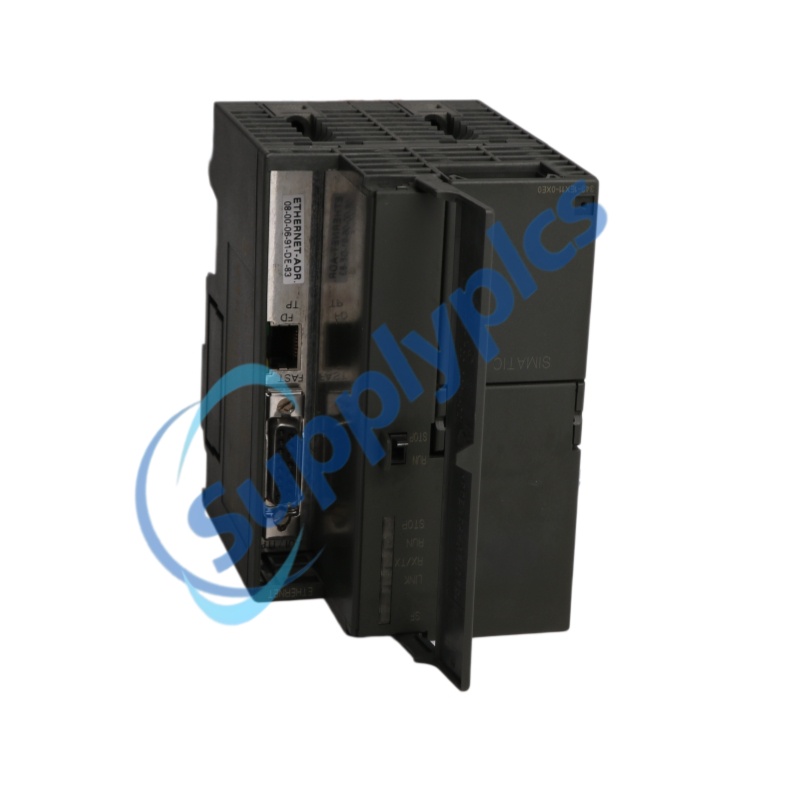

Siemens 6GK7343-1EX11-0XE0 high-performance CP 343-1 communication processor In stock

Siemens 6GK7343-1EX11-0XE0 high-performance CP 343-1 communication processor In stock

Product Name:CP 343-1 communication processor

Brand Name:Siemens

Model Number:6GK7343-1EX11-0XE0

Country of Origin:Germany

Warranty:12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

siemens 6gk7343 1ex11 0xe0 high performance cp 343 1 communication processor in stock-1

Overview
Contact for quotation
Specifications
Description
Applications
Features & Benefits
Control&Communication
FAQ
Spares
Recommended Products

Overview

Brand Name:	Siemens
Model Number:	6GK7343-1EX11-0XE0
Country of Origin:	Germany
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Product Model	6GK7343-1EX11-0XE0, SIMATIC S7-300 CP 343-1 Industrial Ethernet communication processor
Manufacturer	Siemens, industrial communication module for distributed automation networks
Communication Protocols	ISO, TCP/IP, UDP, S7 communication, FETCH/WRITE, SEND/RECEIVE support
Ethernet Interface	RJ45 Industrial Ethernet port, 10/100 Mbit/s auto-negotiation
Power Supply	24 V DC external + 5 V backplane bus supply for stable operation
Current Consumption	0.73 A max at 24 V DC, optimized for industrial energy efficiency
Power Loss	10 W typical thermal output for controlled cabinet integration
Dimensions	Width 80 mm, height 125 mm, depth 120 mm compact S7-300 double-width module
Weight	0.6 kg robust industrial-grade communication hardware
Ambient Temperature	0–60 °C operation, suitable for harsh industrial environments

Description

The 6GK7343-1EX11-0XE0 from Siemens is a high-performance CP 343-1 communication processor designed for SIMATIC S7-300 systems. It enables seamless Industrial Ethernet connectivity using ISO, TCP/IP, UDP, and S7 communication protocols, supporting both standard and advanced industrial networking tasks.

The 6GK7343-1EX11-0XE0 communication module offers reliable data exchange functions such as SEND/RECEIVE, FETCH/WRITE, and multicast communication. With support for 10/100 Mbit/s Ethernet and RJ45 interface, it ensures stable and fast integration into modern automation infrastructures.

Engineered for industrial environments, this CP module supports diagnostics, NTP time synchronization, and multi-protocol communication, making it suitable for distributed control systems requiring robust and secure connectivity across plant networks.

Applications

Power plants: Used for generator monitoring, turbine communication, and system diagnostics.
Substations: Enables SCADA data exchange, protection relay communication, and switchyard control.
Chemical plants: Supports process automation, safe signal transmission, and distributed control integration.
Steel mills: Ensures stable industrial Ethernet communication under high temperature and EMI conditions.
Machinery manufacturing: Applied in production line networking, PLC integration, and robotic system communication.

Features & Benefits

The 6GK7343-1EX11-0XE0 supports multiple industrial communication protocols including ISO, TCP/IP, UDP, and S7 communication for flexible system integration.
It provides RJ45 Industrial Ethernet connectivity with 10/100 Mbit/s auto-negotiation for stable and high-speed data transmission.
Ensures reliable real-time communication between SIMATIC S7-300 controllers and industrial Ethernet networks.
Improves system efficiency by enabling fast and structured data exchange across distributed automation systems.
Enhances operational flexibility through support of multiple protocols and communication modes.
Supports SEND/RECEIVE, FETCH/WRITE, and multicast communication functions for efficient PLC data exchange.

Control&Communication

Supports Industrial Ethernet communication using ISO, TCP/IP, UDP, and S7 protocols for flexible network integration.
Equipped with a 10/100 Mbit/s RJ45 interface for high-speed and reliable data transmission.
Enables up to 16 open communication channels via SEND/RECEIVE and up to 32 in multi-protocol operation.
Supports PG/OP communication, S7 communication, and global data exchange for plant-wide connectivity.
Includes NTP time synchronization and I&M identification for accurate system coordination and maintenance support.

FAQ

Q1: What is the main function of the 6GK7343-1EX11-0XE0?
A1: It is an Industrial Ethernet communication processor for SIMATIC S7-300 PLC systems.

Q2: Which protocols does this module support?
A2: It supports ISO, TCP/IP, UDP, S7 communication, FETCH/WRITE, and SEND/RECEIVE.

Q3: What is the Ethernet speed of this CP module?
A3: It supports 10/100 Mbit/s Industrial Ethernet with RJ45 interface.

Q4: How many communication connections are supported?
A4: It supports up to 16 SEND/RECEIVE connections and 32 in multi-protocol mode.

Q5: Does it support time synchronization?
A5: Yes, it supports NTP-based time synchronization and system time passing functions.
