Product Name:Logic Module
Brand Name: SIEMENS
Model Number:6ED1052-1CC00-0BA6
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
6ED1052-1CC00-0BA6 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Manufacturer |
Siemens |
|
Product Type |
LOGO! 24 Basic Logic Module |
|
Order Number |
6ED1052-1CC00-0BA6 |
|
Family |
LOGO! 0BA6 Series |
|
Display |
Yes, with LED backlight (4 lines × 12 characters) |
|
Mounting |
35 mm DIN rail, 4 spacing units wide |
|
Supply Voltage (DC) |
24 V DC (range: 20.4 … 28.8 V DC) |
|
Supply Voltage (AC) |
24 V AC |
|
Line Frequency |
47 … 63 Hz |
|
Digital Inputs |
8 DI (4 configurable as 0–10 V analog inputs) |
|
Digital Outputs |
4 DO, transistor type |
|
Output Current (per channel) |
max. 0.3 A |
|
ShortCircuit Protection |
Yes, electrical (1 A) |
|
Memory Capacity |
200 function blocks |
|
Integrated Functions |
Over 30 preconfigured functions |
|
RealTime Clock |
No (Basic version without RTC) |
|
RTC Power Reserve |
None (Basic version) |
|
Time Switching Clocks |
None (Basic version) |
|
Programming Interface |
RS232 via PC cable / Ethernet optional |
|
Protection Rating |
IP20 |
|
Operating Temperature |
0 °C … +55 °C |
|
Storage / Transport Temperature |
–40 °C … +70 °C |
|
Dimensions (W × H × D) |
72 × 90 × 55 mm |
|
Weight |
approx. 0.19 kg |
|
Certifications |
CE, cULus, FM, CSA, Marine, VDE 0631, IEC 61131 |
|
RoHS Compliant |
Yes |
|
Country of Origin |
CN |
|
Manufacturer |
Siemens |
|
Product Type |
LOGO! 24 Basic Logic Module |
|
Order Number |
6ED1052-1CC00-0BA6 |
|
Family |
LOGO! 0BA6 Series |
|
Display |
Yes, with LED backlight (4 lines × 12 characters) |
|
Mounting |
35 mm DIN rail, 4 spacing units wide |

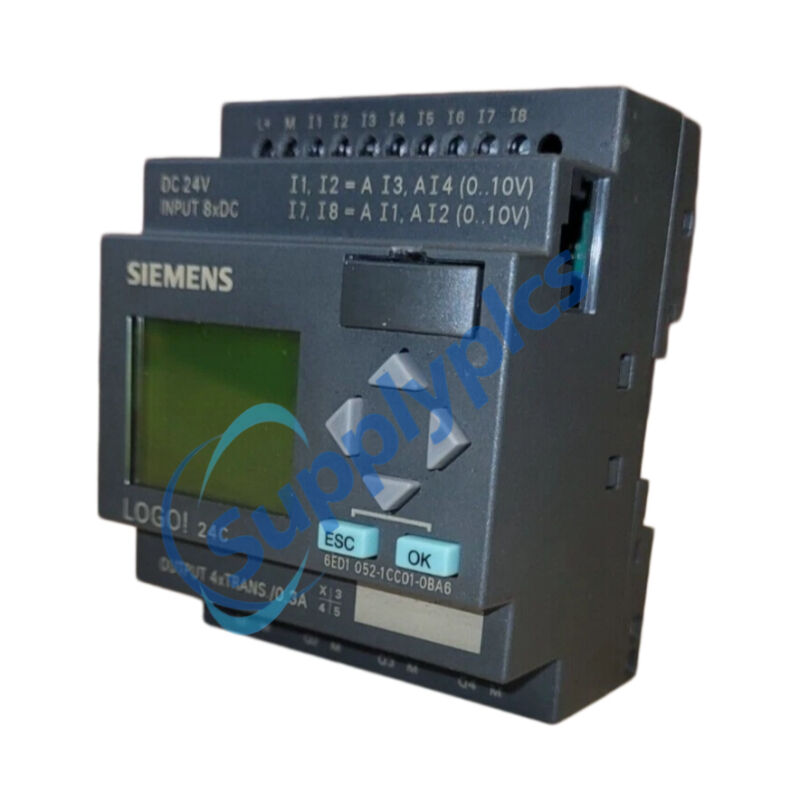

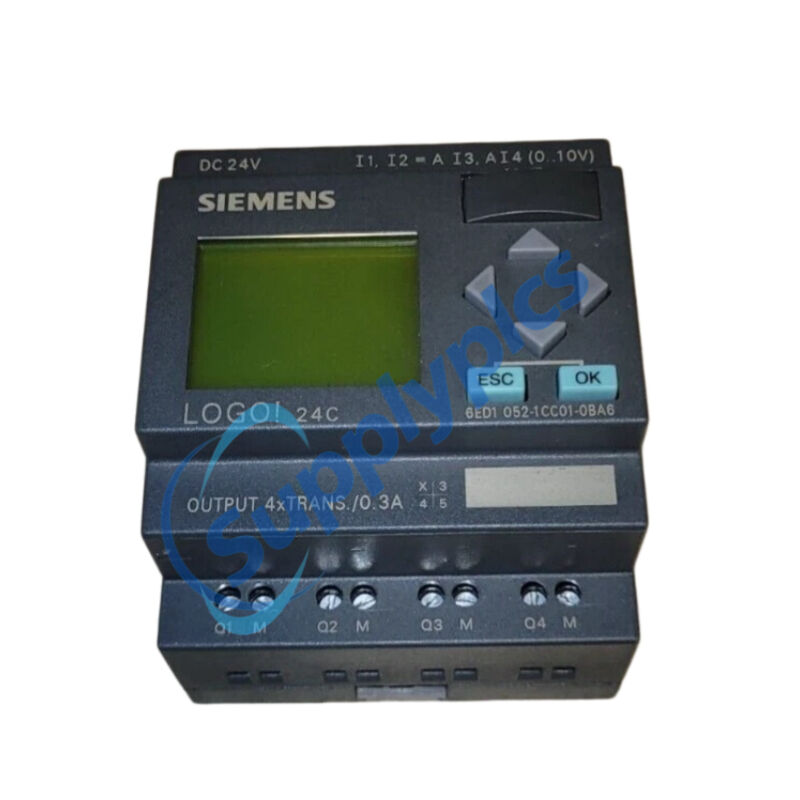

The Siemens 6ED1052-1CC00-0BA6 is a compact logic module from the LOGO! family, operating on 24 V AC/DC with eight digital inputs (four configurable as 0‑10 V analog) and four 0.3 A transistor outputs. Featuring a 200‑block memory and an integrated LCD display, the Siemens 6ED1052-1CC00-0BA6 replaces traditional relay‑based control systems. The 6ED1052-1CC00-0BA6 can be expanded with up to 24 DI / 20 DO / 8 AI / 8 AO via additional modules, making it highly versatile for building and industrial automation projects.
Building Automation: Stairway lighting, outdoor lighting, sun blinds, shutters, shop window lighting, HVAC control.
Gate & Door Control: Automatic door systems, factory gates.
Mechanical Engineering: Small machine controls, conveyor belt systems.
Process Control: Ventilation systems, air‑conditioning, rainwater pumps.
Greenhouse Automation: Irrigation and climate control.
Appliance Manufacturing: Replaces electromechanical relays and timers.
200 function blocks for medium‑complexity logic sequences.
8 digital inputs, 4 of which can be used as 0–10 V analog inputs.
4 transistor outputs with built‑in short‑circuit protection (1 A).
Expandable up to 24 DI, 20 DO, 8 AI and 8 AO.
Integrated LCD display with backlight (4 lines × 12 characters).
Over 30 integrated pre‑configured functions and 8 cursor keys.
Password protection for circuit programs.
No real‑time clock (Basic version, cost‑optimized).
Logic: AND, OR, XOR, NOT, NAND.
Timer: On‑delay, Off‑delay, Retentive on‑delay, Pulse relay.
Counter: Up/Down counter, Hours counter, Threshold trigger.
Analog Processing: Analog comparator, Threshold trigger, Amplifier.
Special: Softkey, Message texts, Latching relay.
Programming: PC‑based programming via LOGO! Soft Comfort V8.4 or earlier.
Expandability: Supports digital and analog expansion modules.
Q1: What is the Siemens 6ED1052-1CC00-0BA6 used for?
A1: A compact logic module replacing relays and timers in building automation, machine control, and small‑scale industrial applications.
Q2: Does the 6ED1052-1CC00-0BA6 have a real‑time clock?
A2: No, this is the Basic version without an RTC, making it ideal for cost‑sensitive applications where time‑based switching is not required.
Q3: What is the output type of the Siemens 6ED1052-1CC00-0BA6?
A3: Four transistor outputs, 24 V DC, max. 0.3 A per channel, with integrated short‑circuit protection.
Q4: Can the 6ED1052-1CC00-0BA6 be expanded?
A4: Yes, via digital (DM8/DM16) and analog (AM2) expansion modules, up to 24 DI, 20 DO, 8 AI and 8 AO.
Q5: What software is required to program the Siemens 6ED1052-1CC00-0BA6?
A5: LOGO! Soft Comfort V8.4 or earlier (V8.4 is fully backward compatible with 0BA6 series).
