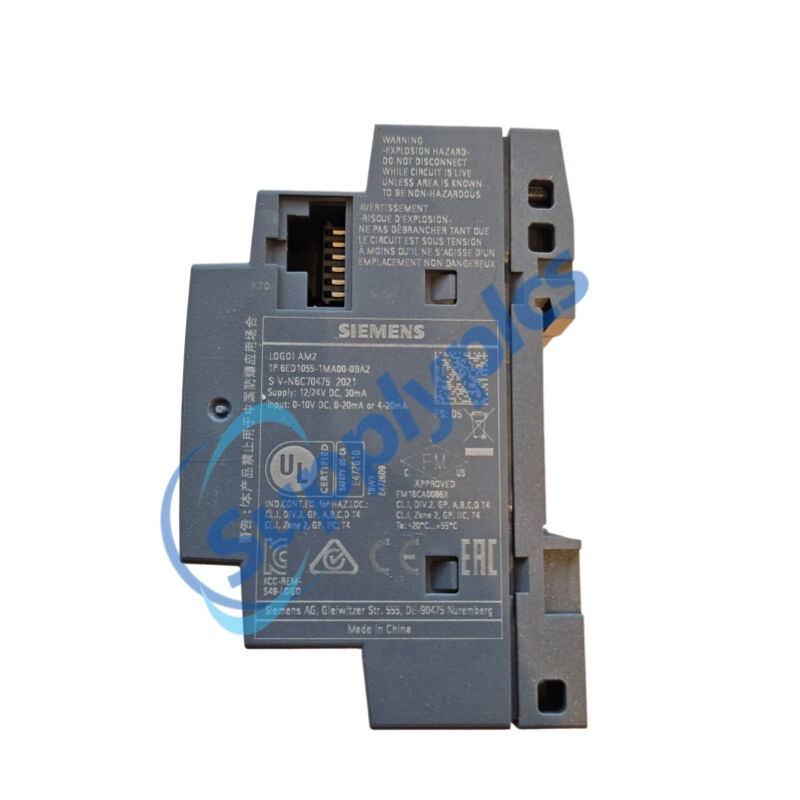

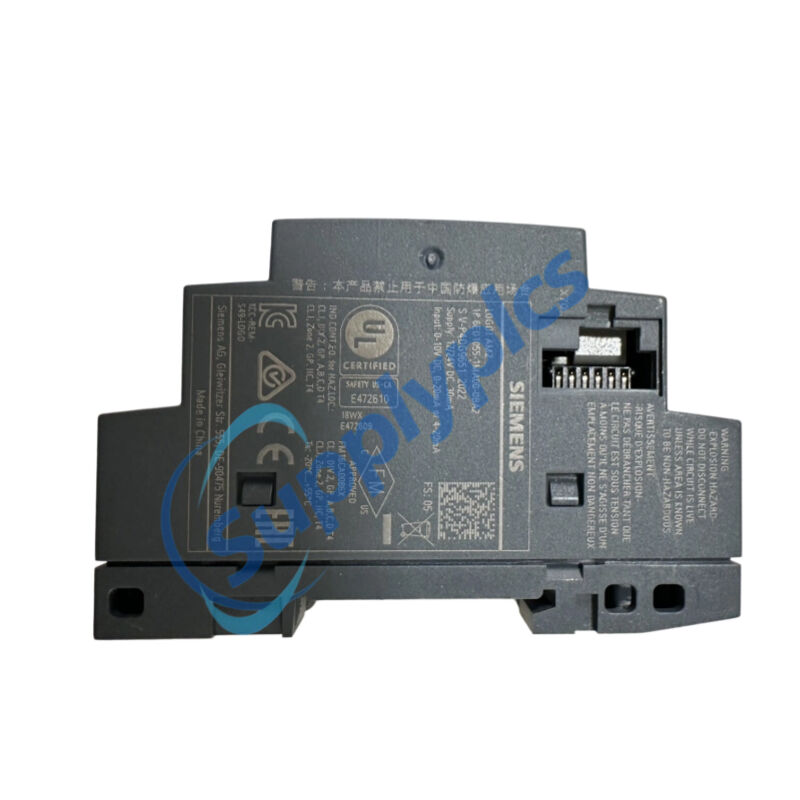

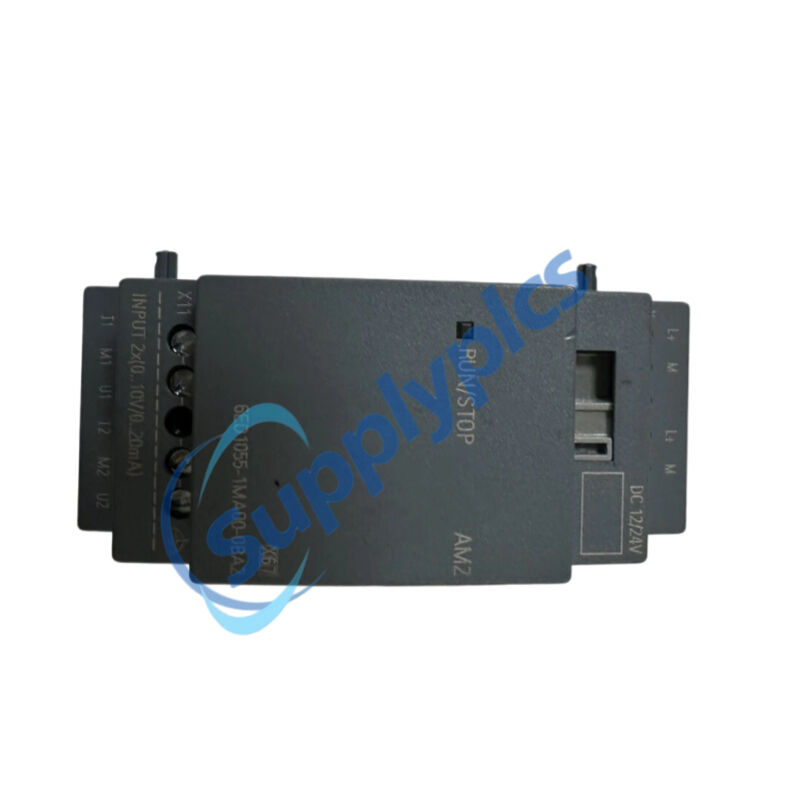

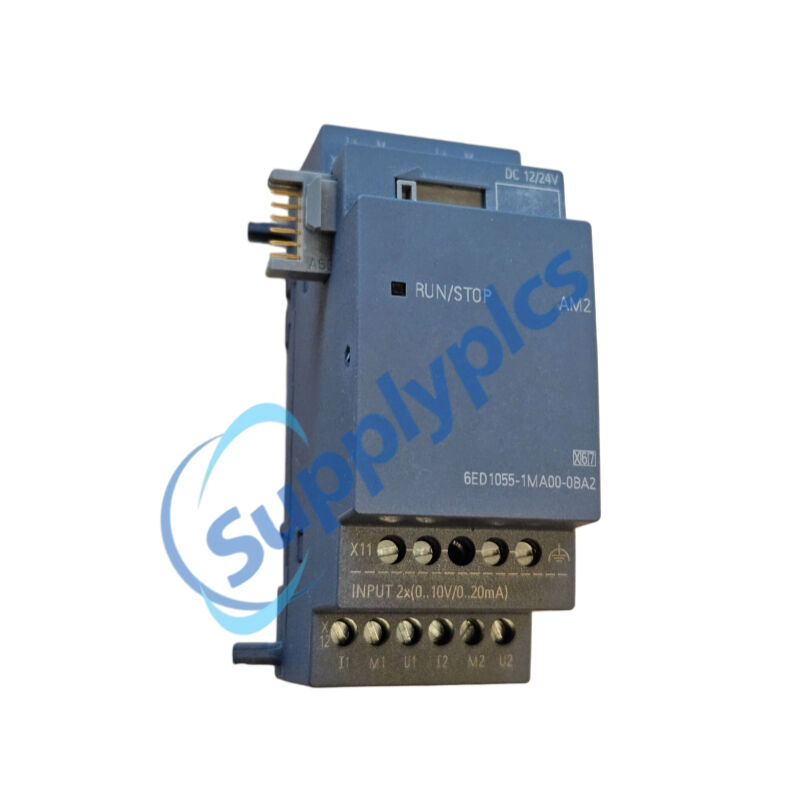

Product Name:AM2 expansion module
Brand Name: SIEMENS
Model Number:6ED1055-1MA00-0BA2
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
6ED1055-1MA00-0BA2 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Details |
|
Model |
6ED1055-1MA00-0BA2 |
|
Manufacturer |
Siemens |
|
Product Type |
LOGO! AM2 Analog Input Expansion Module |
|
Compatible Controllers |
LOGO! 8 series |
|
Number of Analog Inputs |
2 |
|
Input Ranges |
|
|
Supply Voltage |
|
|
Current Consumption (typ.) |
|
|
Resolution |
|
|
Protection Rating |
|
|
Mounting Type |
|
|
Dimensions (W x H x D) |
|
|
Net Weight |
|
|
Operating Temperature |
|
|
Certifications |
|
|
RoHS Compliant |
|
|
Country of Origin |
|
|
Global Warming Potential (total) |
16.5 kg CO₂ equivalent |
The Siemens 6ED1055-1MA00-0BA2 is a compact analog input expansion module designed for LOGO! 8 logic controllers. It provides two configurable analog inputs supporting either 0–10 V voltage or 0/4–20 mA current signals. With a 10-bit resolution and IP20 protection, the 6ED1055-1MA00-0BA2 mounts easily on 35 mm DIN rail and consumes only 30 mA at 12/24 V DC. The Siemens 6ED1055-1MA00-0BA2 seamlessly expands control capabilities while remaining backward compatible with previous LOGO! versions, making it an ideal solution for small to mid-sized automation systems requiring analog signal acquisition.
Machine controls and production lines
Pump, filter and transport systems
Building management (HVAC, lighting, security)
Monitoring equipment and surveillance systems
Process control requiring analog sensor input
Level and flow monitoring applications
2 configurable analog inputs (voltage / current)
10‑bit resolution for accurate signal conversion
Ultra-slim design (35.5 mm width, 2 spacing units)
Simple DIN rail mounting
Backward compatible with earlier LOGO! versions
Comprehensive global safety certifications (CE, UL, CSA, FM)
RoHS compliant and environmentally responsible
Reads analog signals from field sensors (pressure, level, temperature, flow)
Converts 0–10 V or 0/4–20 mA inputs to 0–1000 digital values for controller processing
Expands the analog input capacity of LOGO! 8 basic units (up to 8 analog inputs total)
Automatically integrates into the controller’s I/O address map based on base unit settings
Enables analog‑based decision making and closed‑loop control logic within LOGO! programs
Q1: What is the Siemens 6ED1055-1MA00-0BA2 used for?
A1: It adds two analog input channels to a LOGO! 8 controller for reading 0‑10 V voltage or 0/4‑20 mA current sensors.
Q2: Can the 6ED1055-1MA00-0BA2 read PT100 temperature sensors directly?
A2: No, use the AM2 RTD module (6ED1055-1MD00-0BA2) for direct PT100/1000 connection. Alternatively, use an external transmitter with 0‑10 V or 4‑20 mA output.
Q3: What is the resolution of the 6ED1055-1MA00-0BA2?
A3: 10‑bit resolution, normalized to a value range of 0 to 1000.
Q4: What voltage does the Siemens 6ED1055-1MA00-0BA2 require?
A4: 12/24 V DC (tolerance range: 10.8–28.8 V DC), typical current consumption 30 mA.
Q5: How many analog inputs can a LOGO! 8 system have with the 6ED1055-1MA00-0BA2?
A5: A LOGO! 8 system can be expanded to up to 8 analog inputs using multiple AM2 modules.
