SIEMENS · SIMATIC ET 200SP HA
6DL1193-6TP00-0DH1
Type H1 Terminal Block
|
TERMINAL DESIGN
32 PUSH-IN
22.5 mm wide
|
|
Reference: Internal reference junction · Potential group: New load group
Email InquiryWhatsApp[email protected]|+86 18159889985 |
|
|
OFFICIAL PRODUCT OVERVIEW
Type H1 terminal base for ET 200SP HA
SIMATIC ET 200SP HA terminal block with 32 push-in terminals, internal reference temperature and a new load group. Designed as the mechanical and electrical field-wiring base for one compatible plug-in I/O module.
| ||||
 | ||||
| ||||
| Order note: Current unit condition, stock status, test scope and dispatch date are subject to verification before quotation. |
|
SYSTEM POSITION
Field wiring → H1 base → I/O module
The H1 terminal block forms the mechanical and electrical interface between one compatible ET 200SP HA plug-in module and field wiring. It begins a new potential group rather than continuing supply from the left.
|
|
Selection checkpoint: Match terminal-block coding, the selected I/O module and the adjacent potential-group arrangement.
|
|
Key dimensions and ratings
|
|||
|
Supply
|
24 V DC
|
Slots
|
1
|
|
Width
|
22.5 mm
|
Height
|
175 mm
|
|
Depth
|
77 mm
|
Weight
|
Approx. 80 g
|
|
Group current
|
Up to 10 A at 70 °C*
|
Process terminal
|
Max. 2 A
|
|
*Subject to the permitted potential-group and module configuration in Siemens documentation.
|
|||
 |
|

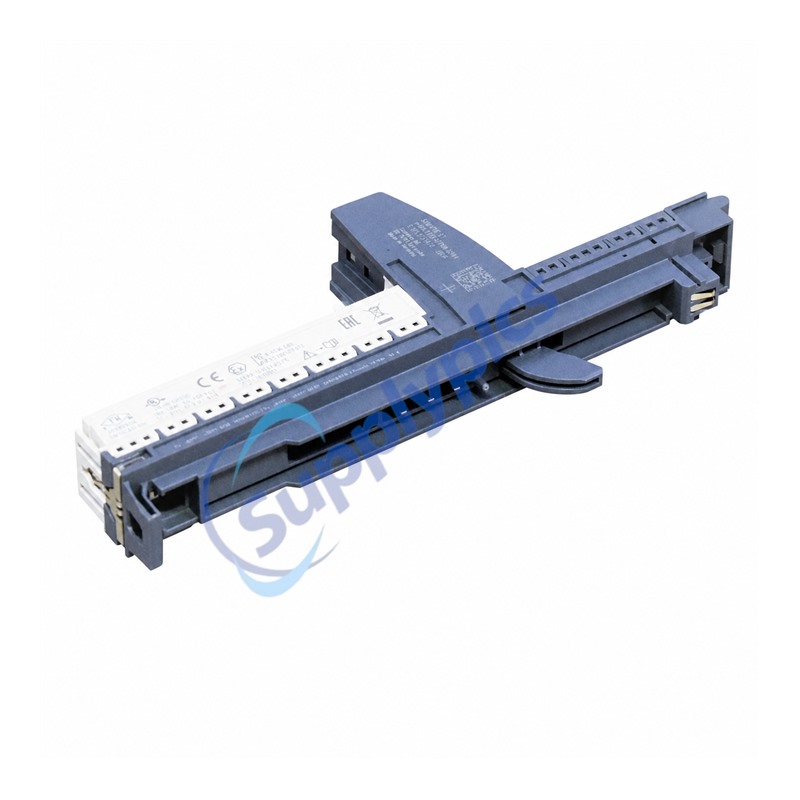

CONSTRUCTION

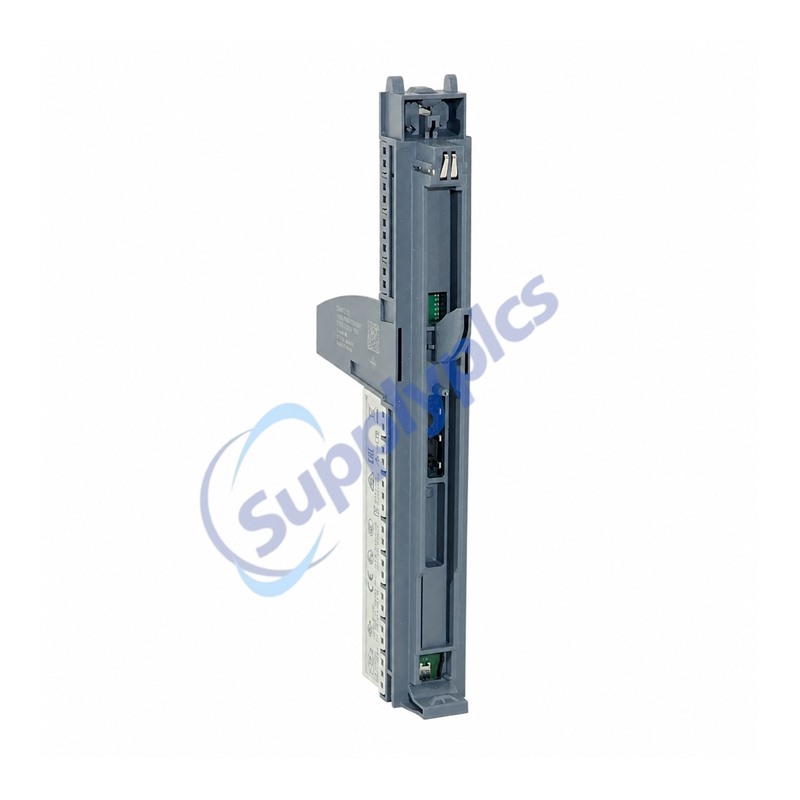

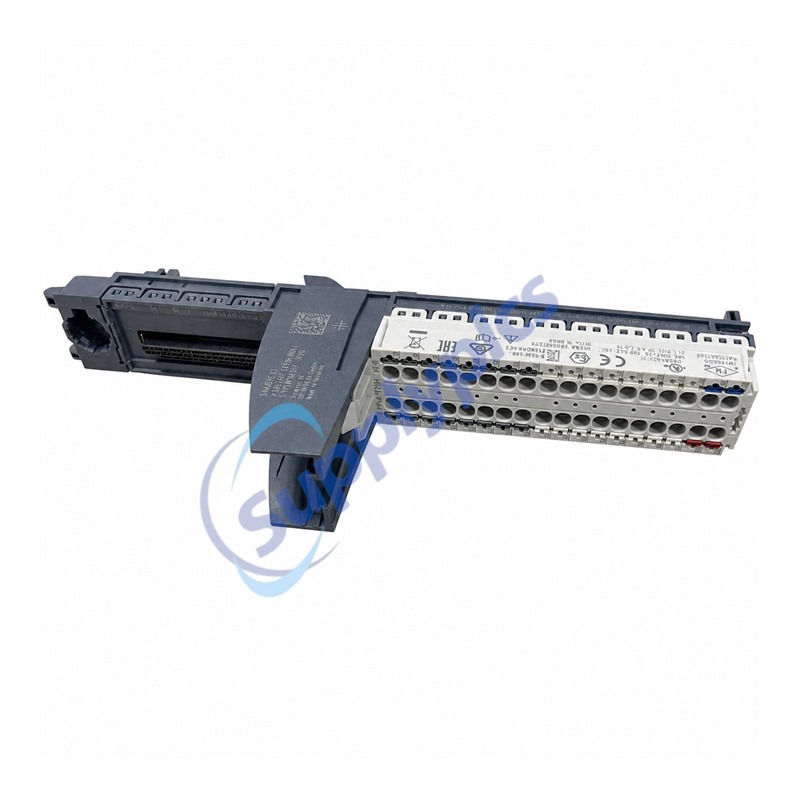

Single-operation push-in terminal base
Light-gray housing, 32 field terminals, module coding interface and a new-potential-group function. Verify conductor preparation, terminal numbering and module/base compatibility against the current Siemens manual.
|
|
REFERENCE METHOD
INTERNAL
|
Thermocouple compensation reference
Official product data identifies an internal reference junction for temperature compensation. Use only with a compatible module and confirmed configuration. Verify thermocouple type, channel assignment and compensation method in the applicable Siemens module manual.
|
|
Before installation
|
||||||||
|
|
OPERATING REFERENCE
Temperature and protection
|
||
|
||
|
External protection: 24 V DC / 10 A using a suitable MCB (characteristic B or C) or suitable fast-response/electronic fuse. Confirm the applicable system design before commissioning.
|
|
PURCHASE VERIFICATION
Evidence before order
|
||||||||||||
|
||||||||||||
|
Request the seller company details, bank beneficiary information and written commercial terms before payment.
|
|
COMMON QUESTIONS
Is the exact unit available now?
Availability is confirmed against the complete model, quantity and destination before quotation.
Can I receive current product evidence?

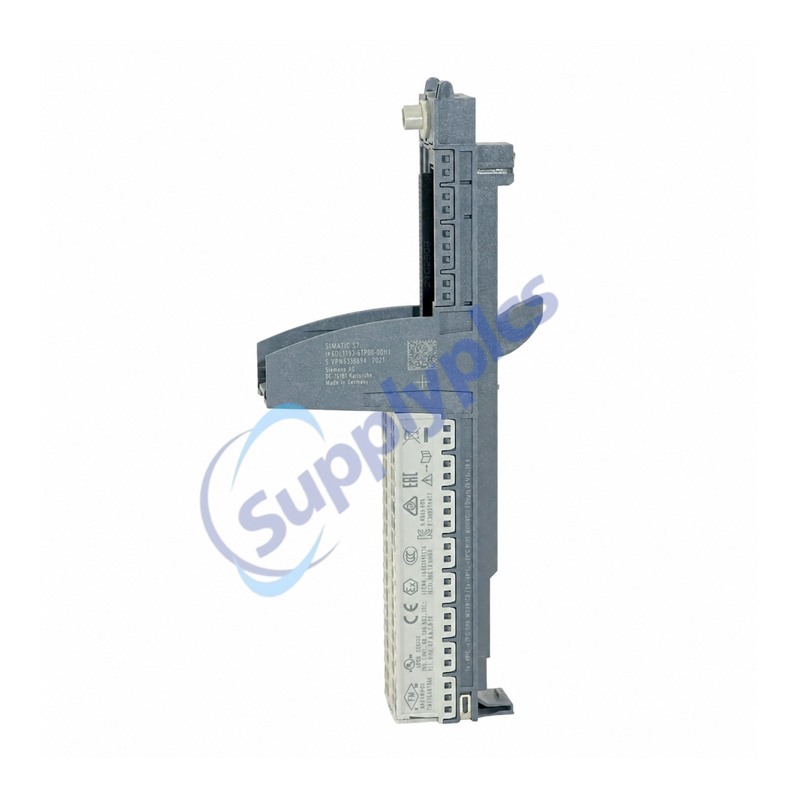

Current overall, connector and nameplate photos can be supplied on request. Condition, test scope, warranty and dispatch timing are stated in writing.
|
